Patio Doors
Fixed Louver wood Doors

Fixed Louver Doors

Dealer

Specifications - (Required)

Wood Species

Western Red Cedar

Spanish Cedar

Sapele Mahogany

Cypress

Shutters are avaiable in a variety of species. We always recommend Cedar.

Paint Grade

Stain Grade

Quantity

Each

Width

Widths are available in 1/16" increments

Length

Lengths are available in 1/16" increments with the exception of Movable Louver Products.

Finishing

We offer a variety of finishing options.

Square Top

Arch Top

Square top shutters are the most common however an Arch top shutter may be required when a curve top window is being covered

Config / design - (Required)

Louver Size

Louvers are available in a variety of shapes and sizes.

Number of Sections

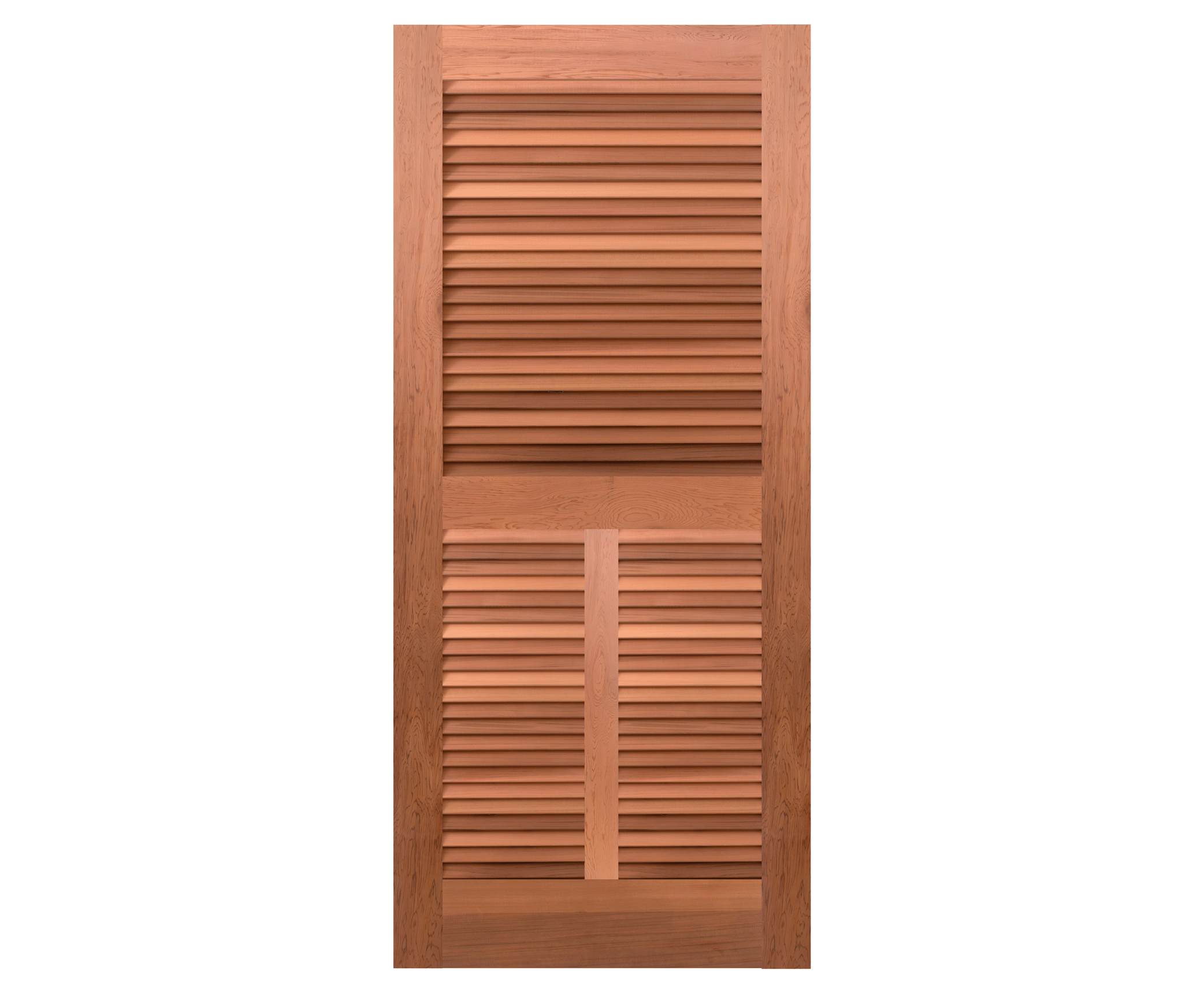

Substile Options

Top Rail Width

Top rail widths may be customized for an additional charge. Default Specification is Populated.

Bottom Rail Width

Botttom rail widths may be customized for an additional charge

Side Stile Width

Stile width may be customized for an additional charge

Vertical Substile Width

Door Frame Thickness

Custom options - (Optional)

Decorative Cutouts

Download Decorative Cutout Options

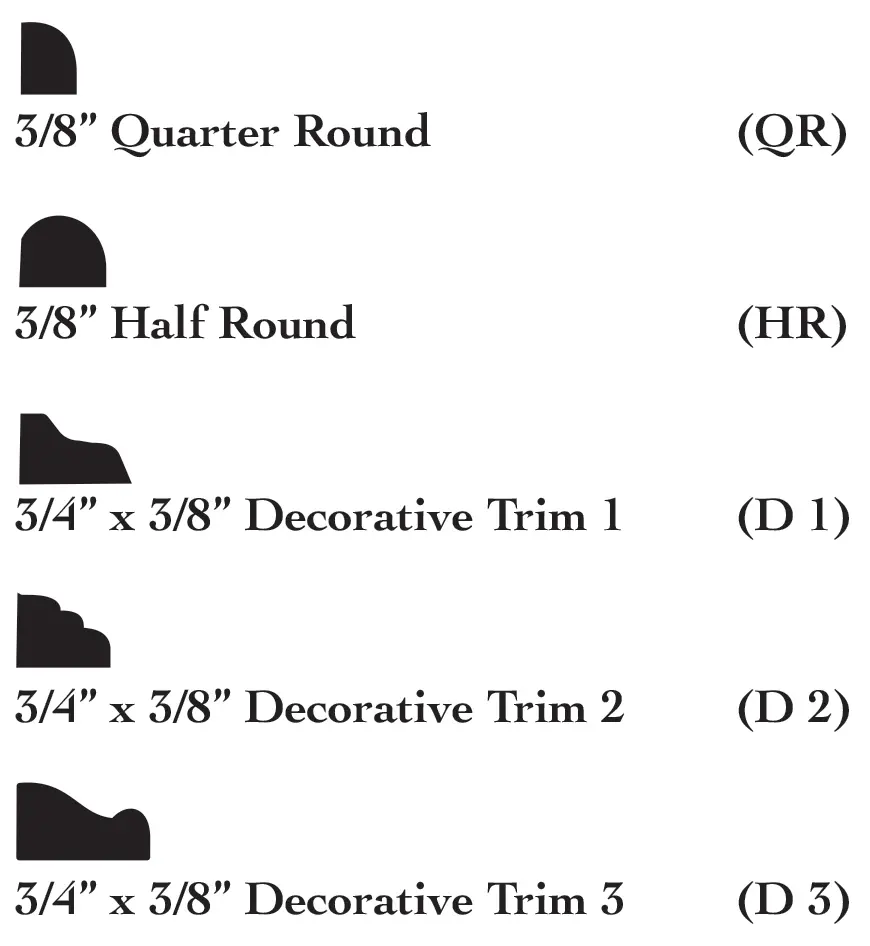

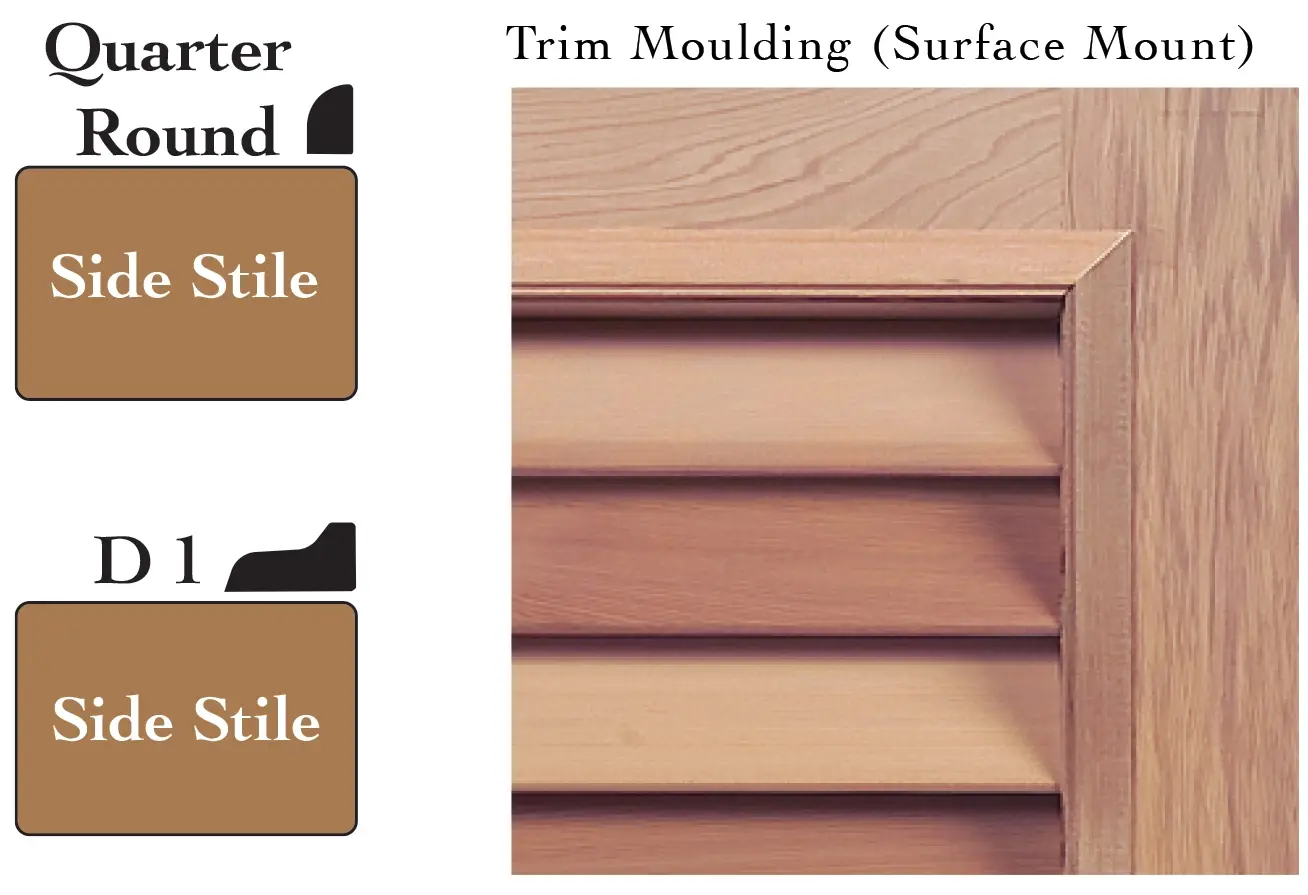

Decorative Trim

Trim may be applied to one or both sides of the the shutter.

On Panel Shutters the trim is inset inside the stiles around the panel.

Custom Notes / Comment

Add To Quote

Product details

Specifications
Design Options

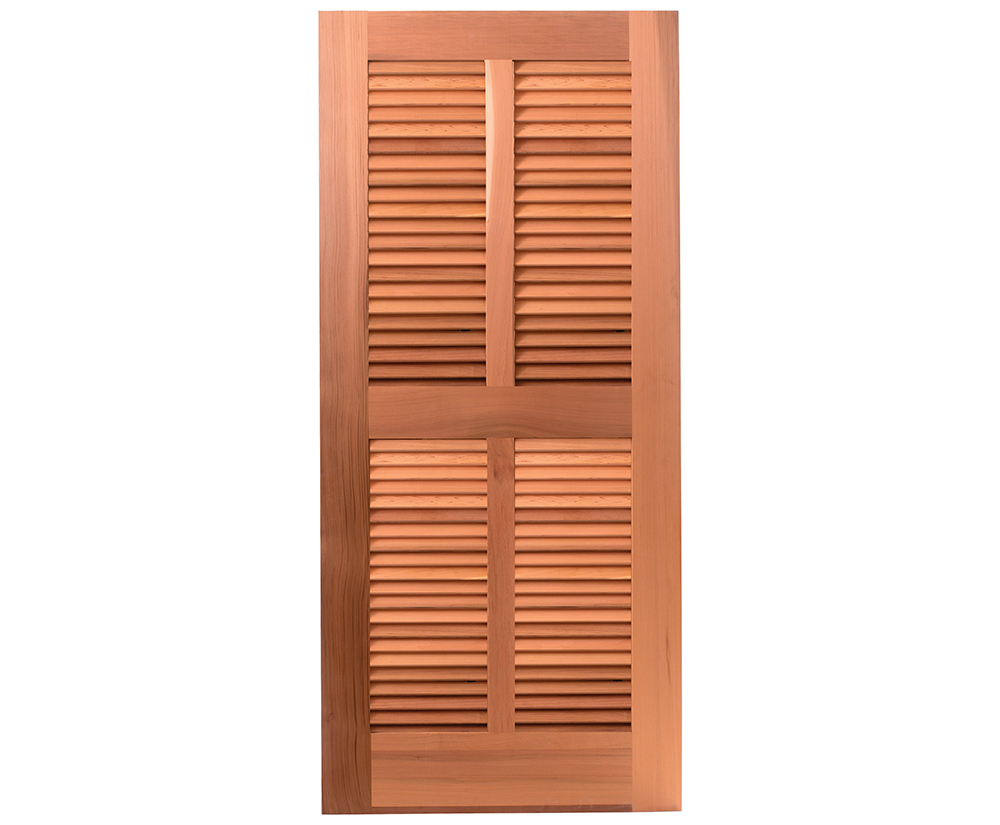

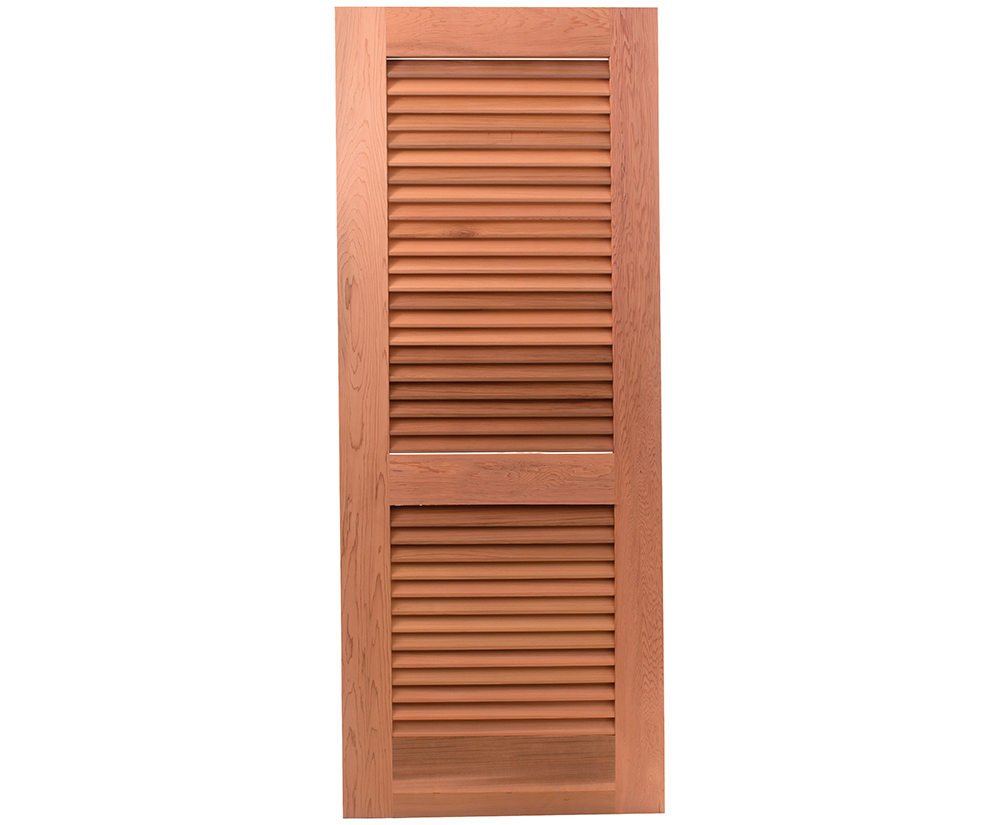

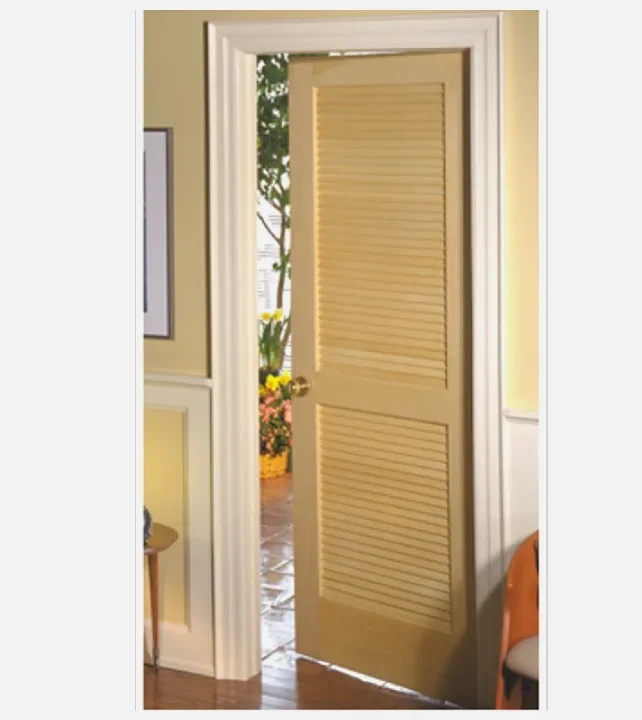

1-3/8” FIXED LOUVER DOORS

AVAILABLE WOOD SPECIES

Our Fixed Louver Doors are custom built with the highest quality woods available. All of our exterior and interior woods are clear, and without finger joints.

Exterior Wood Species

Western Red Cedar, Spanish Cedar, Cypress, and Sapele Mahogany.

Interior Wood Species

Basswood, Sapele Mahogany, Cypress, Red Oak, Pine, Soft Maple.

* Additional Wood species available upon request. Quantity limits may apply. *

FINISHING OPTIONS

*Additional charges apply.

OPTION 1:

Spray Primed*

Sprayed with top quality oil-based primer; light sanding recommended.

OPTION 2:

Primed and Sanded*

Sprayed with top quality oil-based primer, sanded and joints sealed; ready for finishing.

OPTION 3:

Primed and Finished*; Ready for Installation

Each shutter is sanded, primed with two coats of oil-based primer and sanded again. Then the primed shutters are finished with a premium exterior paint. Custom color charge may be applied to orders less than 60 square feet.

* Color finishes by Sherwin Williams, Benjamin Moore, and PPG may be matched by supplying the manufacturer's brand name, color number and color name. Anything else can be matched by swatch.

1-3/8” Flush Stile & Rail Frame Construction

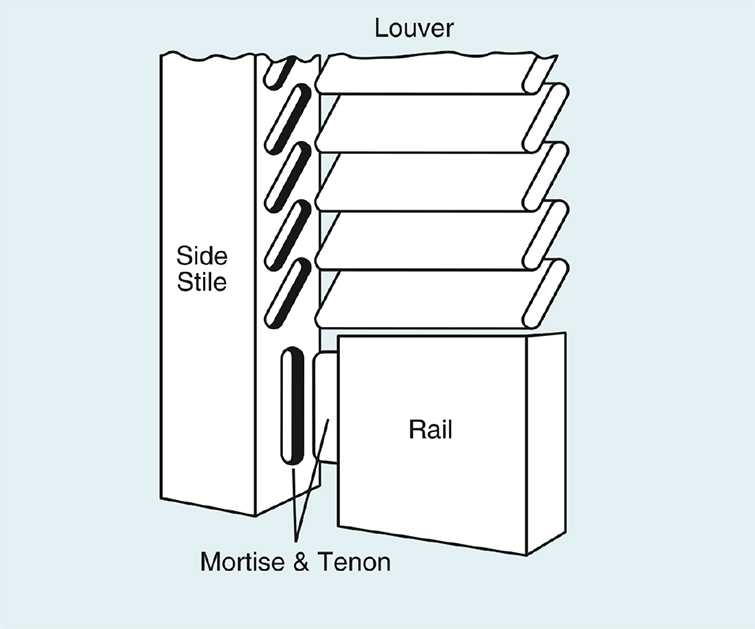

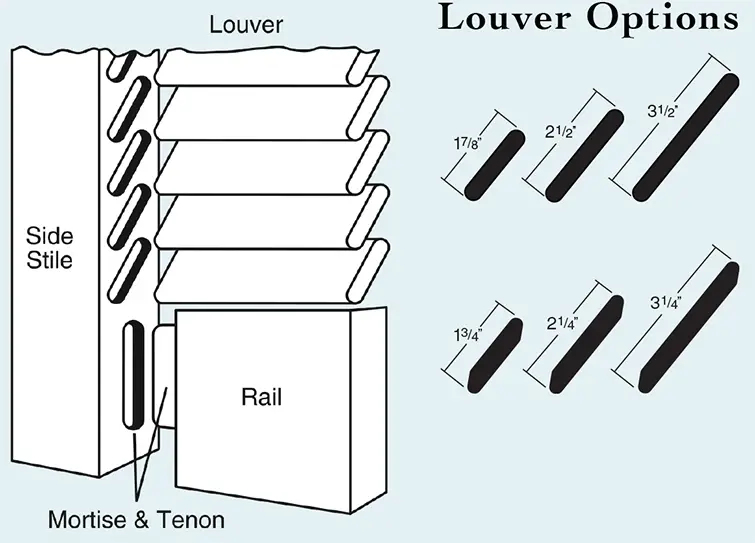

Mortise & Tenon Construction

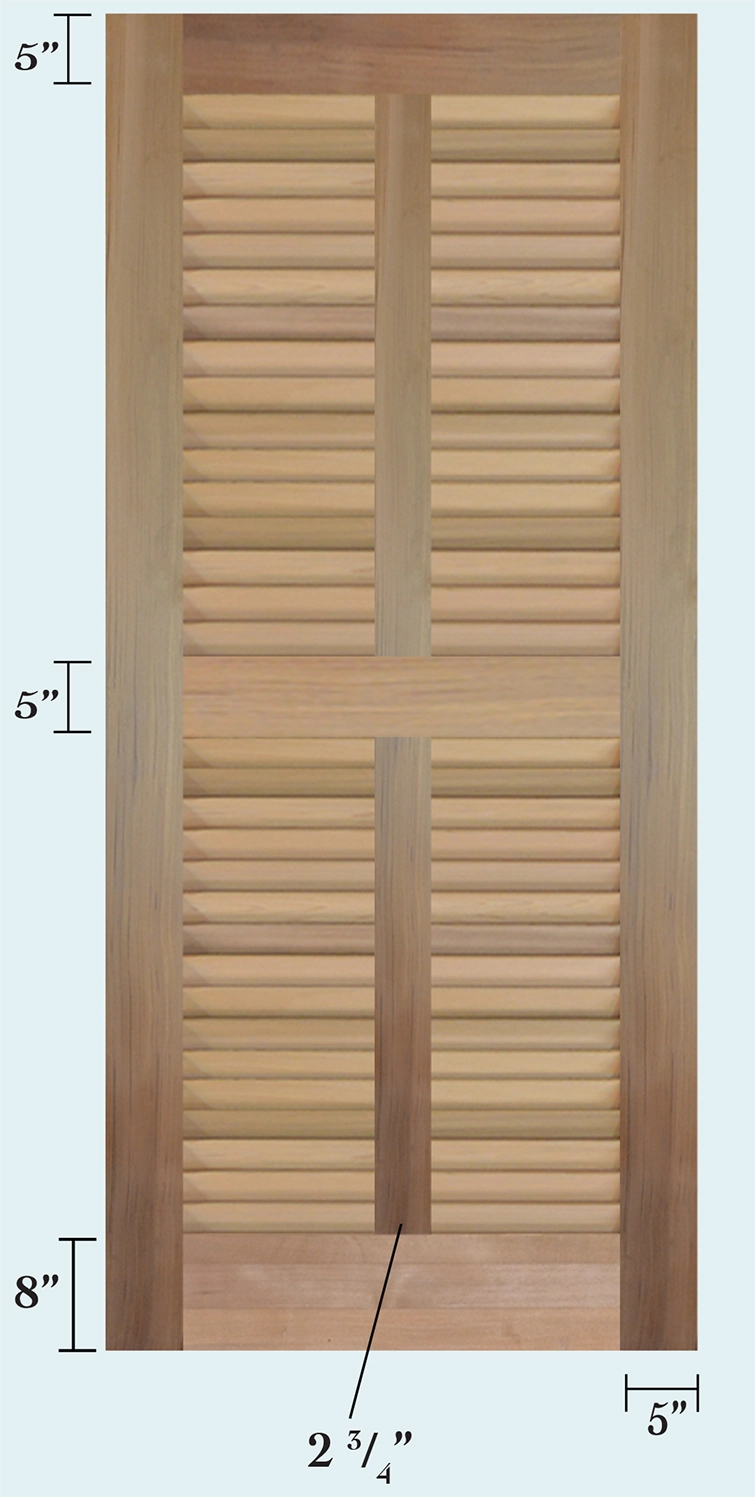

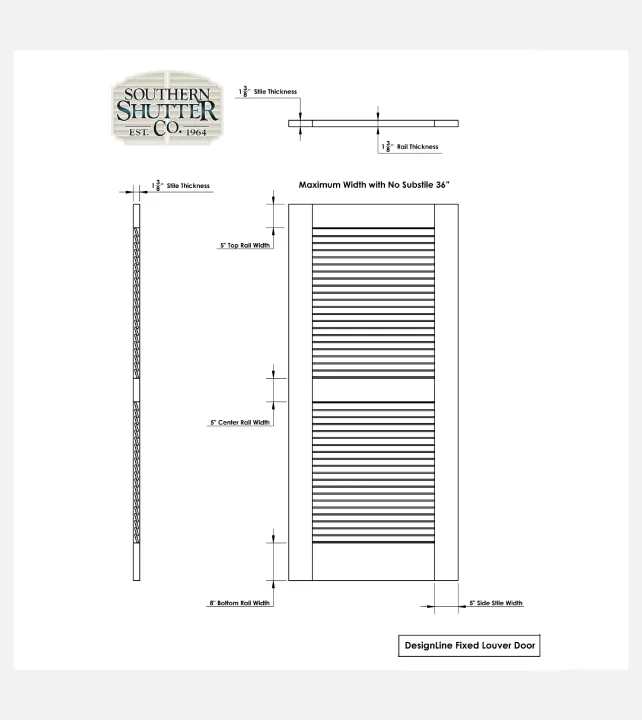

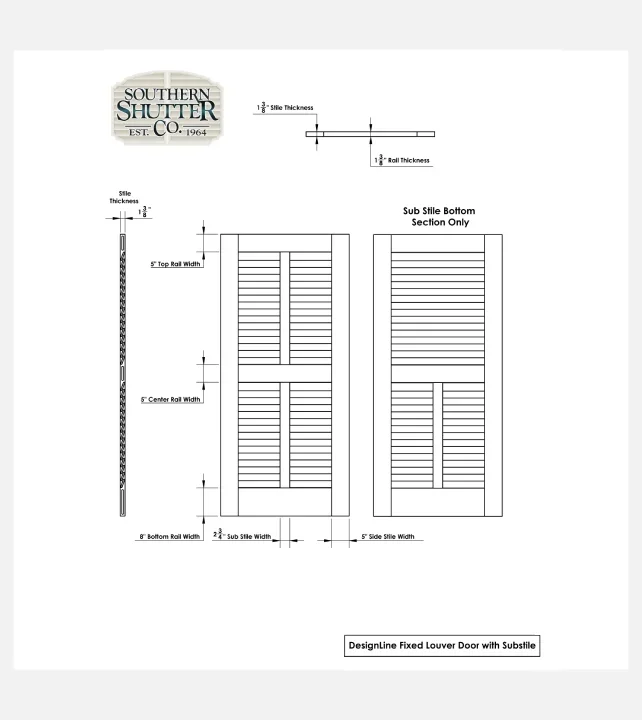

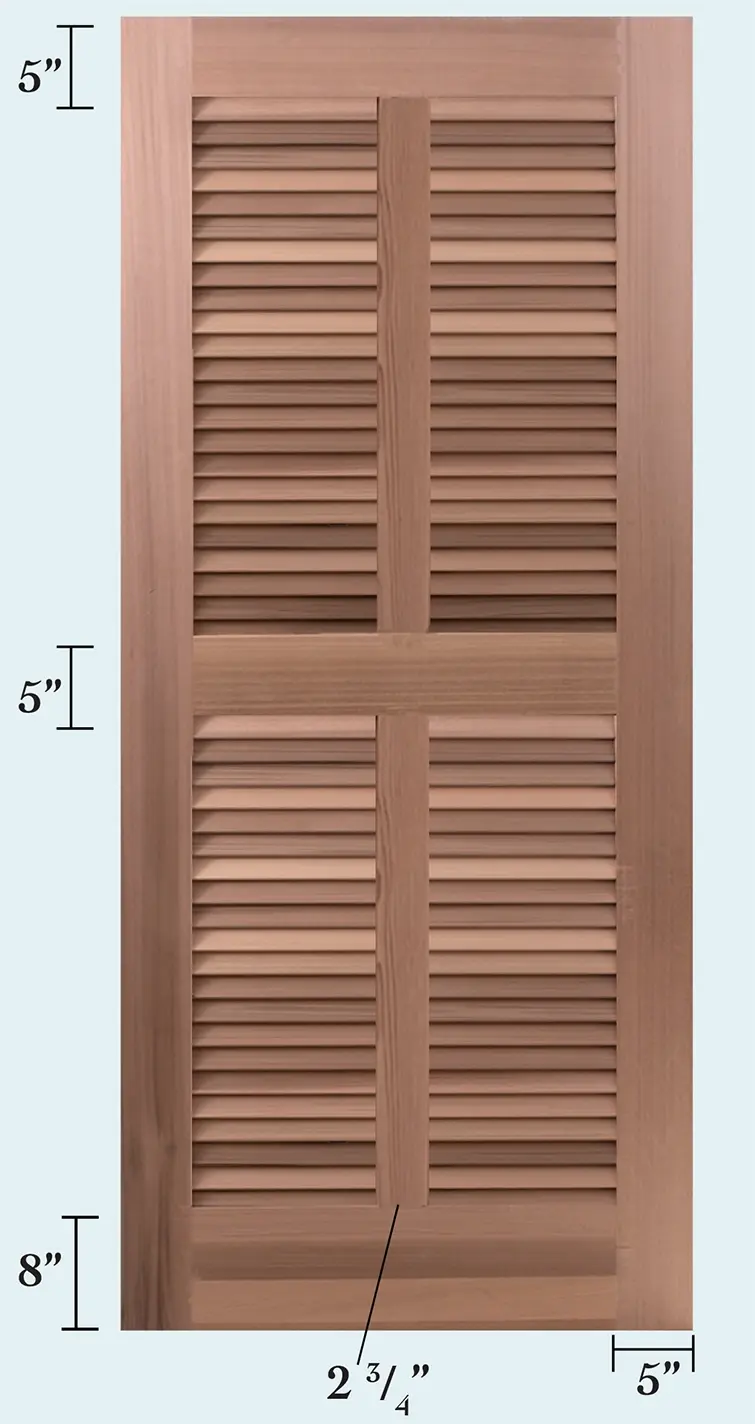

SPECIFICATIONS

Side Stiles

5" x 1-3/8"

Top Rail

5" x 1-3/8"

Bottom Rail

8" x 1-3/8"

Vertical SubStile

2-3/4" x 1-3/8"

Center Rail

5" x 1-3/8"

Available Thickness Options

1-3/8", 1-5/8", 1 3/4"

Louver Thickness

3/8"

Available Louver Widths

See Below

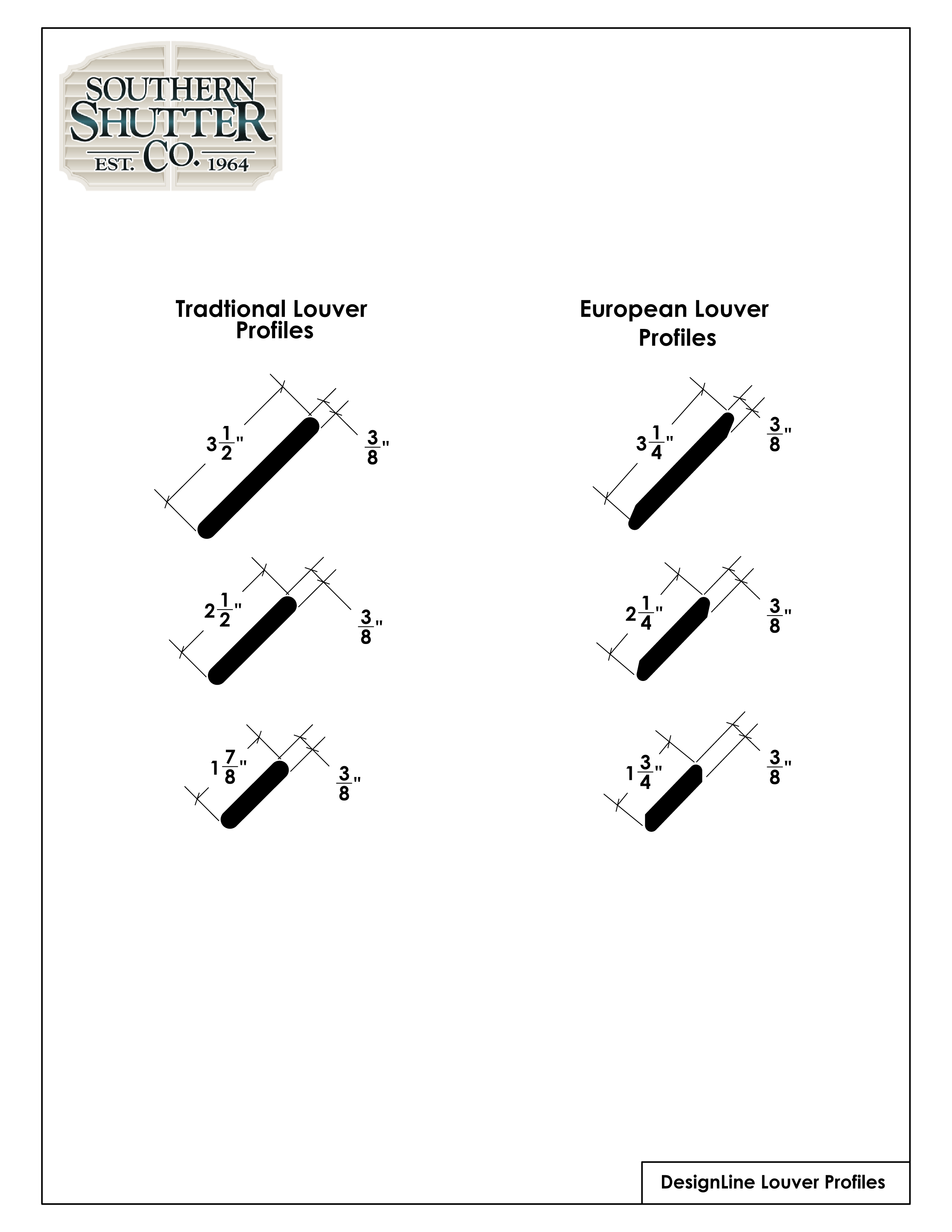

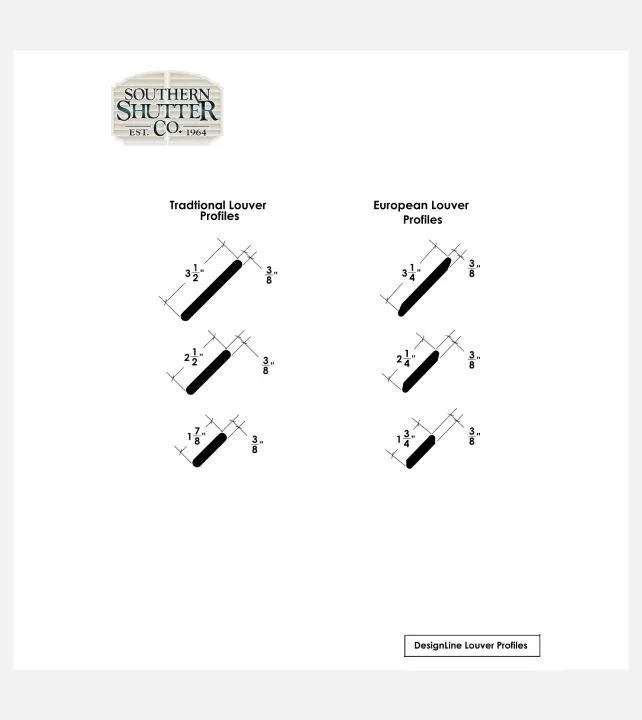

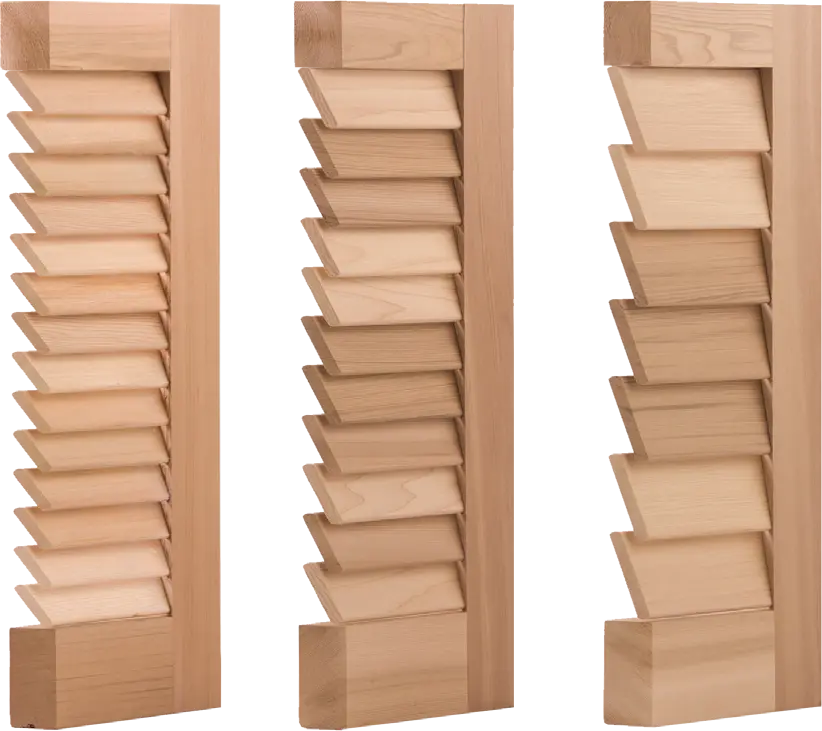

LOUVER OPTIONS

Traditional Louver Profiles

Thickness:

3/8"

Widths:

1-7/8”, 2-1/2” or 3-1/2”

European Louver Profiles

Thickness:

3/8"

Widths:

1-3/4”, 2-1/4” or 3-1/4”

Custom Door Options

Exterior Fixed Louver Doors manufactured by Southern Shutter can be customized to meet most customers specifications.
For additional options call 1-800-344-8590 or visit our website www.southernshutter.com.
