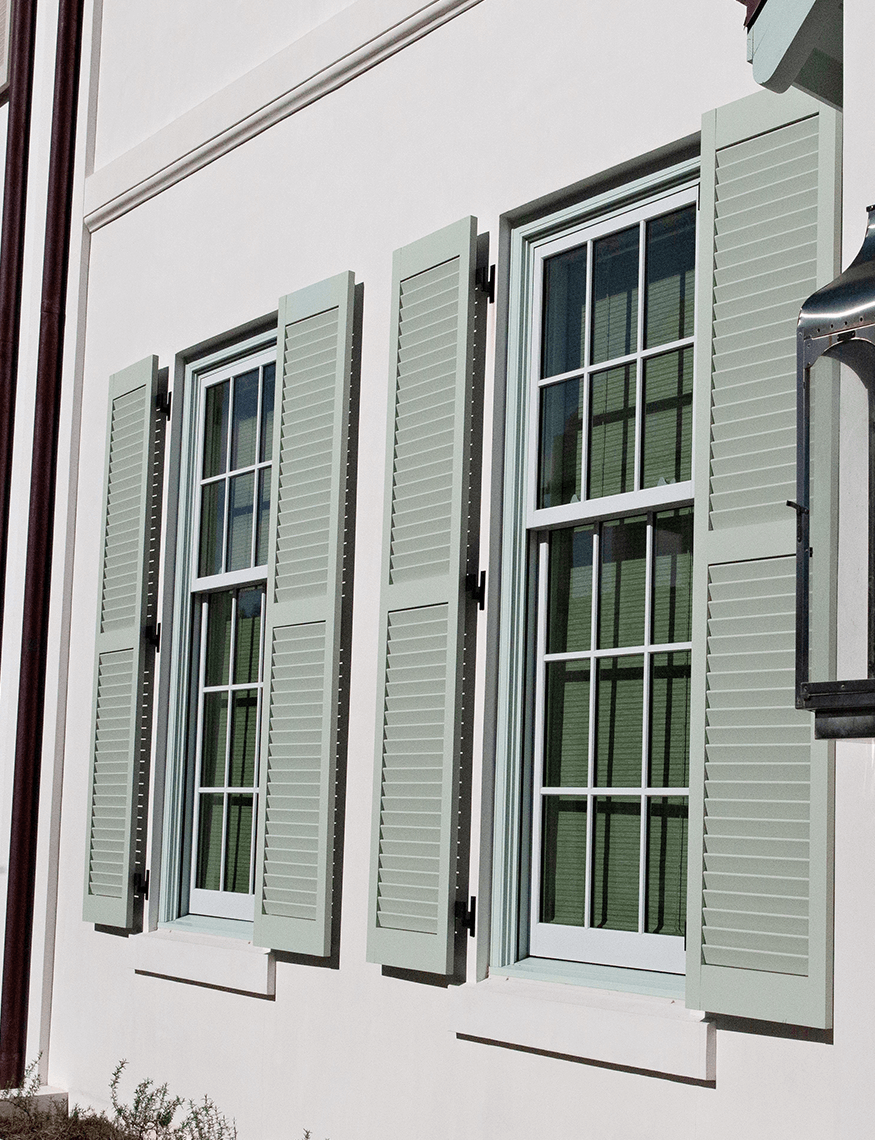

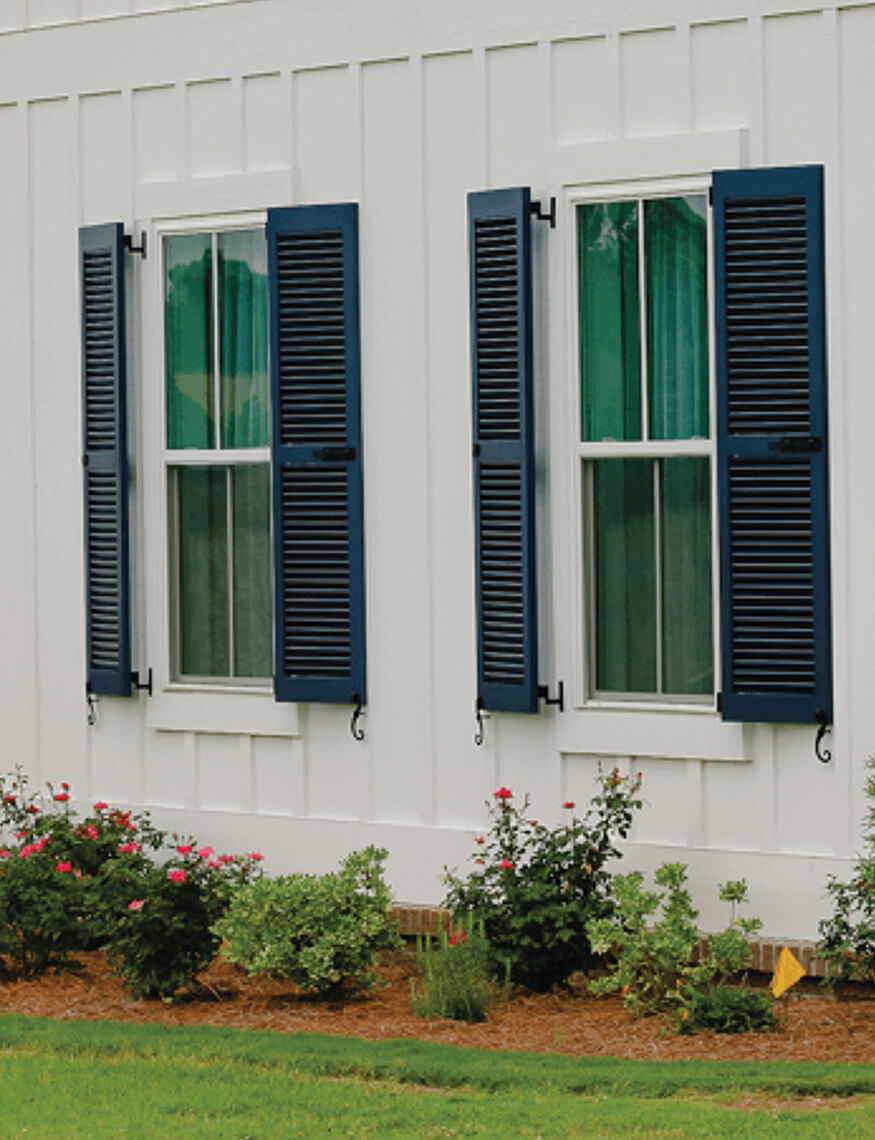

Premium Fiberglass Composite Fixed Louver

Product details

Premium Composite Shutters are crafted with decay resistant materials and a low-maintenance finish for long-lasting durability. They are made of composite materials, providing both functionality and authenticity.

Our Premium Composite Shutters are designed for use with functional hinges and hardware.

Sold unfinished or finished painted. Ready to install.

*Additional charges apply.

Exterior Finishing Options

Factory Finished*; Ready for Installation

Each shutter is wiped clean, prepped and prepared for the finish topcoat. Then the shutters are finished with premium Acrylic Urethane Enamel exterior paint.

Custom color charge may be applied to orders less than 60 square feet.

SPECIFICATIONS

Composite Shutters are factory finished with a commercial coating that meets or exceeds AAMA specifications 613 & 623.

Vinyl safe Heat Reflective Colorants are required for colors with a (LRV) * light reflective value equal to or greater than 55 (Flat Black = 0, pure white =100).*

* Color finishes by Sherwin Williams, Benjamin Moore, and PPG may be matched by supplying the manufacturer's brand name, color number and color name. Anything else can be matched by swatch.

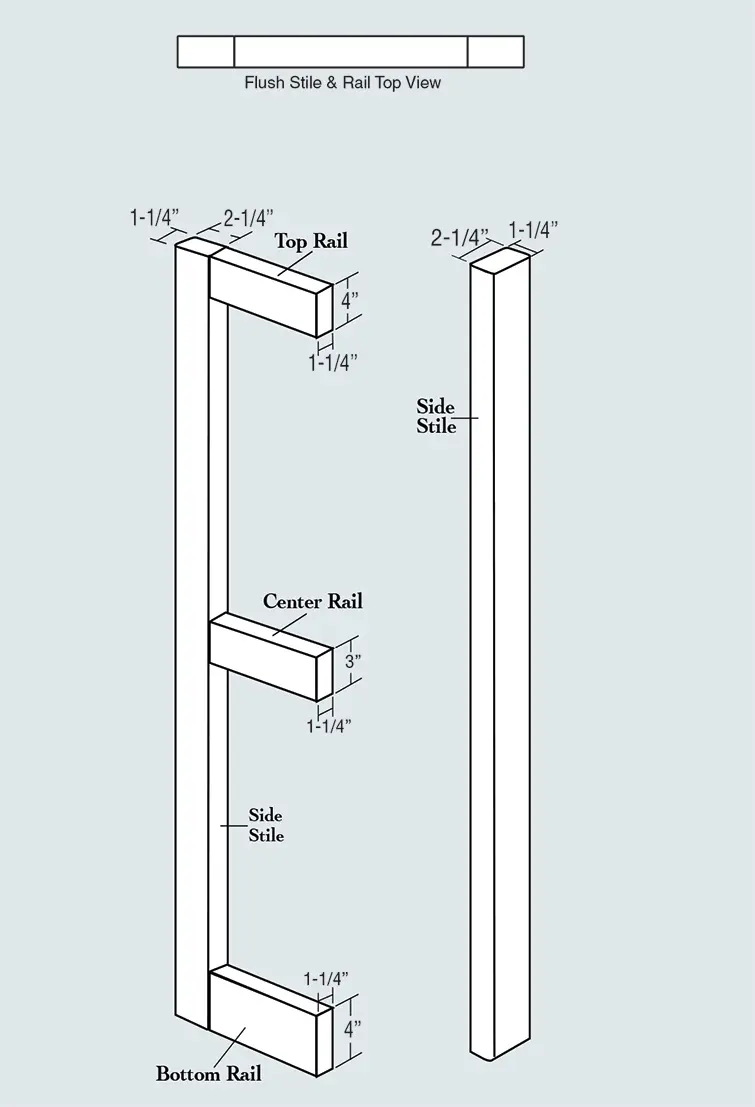

1-1/4” Flush Stile & Rail Frame Construction

Mortise & Tenon Construction

SPECIFICATIONS

Side Stiles

2 1/4” x 1-1/4"

Top Rail

4" x 1-1/4"

Bottom Rail

4" x 1-1/4"

Center Rail

3" x 1-1/4"

Louver Thickness

5/16”, 3/8”

Louver Widths

1-1/2”, 1-7/8”, 2 1/2”

Maximum Width

30”

Custom Shutter Options

*Additional charges may apply

Fiberglass/Composite Fixed Louver Shutters manufactured by Southern Shutter can be customized to meet most customers specifications. For additional options call 1-800-344-8590 or visit our website www.southernshutter.com.

Custom Paint Color
Rail Width Modification
3 Sections Rail Layout
4 Sections Rail Layout
Mouse Holes
False Control Rods
Solid Rail Arch (6” maximum drop)

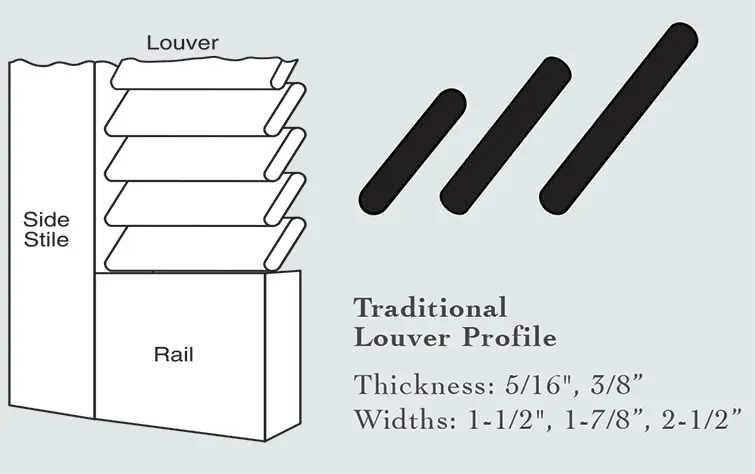

COMPOSITE LOUVER OPTIONS

Composite Louver Profiles

5/16” x 1-1/2”

3/8” x 1-7/8”

3/8” x 2-1/2”

Premium Fiberglass Composite

Fixed Louver Shutters

2 Equal Sections
2-1/2” Fixed Louver

3 Equal Sections
2-1/2” Fixed Louver

2 Equal Sections
1-7/8” Fixed Louver

3 Equal Sections
1-7/8” Fixed Louver

3 Sections Small
Top 1-7/8” Fixed Louver

2 Equal Sections
1-7/8” Fixed Louver with Eyebrow Arch Maximum Drop 7”

2 Equal Sections
1-7/8” Fixed Louver with Quarter Round Arch

2 Equal Sections Raised Panel Over
1-7/8” Fixed Louver Combination

3 Equal Sections with Small Raised Panel Center and
1-7/8” Fixed Louver Combination

2-1/2” louver
No Center Rail

Measuring & Installation Guide for Exterior Shutters

Take careful Measurements.

It is important to measure your shutter pocket at the top and the bottom and on both sides, because window frames may not always be square.

Remember to measure and re-measure to verify your numbers before selecting your shutters and the desired mounting proceedure.

Select the best mounting & hardware options.

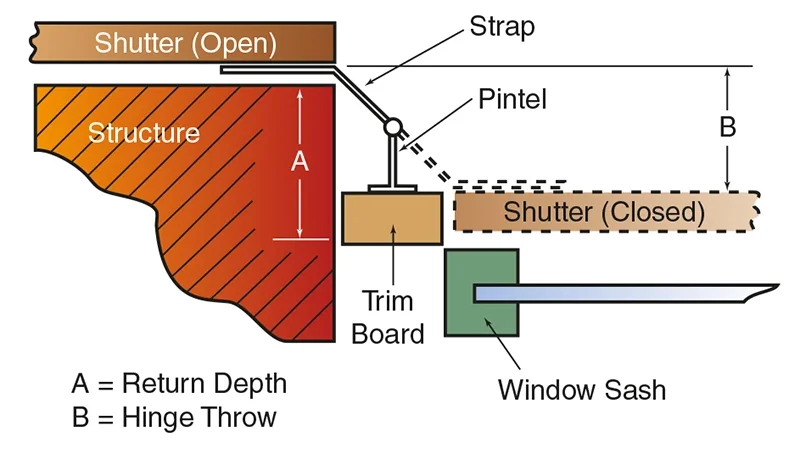

Terminology

Shutter Pocket - The opening into which the shutters will close.

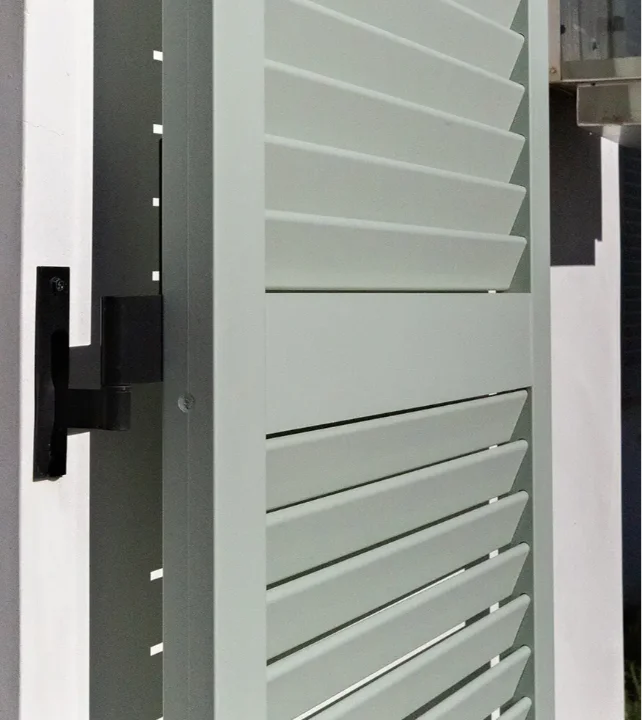

Pintel - The male part of the hinge set that attaches to the house.
Strap - The female part of the hinge set that attaches to the shutter.
Siding Material - The siding material that is used on the house i.e. brick, plank, stucco.
Return Depth - The distance in inches, from the window sash to the outer edge of the structure (See A).
Pintel Offset - The distance in inches, between the plate that screws to the house and the pin that the strap sits on.
Strap Offset - The distance in inches, from the pintel pin to the inner part of the shutter.
Hinge Throw - The pintel offset plus the strap offset. The distance needed for the shutter to clear the structure when in the open position (See B).

Questions that must be Answered.

What type of siding is on the house around the window?
Ex. Brick, stucco, stone, plank, vinyl...
What type of moulding (180 brickmould, 1x4 flat mold, etc.) is around the window or does the siding material butt up to the window with no trim board at all?
What is the return depth in inches, from the outside edge of the trim board to the face of the sash itself?
How deep is the pocket or frame the shutter will close into.
Where will the pintel be placed?

Quality hardware provides a quality installation.

Southern Shutter Company offers a complete line of quality hardware for any exterior application.

Our hardware provides the finishintg touch for your functional - as well as decorative shutter installation.

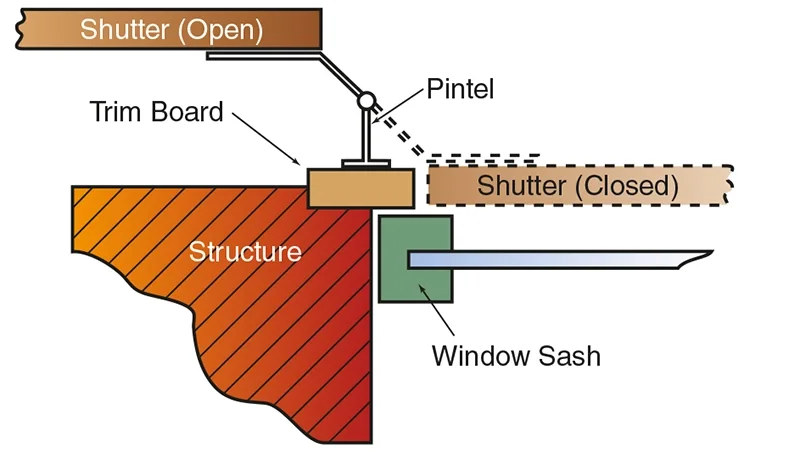

INSIDE CASING MOUNT

INSIDE MOUNT: TRIMMED POCKET

with wood or composite trim with appropriate depth for shutter pocket. Note: Trim board must be as thick as the shutter, plus clearance for shutter rotation.

INSIDE MOUNT: BRICK OR MASONRY POCKET

with appropriate depth for shutter pocket. Note: Strap and Pintel are equal allowing shutter to close flush.

INSIDE MOUNT: RECESSED TRIM POCKET

Allowing for closure inside window trim and throwing out and around structure.

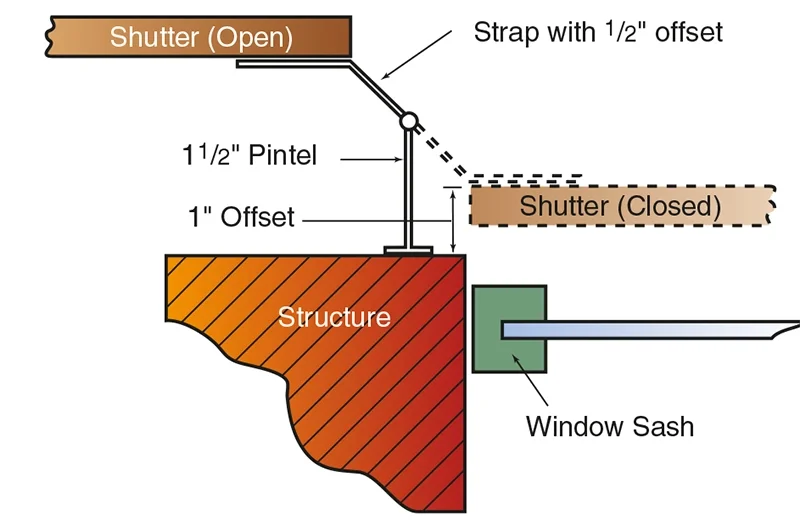

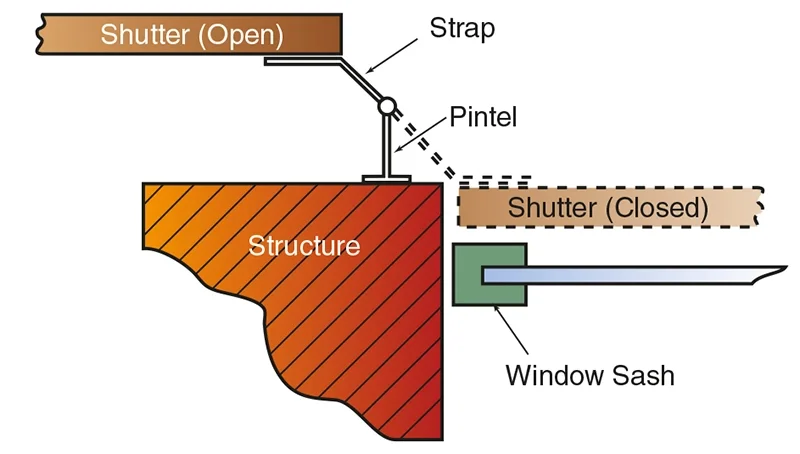

OUTSIDE CASING MOUNT

OUTSIDE MOUNT: NO POCKET

with little or no depth for shutter pocket.
