Premium Fiberglass Composite Paneled
Product details
Premium Composite Shutters are crafted with decay resistant materials and a low-maintenance finish for long-lasting durability. They are made of composite materials, providing both functionality and authenticity.
Our Premium Composite Shutters are designed for use with functional hinges and hardware.
Sold unfinished or finished painted. Ready to install.
*Additional charges apply.
Exterior Finishing Options
Factory Finished*; Ready for Installation
Each shutter is wiped clean, prepped and prepared for the finish topcoat. Then the shutters are finished with premium Acrylic Urethane Enamel exterior paint.
Custom color charge may be applied to orders less than 60 square feet.
SPECIFICATIONS
Composite Shutters are factory finished with a commercial coating that meets or exceeds AAMA specifications 613 & 623.
Vinyl safe Heat Reflective Colorants are required for colors with a (LRV) * light reflective value equal to or greater than 55 (Flat Black = 0, pure white =100).*
* Color finishes by Sherwin Williams, Benjamin Moore, and PPG may be matched by supplying the manufacturer's brand name, color number and color name. Anything else can be matched by swatch.

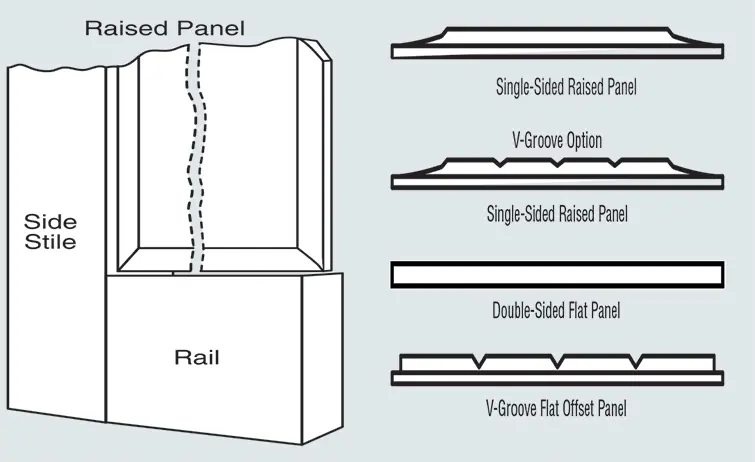

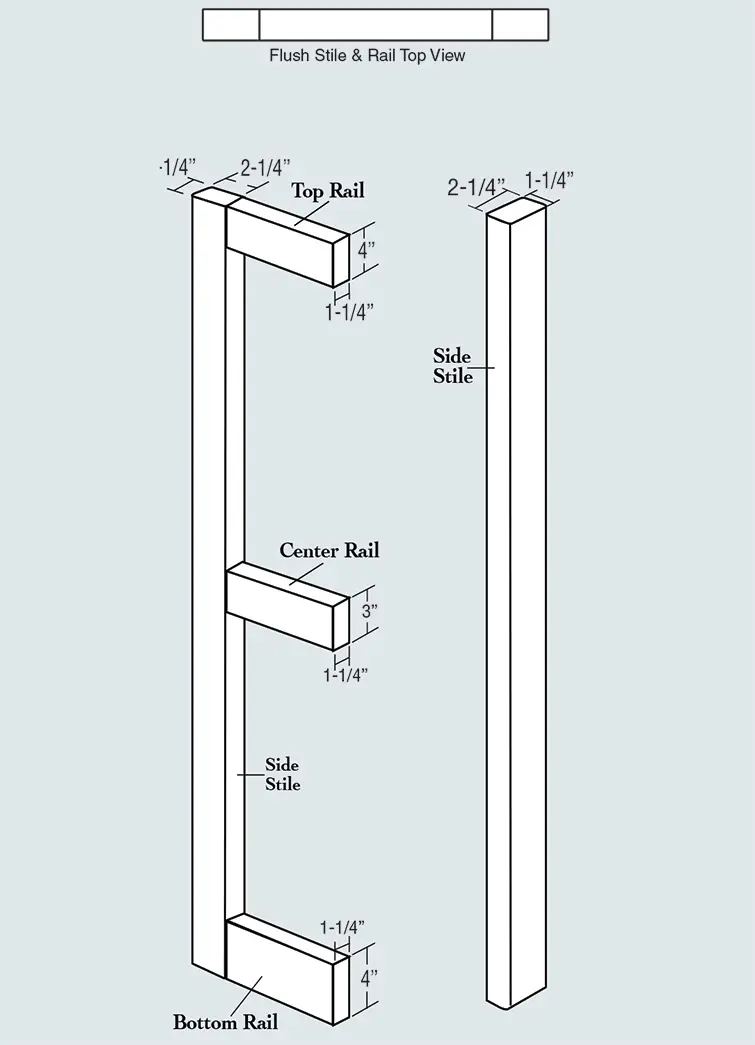

1-1/4” Flush Stile & Rail Frame Construction
Mortise & Tenon Construction
Custom Shutter options
*Additional charges may apply.
Fiberglass/Composite Paneled Shutters manufactured by Southern Shutter can be customized to meet most customers specifications. For additional options call 1-800-344-8590 or visit our website www.southernshutter.com.
- Custom Paint Color
- Rail Width Modification
- 3 Sections Rail Layout
- 4 Sections Rail Layout
- Basic Curve or Rake
- Solid Rail Arch (6” maximum drop)
- Half Circle Arch Top
- Standard Decorative Cutout
- Custom Design Decorative Cutout (call for Quote)

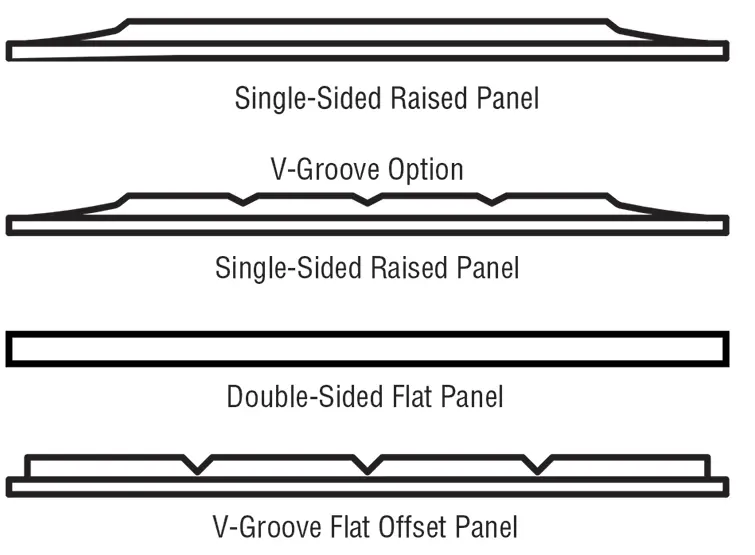

PANEL OPTIONS
DECORATIVE CUTOUTS
Cutouts and carvings are offered in a wide variety of standard designs. For Custom Cutouts Call for Quote.
Acorn (C1)
Anchor (C2)
Candlestick (C3)
Spanish Cross (C4)
Diamond (C5)
Dove (C6)
Fleur-de-Lis (C7)
Heart (C8)
Pineapple (C9)
Crescent Moon (C10)
Squirrel (C11)
Swiss Cross (C12)
Tulip (C13)
Ornamental (C14)
Cedar Tree (C15)
Clover (C16)
Fancy Fluerde-Lis (C17)
Sea Horse (C18)
Fancy Anchor (C19)
Sail Boat (C20)
Premium Fiberglass/Composite
Paneled Shutters
2 Equal Sections
Raised Panel
2 Equal Sections
Flat Panel

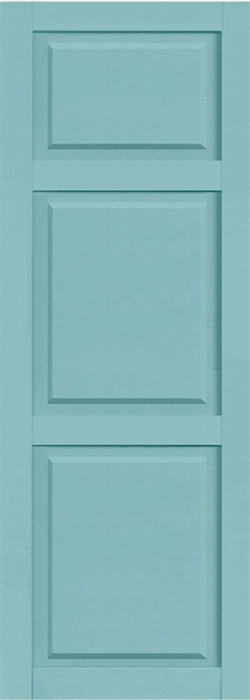

3 Equal Sections
Raised Panel
3 Sections with Small Middle Section Raised Panel
2 Equal Sections Flat Offset V-Groove Panel over V-Groove Raised Panel
2 Equal Sections Flat Panel with Eyebrow Arch
2 Equal Sections Raised Panel with Quarter Round Arch
3 Sections with Small Top Section Raised Panel
2 Equal Sections Raised Panel Over 1-7/8” Fixed Louver Combination
2 Equal Sections Raised Panel with Decorative Cutout
Measuring & Installation Guide for Exterior Shutters
Take careful Measurements.
It is important to measure your shutter pocket at the top and the bottom and on both sides, because window frames may not always be square.
Remember to measure and re-measure to verify your numbers before selecting your shutters and the desired mounting proceedure.
Select the best mounting & hardware options.
Terminology
- Shutter Pocket - The opening into which the shutters will close.
- Pintel - The male part of the hinge set that attaches to the house.
- Strap - The female part of the hinge set that attaches to the shutter.
- Siding Material - The siding material that is used on the house i.e. brick, plank, stucco.
- Return Depth - The distance in inches, from the window sash to the outer edge of the structure (See A).
- Pintel Offset - The distance in inches, between the plate that screws to the house and the pin that the strap sits on.
- Strap Offset - The distance in inches, from the pintel pin to the inner part of the shutter.
- Hinge Throw - The pintel offset plus the strap offset. The distance needed for the shutter to clear the structure when in the open position (See B).
Questions that must be Answered.
- What type of siding is on the house around the window?
Ex. Brick, stucco, stone, plank, vinyl... - What type of moulding (180 brickmould, 1x4 flat mold, etc.) is around the window or does the siding material butt up to the window with no trim board at all?
- What is the return depth in inches, from the outside edge of the trim board to the face of the sash itself?
- How deep is the pocket or frame the shutter will close into.
- Where will the pintel be placed?
Quality hardware provides a quality installation.
Southern Shutter Company offers a complete line of quality hardware for any exterior application.
Our hardware provides the finishintg touch for your functional - as well as decorative shutter installation.
INSIDE CASING MOUNT
INSIDE MOUNT: TRIMMED POCKET
with wood or composite trim with appropriate depth for shutter pocket. Note: Trim board must be as thick as the shutter, plus clearance for shutter rotation.
INSIDE MOUNT: BRICK OR MASONRY POCKET
with appropriate depth for shutter pocket. Note: Strap and Pintel are equal allowing shutter to close flush.
INSIDE MOUNT: RECESSED TRIM POCKET
Allowing for closure inside window trim and throwing out and around structure.
OUTSIDE CASING MOUNT
OUTSIDE MOUNT: NO POCKET
with little or no depth for shutter pocket.
A Combination Shutter is always a Combination of Louvers and Panels. The selections must be a combination. Please select another option.
Shutters over - void warranty
