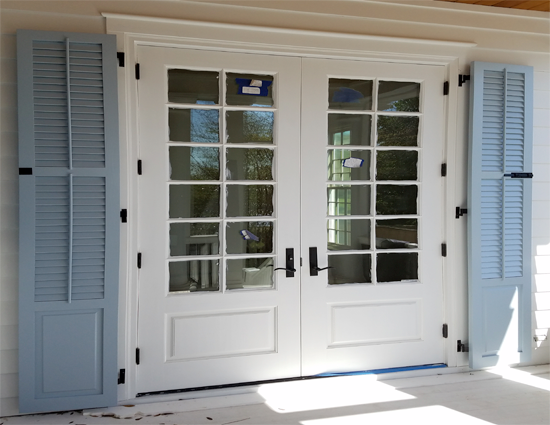

Heavy Duty Movable Louver Combination

Product details

1-3/8” Recessed Stile & Rail Frame Movable Louver Combination

CEDAR

Our shutters are custom built with the highest quality woods available. All of our exterior woods are clear, and without finger joints. Cedar is naturally decay resistant and straight.

AVAILABLE WOOD SPECIES

Western Red Cedar, Spanish Cedar, Cypress, and Sapele Mahogany

EXTERIOR FINISHING OPTIONS

*Additional charges apply.

OPTION 1:

Spray Primed*

Sprayed with top quality oil-based primer; light sanding recommended

OPTION 2:

Primed and Sanded*

Sprayed with top quality oil-based primer, sanded and joints sealed; ready for finishing.

OPTION 3:

Primed and Finished*; Ready for Installation

Each shutter is sanded, primed with two coats of oil-based primer and sanded again. Then the primed shutters are finished with a premium exterior paint. Custom color charge may be applied to orders less than 60 square feet.

* Color finishes by Sherwin Williams, Benjamin Moore, and PPG may be matched by supplying the manufacturer's brand name, color number and color name. Anything else can be matched by swatch.

1-3/8” Recessed Stile & Rail Frame Construction

Mortise & Tenon Construction

SPECIFICATIONS

Side Stiles

2" x 1-3/8"

Top Rail

3-3/4" x 1-3/16"

Bottom Rail

3-3/4" x 1-3/16"

Center Rail

2-3/4" x 1-3/16"

Louver Thickness

3/8"

Louver Widths

See Below

Single-sided Raised Panel Thickness

5/8"

Single-sided Flat Panel Thickness

5/8"

Double-sided Raised Panel Thickness

3/4"

Double-sided Flat Panel Thickness

1/2"

V-Groove Width

1/2"

Heavy Duty MOVABLE LOUVER OPTIONS

Traditional Louver Profile

Thickness:

3/8"

Widths:

1-7/8", 2-1/2", or 3-1/2"

Heavy Duty PANEL OPTIONS

Single-sided Raised Panel Thickness

5/8"

Single-sided Flat Panel Thickness

5/8"

Double-sided Raised Panel Thickness

3/4"

Double-sided Flat Panel Thickness

1/2"

V-Groove Width

1/2"

Custom Shutter Options

Exterior Movable Louver Combination Shutters manufactured by Southern Shutter can be customized to meet most customers specifications. Some common applications are shown below. Other options are illustrated on the following pages. For additional options call 1-800-344-8590 or visit our website www.southernshutter.com.

*Additional charges may apply.

Copper Capping
Custom Paint Color (No additional charges on orders larger than 60 square feet)
Rail Width Modification
Stile Width Modification
Ship Lap - 1/4”, 3/8”
Ship Lap with 3/8” Bead - 1/4”, 3/8”
Trim Moulding - One Side Only (Must Be Flush Sanded - Surface Mounted In Louver Sections)
3 Section Rail Layout
4 Section Rail Layout
Horns 1/2", 3/4”, 1”
Mortise Shutters for Hinges
Basic Curve or Rake
Solid Rail Arch or Café Scroll Arch(6" maximum drop)
Half Circle Arch Top
Under 10" Narrow Width Hand Run Fee

PANEL OPTIONS

Louver/Panel Combination Shutters
Single-Sided Raised or Single-Sided Flat (no additional charge)
Double-Sided Flat Panel (no additional charge)
Double-Sided Raised Panel
V-Groove Option
Standard Design Decorative Cutout (see below)
Custom Design Decorative Cutout (submit for quote)

DECORATIVE CUTOUTS

Custom cutouts available by request. Cutouts and carvings are offered in a wide variety of standard designs. Below are some commonly ordered designs. Contact Souther Shutter or order online at SoutherShutter.com for additional designs. Cutout patterns designed by our customers are also welcomed.

Acorn (C1)

Anchor (C2)

Candlestick (C3)

Spanish Cross (C4)

Diamond (C5)

Dove (C6)

Fleur-de-Lis (C7)

Heart (C8)

Pineapple (C9)

Crescent Moon (C10)

Squirrel (C11)

Swiss Cross (C12)

Tulip (C13)

Ornamental (C14)

Cedar Tree (C15)

Clover (C16)

Fancy Fluerde-Lis (C17)

Sea Horse (C18)

Fancy Anchor (C19)

Sail Boat (C20)

EXTERIOR SHUTTERS PANEL OPTIONS

Panel Profiles and Decorative Trim Options

*Additional charges may apply

Heavy Duty Recessed Stile & Rail Movable Louver Combination Shutters

Movable Louver Panel Combination

2 Equal Sections Movable Louver Over Raised Panel

Movable Louver Panel Combination

2 Equal Sections Movable Louver Over Raised Panel Solid Arch Top

Movable Louver Panel Combination

2 Sections Cottage Layout Movable Louver Over Raised Panel

Movable Louver Panel Combination

2 Sections Cottage Layout Raised Panel Over Movable Louver

Movable Louver Panel Combination

3 Equal Sections Movable Louver Raised Panel Movable Louver

Movable Louver Panel Combination

3 Equal Sections Movable Louver Raised Panel Movable Louver

Movable Louver Panel Combination

2 Equal Sections Movable Louver Over Raised Panel Rake Top

Movable Louver Panel Combination

2 Equal Sections Raised Panel Over Movable Louver

Measuring & Installation Guide for Exterior Shutters

Take careful Measurements.

It is important to measure your shutter pocket at the top and the bottom and on both sides, because window frames may not always be square.

Remember to measure and re-measure to verify your numbers before selecting your shutters and the desired mounting proceedure.

Select the best mounting & hardware options.

Terminology

Shutter Pocket - The opening into which the shutters will close.
Pintel - The male part of the hinge set that attaches to the house.
Strap - The female part of the hinge set that attaches to the shutter.
Siding Material - The siding material that is used on the house i.e. brick, plank, stucco.
Return Depth - The distance in inches, from the window sash to the outer edge of the structure (See A).
Pintel Offset - The distance in inches, between the plate that screws to the house and the pin that the strap sits on.
Strap Offset - The distance in inches, from the pintel pin to the inner part of the shutter.
Hinge Throw - The pintel offset plus the strap offset. The distance needed for the shutter to clear the structure when in the open position (See B).

Questions that must be Answered.

What type of siding is on the house around the window?
Ex. Brick, stucco, stone, plank, vinyl...
What type of moulding (180 brickmould, 1x4 flat mold, etc.) is around the window or does the siding material butt up to the window with no trim board at all?
What is the return depth in inches, from the outside edge of the trim board to the face of the sash itself?
How deep is the pocket or frame the shutter will close into.
Where will the pintel be placed?

Quality hardware provides a quality installation.

Southern Shutter Company offers a complete line of quality hardware for any exterior application.

Our hardware provides the finishintg touch for your functional - as well as decorative shutter installation.

INSIDE CASING MOUNT

INSIDE MOUNT: TRIMMED POCKET

with wood or composite trim with appropriate depth for shutter pocket. Note: Trim board must be as thick as the shutter, plus clearance for shutter rotation.

INSIDE MOUNT: BRICK OR MASONRY POCKET

with appropriate depth for shutter pocket. Note: Strap and Pintel are equal allowing shutter to close flush.

INSIDE MOUNT: RECESSED TRIM POCKET

Allowing for closure inside window trim and throwing out and around structure.

OUTSIDE CASING MOUNT

OUTSIDE MOUNT: NO POCKET

with little or no depth for shutter pocket.
