Board & Batten Shutters

Product details

CEDAR

Our shutters are custom built with the highest quality woods available. All of our exterior woods are clear, and without finger joints. Cedar is naturally decay resistant and straight.

AVAILABLE WOOD SPECIES

Western Red Cedar, Spanish Cedar, Cypress, and Sapele Mahogany.

EXTERIOR FINISHING OPTIONS

OPTION 1:

Spray Primed*

Sprayed with top quality oil-based primer; light sanding recommended

OPTION 2:

Primed and Sanded*

Sprayed with top quality oil-based primer, sanded and joints sealed; ready for finishing.

OPTION 3:

Primed and Finished*; Ready for Installation

Each shutter is sanded, primed with two coats of oil-based primer and sanded again. Then the primed shutters are finished with a premium exterior paint. Custom color charge may be applied to orders less than 60 square feet.

* Color finishes by Sherwin Williams, Benjamin Moore, and PPG may be matched by supplying the manufacturer's brand name, color number and color name. Anything else can be matched by swatch.

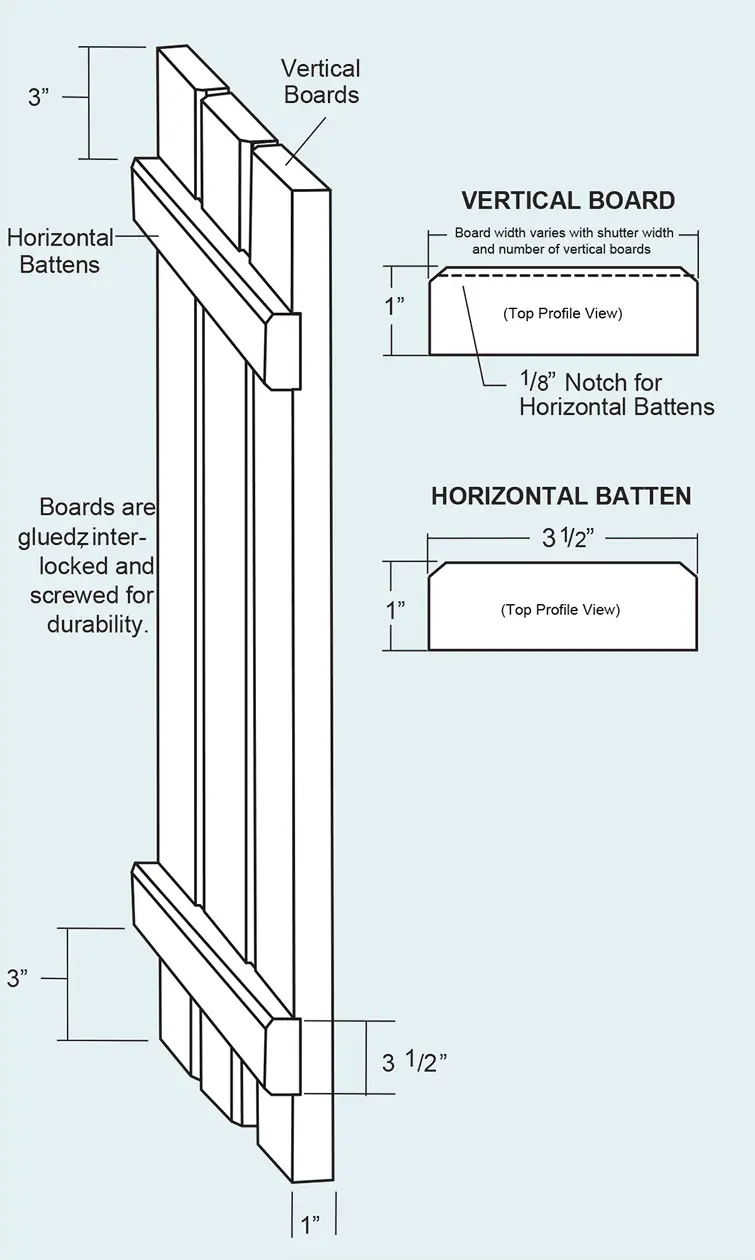

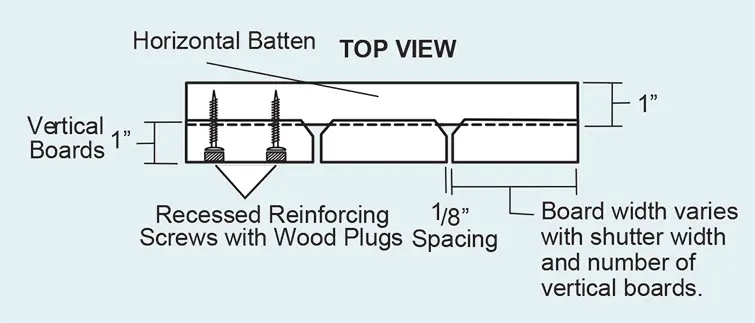

Board & Batten Construction

SPECIFICATIONS

Standard Board Gap: 1/8"

Vertical Boards

Board width determined by overall shutter width and number of boards as specified by the customer.

Horizontal Battens - 1" thick x 3 1/2" wide

It is recommended that Board & Batten Shutters over 42" in height be constructed with 3 horizontal battens.

Custom Shutter Options

Exterior Board & Batten Shutters manufactured by Southern Shutter can be customized to meet most customers specifications. Some common applications are shown on the next page. Other options are illustrated on the following pages. For additional options call 1-800-344-8590 or visit our website www.southernshutter.com.

CUSTOM OPTIONS | *Additional charges may apply

Variable Vertical Board Width
Z Board
Extra Horizontal Board (No additional charge)
Stain Grade
Additional Wood Species
Custom Paint Color (on orders less than 60 square feet)
Modified Horizontal Batten Width
Copper Capping
Basic Curve or Rake Charge
Standard Decorative Cut Out
Custom Decorative Cut Out
Mortise Shutters for Hinges
Half Circle Arch Top
Custom Horizontal Batten Width
Oversized Batten - Width Greater than 5"
Oversized Board - Greater than 5"

Exterior Wood Shutters with Variable Boards & Options

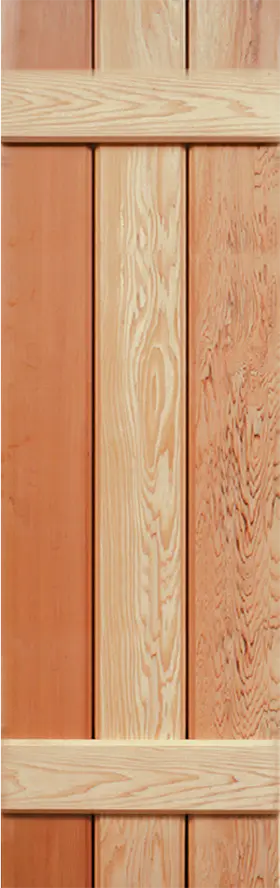

3 Board & 2 Batten

Shutter with Optional Batten Placement

2 Board & 2 Batten

Shutter with Decorative Cutout

3 Board & 2 Batten

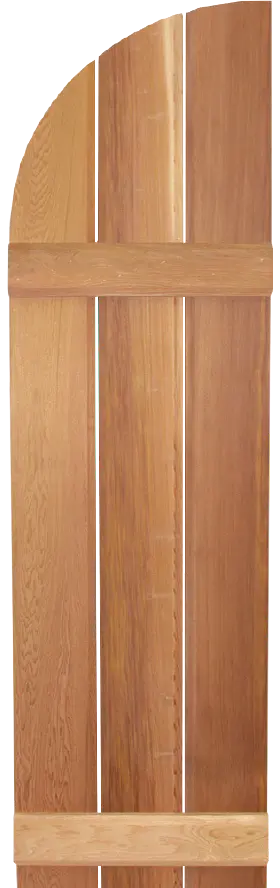

Shutter with Quarter Arch Top

4 Board & 2 Batten

Shutter with Wide Board Spacing and Optional Batten Placement

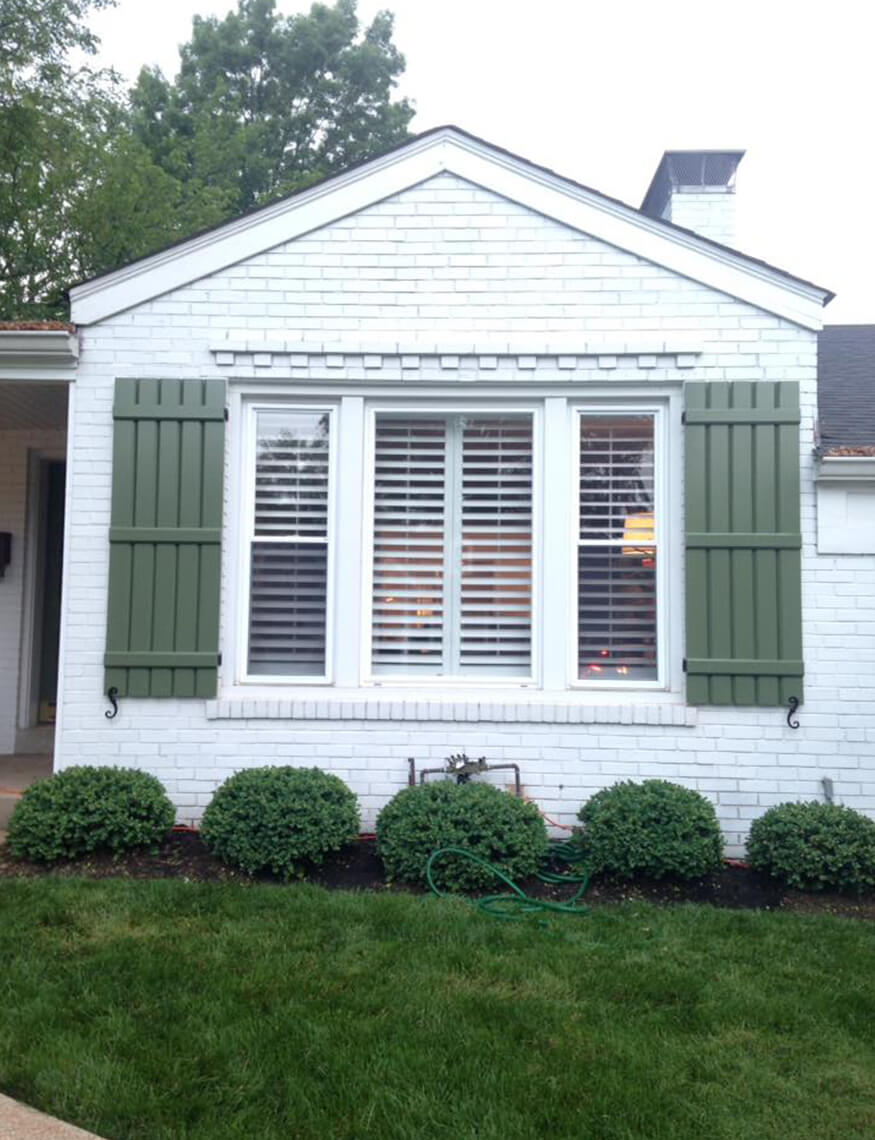

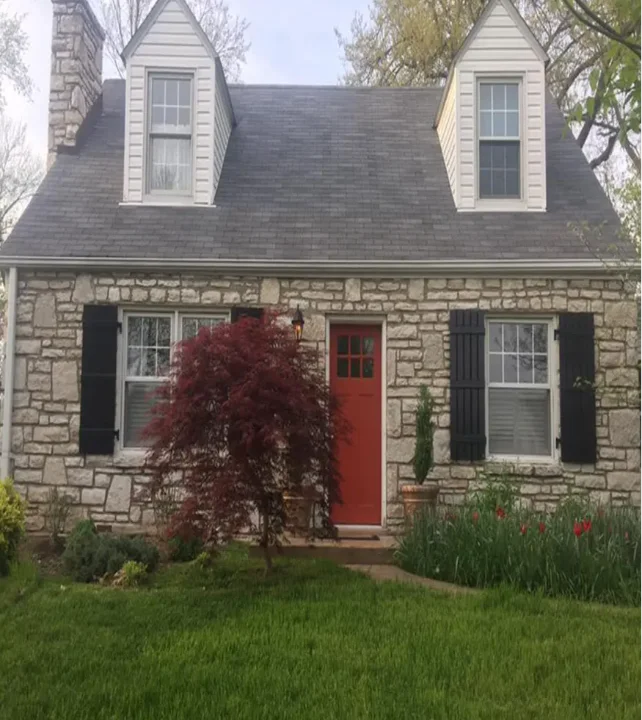

5 Board & 3 Batten

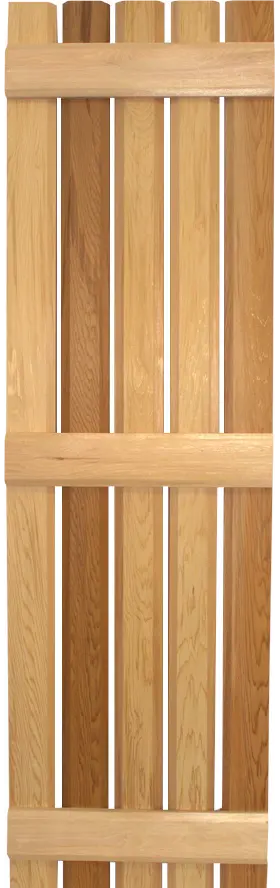

Shutter with Extra Wide Board Spacing

4 Board & 2 Batten

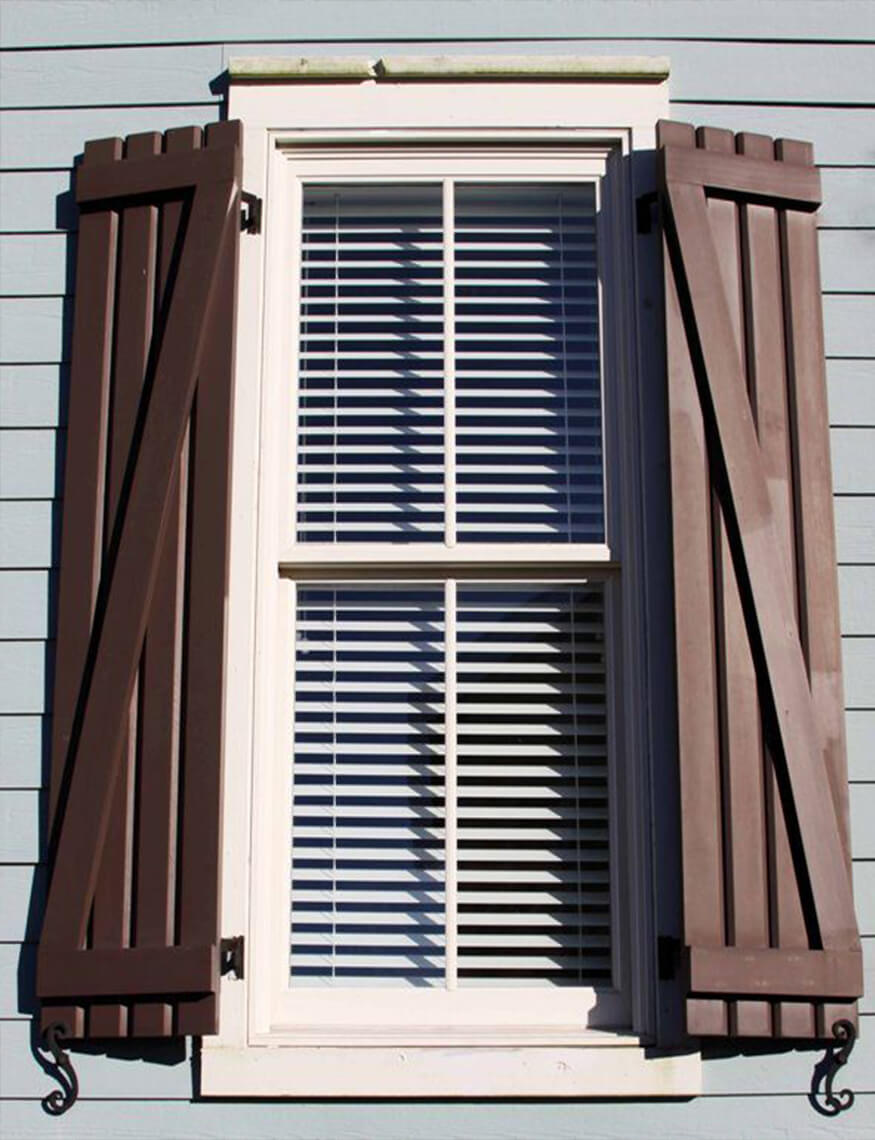

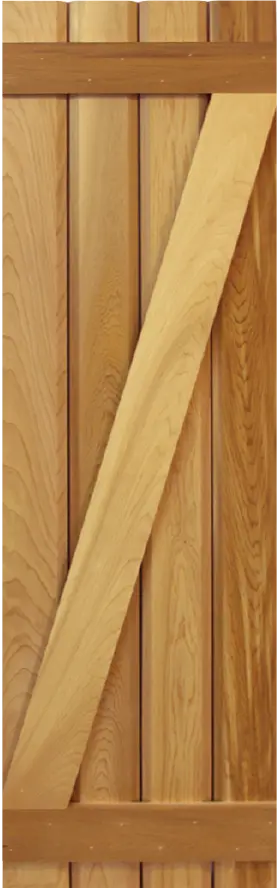

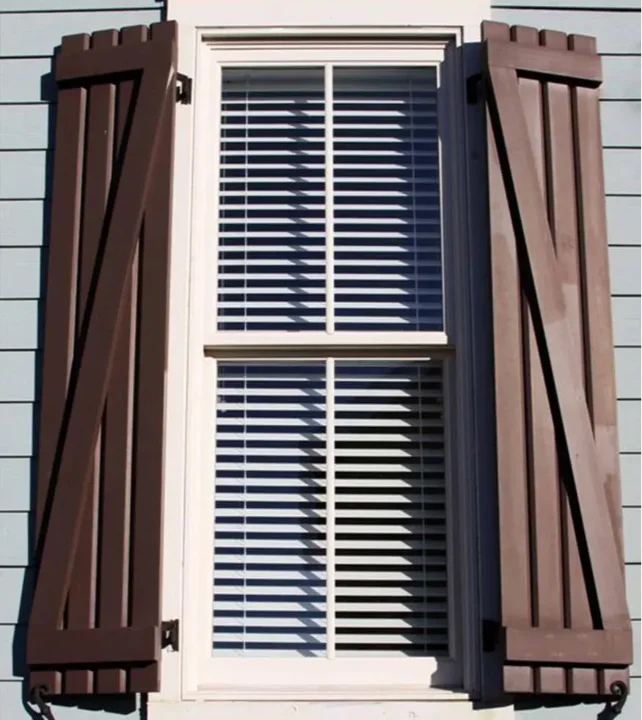

Shutter with Z-Bar

4 Board & 3 Batten

Shutter with Decorative Cutout

3 Board

Shutter with Battens on Back of Shutter

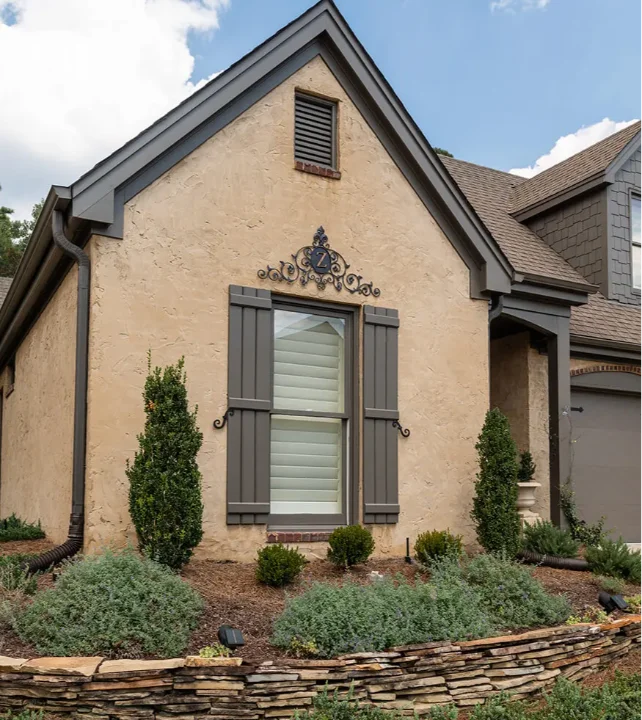

3 Board & 3 Batten

Shutter with Eyebrow Arch Top

Illustrated below are some suggested options for Exterior Board & Batten Wood Shutters with Variable Boards & Options. For other additional options call for a quote.

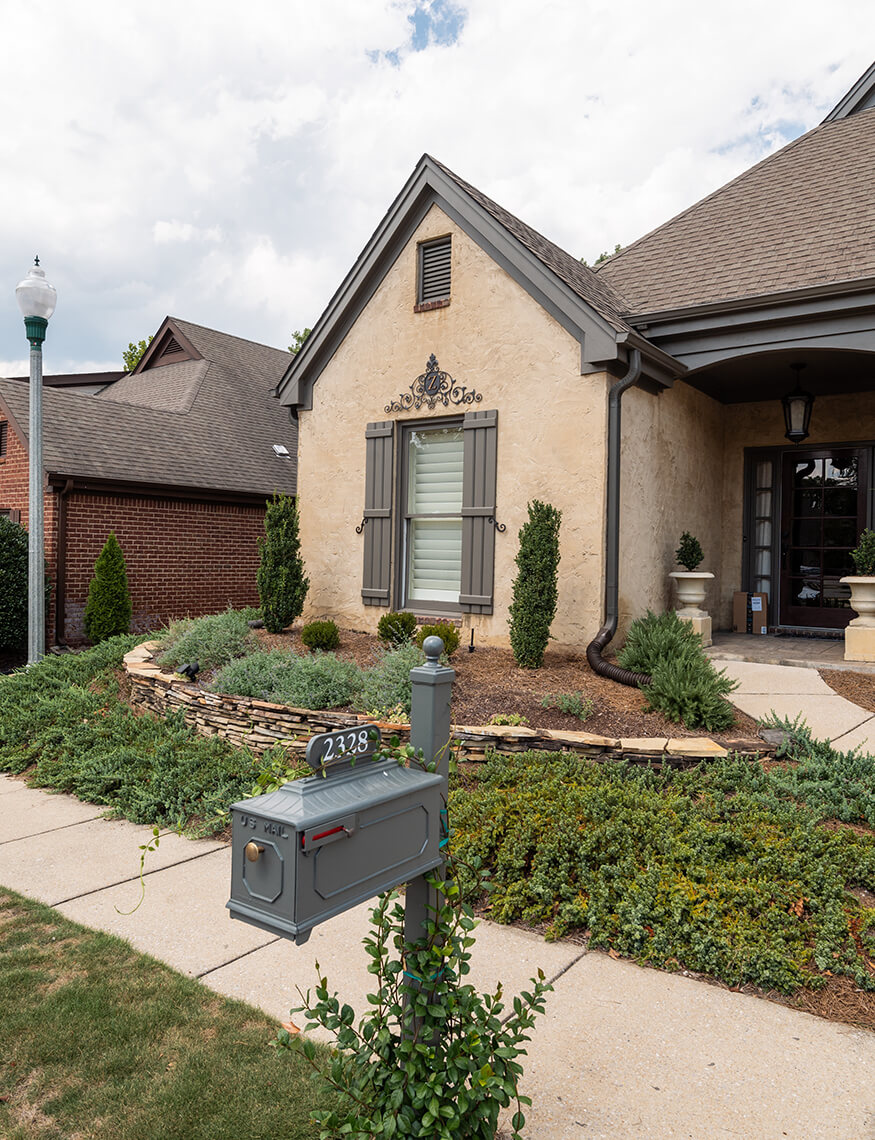

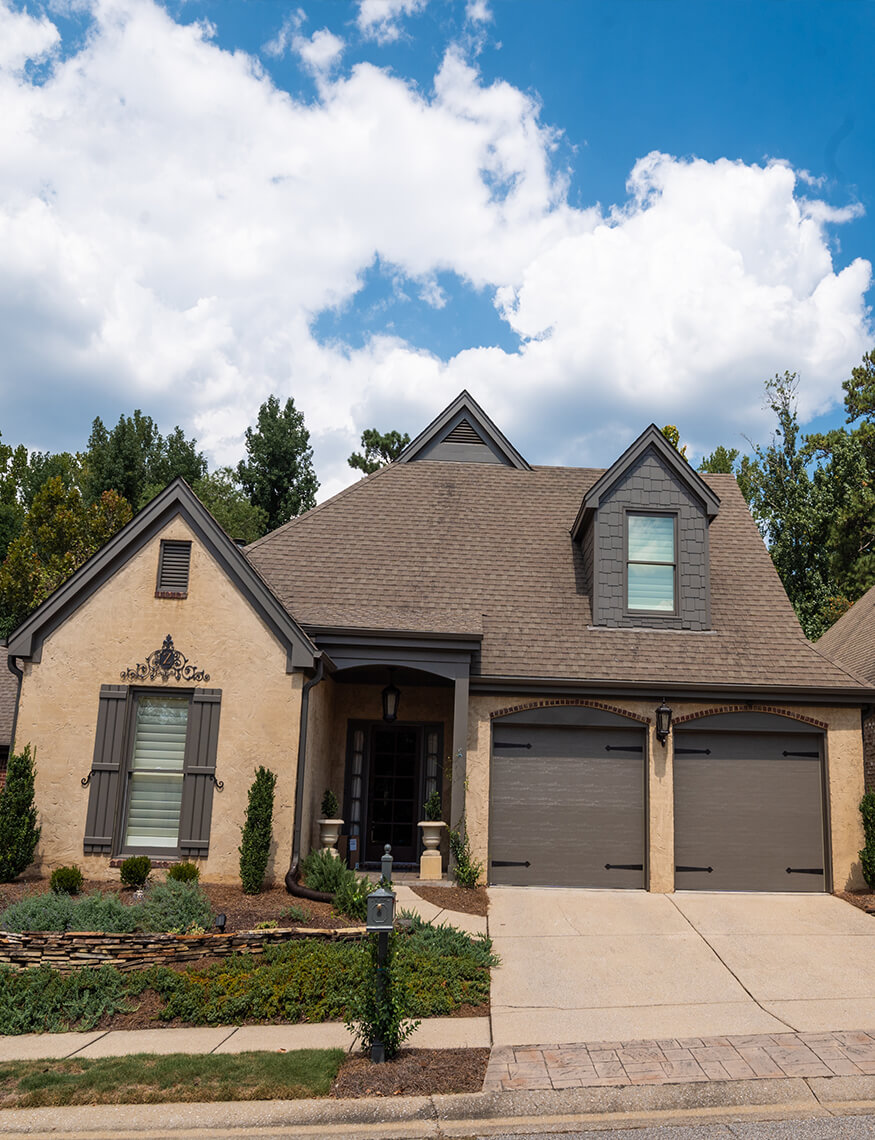

Board & Batten Shutter with 3 Vertical Boards and 2 Horizontal Battens

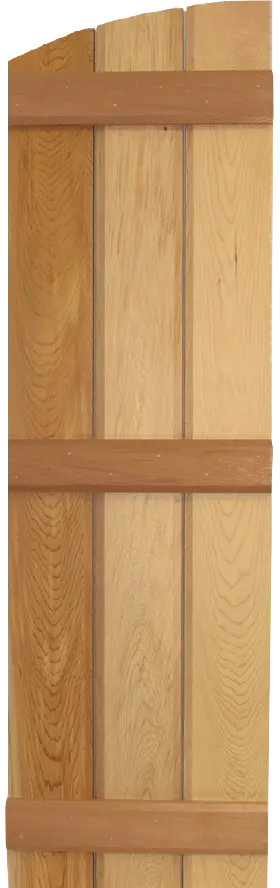

3 Vertical Boards and 2 Horizontal Battens with Eyebrow Arch Top

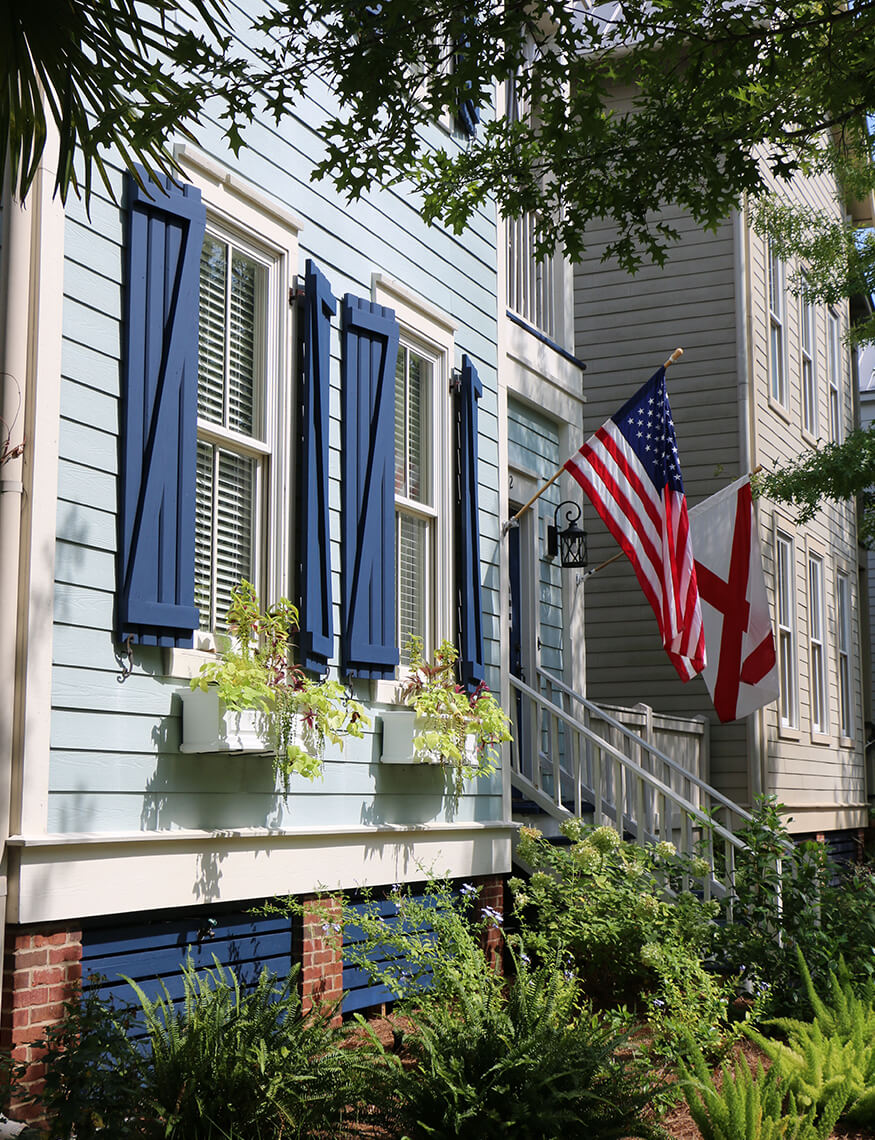

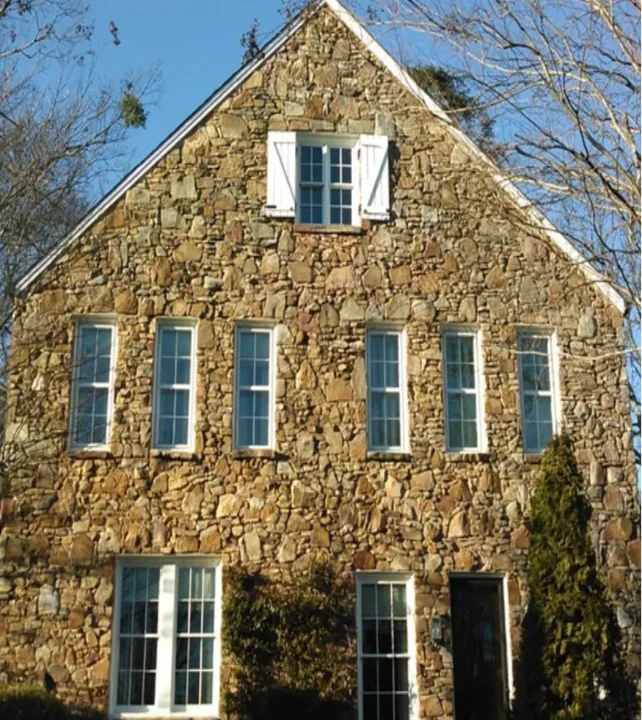

5 Vertical Boards and 2 Horizontal Battens with Single Z-Bar

4 Vertical Boards and 2 Horizontal Battens with Decorative Cutout

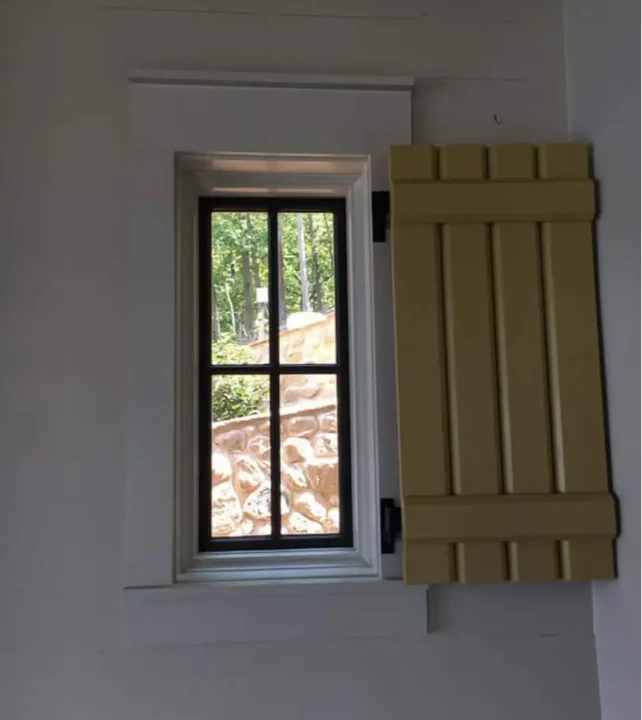

4 Vertical Boards with 2 Horizontal Battens

4 Vertical Boards and 3 Horizontal Battens with Wider Gap Between Boards

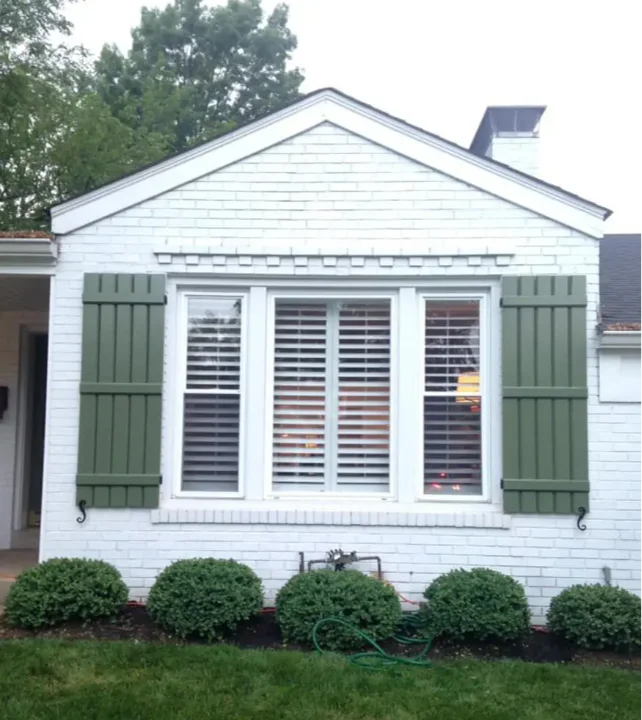

Board & Batten Shutter with 5 Vertical Boards and 2 Horizontal Battens

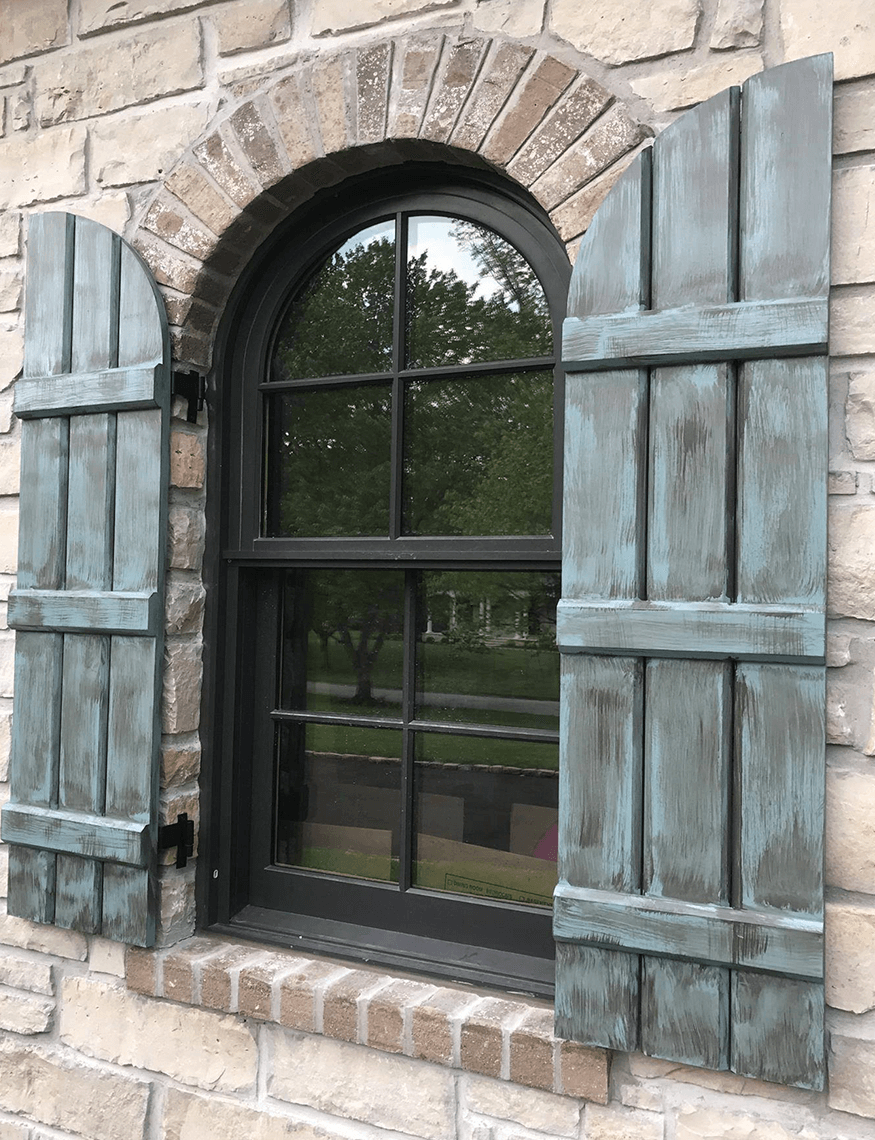

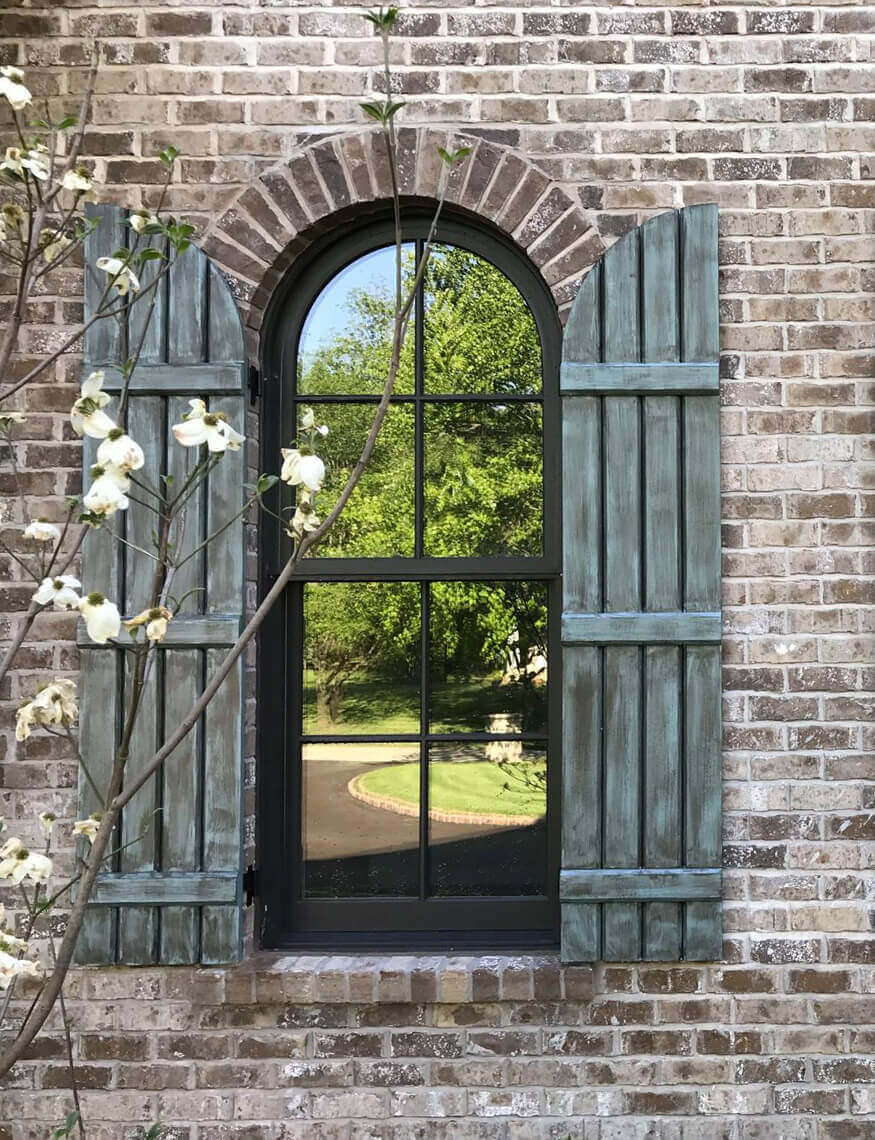

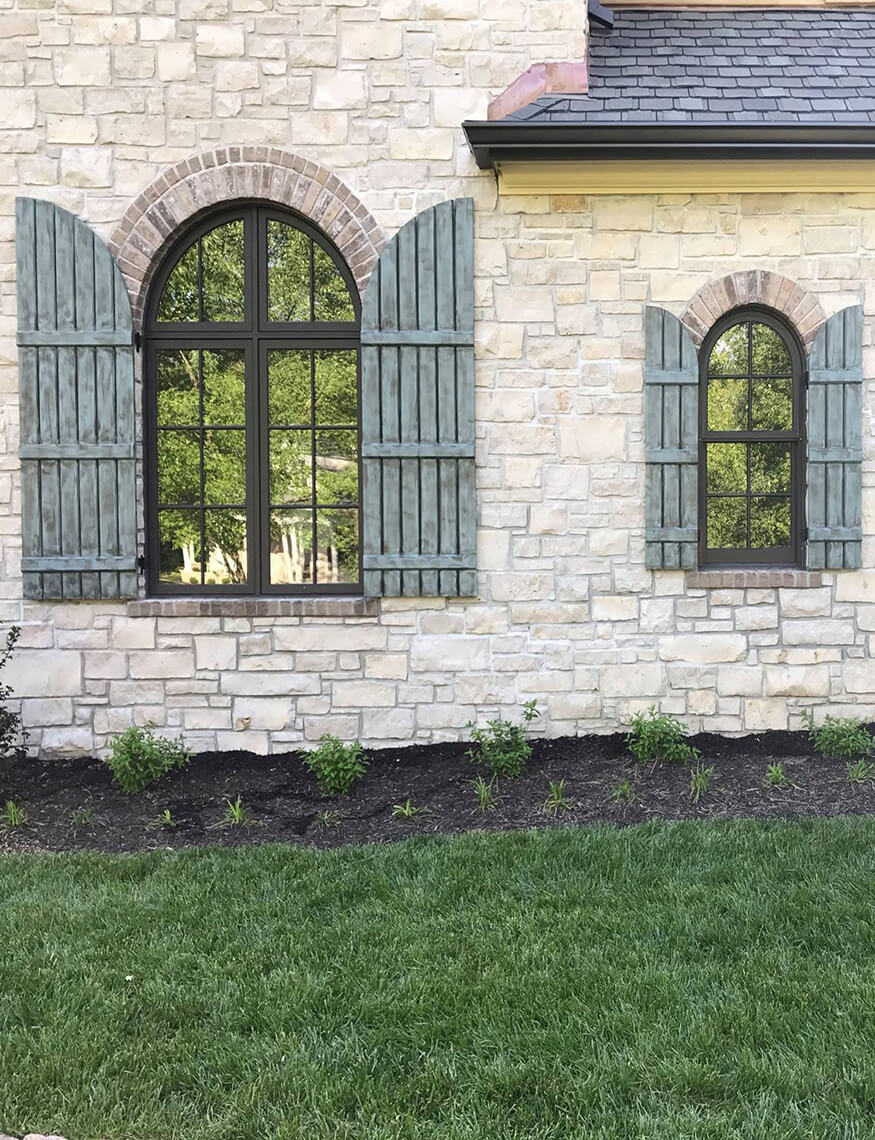

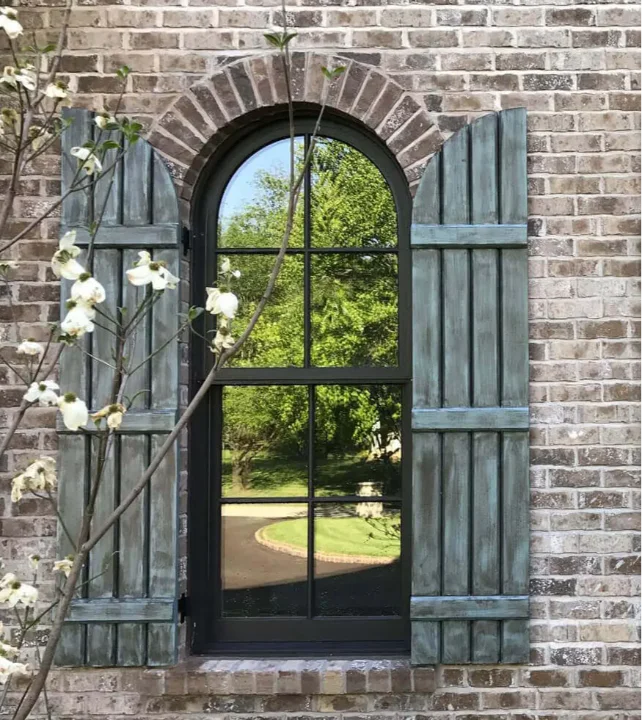

4 Vertical Boards and 2 Horizontal Battens with Quarter Round Arch Top

3 Vertical Boards and 2 Horizontal Battens

2 Vertical Boards and 2 Horizontal Battens

2 Vertical Boards and 2 Horizontal Battens with Decorative Cutout

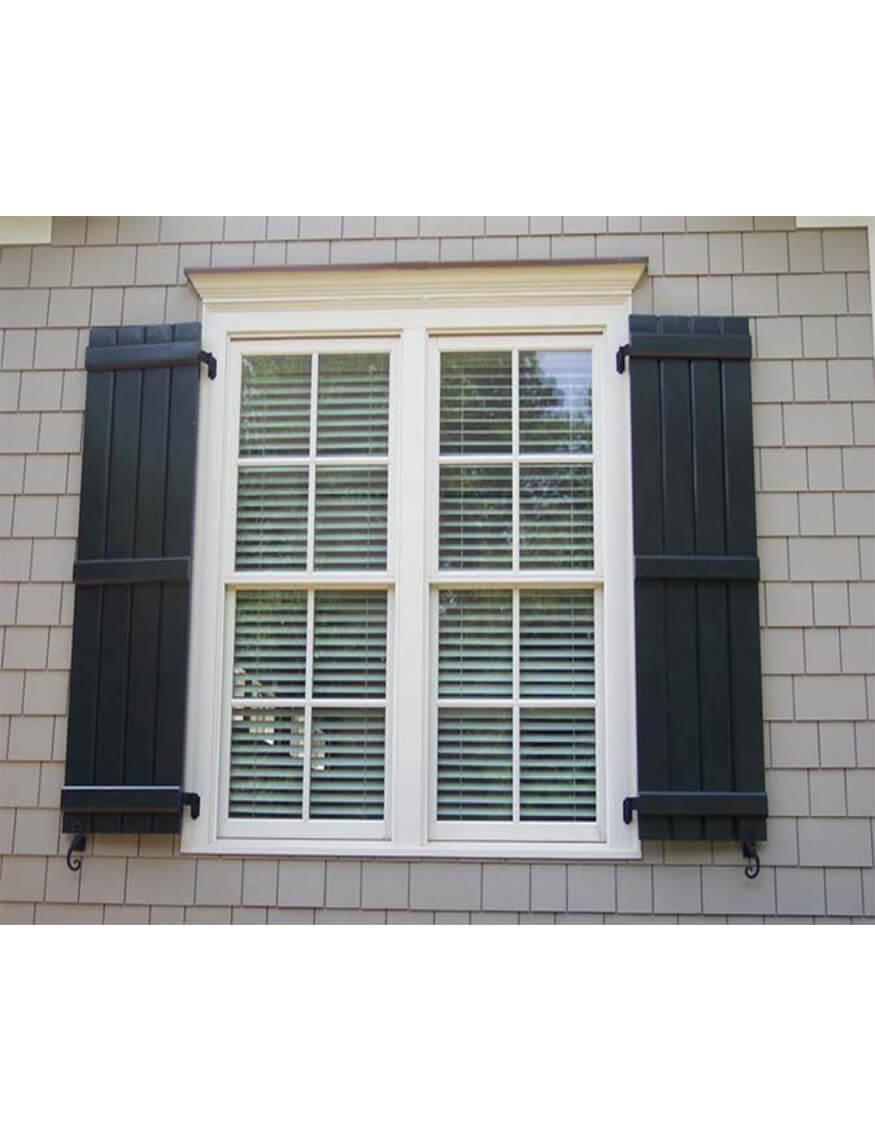

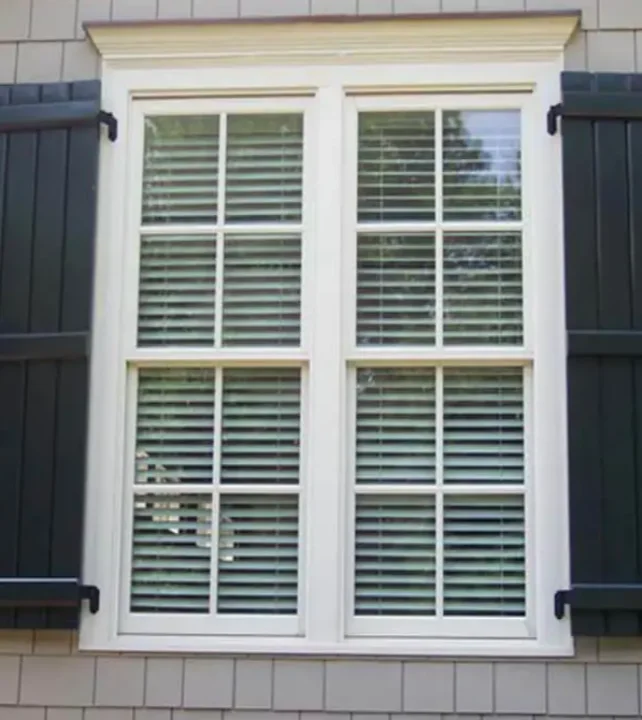

Board & Batten Shutter with 4 Vertical Boards and 3 Horizontal Battens

Measuring & Installation Guide for Exterior Shutters

Take careful Measurements.

It is important to measure your shutter pocket at the top and the bottom and on both sides, because window frames may not always be square.

Remember to measure and re-measure to verify your numbers before selecting your shutters and the desired mounting proceedure.

Select the best mounting & hardware options.

Terminology

Shutter Pocket - The opening into which the shutters will close.
Pintel - The male part of the hinge set that attaches to the house.
Strap - The female part of the hinge set that attaches to the shutter.
Siding Material - The siding material that is used on the house i.e. brick, plank, stucco.
Return Depth - The distance in inches, from the window sash to the outer edge of the structure (See A).
Pintel Offset - The distance in inches, between the plate that screws to the house and the pin that the strap sits on.
Strap Offset - The distance in inches, from the pintel pin to the inner part of the shutter.
Hinge Throw - The pintel offset plus the strap offset. The distance needed for the shutter to clear the structure when in the open position (See B).

Questions that must be Answered.

What type of siding is on the house around the window?
Ex. Brick, stucco, stone, plank, vinyl...
What type of moulding (180 brickmould, 1x4 flat mold, etc.) is around the window or does the siding material butt up to the window with no trim board at all?
What is the return depth in inches, from the outside edge of the trim board to the face of the sash itself?
How deep is the pocket or frame the shutter will close into.
Where will the pintel be placed?

Quality hardware provides a quality installation.

Southern Shutter Company offers a complete line of quality hardware for any exterior application.

Our hardware provides the finishintg touch for your functional - as well as decorative shutter installation.

INSIDE CASING MOUNT

INSIDE MOUNT: TRIMMED POCKET

with wood or composite trim with appropriate depth for shutter pocket. Note: Trim board must be as thick as the shutter, plus clearance for shutter rotation.

INSIDE MOUNT: BRICK OR MASONRY POCKET

with appropriate depth for shutter pocket. Note: Strap and Pintel are equal allowing shutter to close flush.

INSIDE MOUNT: RECESSED TRIM POCKET

Allowing for closure inside window trim and throwing out and around structure.

OUTSIDE CASING MOUNT

OUTSIDE MOUNT: NO POCKET

with little or no depth for shutter pocket.
