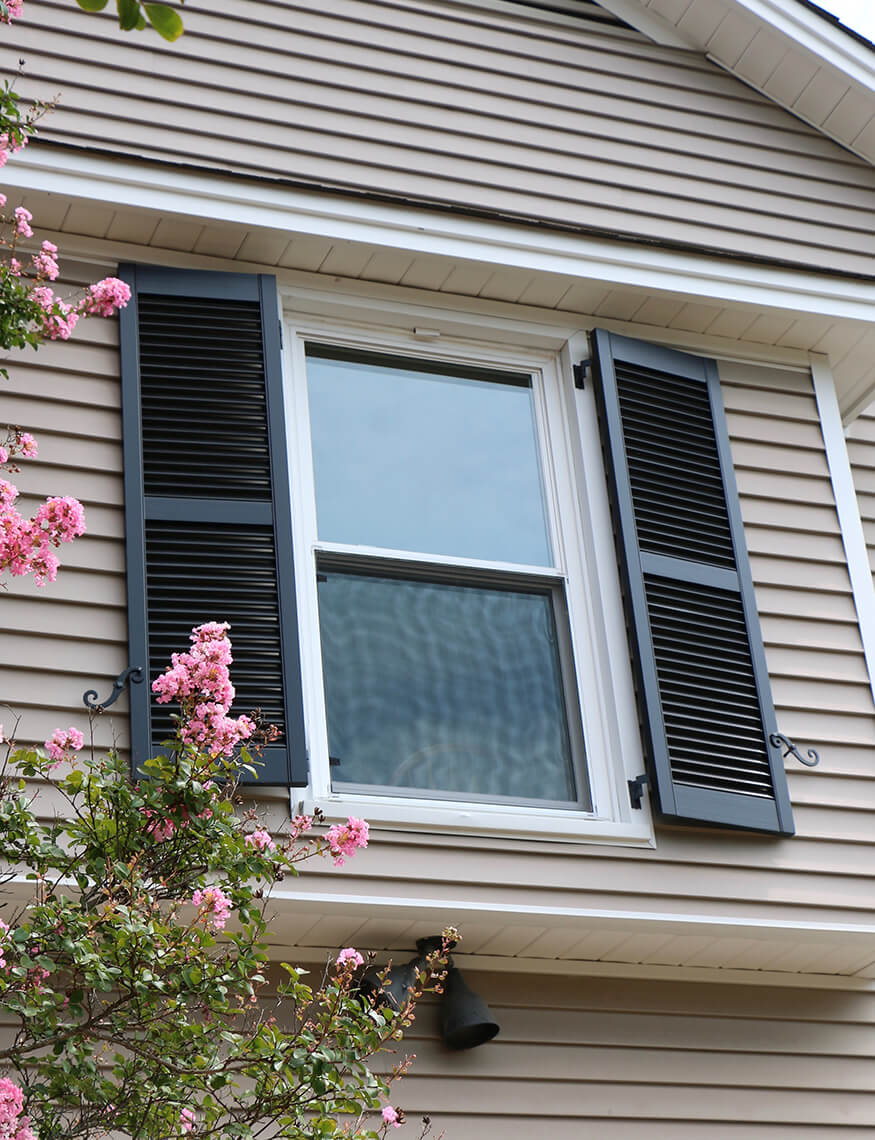

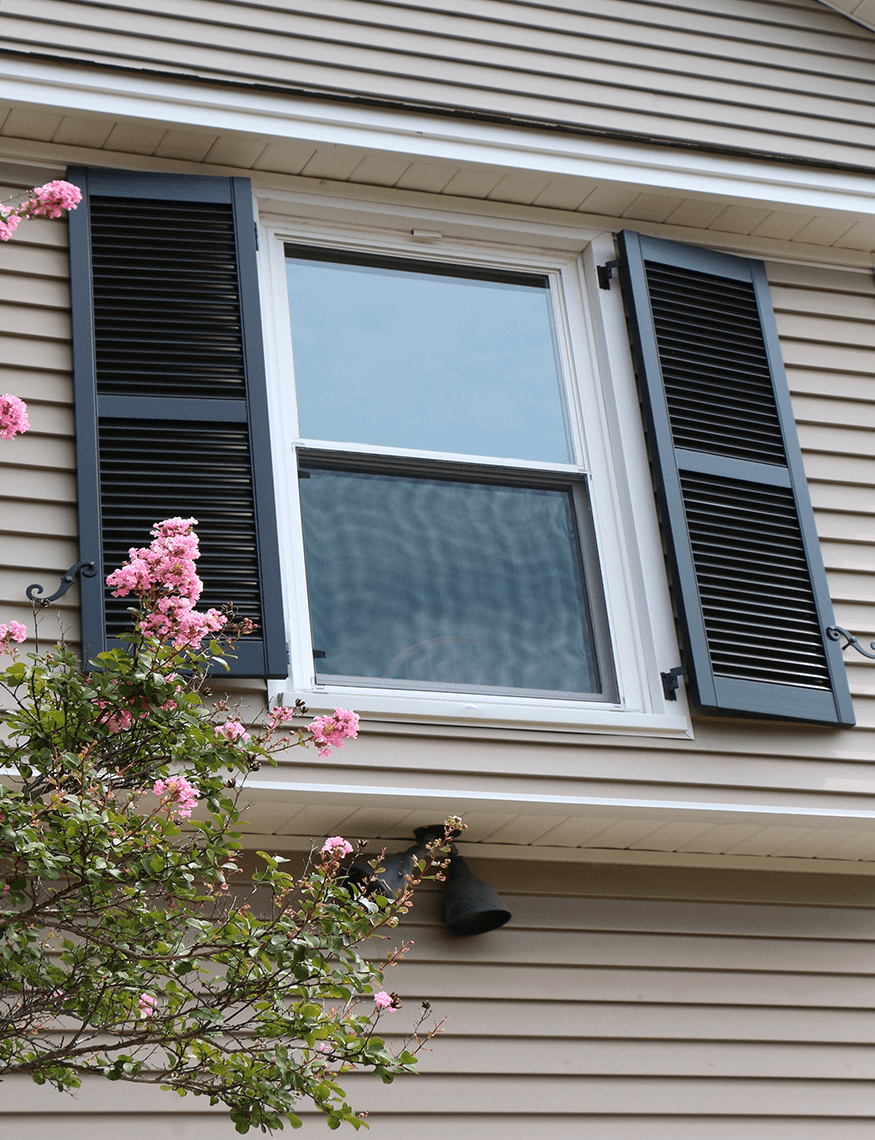

Heavy Duty Fixed Louver
Product details

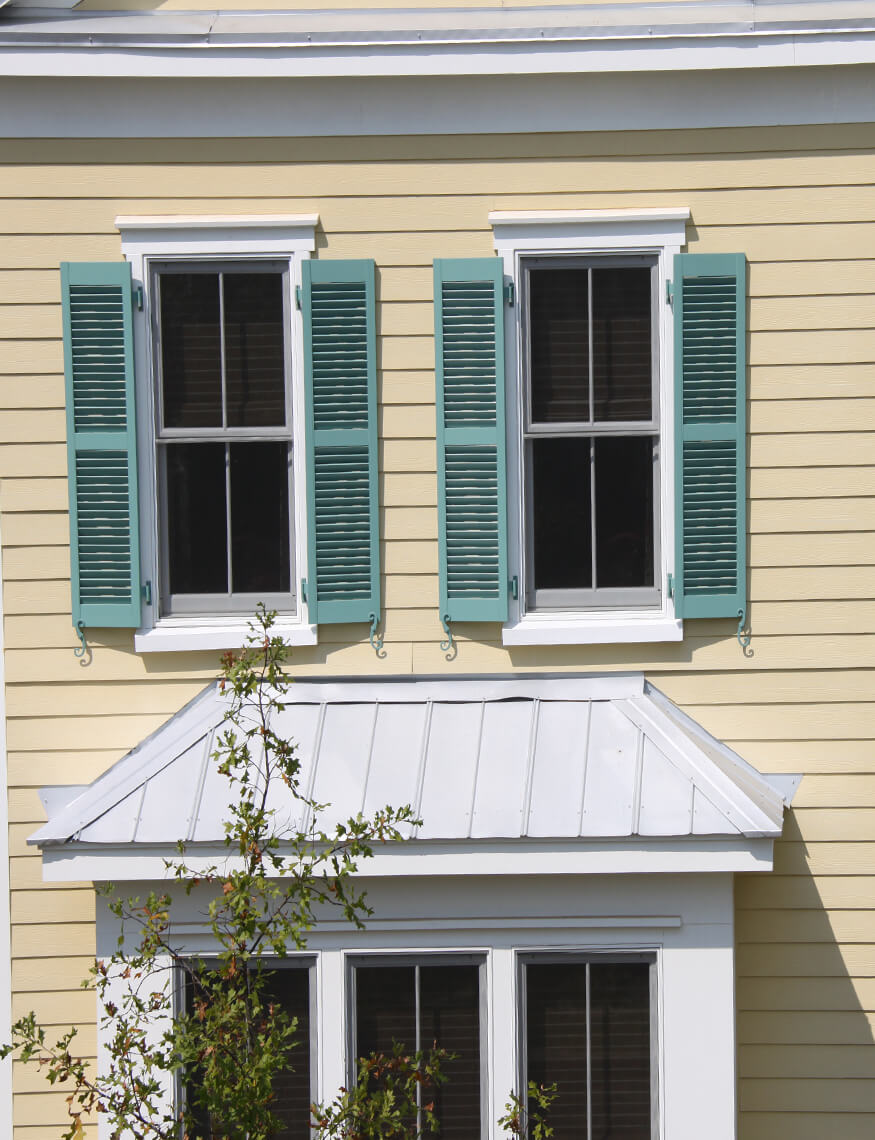

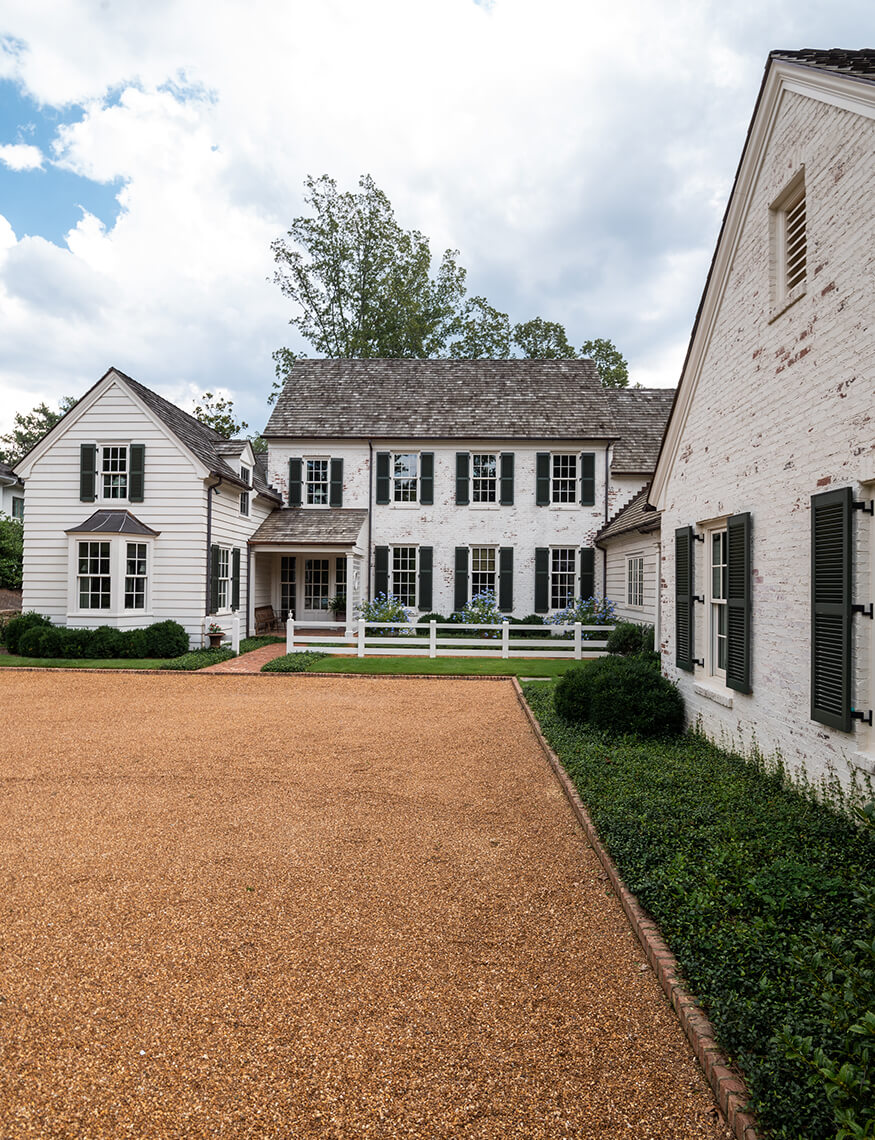

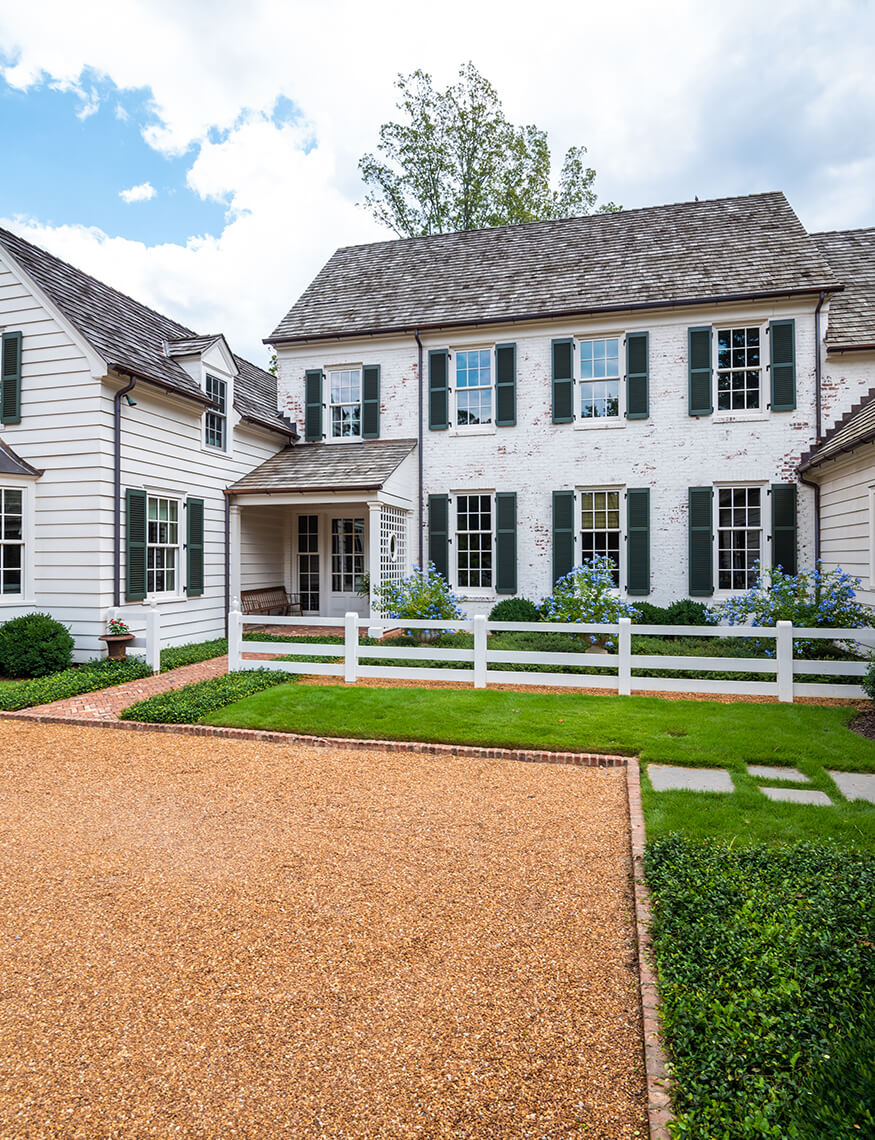

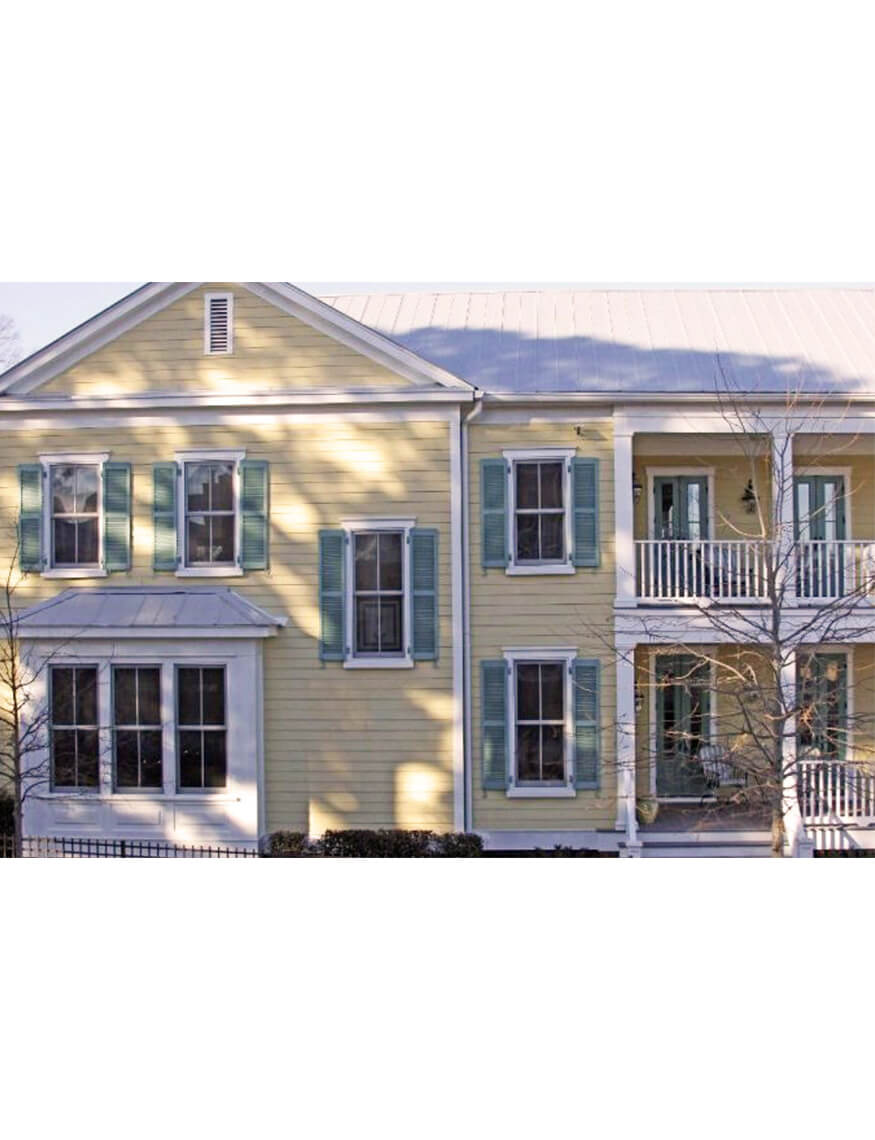

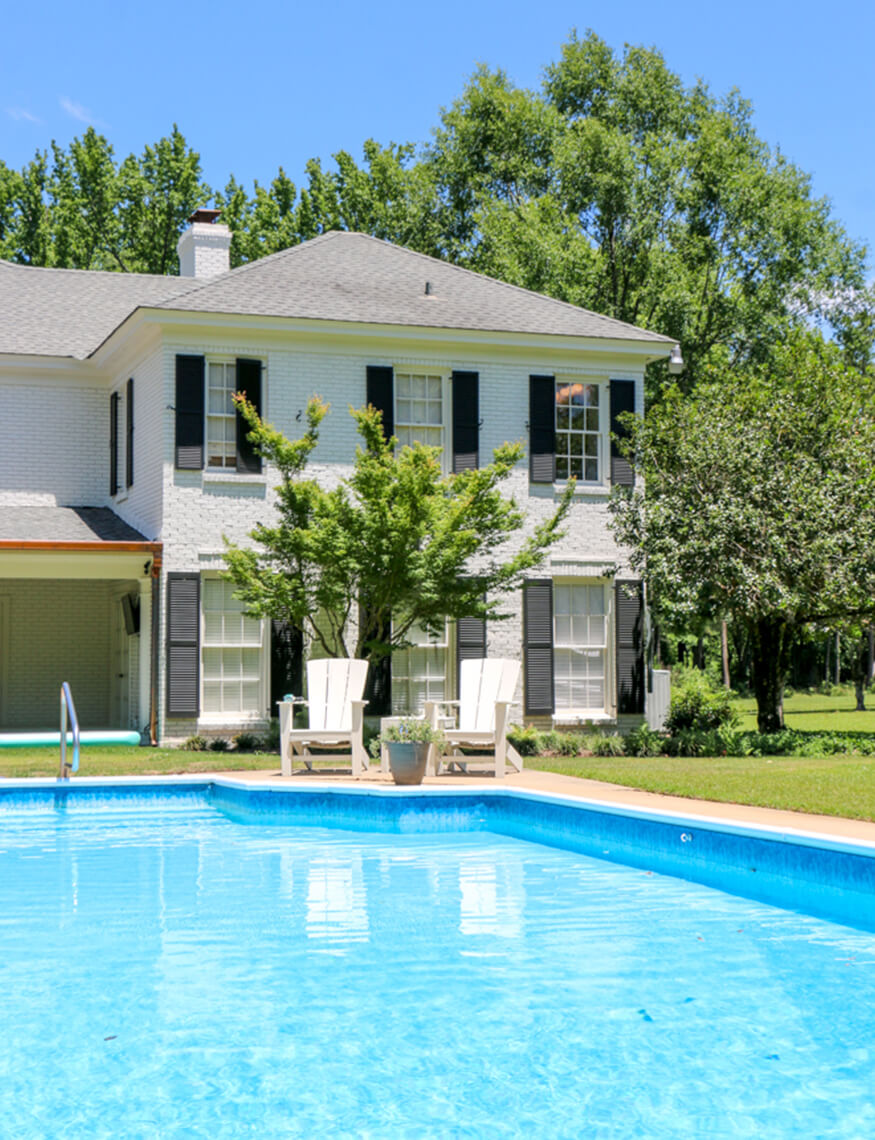

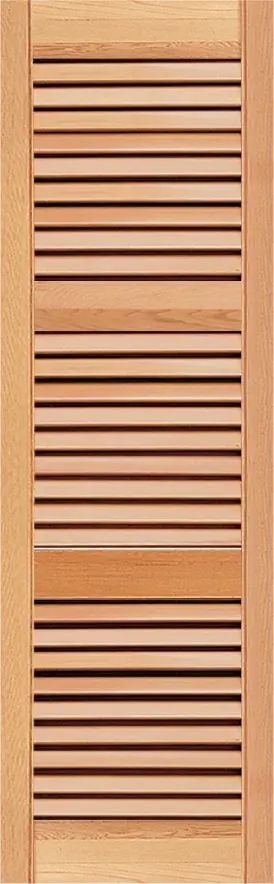

1-3/8” Heavy Duty Fixed Louver
CEDAR
Our shutters are custom built with the highest quality woods available. All of our exterior woods are clear, and without finger joints. Cedar is naturally decay resistant and straight.
AVAILABLE WOOD SPECIES
Western Red Cedar, Spanish Cedar, Cypress, and Sapele Mahogany.
EXTERIOR FINISHING OPTIONS
*Additional charges apply.
OPTION 1:
Spray Primed*
Sprayed with top quality oil-based primer; light sanding recommended
OPTION 2:
Primed and Sanded*
Sprayed with top quality oil-based primer, sanded and joints sealed; ready for finishing.
OPTION 3:
Primed and Finished*; Ready for Installation
Each shutter is sanded, primed with two coats of oil-based primer and sanded again. Then the primed shutters are finished with a premium exterior paint. Custom color charge may be applied to orders less than 60 square feet.
* Color finishes by Sherwin Williams, Benjamin Moore, and PPG may be matched by supplying the manufacturer's brand name, color number and color name. Anything else can be matched by swatch.

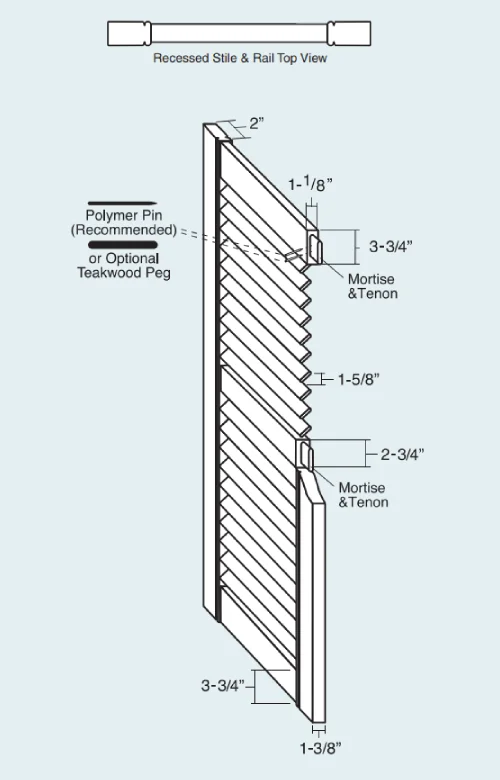

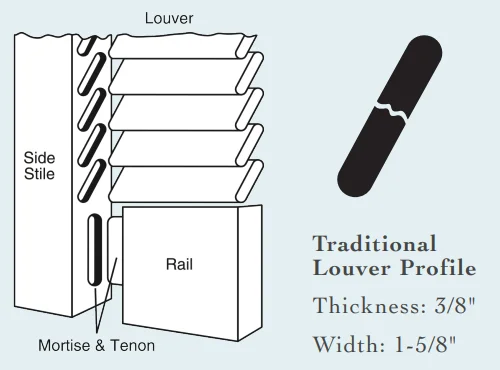

1-3/8” Recessed Stile & Rail Frame Construction
Mortise & Tenon Construction
SPECIFICATIONS
Custom Shutter Options
Exterior Louvered Shutters manufactured by Southern Shutter can be customized to meet most customers specifications. Some common applications are shown on the back of this page. Other options are illustrated on the following pages. For additional options call 1-800-344-8590 or visit our website www.southernshutter.com.
*Additional charges may apply.
- Additional Wood Species (Available by quote)
- Copper Capping
- Custom Paint Color (No additional charges on orders larger than 60 square feet)
- Ship Lap - 1/4”, 3/8”, 1/2”
- Ship Lap with 3/8” Bead - 1/4”, 3/8”, 1/2”
- 3 Section Rail Layout
- 4 Section Rail Layout
- Flush-Sanded
- Horns 1/2”, 3/4”, 1”
- Shutter Frame Thickness Modified up to 1-3/4"
- Rail Width Modification
- Stile Width Modification
- Basic Curve or Rake (Continuous louver arch available)
- Solid Rail Arch or Café Scroll Arch (6" Maximum Drop)
- Half Circle Arch Top
- Stabilizing Bar (Specify Louver Direction)
- Mouse Holes (Specify Louver Direction)

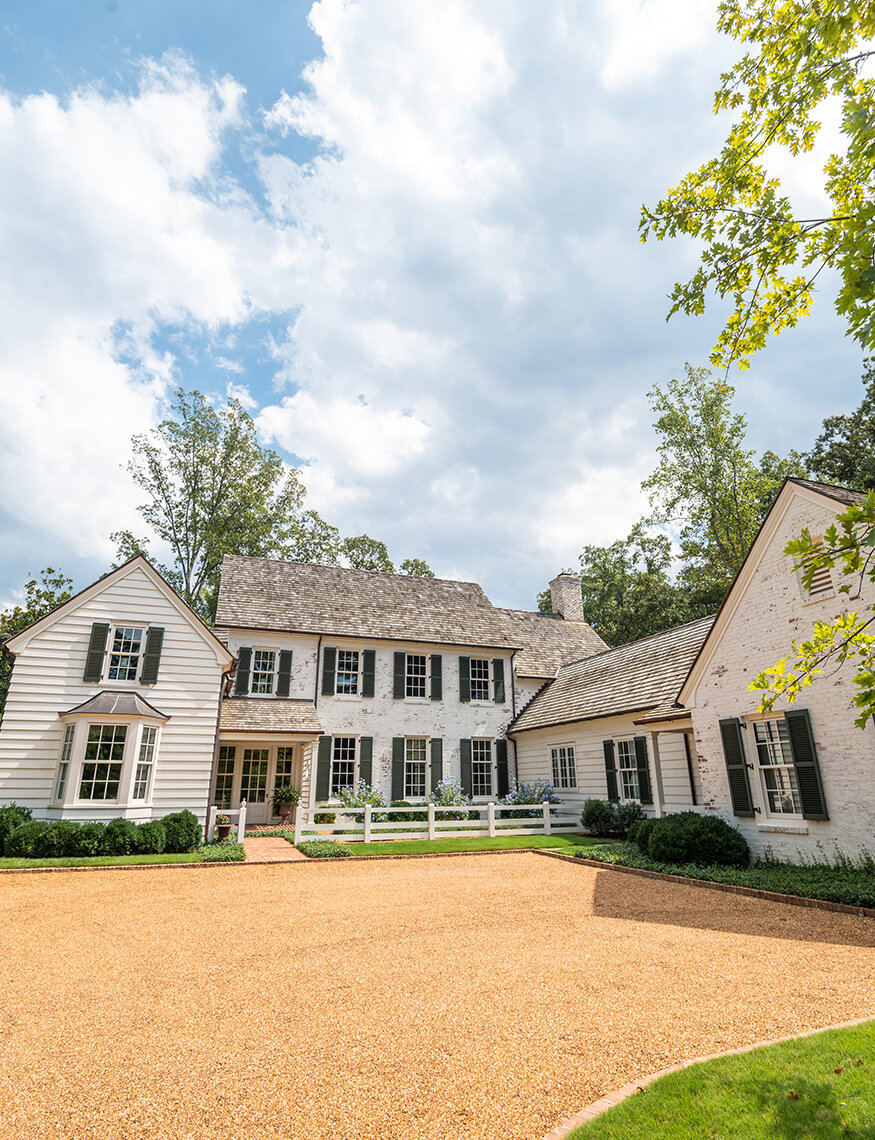

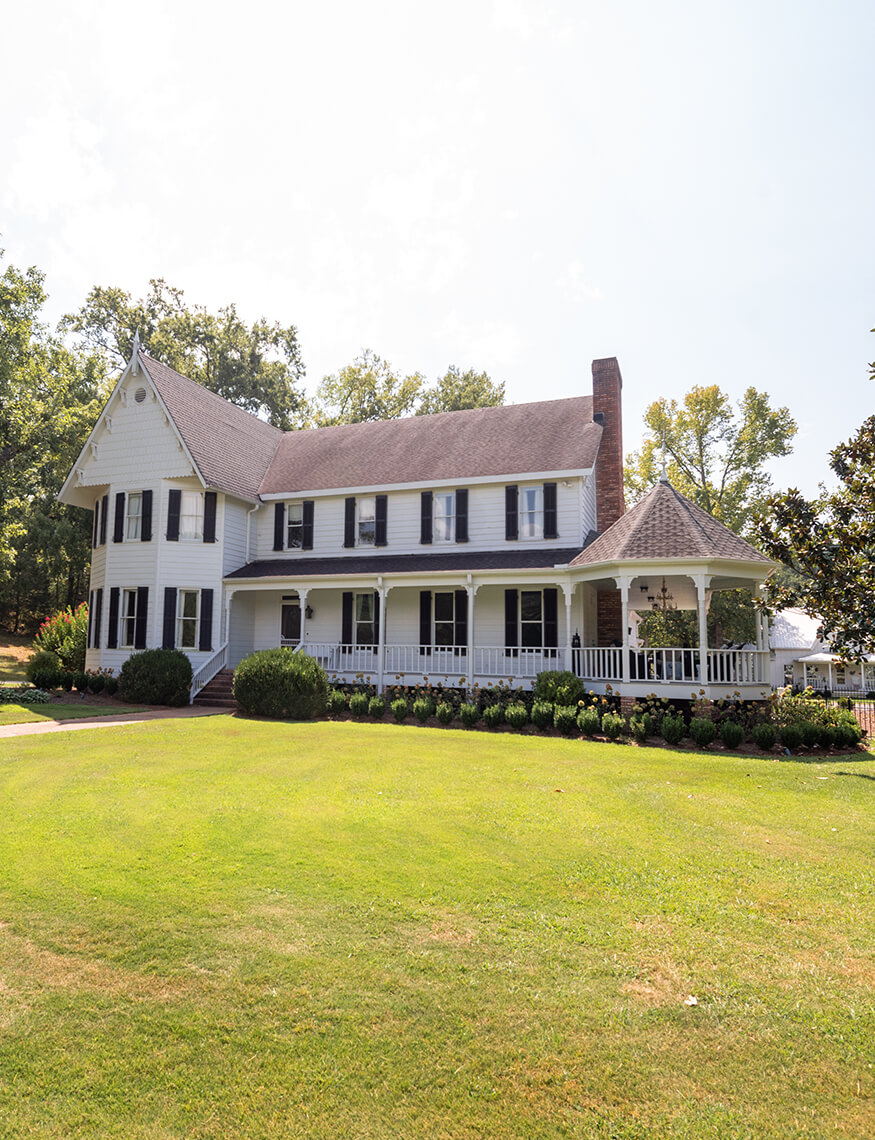

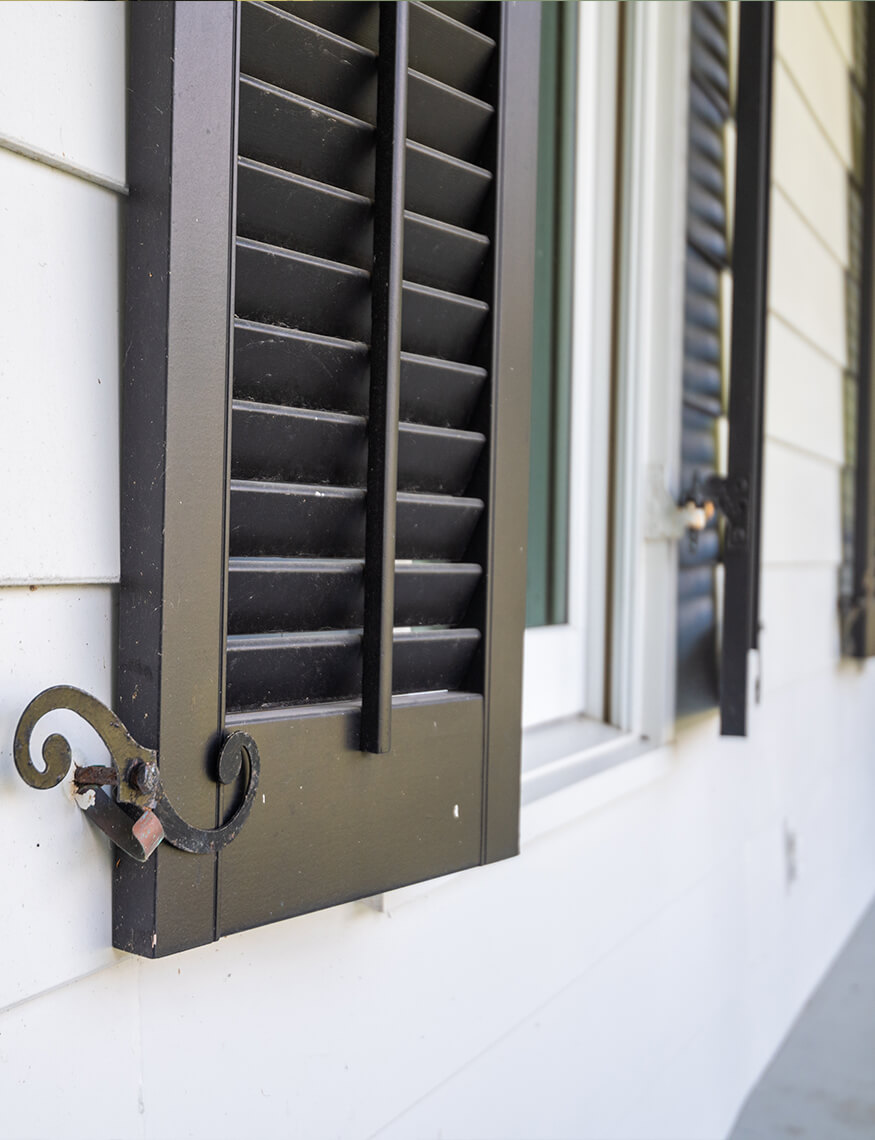

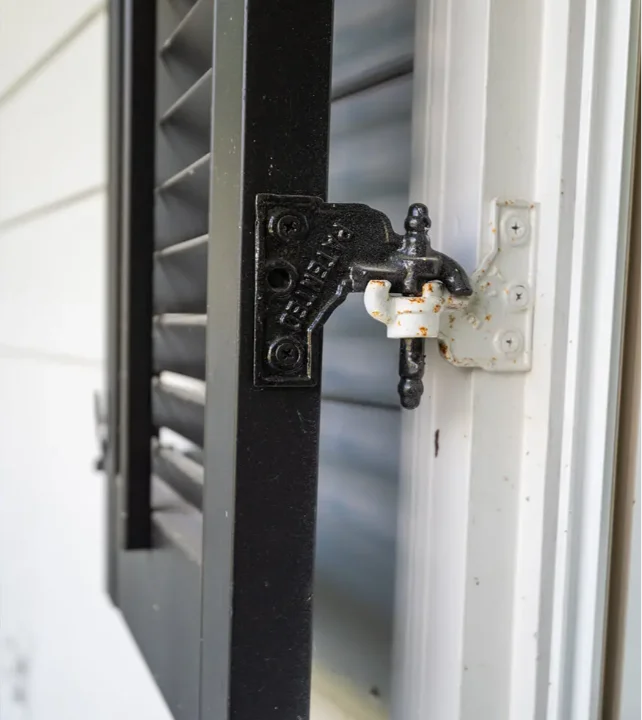

- False Controls Rods (Specify Louver Direction)
- Mortise Shutters for Hinges
- Louver/Panel Combination (Priced at paneled shutter pricing)
- Under 11" Narrow Width Hand Run Fee
- Bahama or Spandrel Shutter Panel Layout (sold as each)
See next page for suggested options for Heavy Duty Recessed Stile & Rail Shutters with 1-5/8" x 3/8" Louvers. Custom option charges are in addition to base shutter price and finishing charges. (priced per pair.)
Heavy Duty Recessed Stile & Rail Shutters with 1-5/8" x 3/8" Louvers

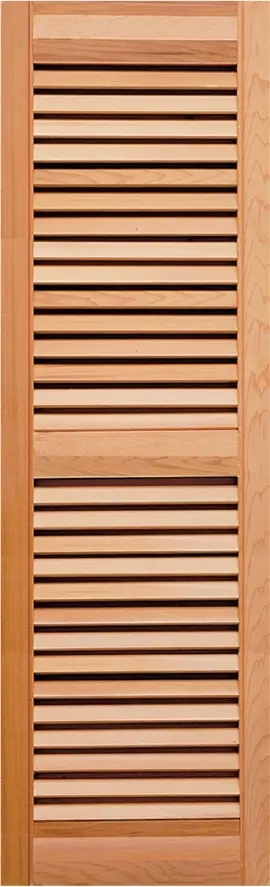

Heavy Duty
Recessed Stile & Rail Fixed Louver Shutter

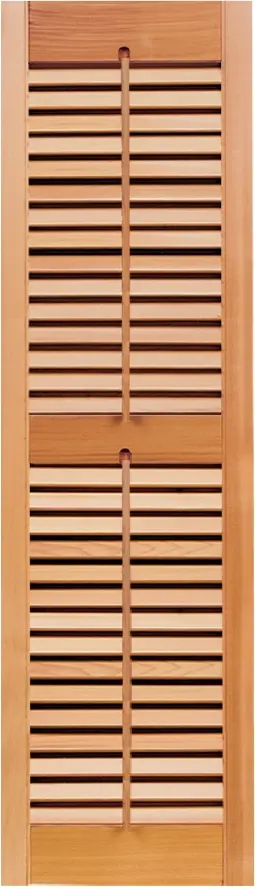

Heavy Duty

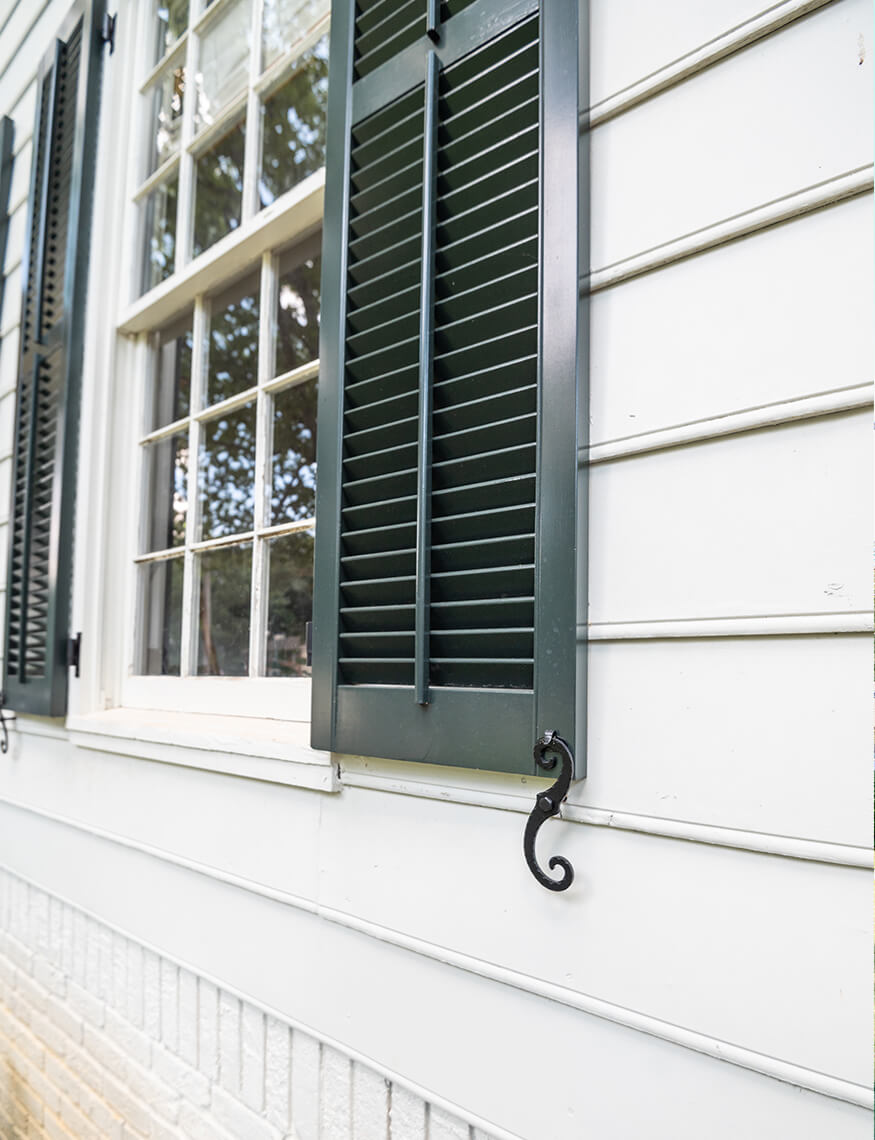

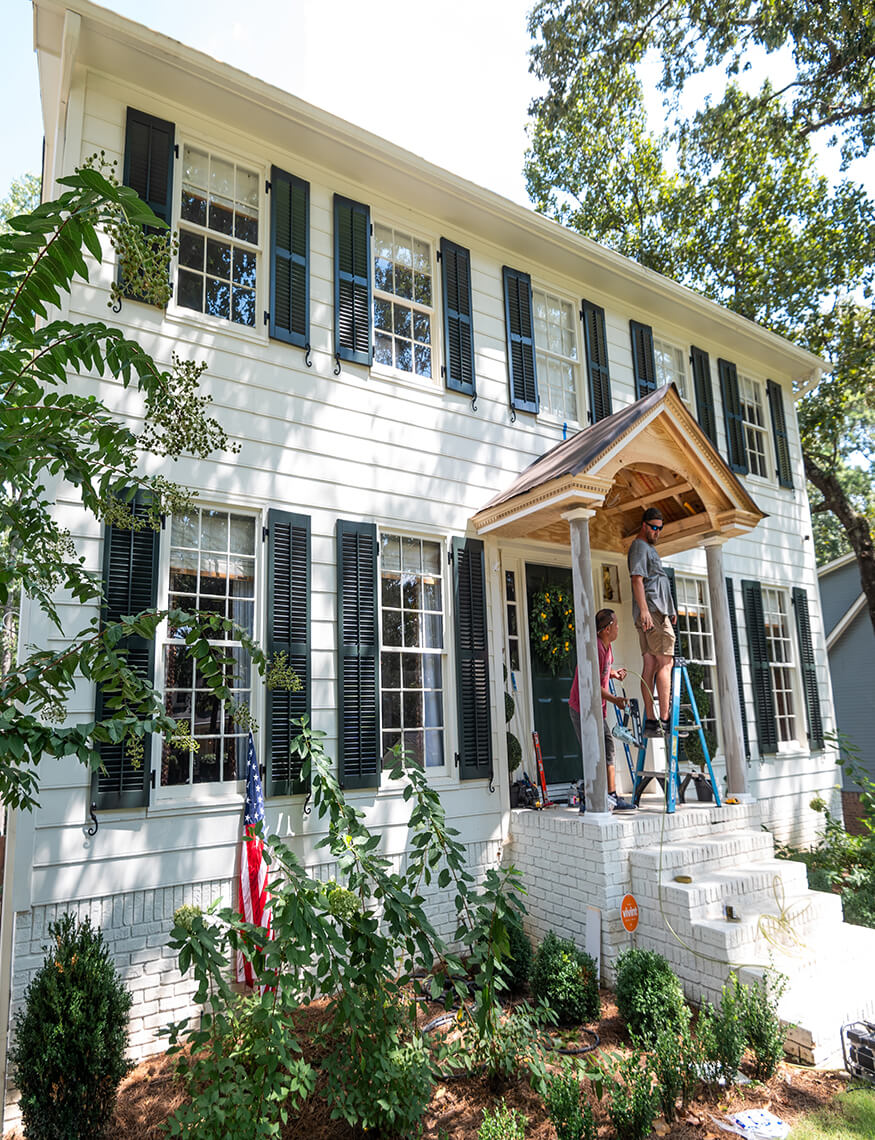

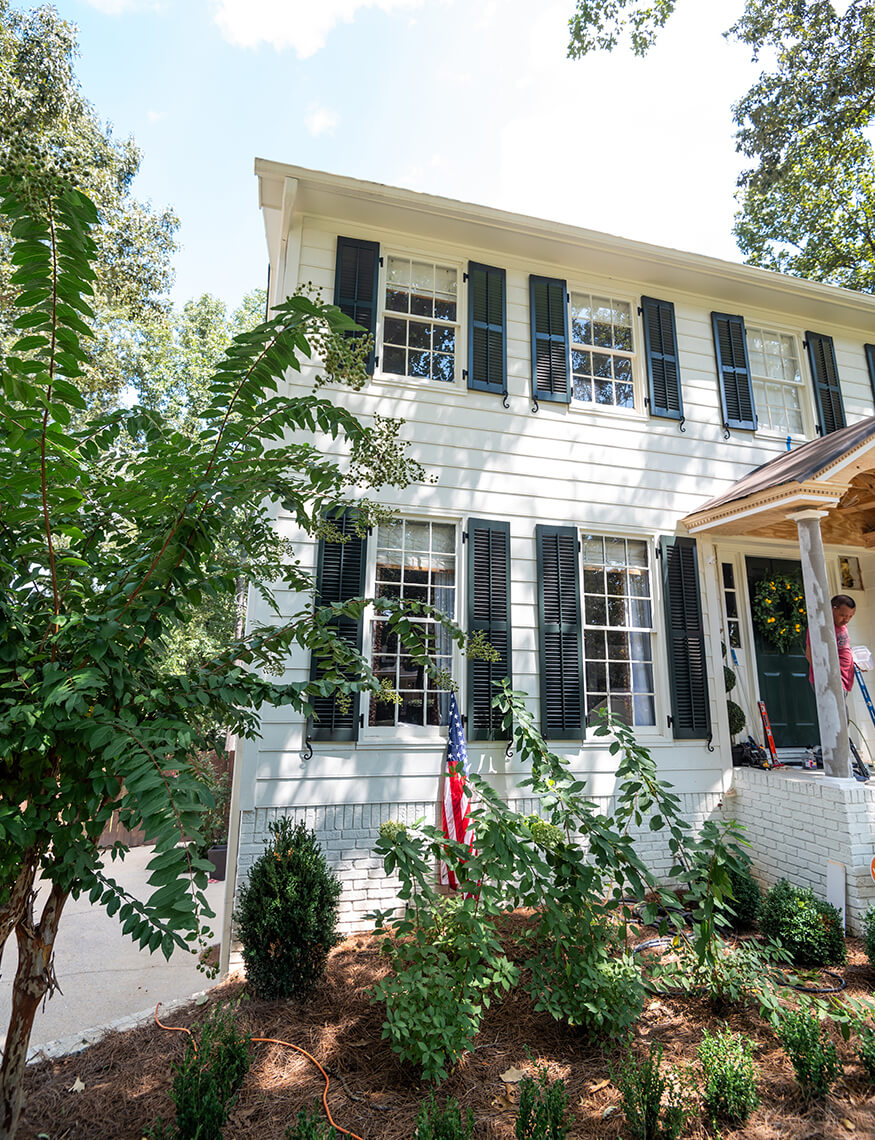

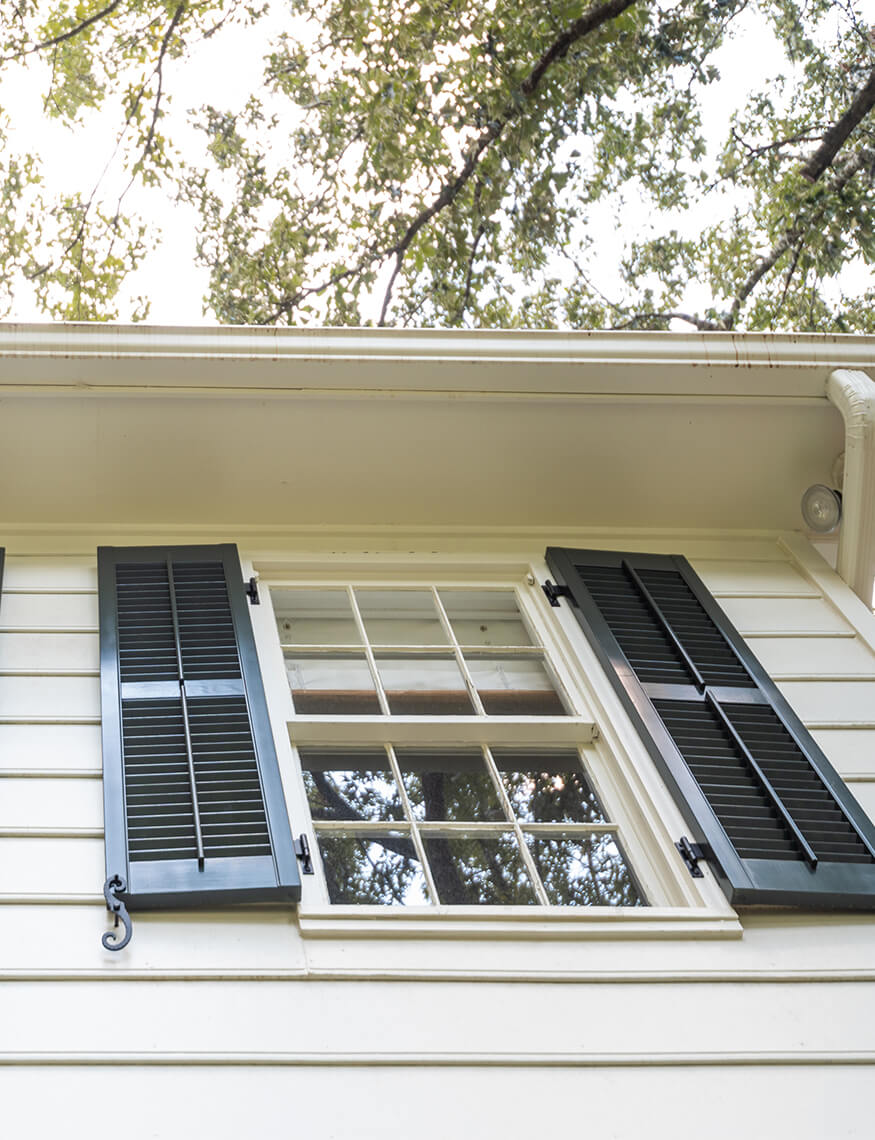

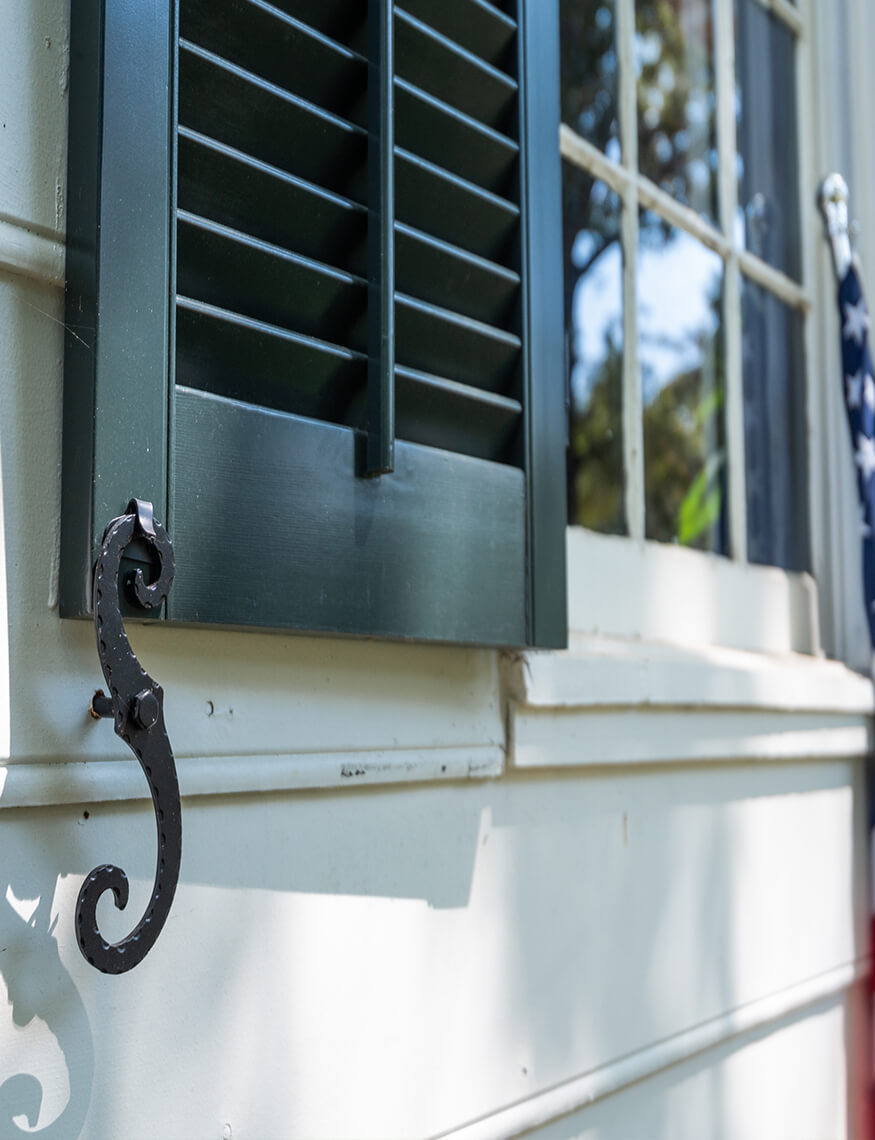

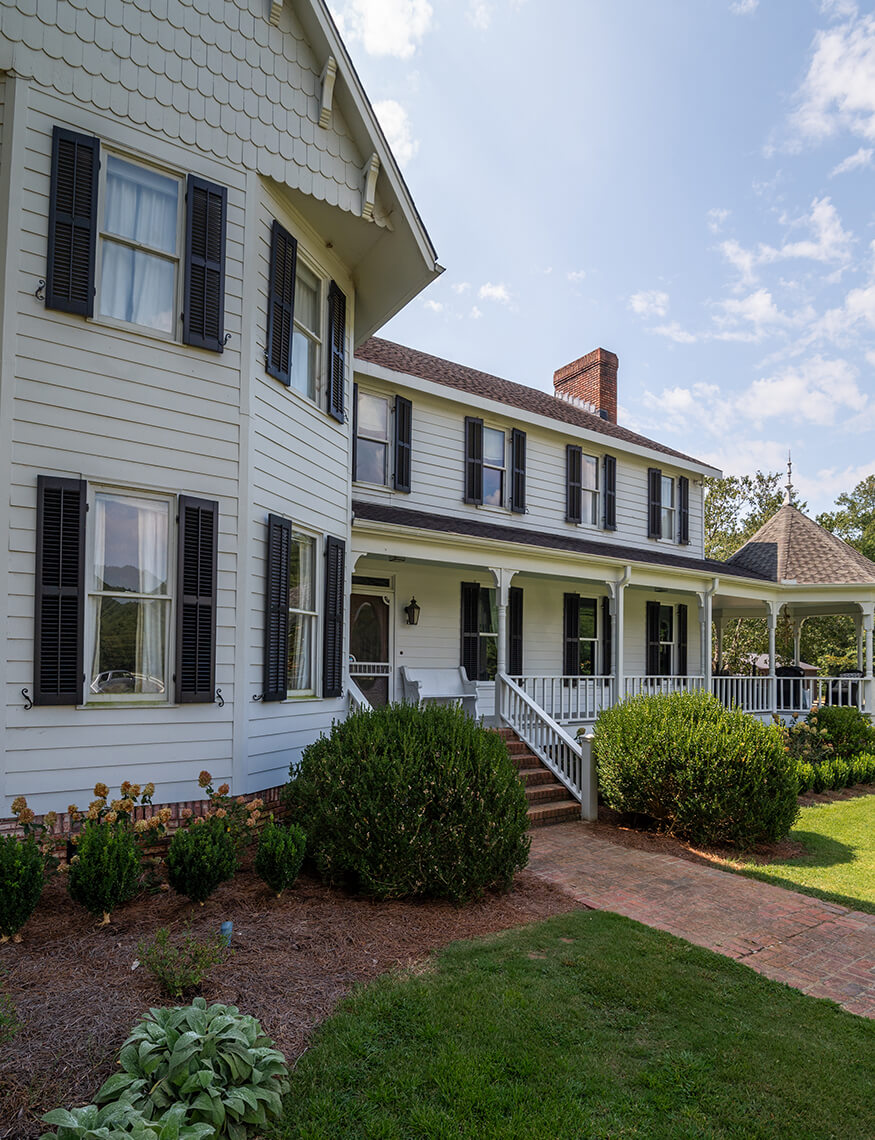

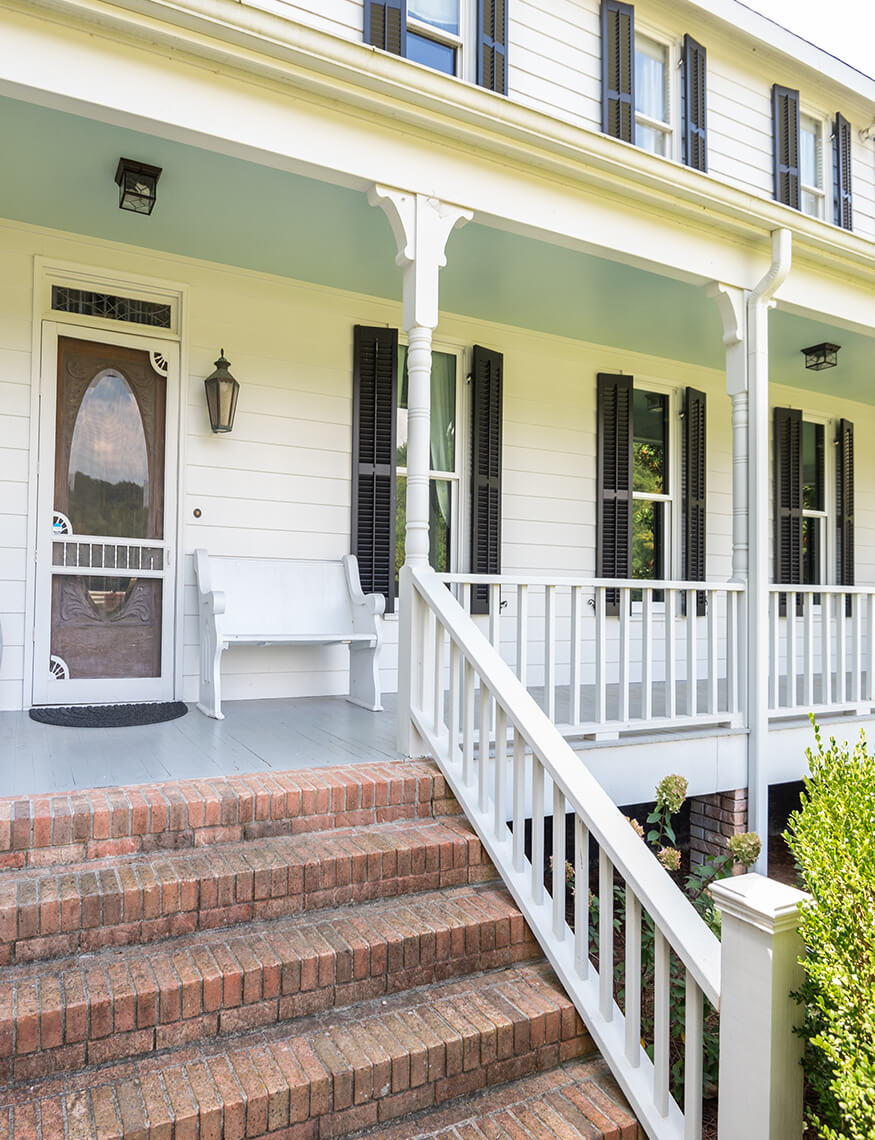

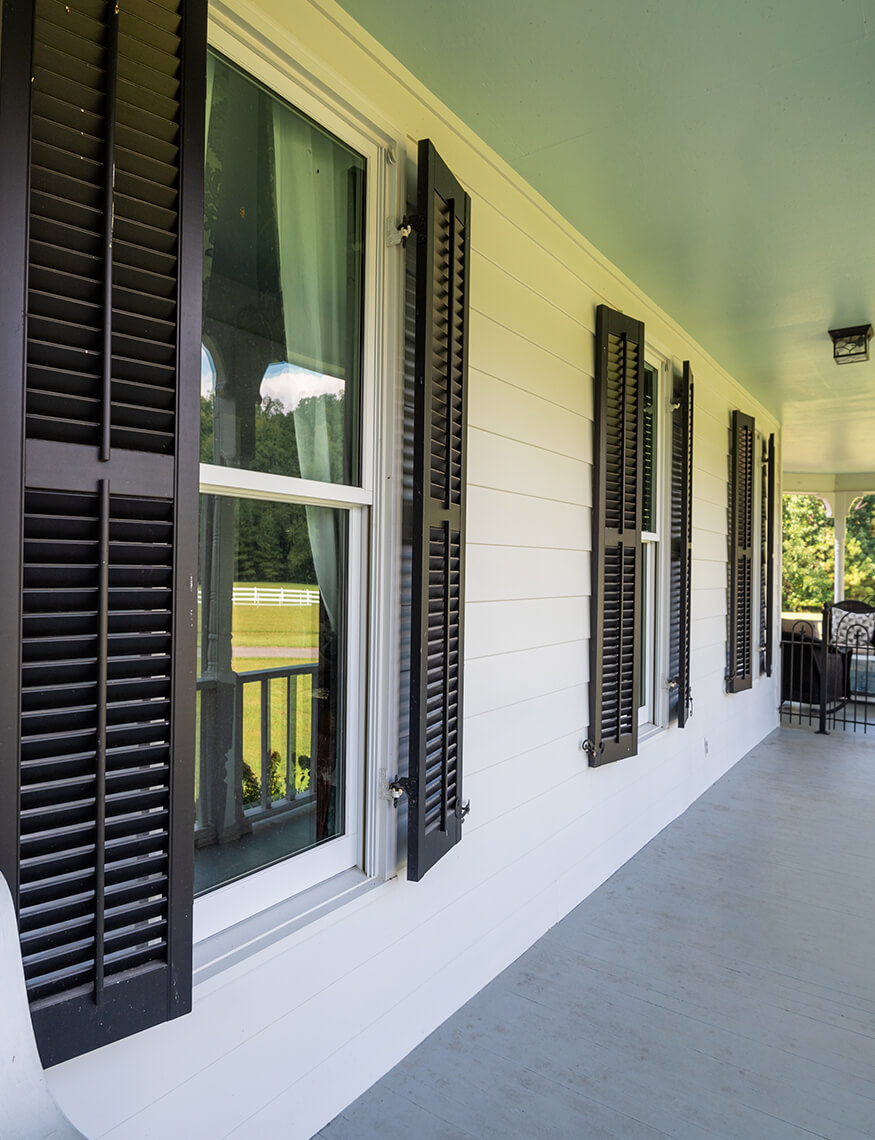

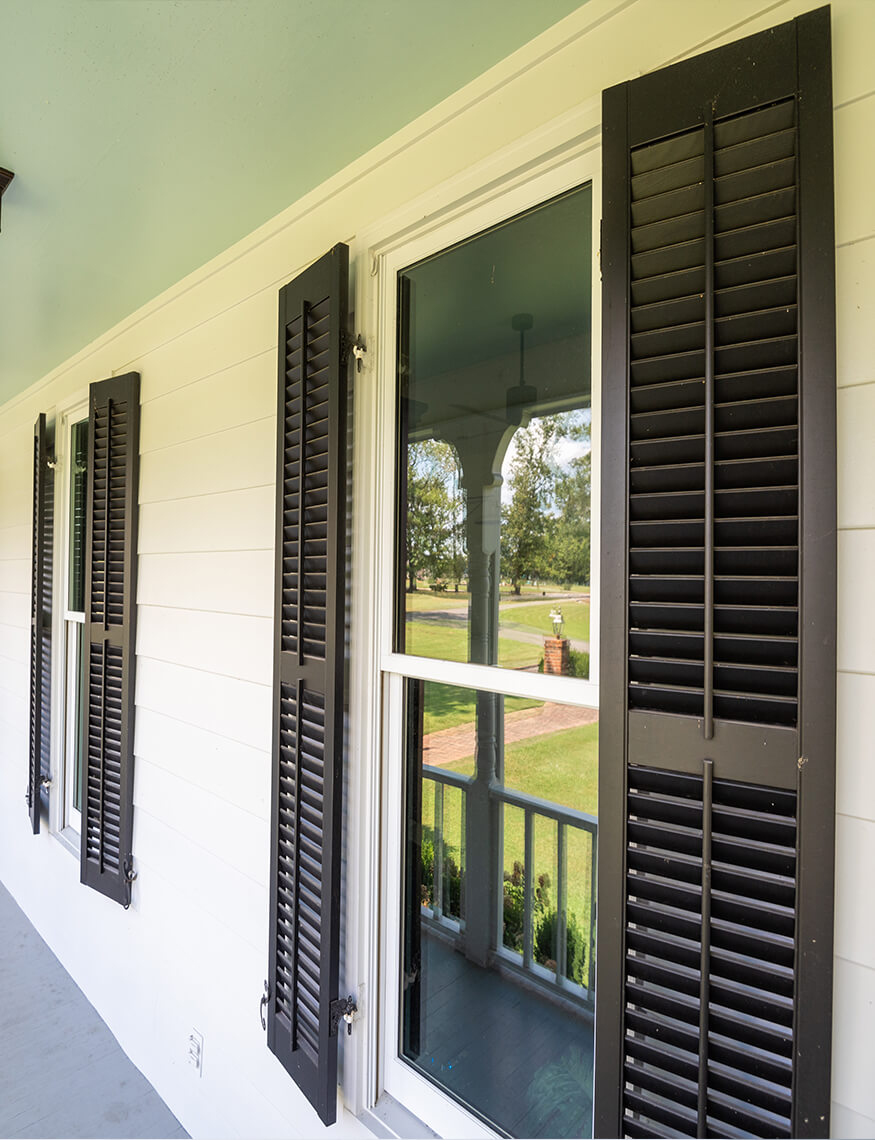

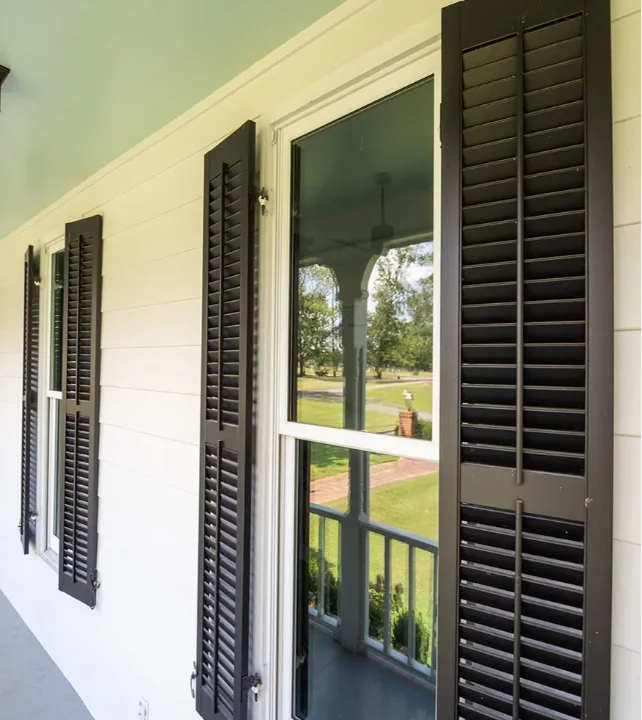

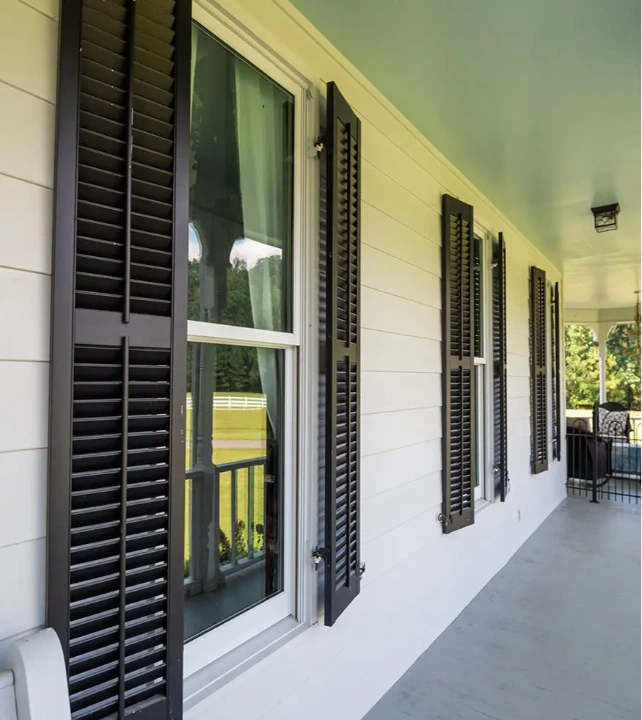

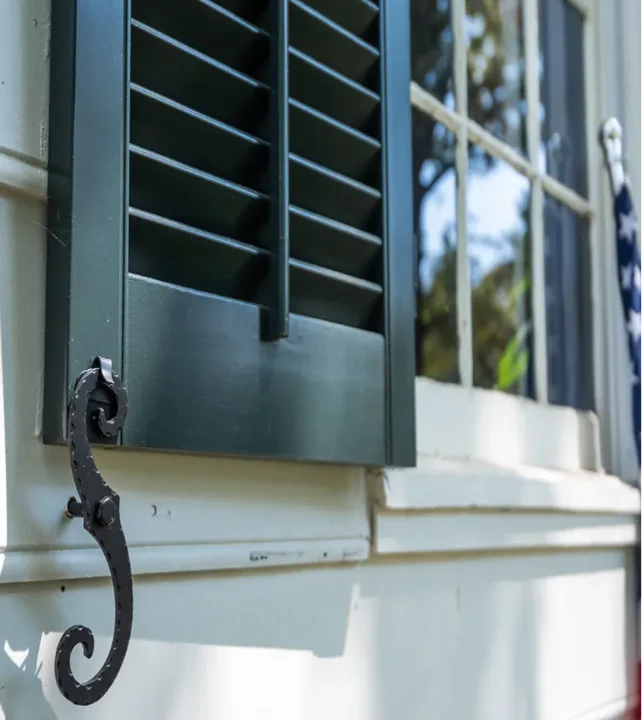

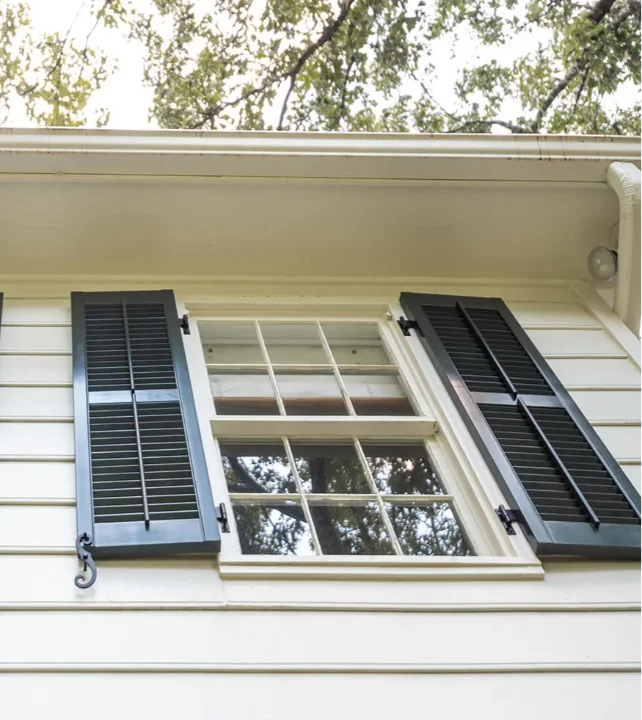

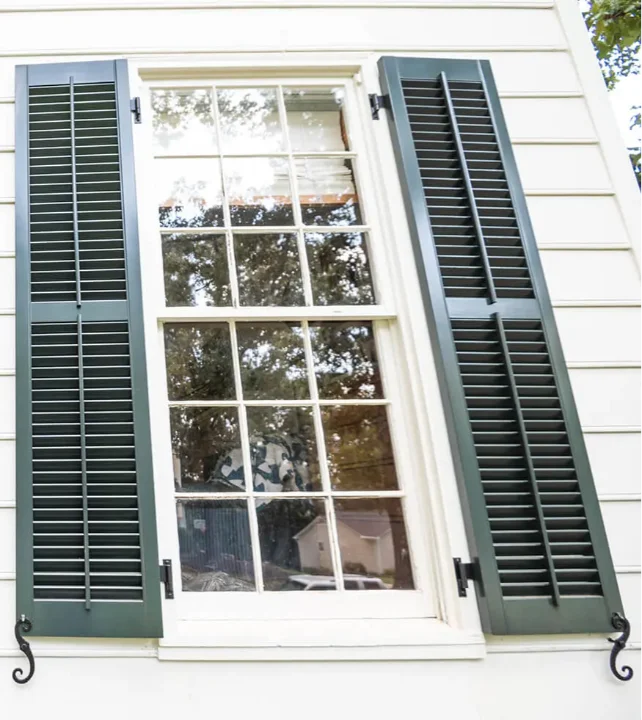

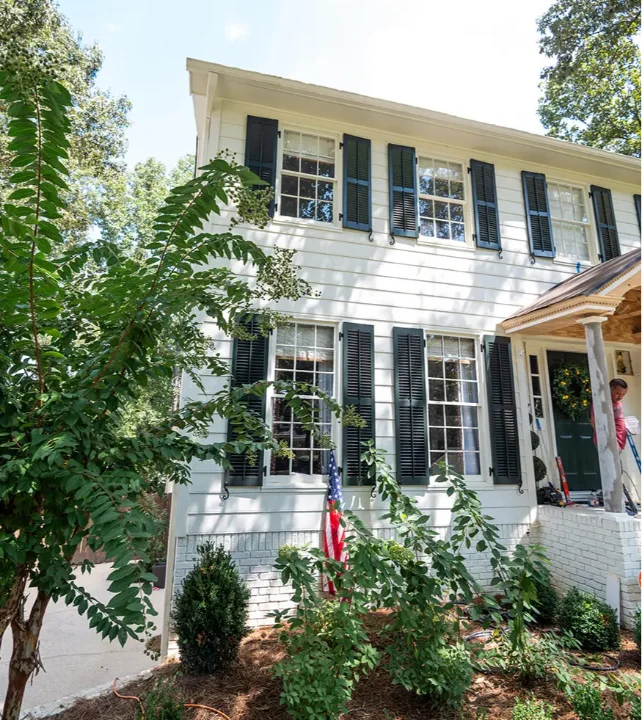

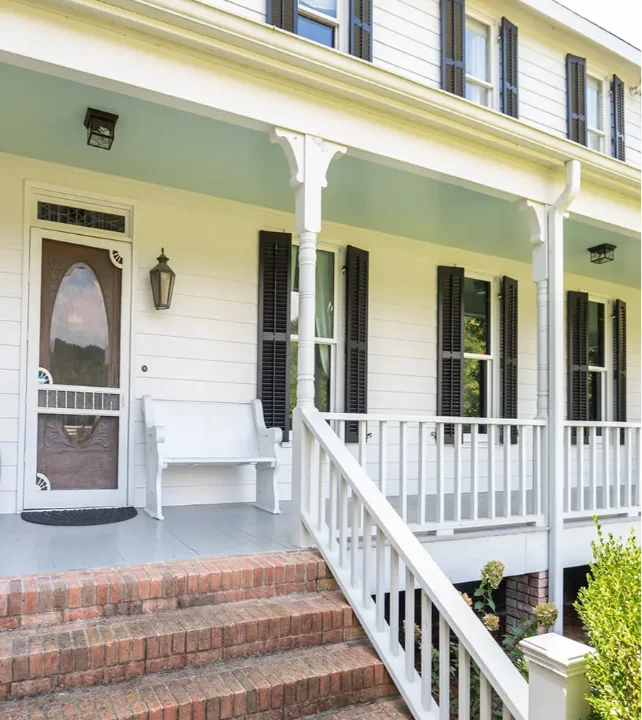

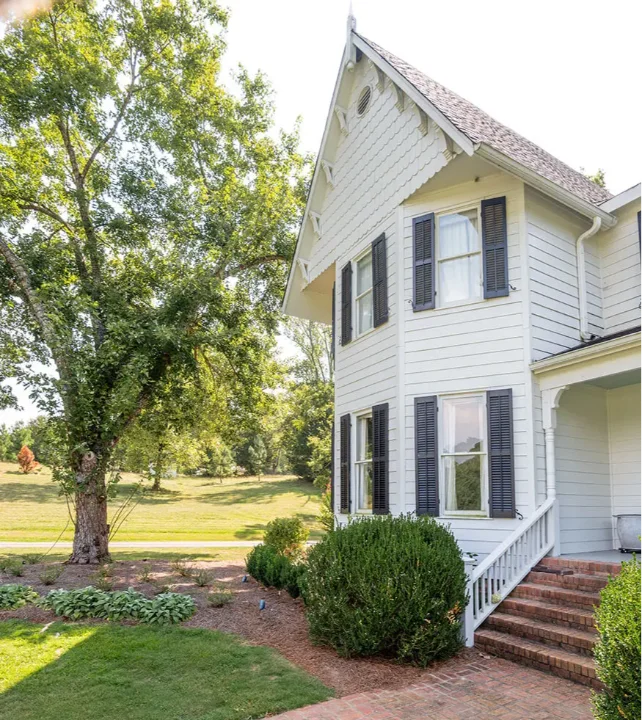

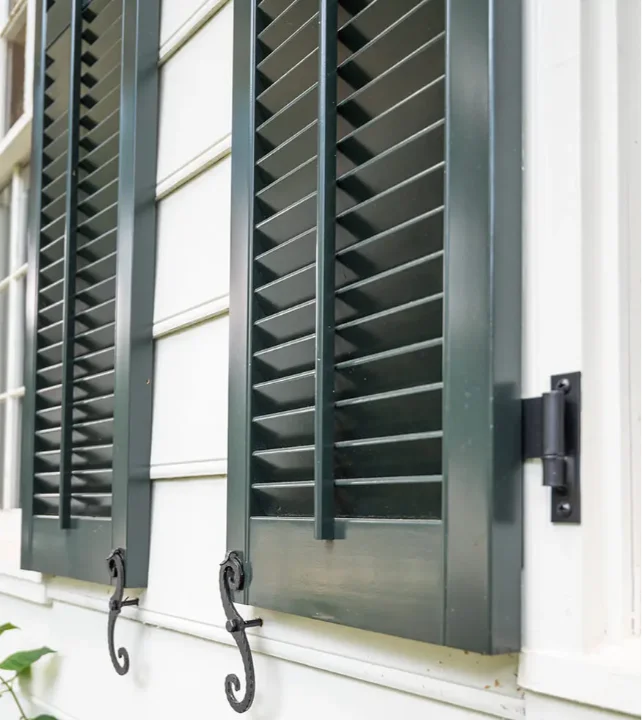

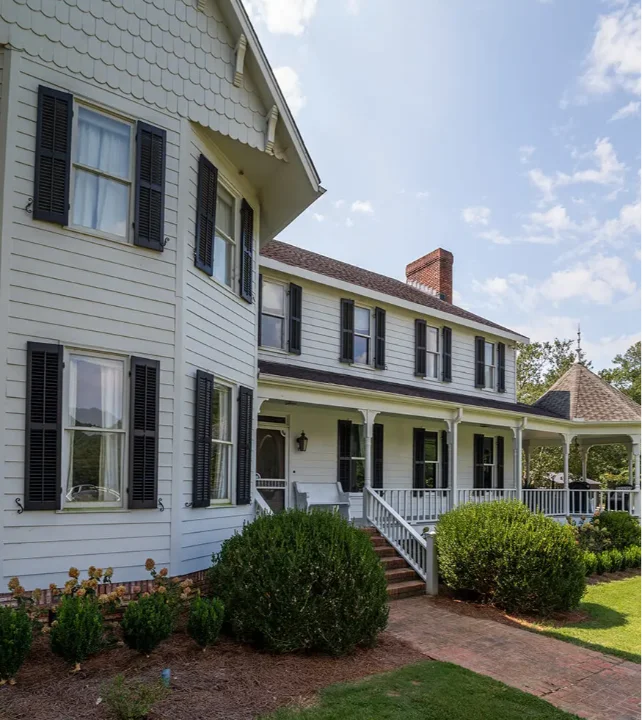

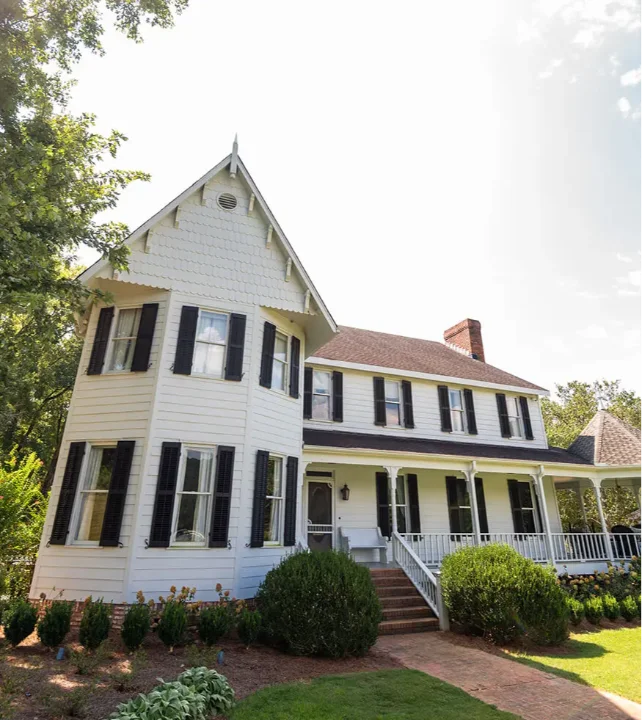

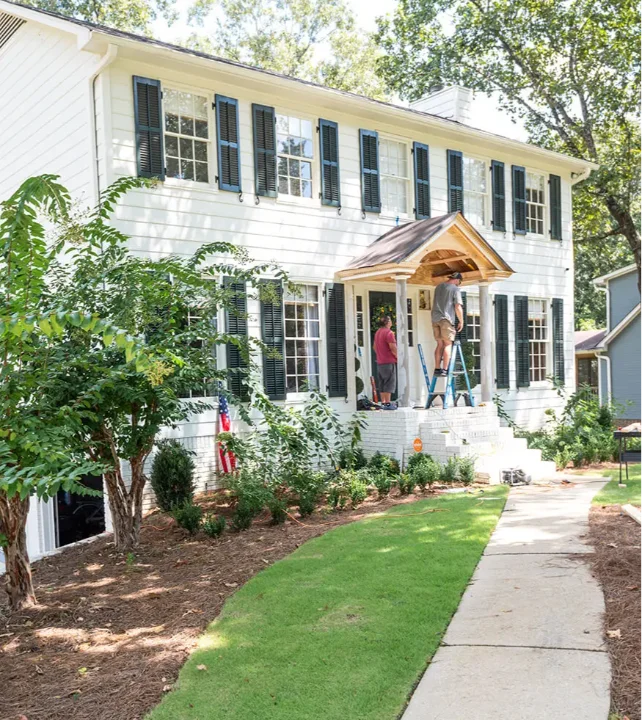

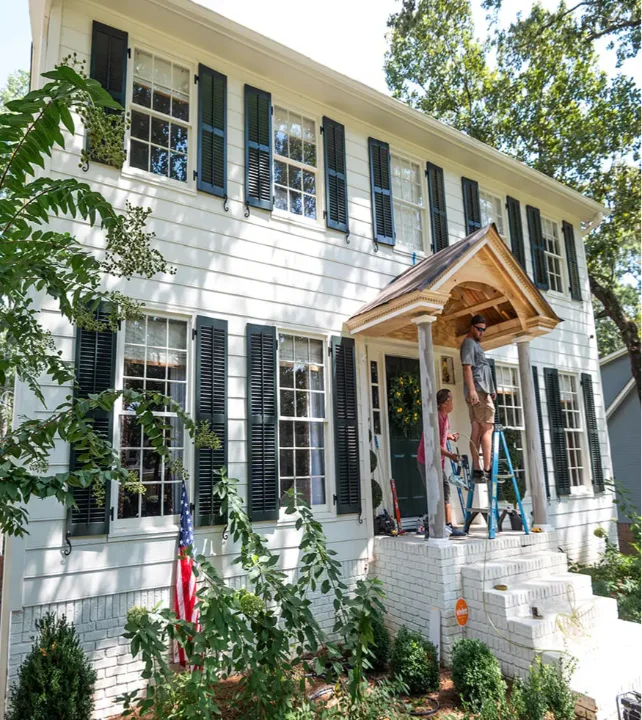

Recessed Stile & Rail Fixed Louver Shutter with False Control Rods & Mouse Holes
Heavy Duty
2 Section Recessed Stile & Rail Fixed Louver over Raised Panel Shutter
Heavy Duty

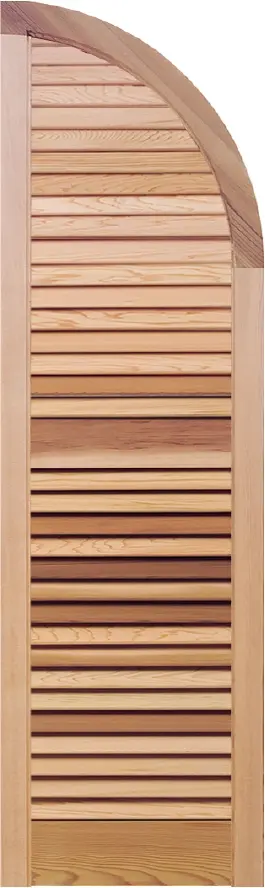

2 Section Recessed Stile & Rail Fixed Continuous Louver with Quarter Arch Top
Heavy Duty
2 Section Recessed Stile & Rail Fixed Louver with Solid Arch Top
Heavy Duty

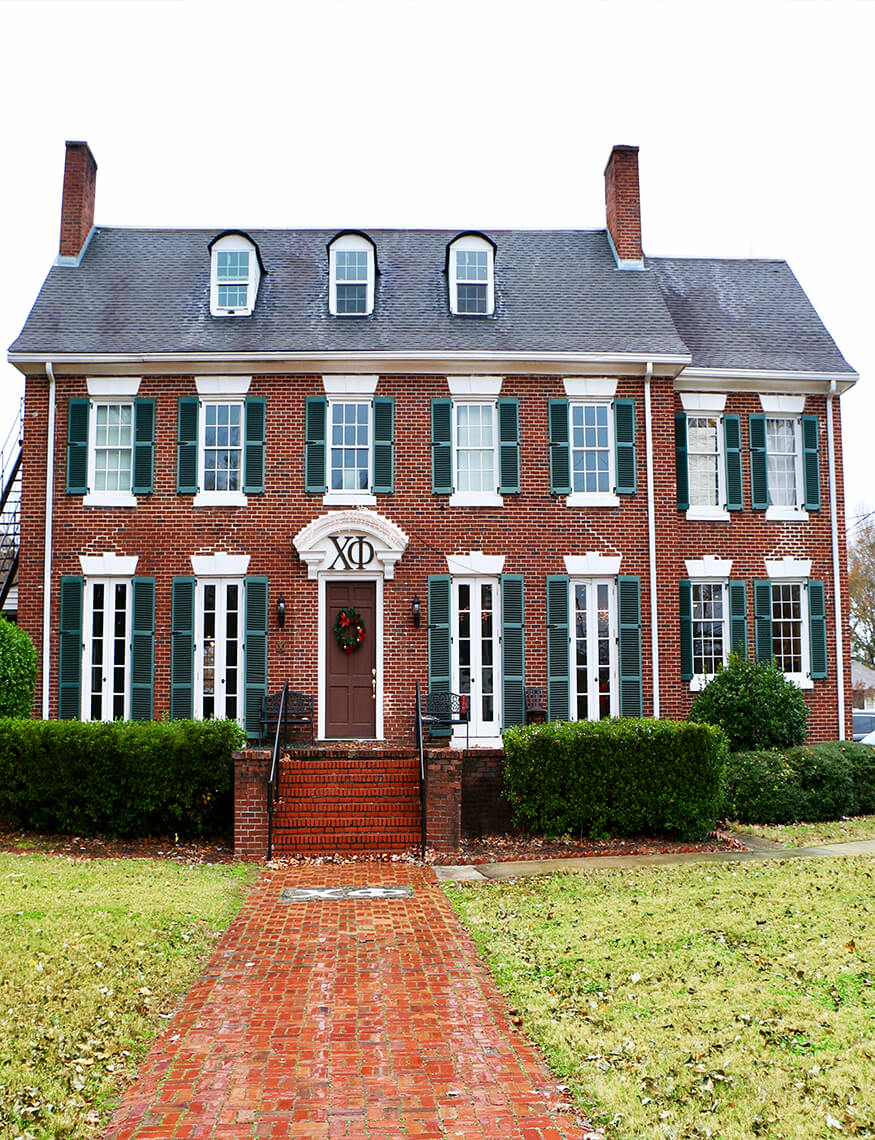

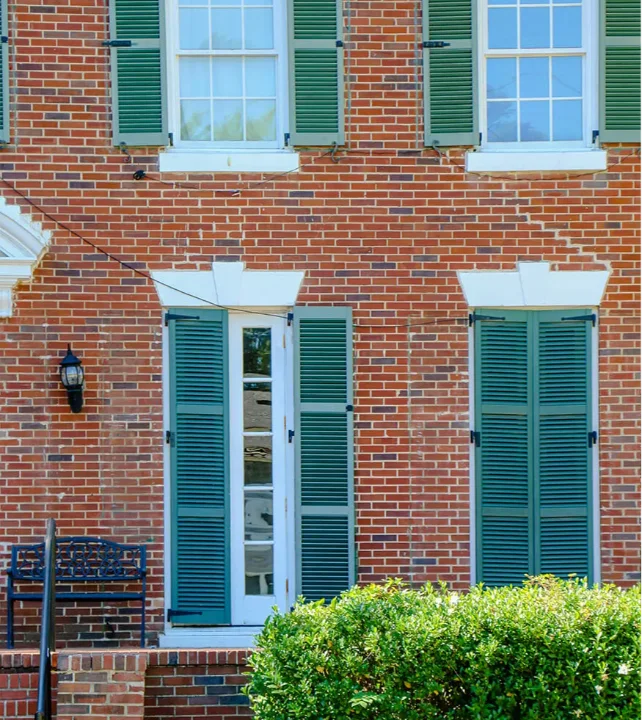

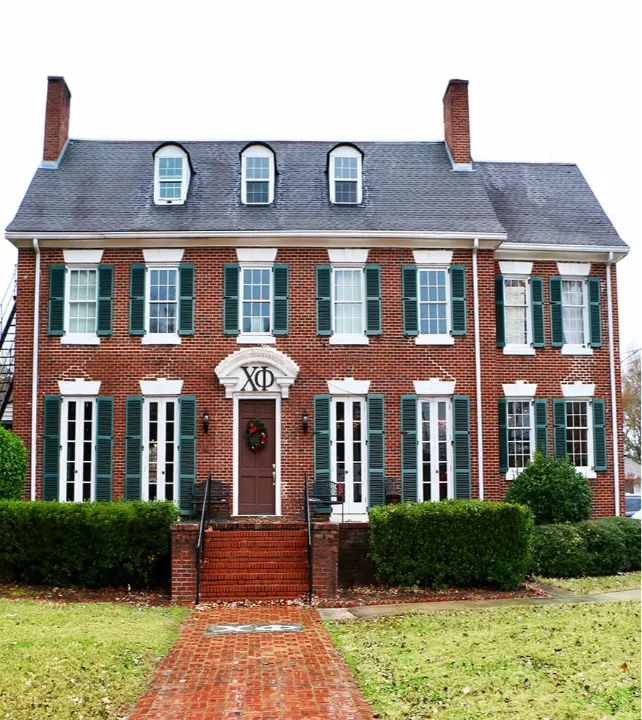

3 Sections Recessed Stile & Rail Fixed Louver Shutter
Heavy Duty
Bahama Style Shutter 2 Sections 1 Substile
Heavy Duty
Fixed Louver Spandrel
Illustrated below are some suggested options for Heavy Duty Recessed Stile & Rail Shutters with 1-5/8" x 3/8" Louvers. For other additional options call for a quote.
Rail Placement with Small Top and Bottom Sections

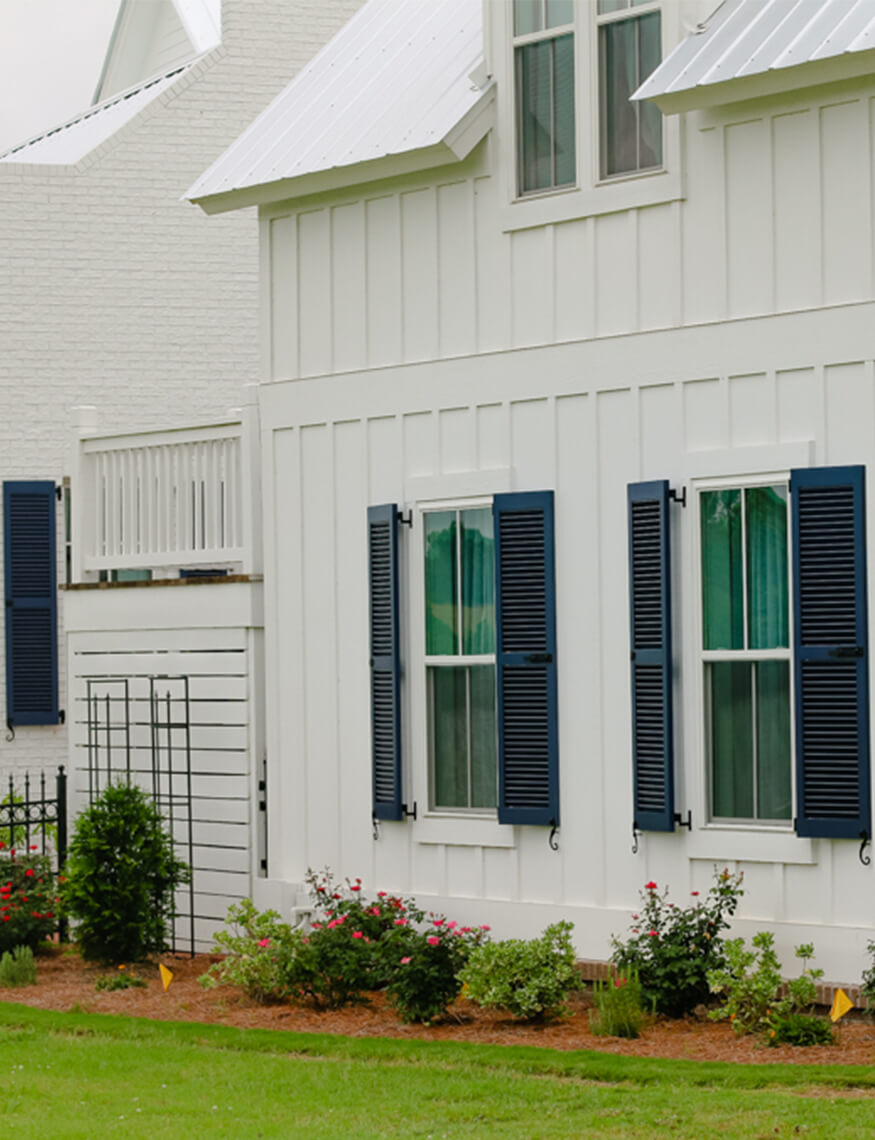

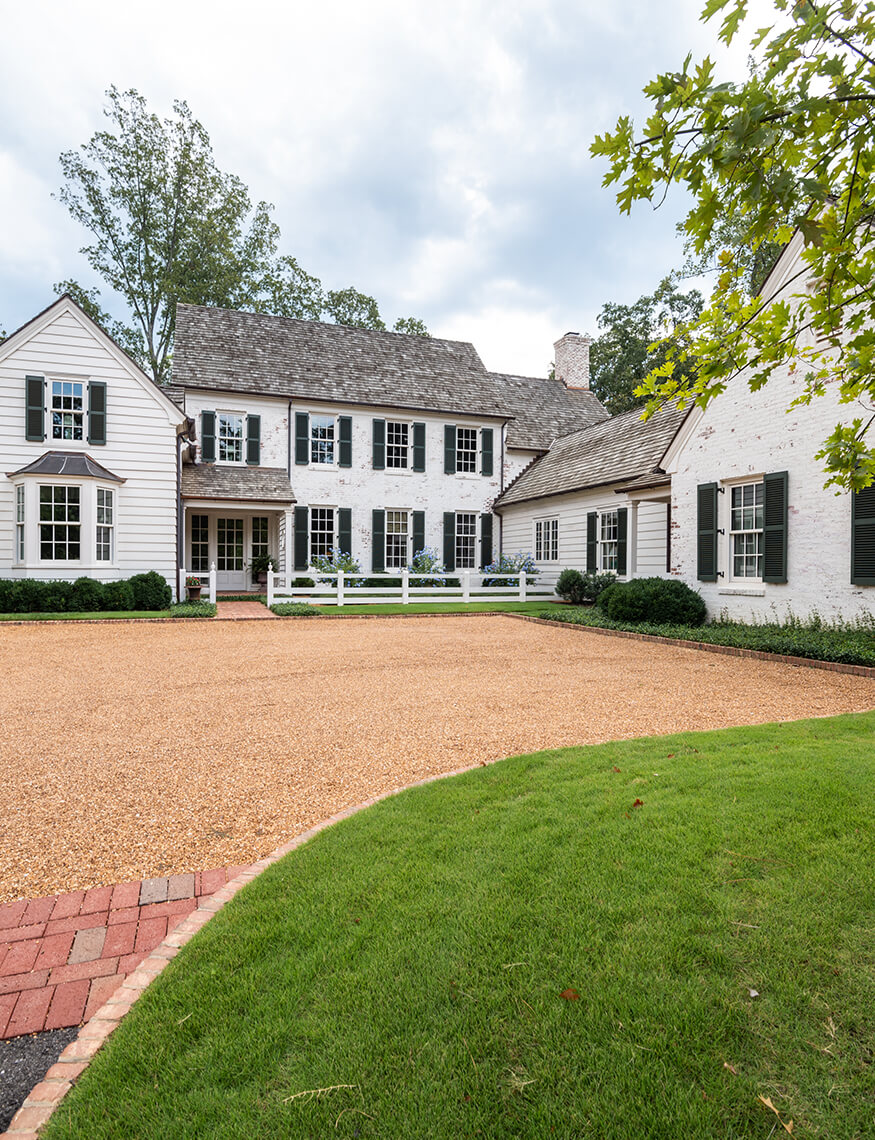

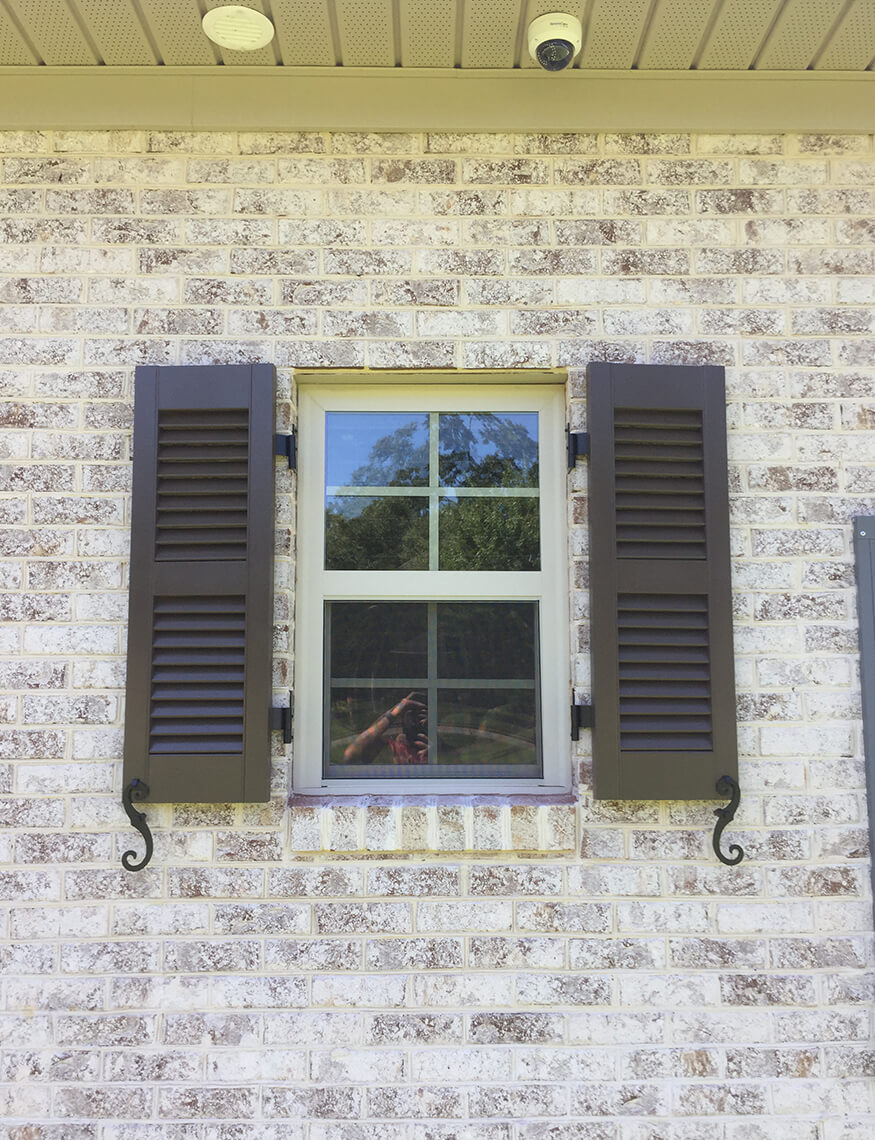

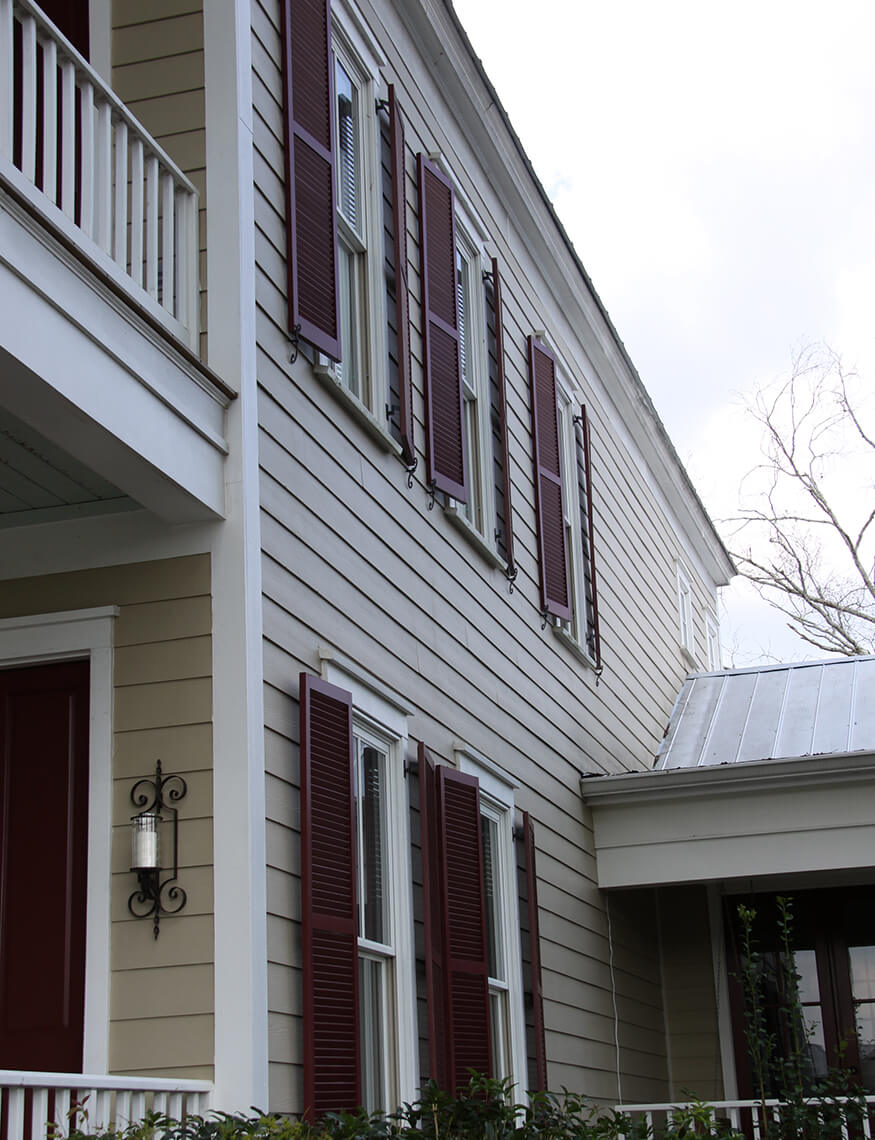

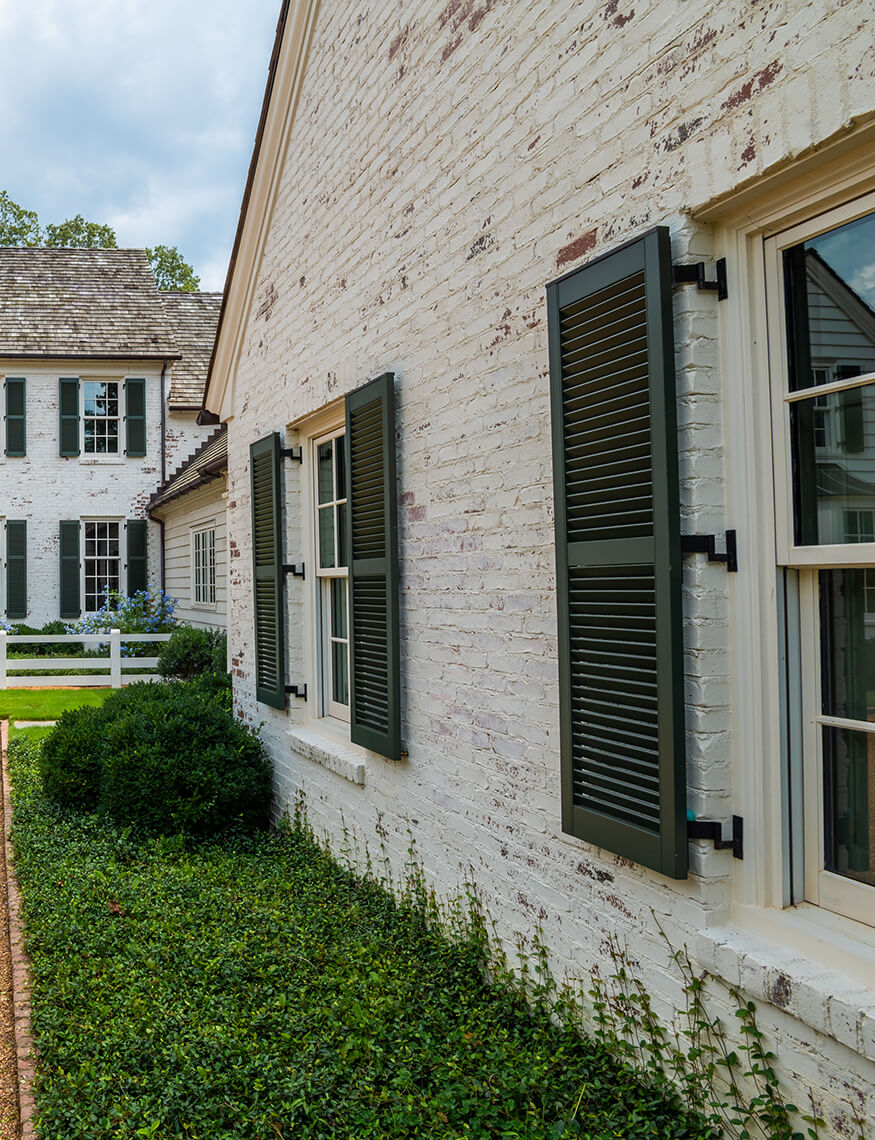

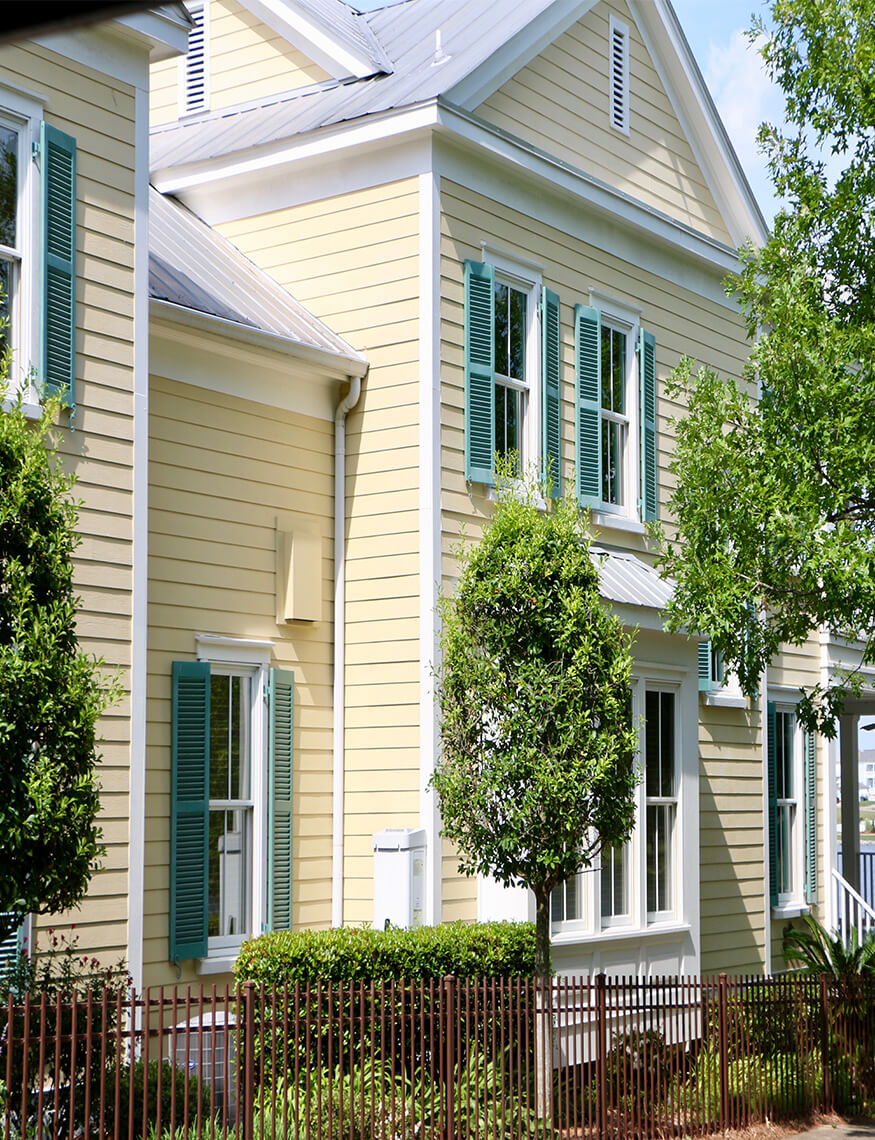

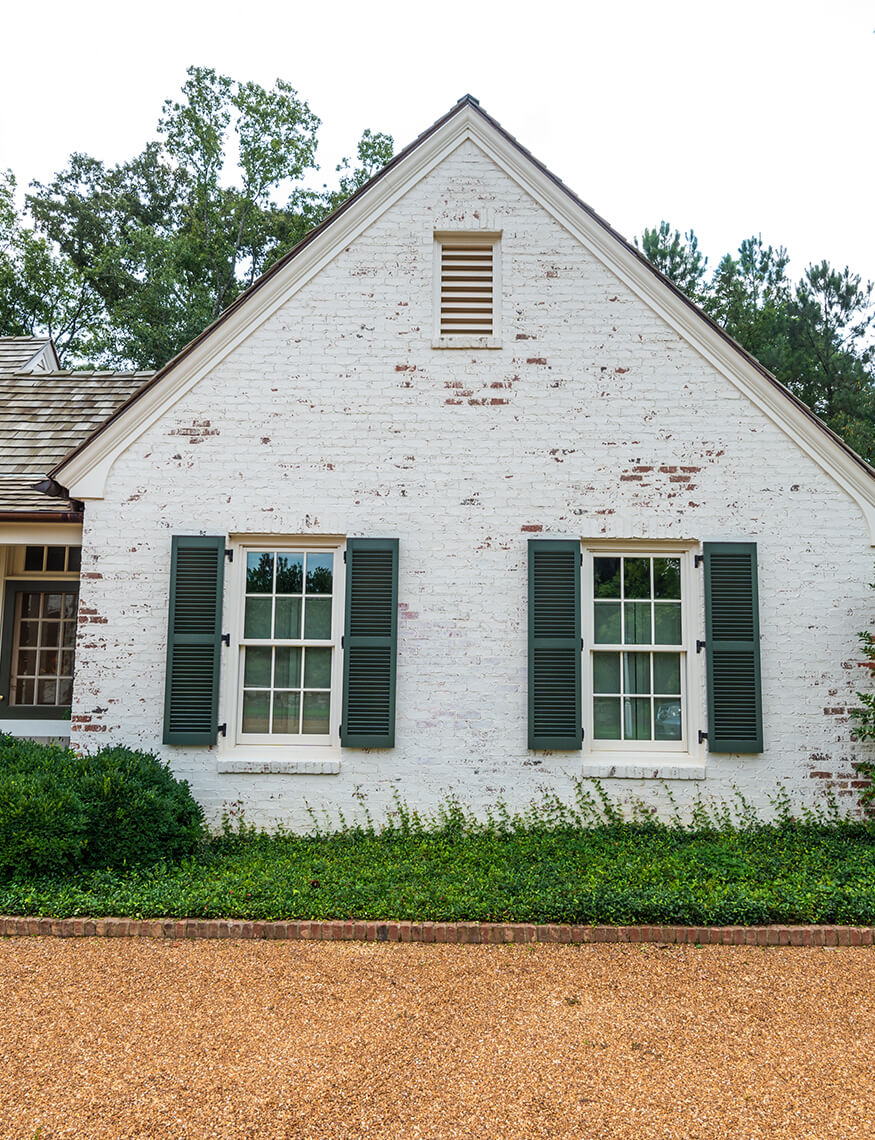

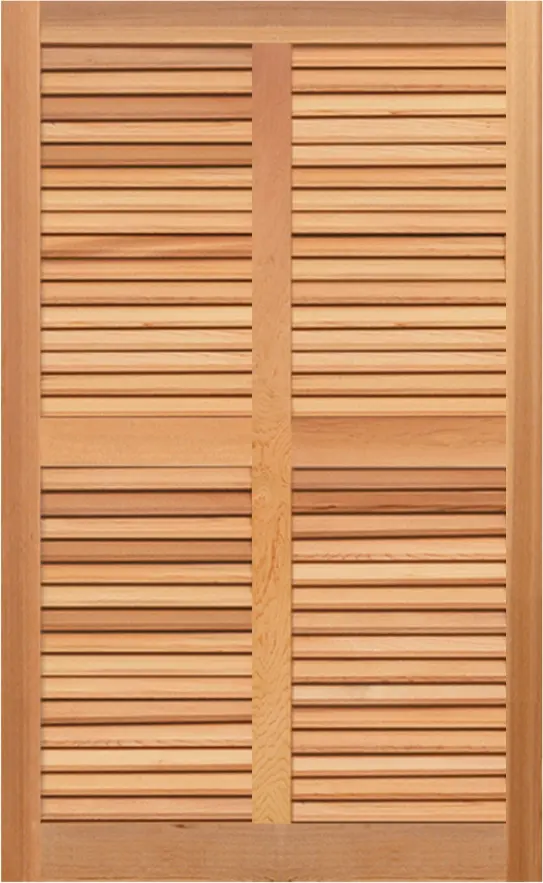

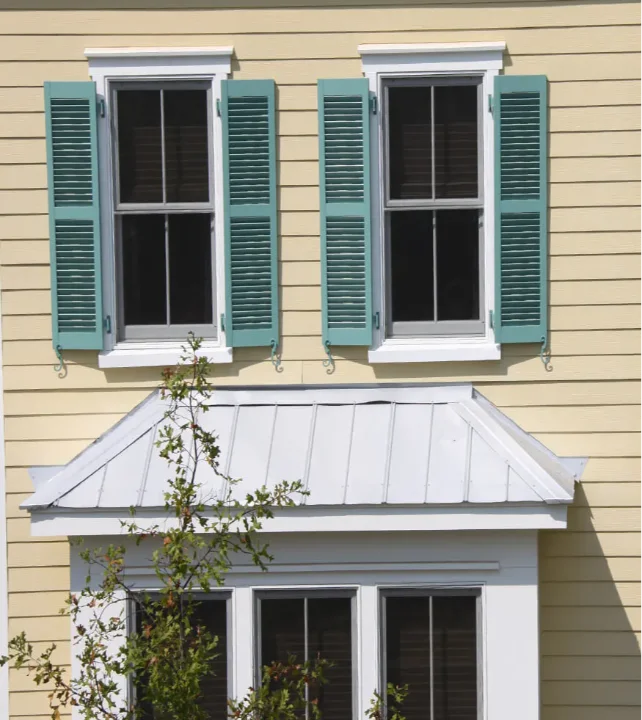

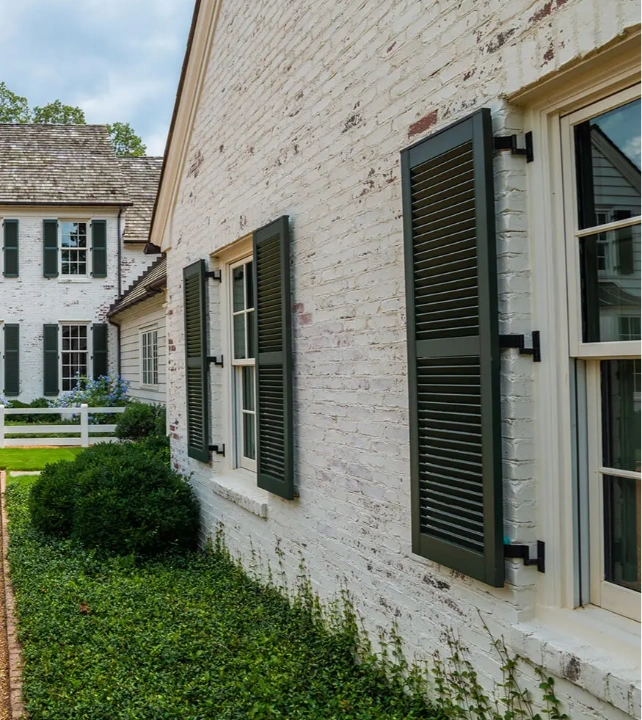

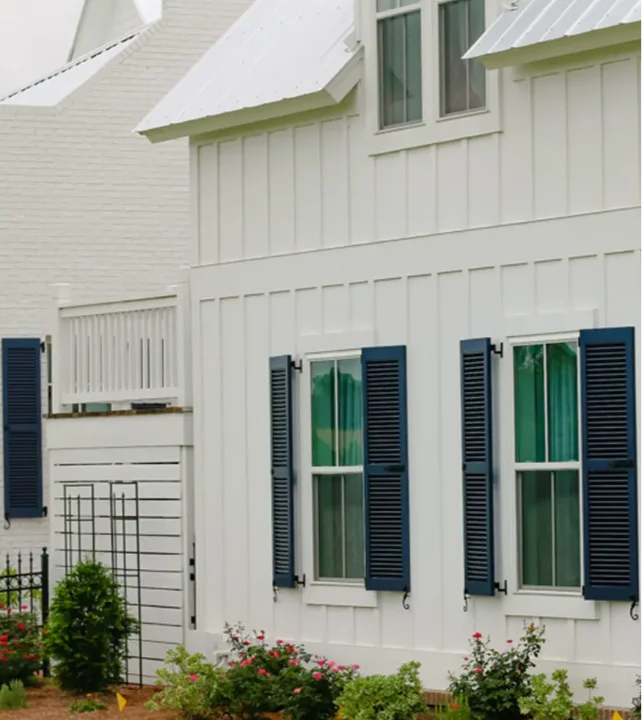

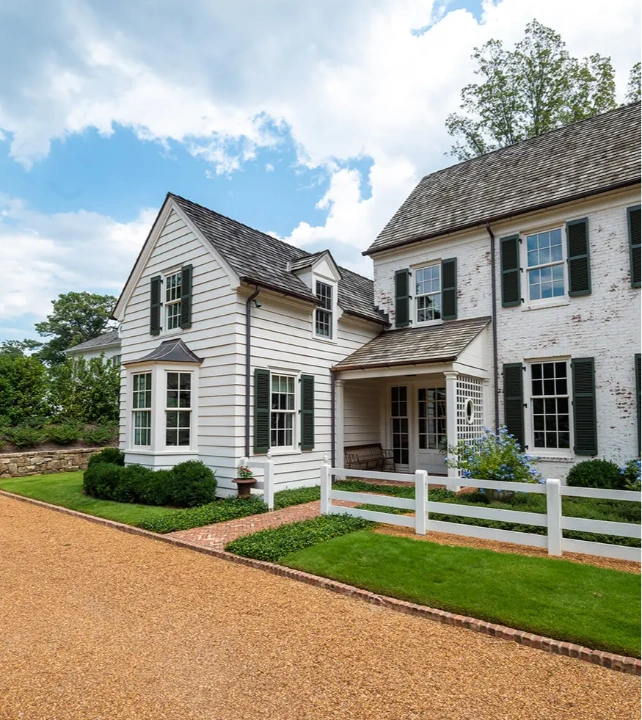

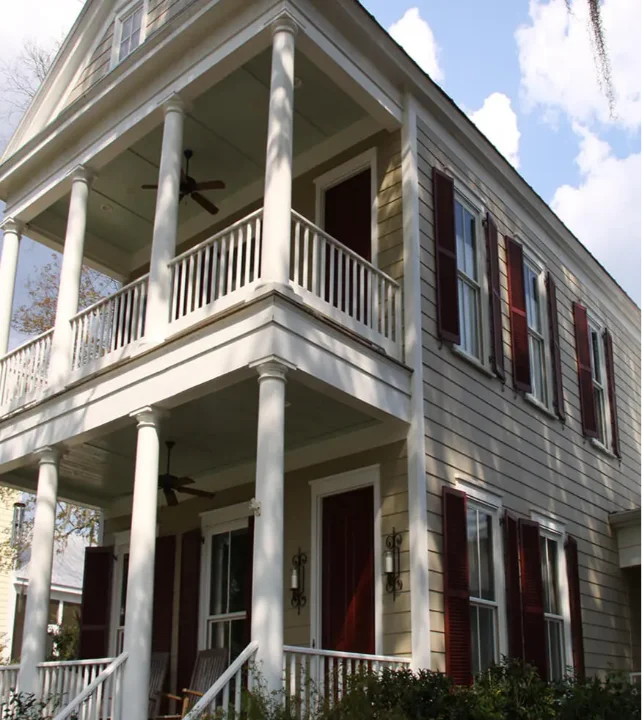

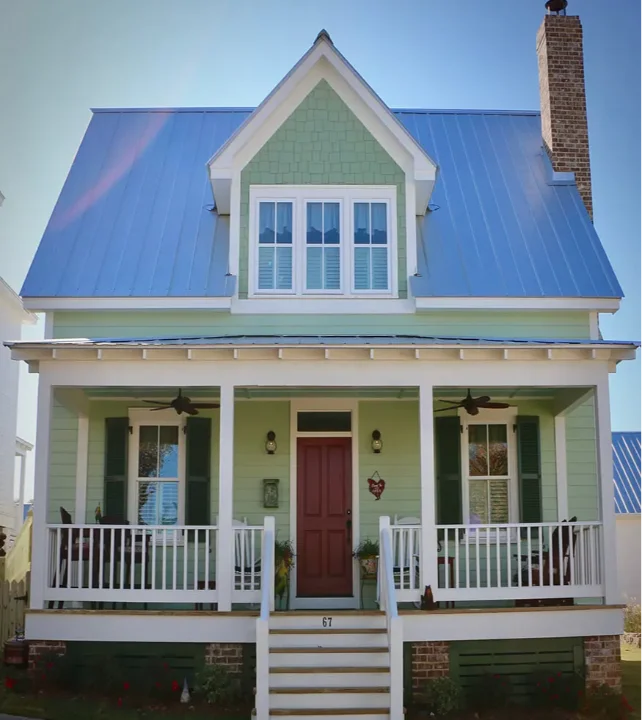

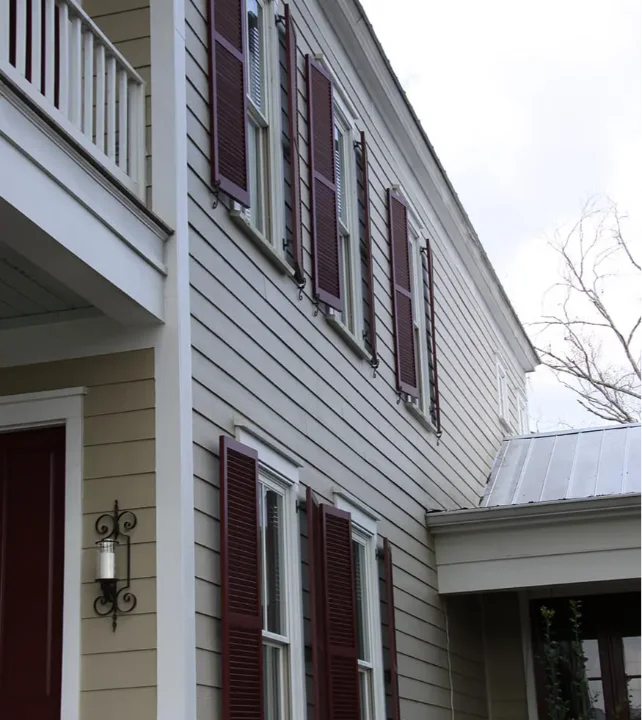

2 Sections with Rail Placement
Rail Placement with 3 sections and Small Transom Top
Rail Placement with 3 Equal Sections and Copper Cap
Rail Placement with 3 Equal Sections and Horns
2 Equal Sections and Modified Wide Side Stiles

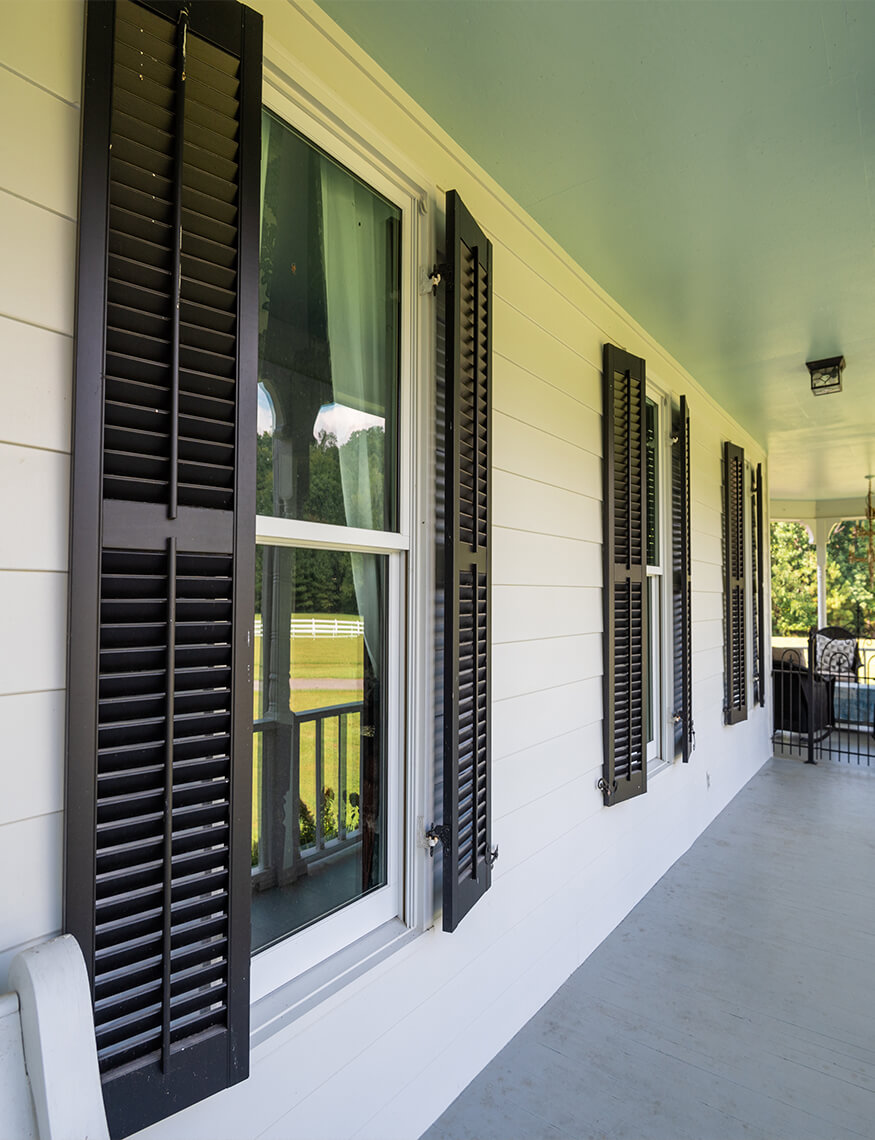

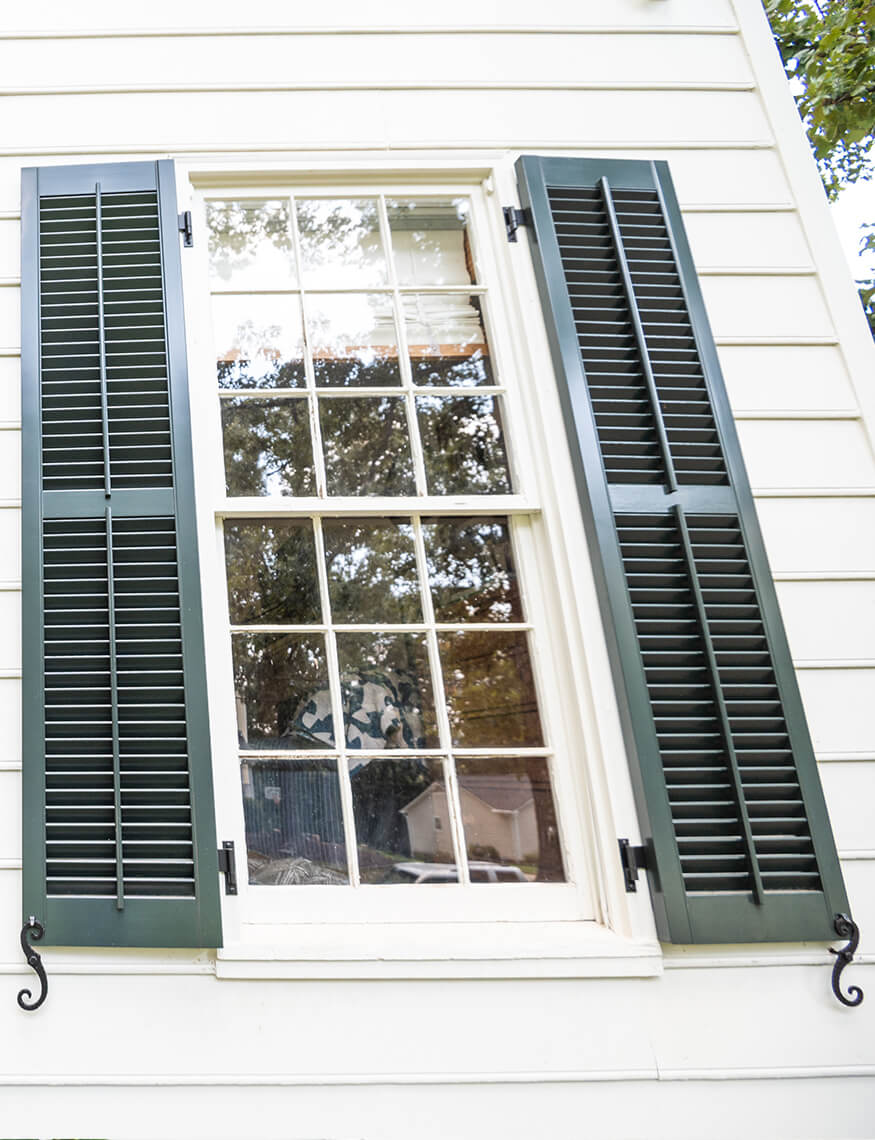

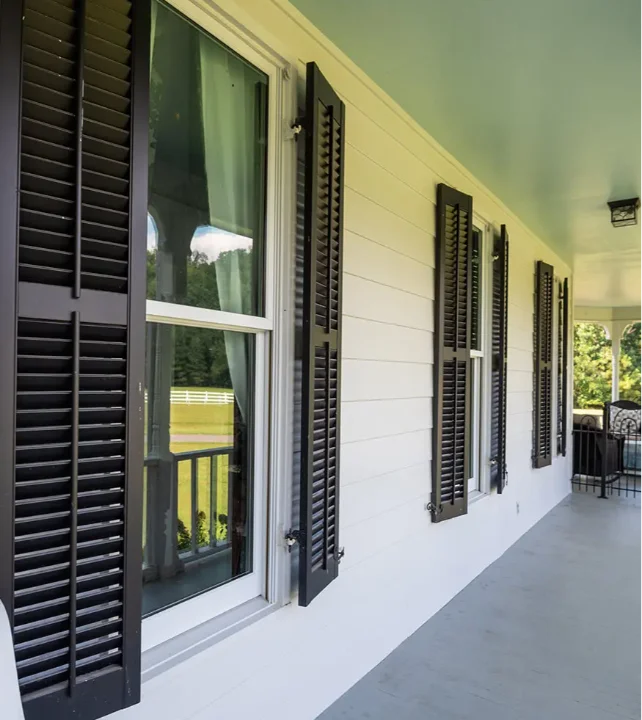

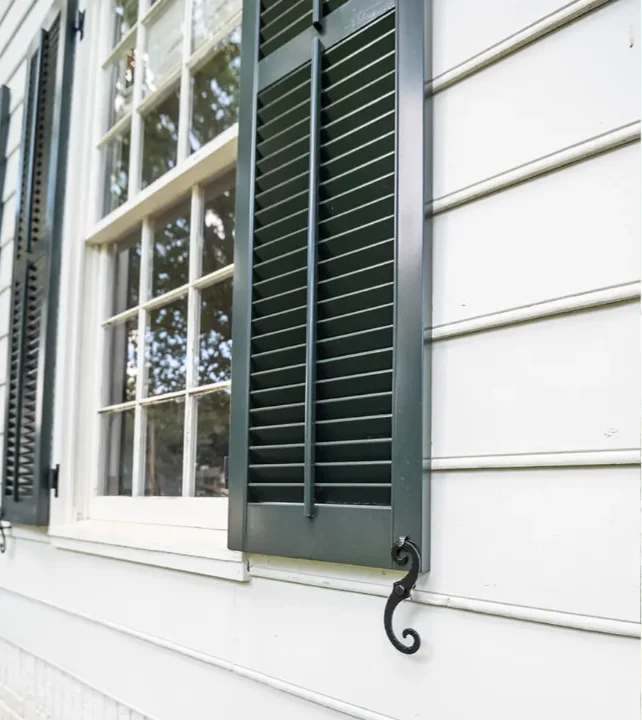

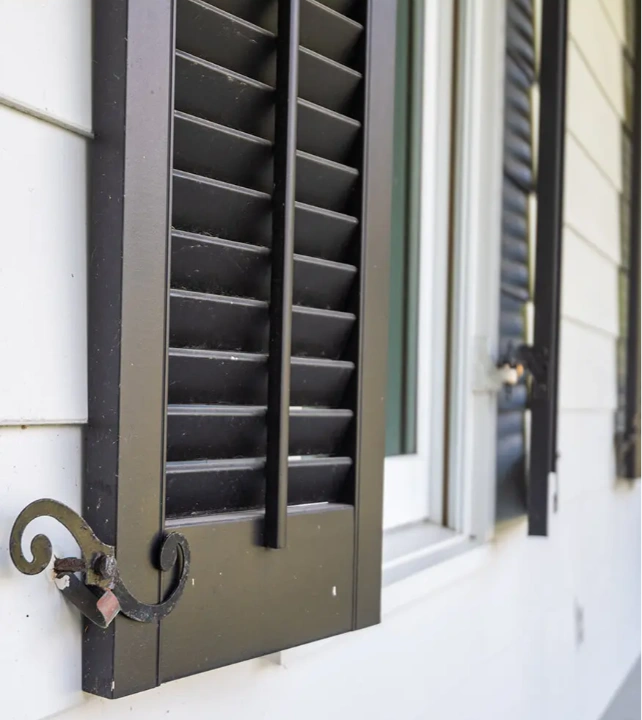

2 Equal Sections with False Control Rods and Mouse Holes
2 Equal Sections with Rake Top
Rail Placement with 3 Sections and Small Center Section
3 Equal Sections with Half Round

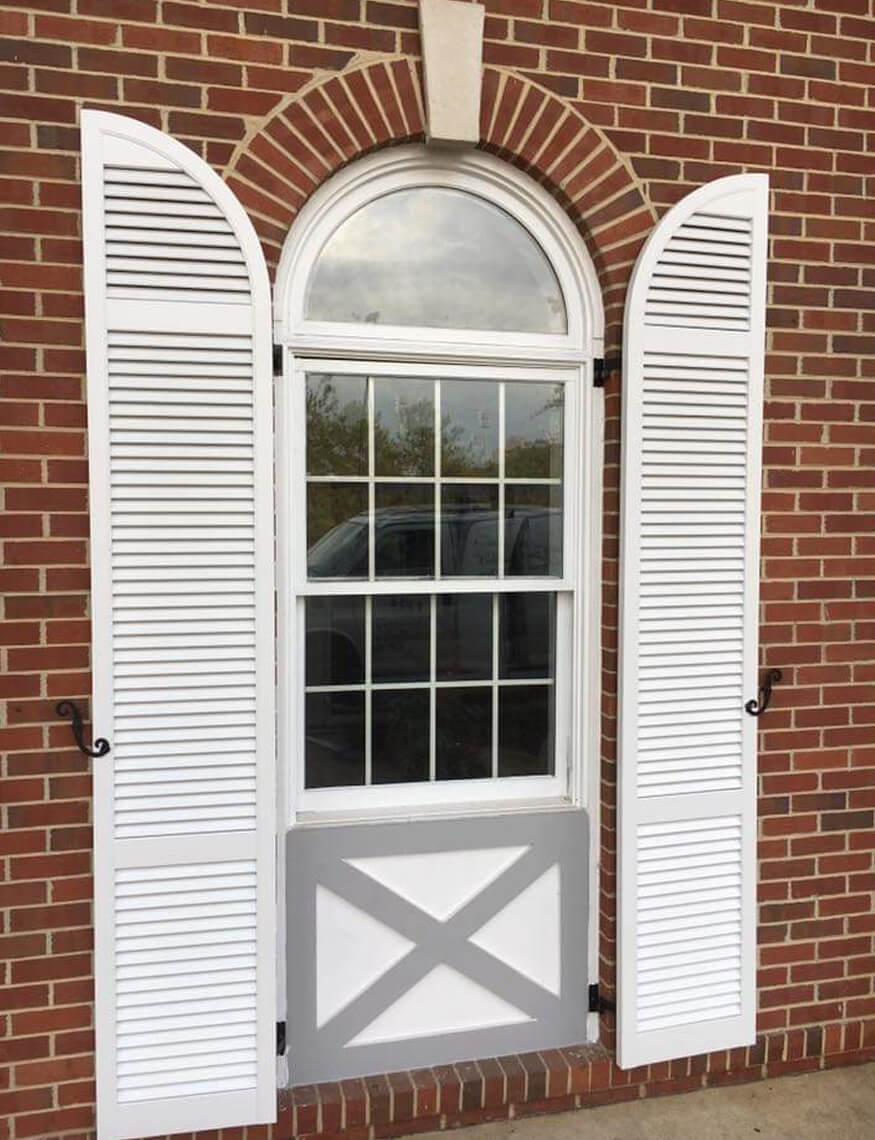

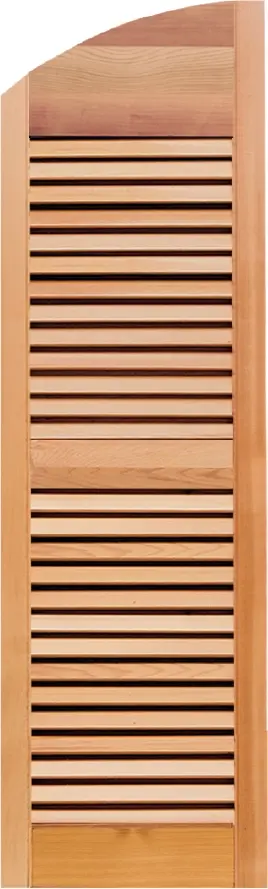

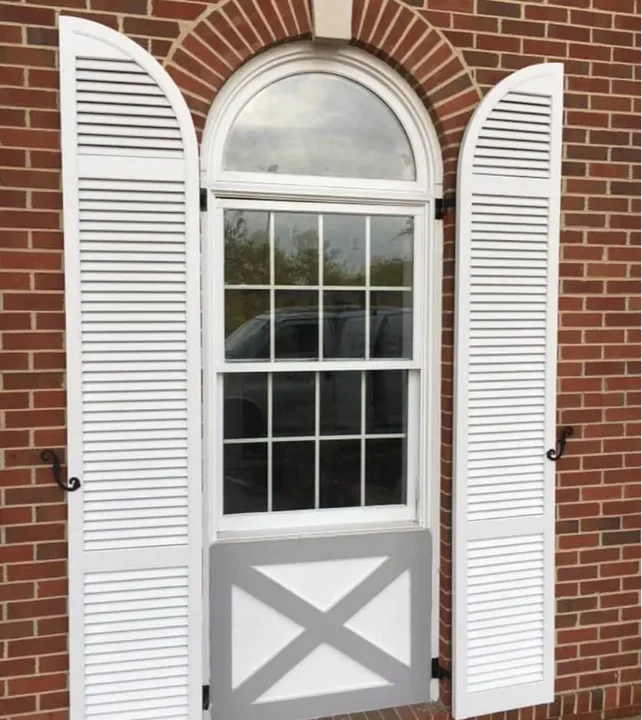

2 Equal Sections with Quarter Round Arch Top

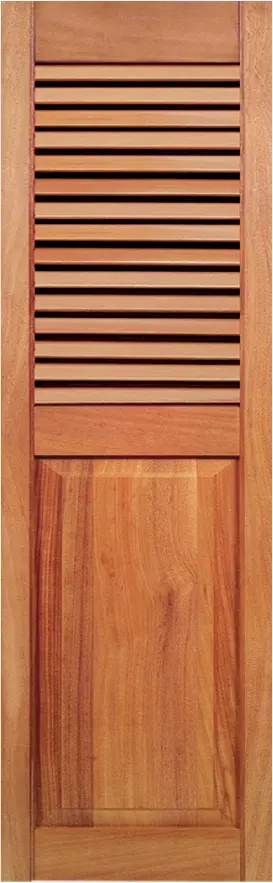

Combination Fixed Louver over Raised Panel with 2 Equal Sections
Measuring & Installation Guide for Exterior Shutters
Take careful Measurements.
It is important to measure your shutter pocket at the top and the bottom and on both sides, because window frames may not always be square.
Remember to measure and re-measure to verify your numbers before selecting your shutters and the desired mounting proceedure.
Select the best mounting & hardware options.
Terminology
- Shutter Pocket - The opening into which the shutters will close.

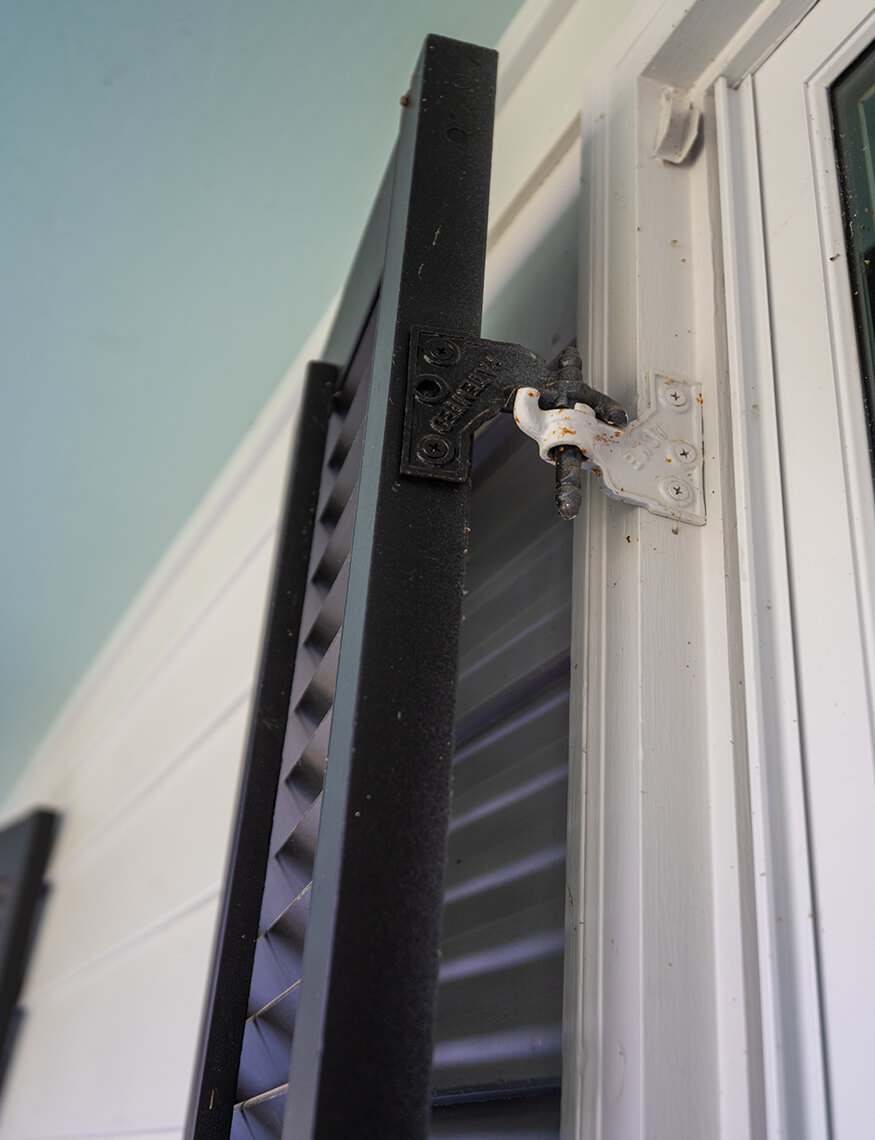

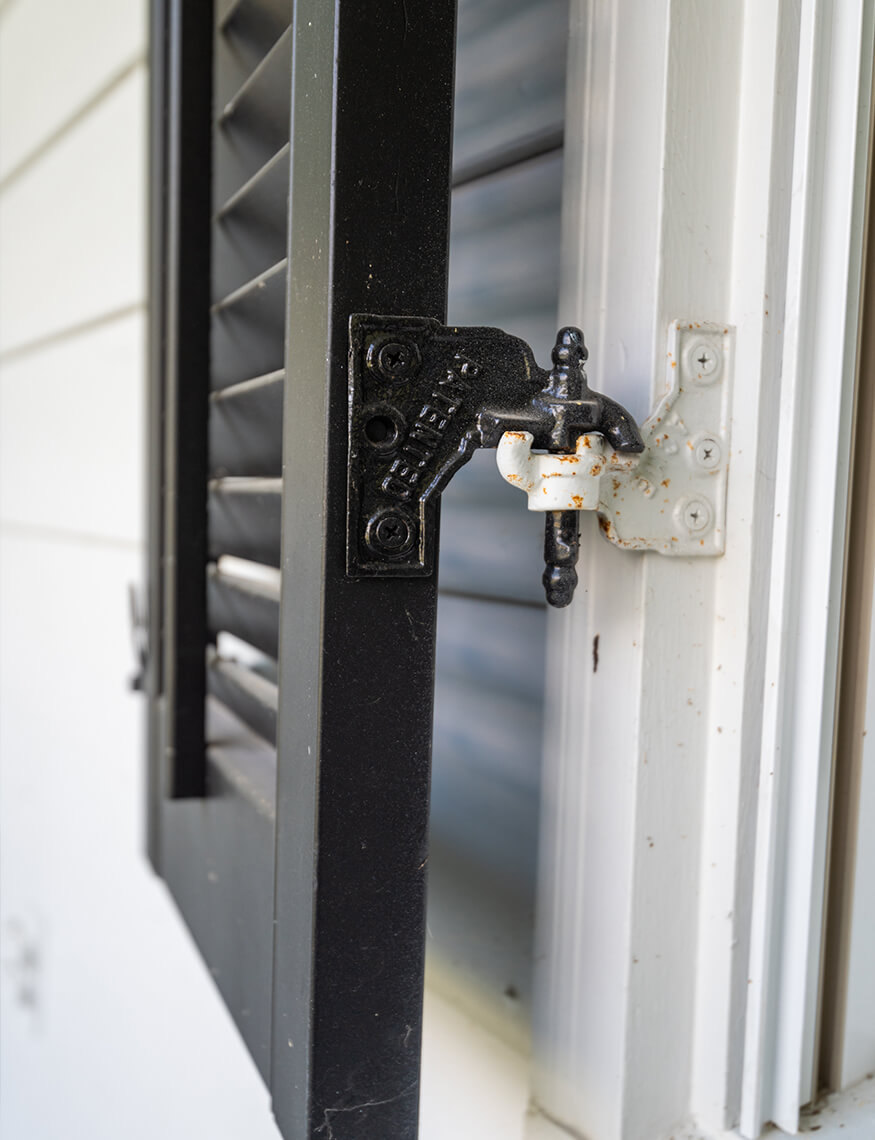

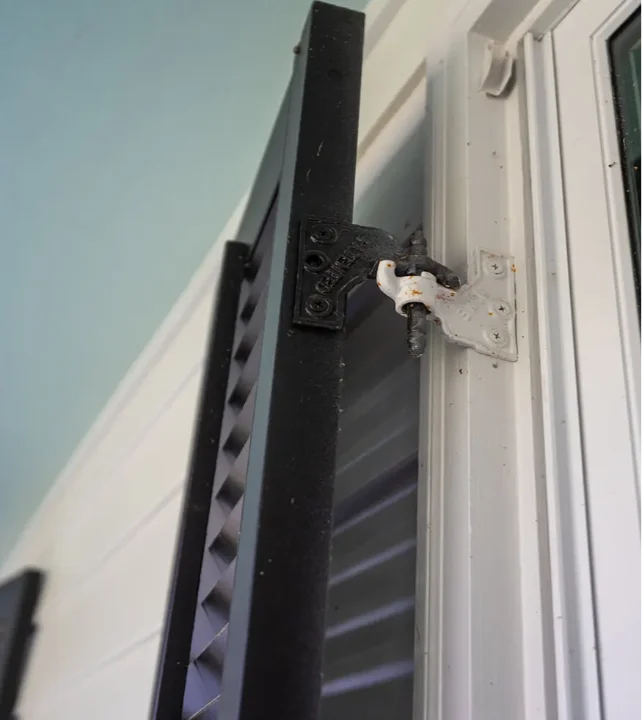

- Pintel - The male part of the hinge set that attaches to the house.
- Strap - The female part of the hinge set that attaches to the shutter.
- Siding Material - The siding material that is used on the house i.e. brick, plank, stucco.
- Return Depth - The distance in inches, from the window sash to the outer edge of the structure (See A).
- Pintel Offset - The distance in inches, between the plate that screws to the house and the pin that the strap sits on.
- Strap Offset - The distance in inches, from the pintel pin to the inner part of the shutter.
- Hinge Throw - The pintel offset plus the strap offset. The distance needed for the shutter to clear the structure when in the open position (See B).
Questions that must be Answered.
- What type of siding is on the house around the window?
Ex. Brick, stucco, stone, plank, vinyl... - What type of moulding (180 brickmould, 1x4 flat mold, etc.) is around the window or does the siding material butt up to the window with no trim board at all?
- What is the return depth in inches, from the outside edge of the trim board to the face of the sash itself?
- How deep is the pocket or frame the shutter will close into.
- Where will the pintel be placed?

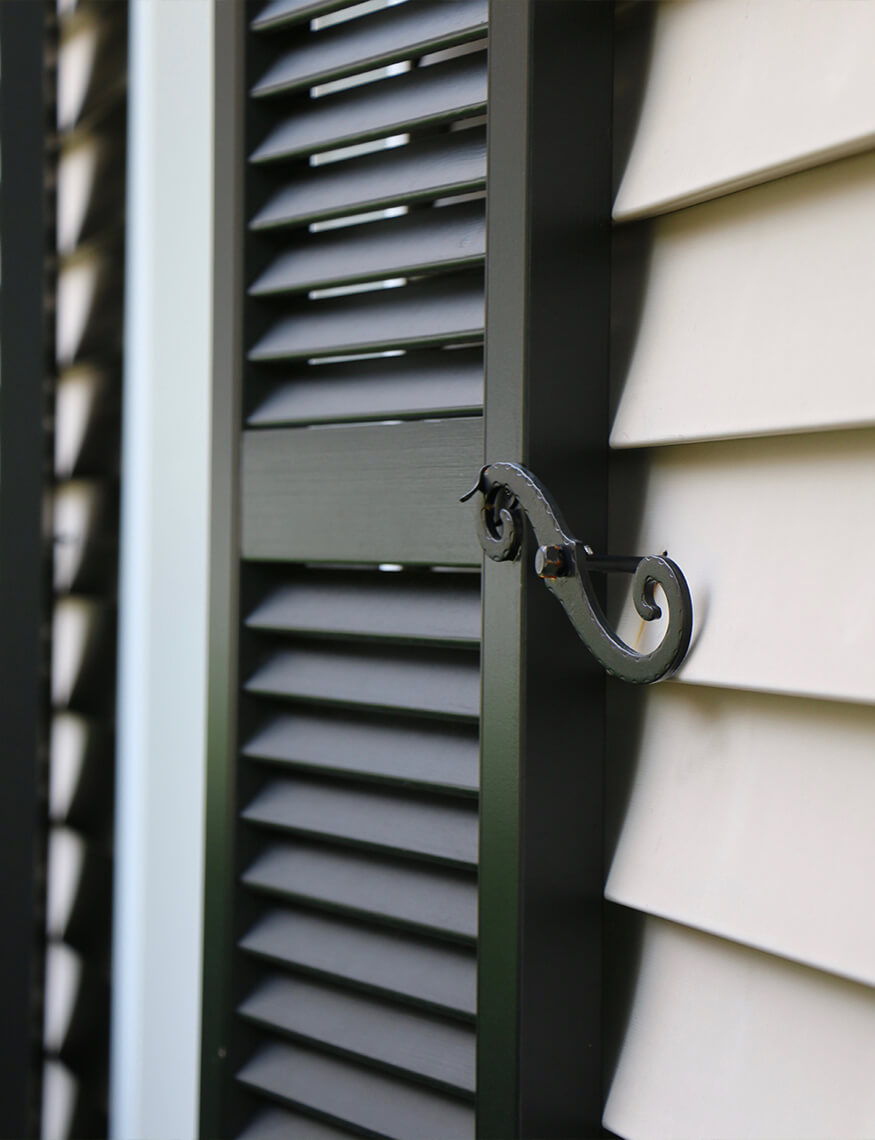

Quality hardware provides a quality installation.
Southern Shutter Company offers a complete line of quality hardware for any exterior application.
Our hardware provides the finishintg touch for your functional - as well as decorative shutter installation.
INSIDE CASING MOUNT
INSIDE MOUNT: TRIMMED POCKET
with wood or composite trim with appropriate depth for shutter pocket. Note: Trim board must be as thick as the shutter, plus clearance for shutter rotation.

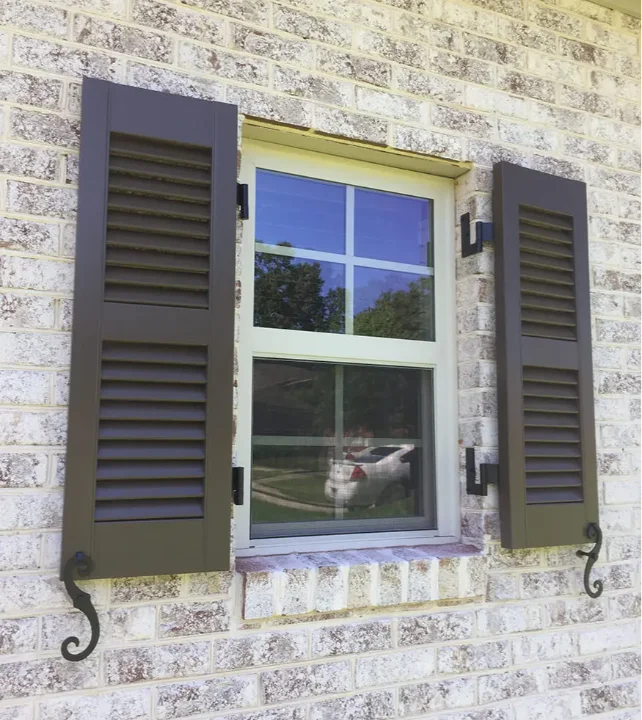

INSIDE MOUNT: BRICK OR MASONRY POCKET
with appropriate depth for shutter pocket. Note: Strap and Pintel are equal allowing shutter to close flush.
INSIDE MOUNT: RECESSED TRIM POCKET
Allowing for closure inside window trim and throwing out and around structure.
OUTSIDE CASING MOUNT
OUTSIDE MOUNT: NO POCKET
with little or no depth for shutter pocket.
