1 1/16" Interior Panel Shutter w/ Beaded Stile

Product details

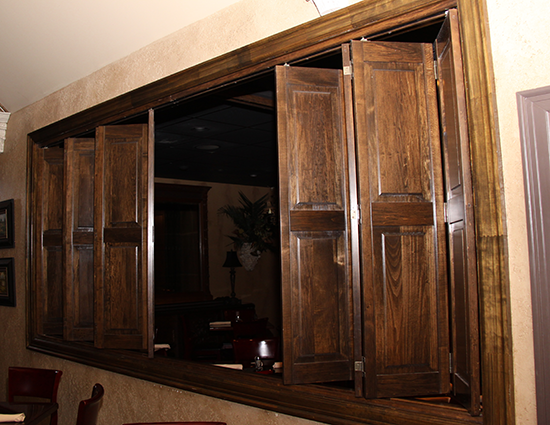

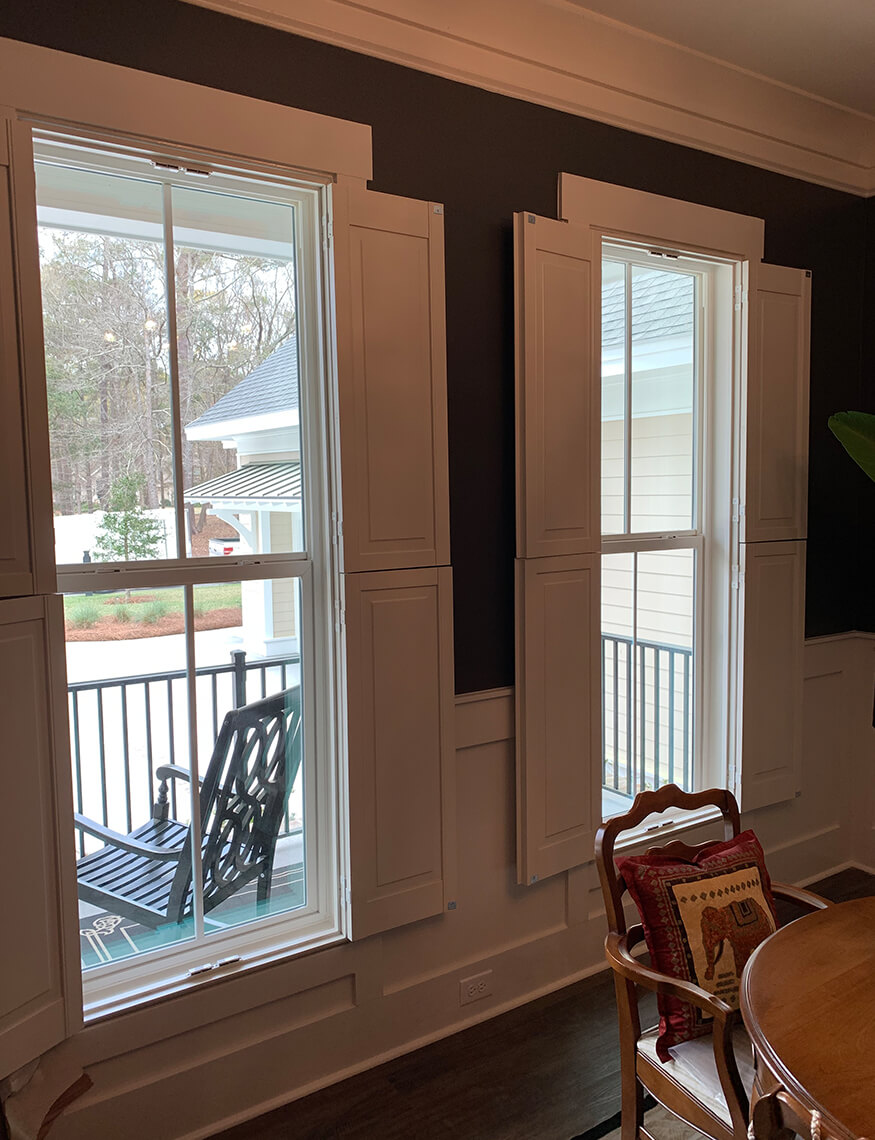

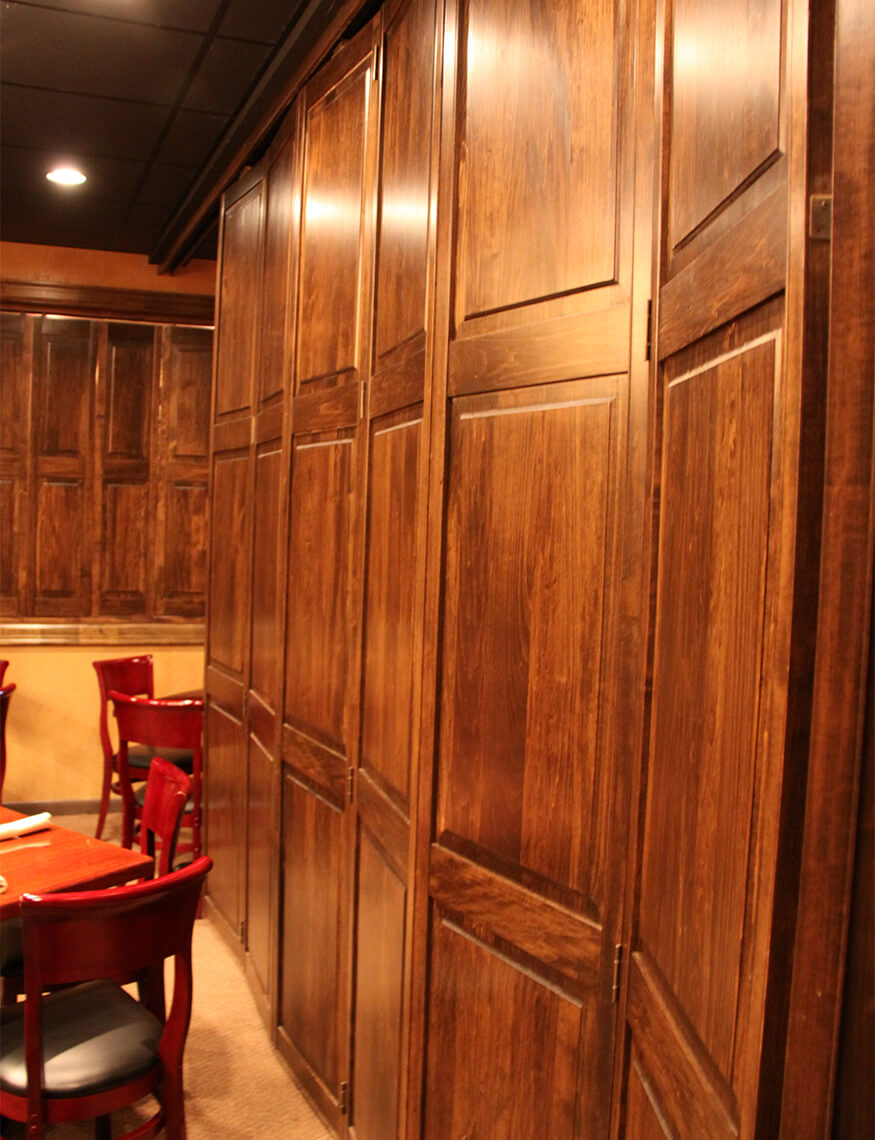

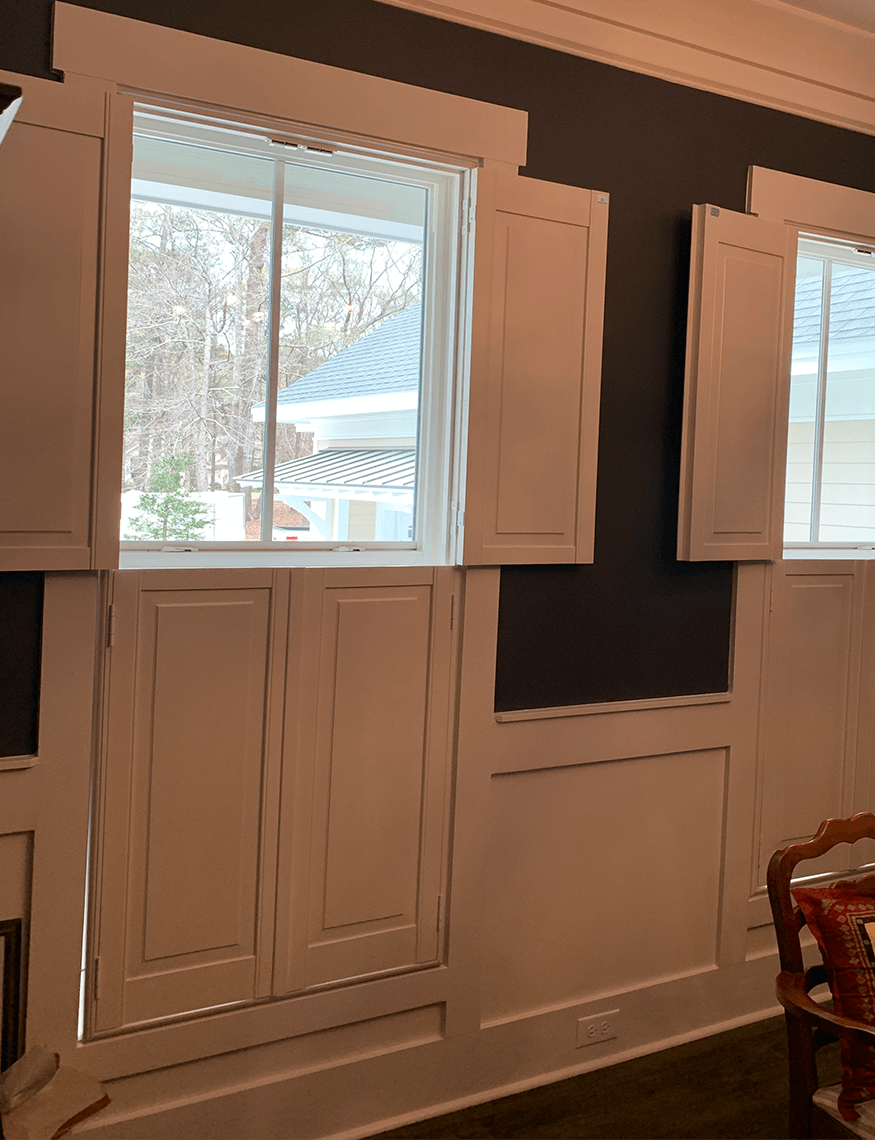

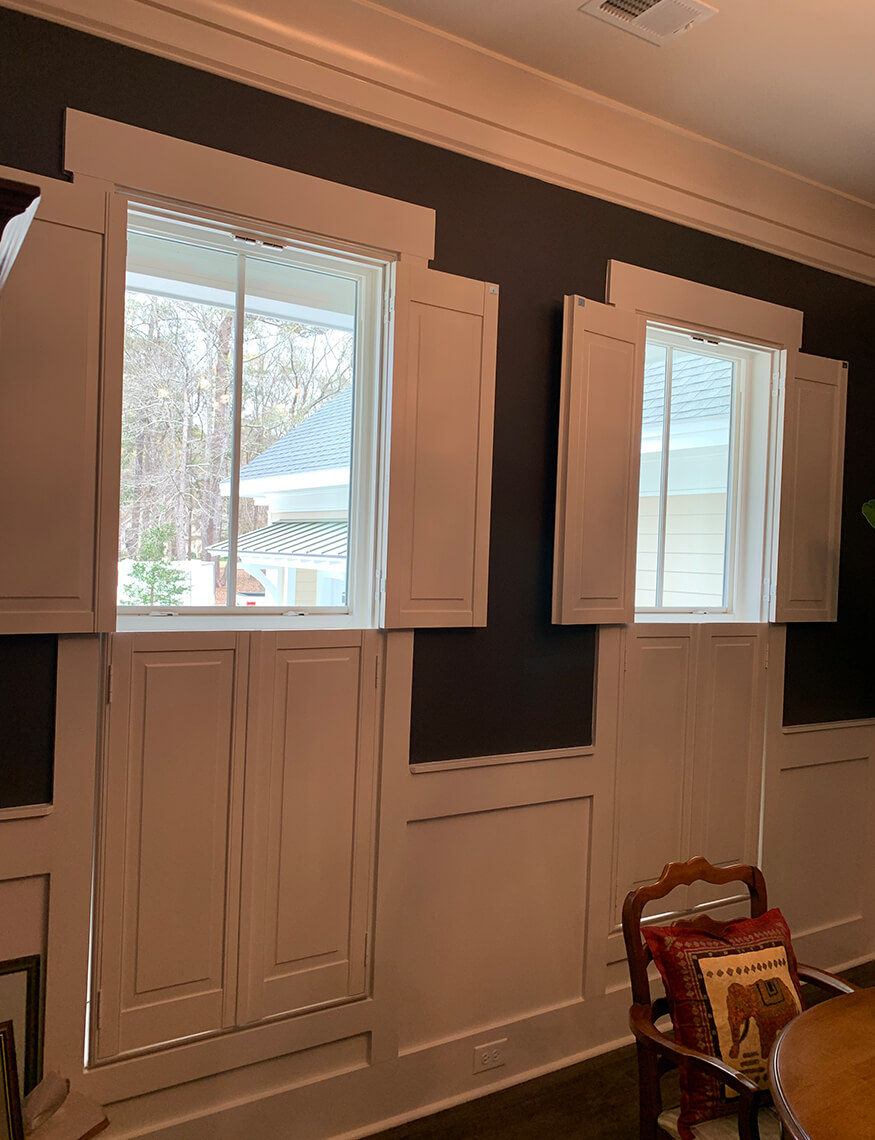

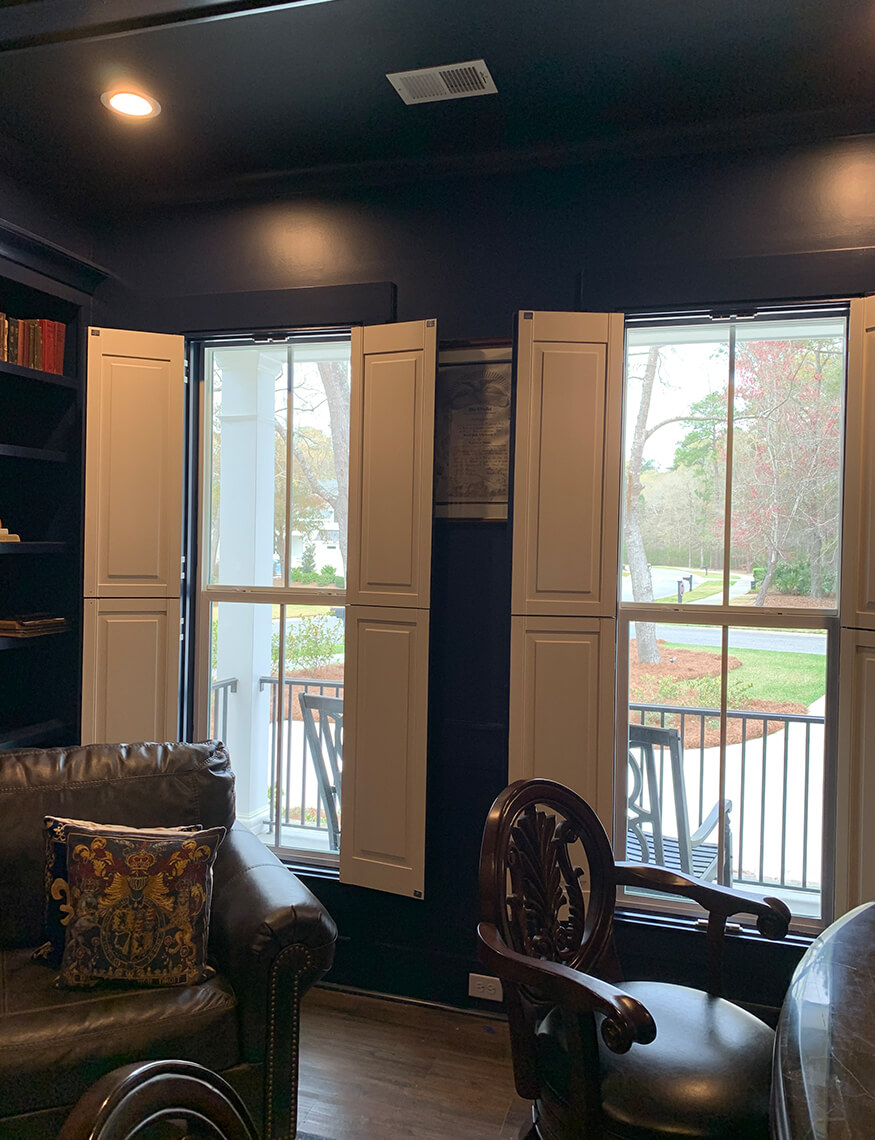

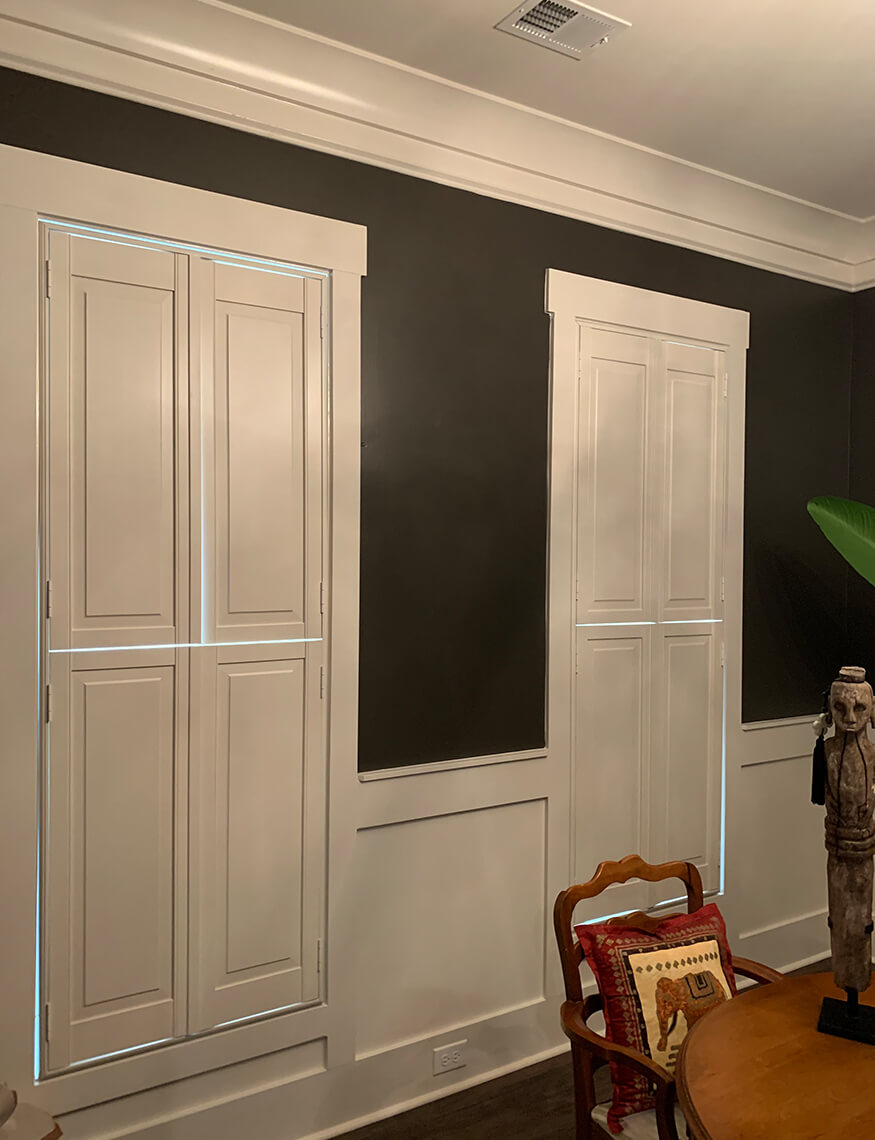

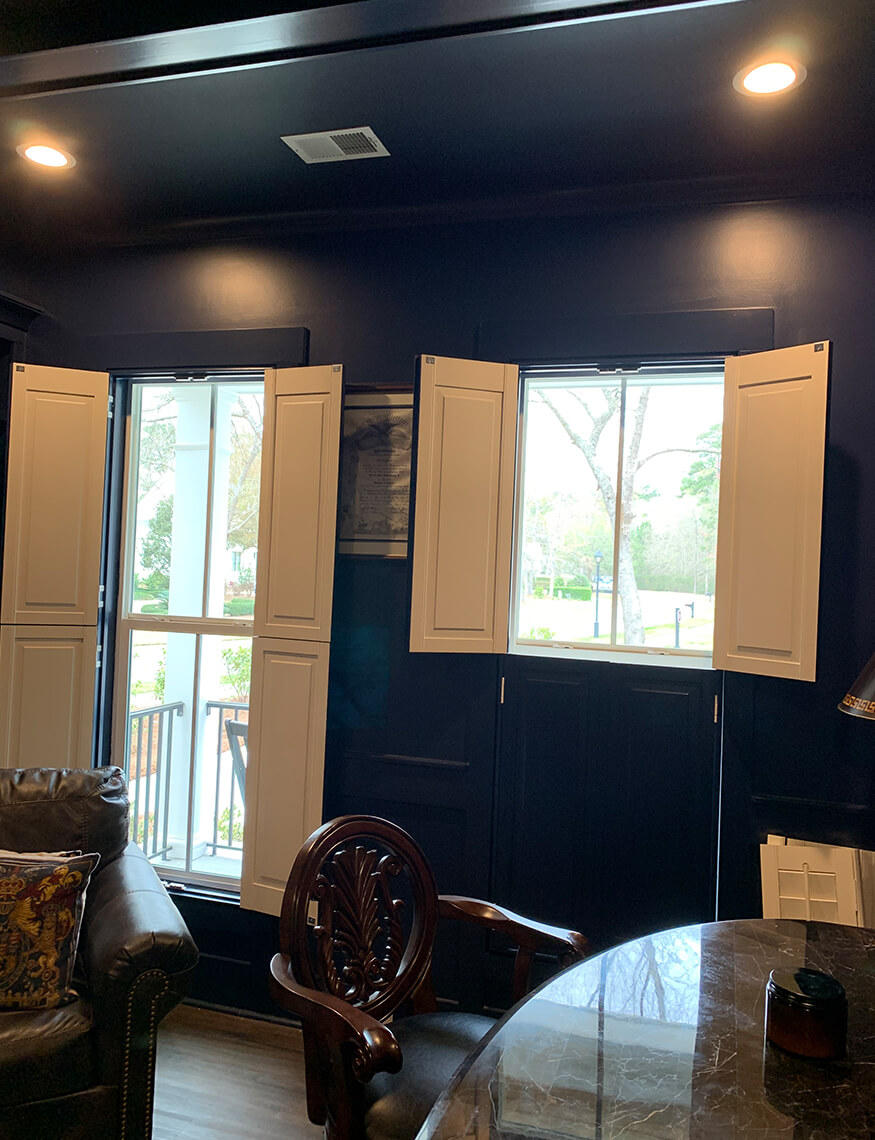

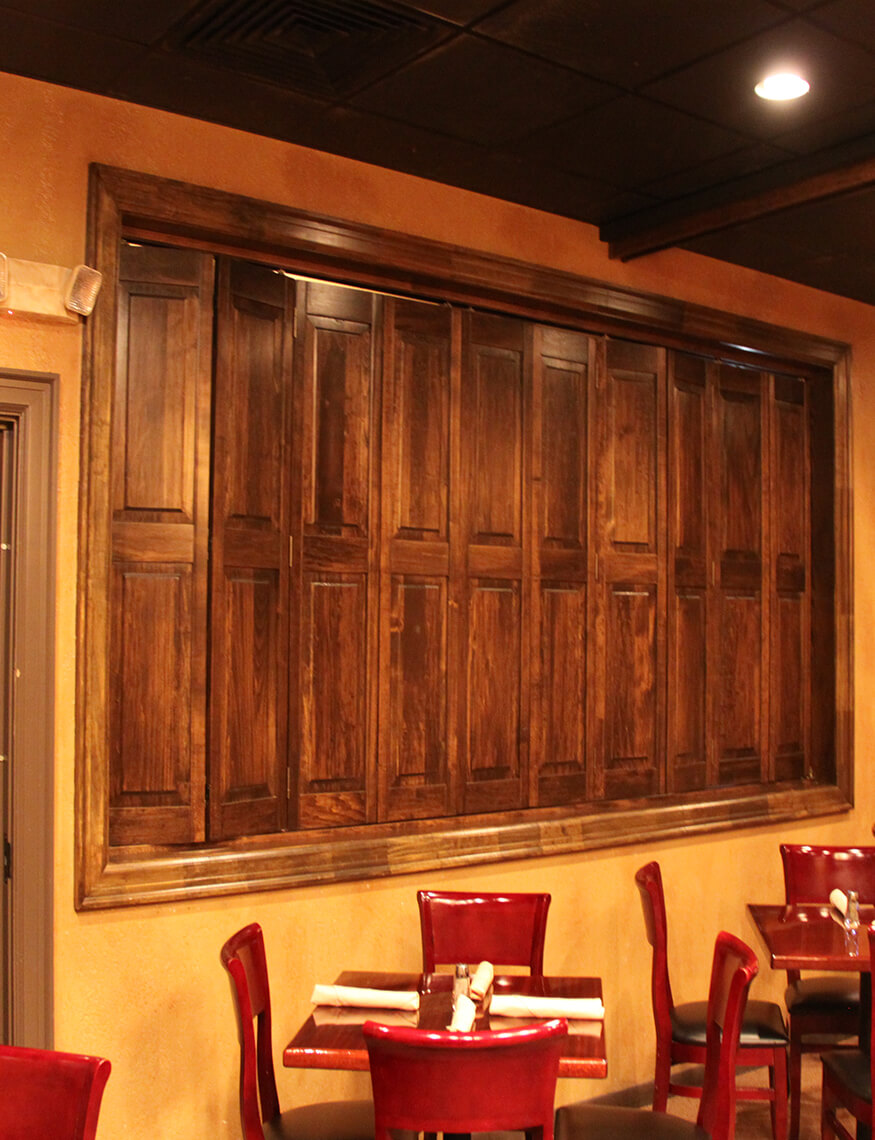

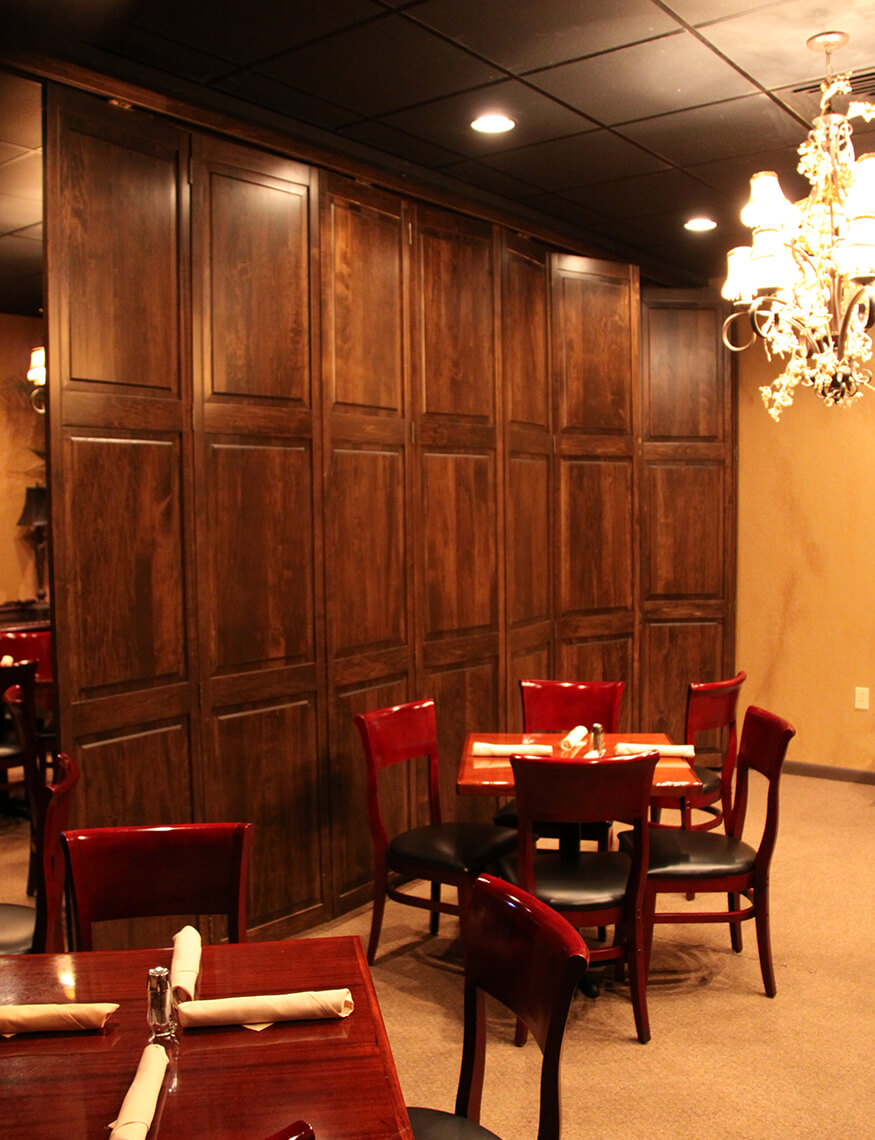

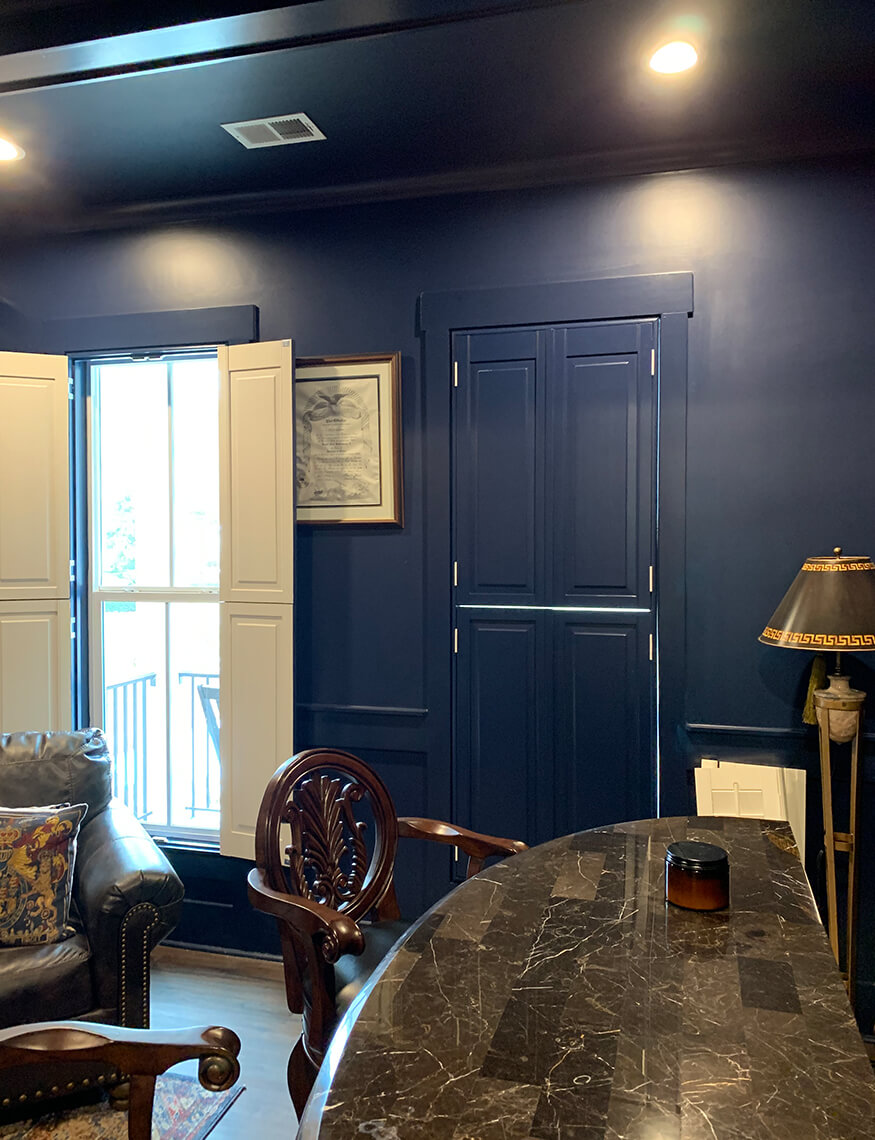

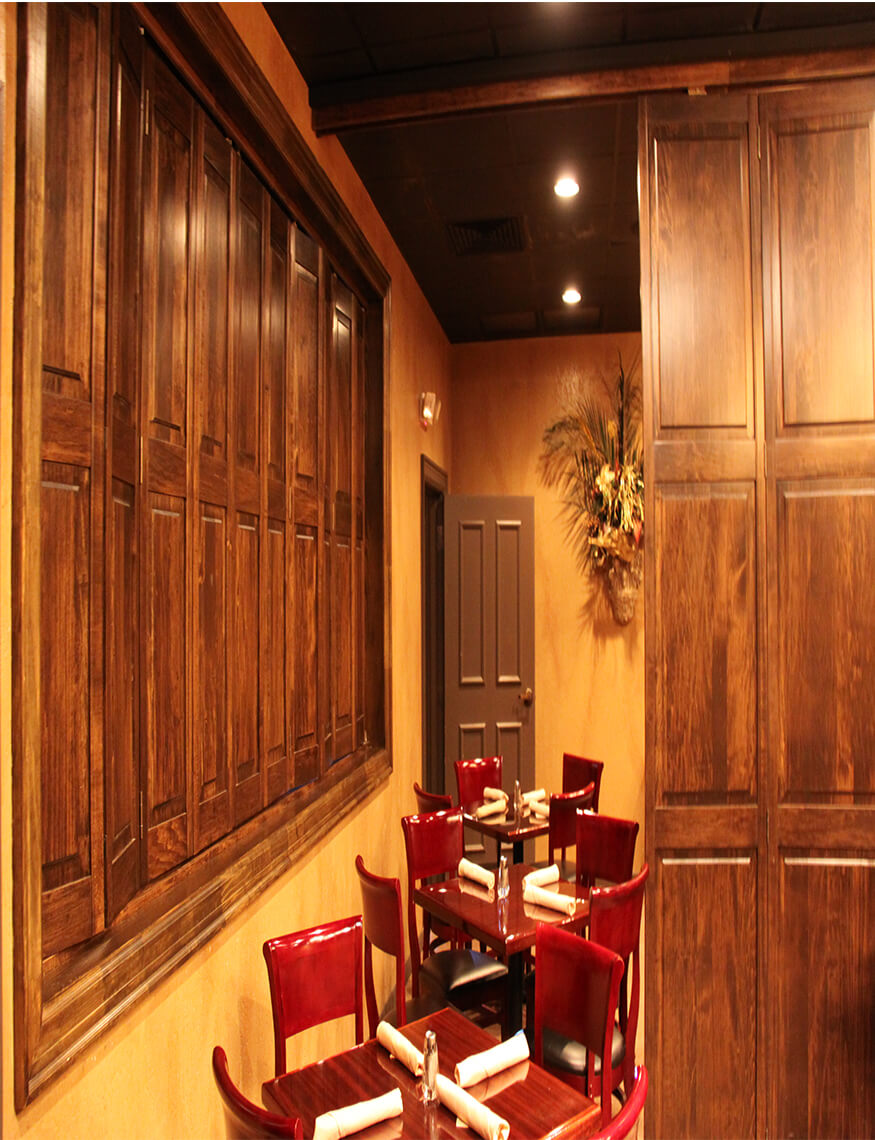

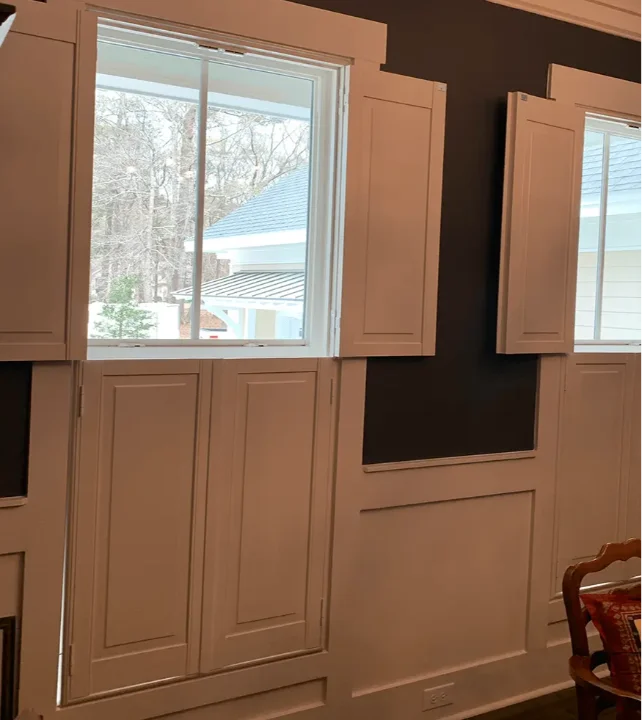

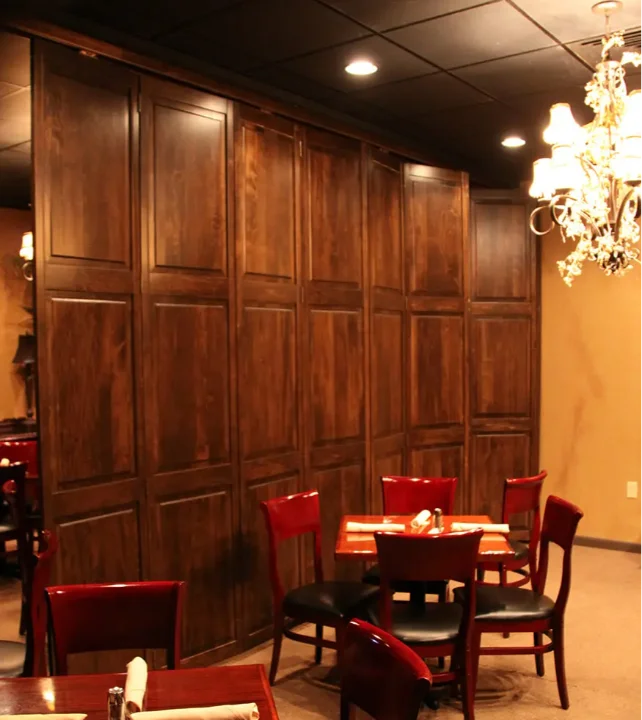

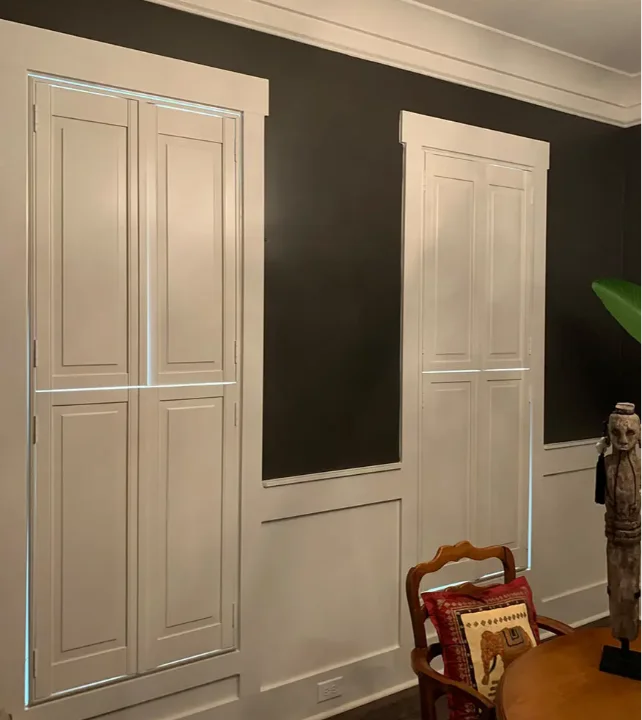

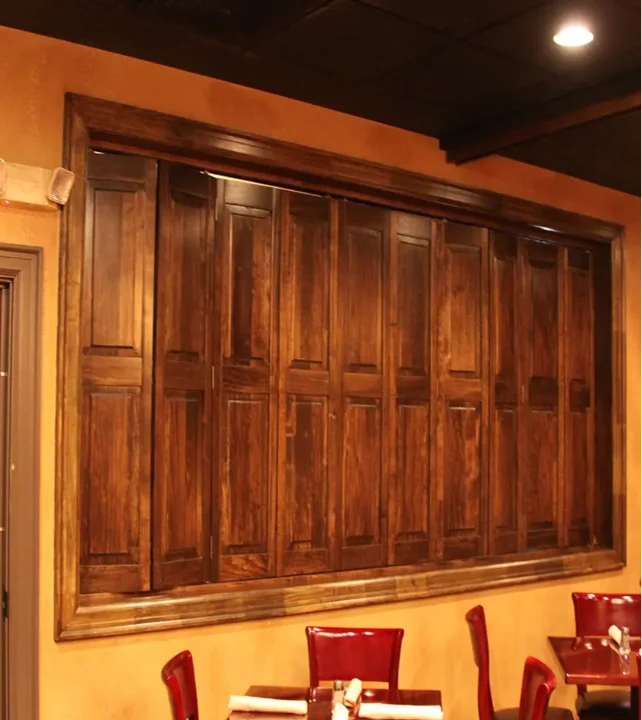

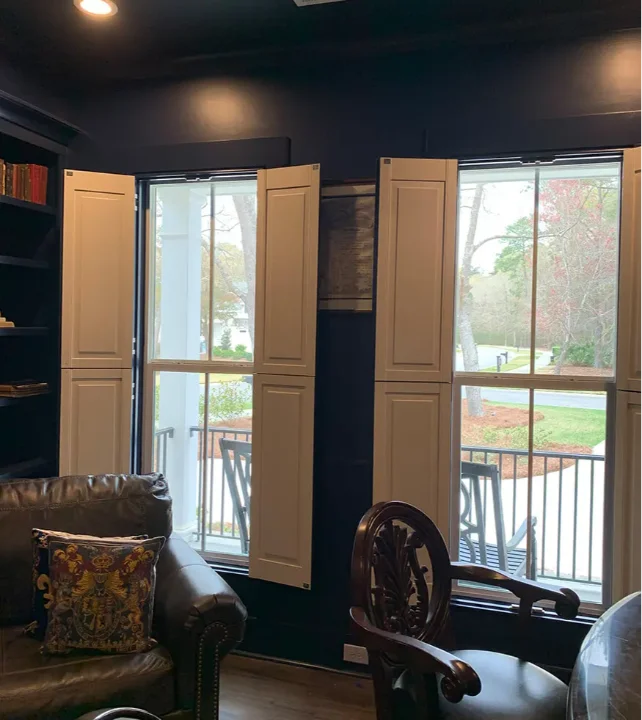

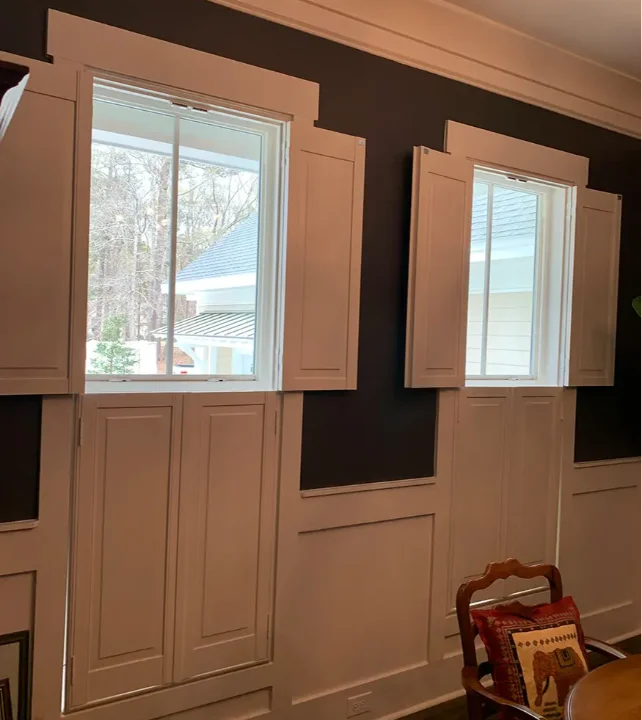

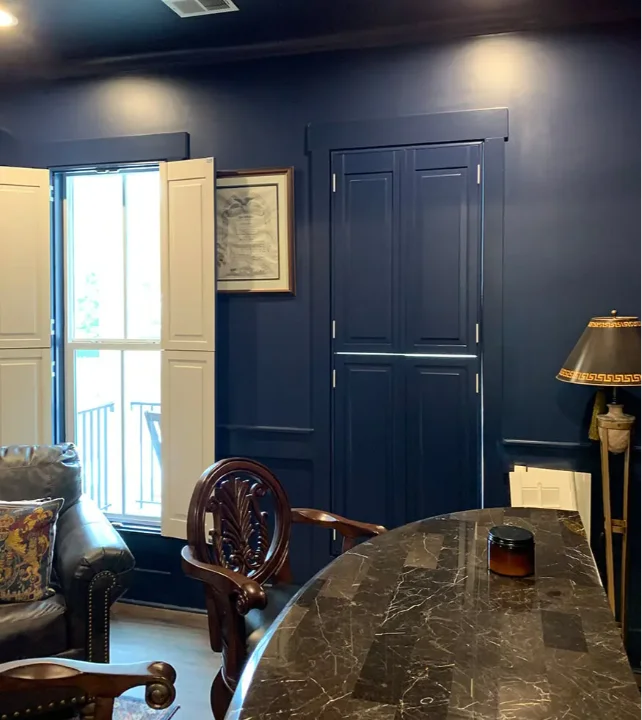

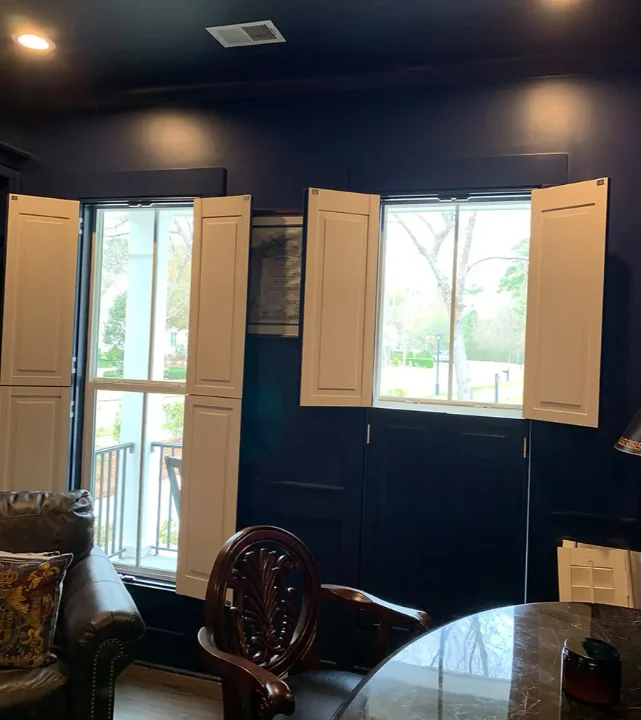

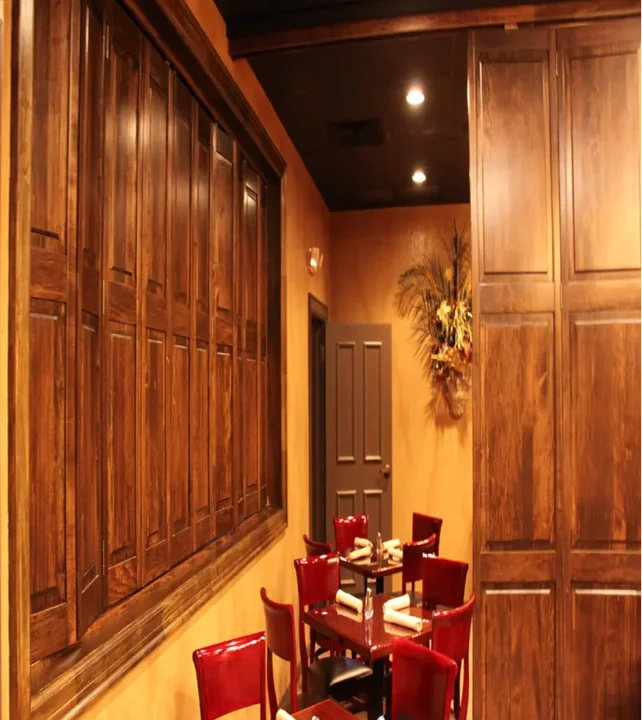

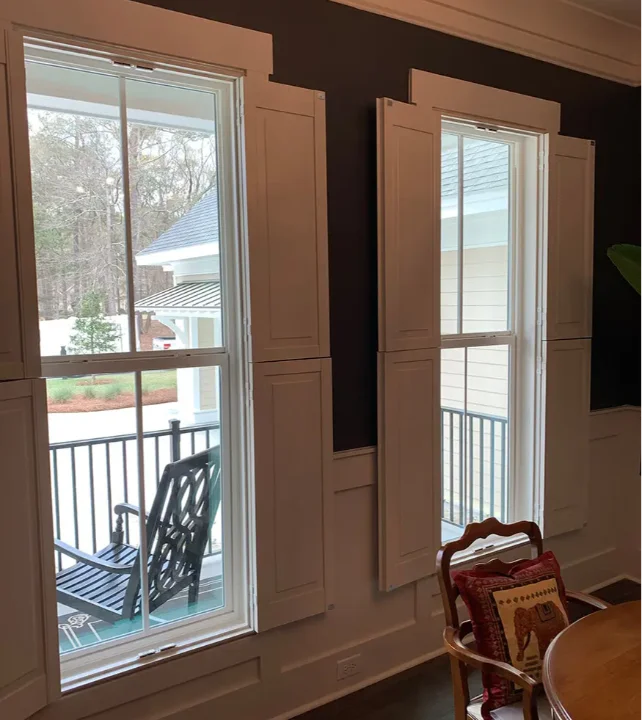

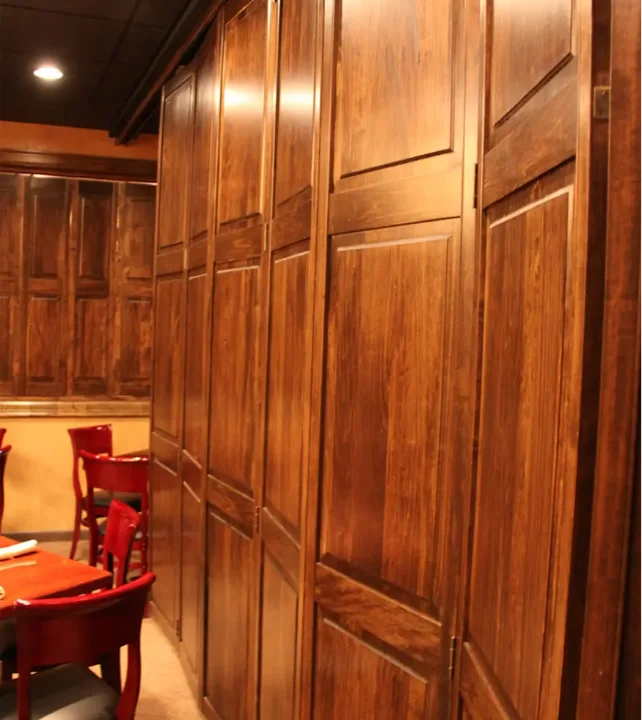

1-1/16” Paneled Shutter

PLANTATION RECESSED STILE & RAIL PANELED SHUTTERS

WOOD SPECIES

Our standard interior species is Basswood. Other species offered include Red Oak, Cypress, Mahogany, Yellow Pine, Maple, and White Oak.

FINISHING OPTIONS

OPTION 1: Shutter Panels Only

Unfinished paint grade (default)
Unfinished stain grade
Interior primed white
Interior primed and prepped white
Interior primed and finished. Ready for installation
Interior Stained. Ready for installation

OPTION 2: Framed Shutter Units

Interior primed and prepped ready for paint
Interior painted ready for installation
Interior stain grade unfinished
Interior stained ready for installation

*Additional charges apply.

*All color finishes may be matched to Sherwin Williams, Benjamin Moore, and PPG by supplying the manufacturer’s color name and color number code.

HANGING SYSTEMS

Southern Shutter offers a variety of hanging systems including L-Frame, Z-Frame, hanging strips, and direct to casing mount (see Interior Installation Page). Track systems are also available on request. Hanging systems are shipped disassembled and packaged with our quality hardware for easy installation.

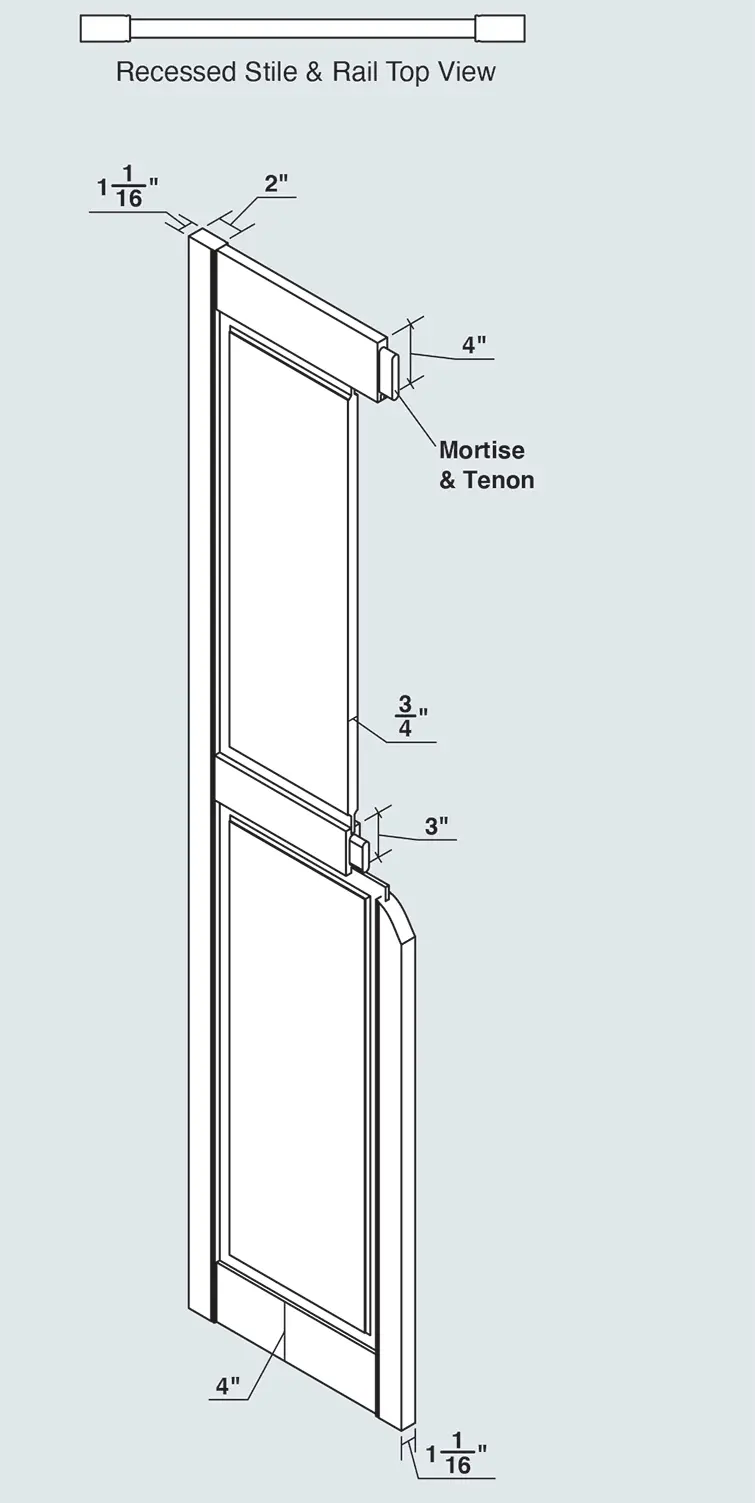

1-1/16” Recessed Stile & Rail Frame Construction

SPECIFICATIONS

Side Stiles

2” x 1-1/16”

Top Rail

4-1/2” x 3/4”

Center Rail

3” x 3/4”

Bottom Rail

4-1/2” x 3/4”

Single-Sided Panel Thickness

5/8”

Double-Sided Panel Thickness

3/4”

V-Groove Width

1/2”

Shutter frame thickness modification to 1-5/8” available.

Custom Shutter Options

Interior 1-1/16” Paneled Shutters manufactured by Southern Shutter can be customized to meet most customers specifications. Some common applications are shown on the next page. Other options are illustrated on the following pages. For additional options call 1-800-344-8590 or visit our website www.southernshutter.com.

CUSTOM OPTIONS | *Additional charges may apply

Additional Wood Species (Available by quote)
Custom Paint Color (No additional charges on orders larger than 60 square feet)
Rail Width Modification
Stile Width Modification
Ship Lap - 1/4”, 3/8”, 1/2”
Ship Lap with 3/8” Bead - 1/4”, 3/8”, 1/2”
3 Section Rail Layout
4 Section Rail Layout
Split Shutters in the Center
Trim Moulding - Per Side (see back for selection)
Basic Arch Top or Rake Cut
Solid Rail Arch or Café Scroll Arch
Half Circle Arch Top
Lever Handle Cutout
Mortise Shutters for Hinges

PANEL OPTIONS

Louver/Panel Combination Shutters
Flat Panel or Single-sided Raised
V-Groove Option
Standard Design Decorative Cutout
Custom Design Decorative Cutout
FRAME AND HANGING STRIP STOCK
See Interior Hardware Options

See next page for suggested options for Interior 1-1/16" Paneled Shutters.

Custom option charges are in addition to base shutter price and finishing charges. (priced per pair.)

Quality Shutters Deserve a Quality Finish!

Finishing Options

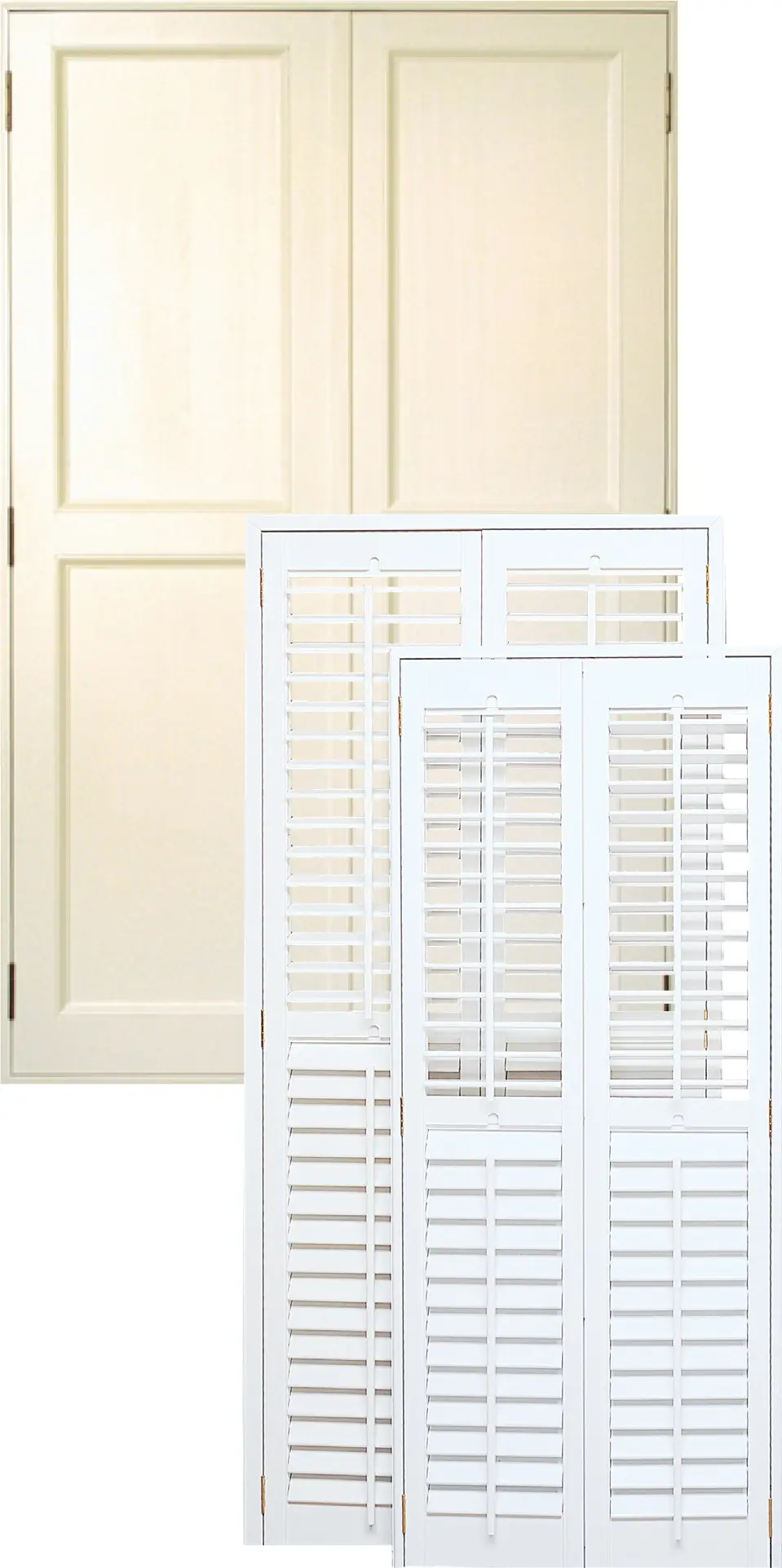

Southern Shutter takes the guesswork out of shutter installation. Interior shutters may be ordered unfinished or factory-finished in varying stages of completion.

1. READY TO INSTALL:

Painted or Stained with Selected Hanging System; Ready for Installation.

Shutters are completely sanded, primed and finished in your choice of color or stain. All color finishes may be matched to Sherwin Williams, Benjamin Moore, or PPG by suppling the manufacturer’s color name and color number code. Shutters are then pre-fit in a complete hanging system, finished and ready-to-install.* See following page and ordering instructions for more details to select the best hanging system for your specific installation.

Finished shutters with hanging systems are priced per square foot, including shutters and finishing. For your specific shutter selection for square footage pricing, call for a quote.

*Hanging systems are disassembled for shipping.

2. SHUTTER PANELS ONLY:

Panels and Hardware ordered separately.

Shutter Panels are priced per pair. Finished shutters are priced by the square foot. Call for a quote.

Mounting Hardware

Southern Shutter offers an extensive selection of interior hardware, including: Non-Mortise Hinges, Magnetic Catches and Café Door Kits.

NON-MORTISE HINGE FINISHES

Wrap-Around or Butt Hinges available in polished brass, antique brass, brushed nickel, chrome, oiled rubbed bronze, and white finishes.

1. NON-MORTISE WRAP AROUND HINGE

Used to mount shutters to a hanging strip installed behind the side stile of the shutter. Choice of finish. Sold in pairs.

2. NON-MORTISE WRAP AROUND HINGE SETS

Used to mount shutters to a hanging strip installed behind the side stile of the shutter. Choice of finish. Complete mounting kit including 4 hinges and magnetic catch.

3. NON-MORTISE BUTT HINGE

Used to attach shutters to a frame or window jamb. Choice of finish. Sold in pairs.

4. NON-MORTISE BUTT HINGE SETS

Used to attach shutters to a frame or window jamb. Choice of finish. Complete mounting kit including 4 hinges and magnetic catch.

5. MAGENTIC CATCHES

Brown or White.

6. CAFÉ DOOR KITS

Polished brass gravity-action hinged return door to center or hold doors open.

*Recommended hinges per pair: Shutter height 12”-48”, 4 hinges • Shutter height 48”-96”, 6 hinges • Shutter height 97”-120”, 8 hinges.

1. Non-Mortise Wrap Around Hinge (2 hinges & screws only)

Item No.

Description

Set

WH-102-AB

Hinge / Antique Brass

Set of 2

WH-102-BN

Hinge / Brushed Nickel

Set of 2

WH-102-CH

Hinge / Chrome

Set of 2

WH-102-OB

Hinge / Oil Rubbed Bronze

Set of 2

WH-102-PB

Hinge / Polished Brass

Set of 2

WH-102-WH

Hinge / White

Set of 2

2. Non-Mortise Wrap Around Hinge Sets (4 hinges, screws & magnetic catch with strike plates.)

Item No.

Description

Set

WH-104-AB

Set / Antique Brass

Set of 4

WH-104-BN

Set / Brushed Nickel

Set of 4

WH-104-CH

Set / Chrome

Set of 4

WH-104-OB

Set / Oil Rubbed Bronze

Set of 4

WH-104-PB

Set / Polished Brass

Set of 4

WH-104-WH

Set / White

Set of 4

3. Non-Mortise Butt Hinge (2 hinges & screws only)

Item No.

Description

Set

BH-102-AB

Hinge / Antique Brass

Set of 2

BH-102-BN

Hinge / Brushed Nickel

Set of 2

BH-102-CH

Hinge / Chrome

Set of 2

BH-102-OR

Hinge / Oil Rubbed Bronze

Set of 2

BH-102-PB

Hinge / Polished Brass

Set of 2

BH-102-WH

Hinge / White

Set of 2

BH-102-SSB

Hinge / Stainless Steel Powder Coated Black

Set of 2

4. Non-Mortise Butt Hinge Sets (4 hinges, screws & magnetic catch with strike plates)

Item No.

Description

Set

BH-104-AB

Set / Antique Brass

Set of 4

BH-104-BN

Set / Brushed Nickel

Set of 4

BH-104-CH

Set / Chrome

Set of 4

BH-104-OR

Set / Oil Rubbed Bronze

Set of 4

BH-104-PB

Set / Polished Brass

Set of 4

BH-104-WH

Set / White

Set of 4

5. Magnetic Catches (Magnetic catch with 2 strike plates & screws)

Item No.

Description

Each

MC-101-WH

Magnetic Catch / White

Each

MC-101-BN

Magnetic Catch / Brown

Each

6. Café Door Mounting Kit (4 hinges, screws, magnetic catch with strike plates & knob set)

Item No.

Description

Set

CA-002-PB

Gravity Action Return / Polished Brass

Set of 4

Shutter Track Systems..........Call for quote

Interior Frame Stock (price per Linear Foot)

Hanging Strip

Unprimed Primed

L-Frame Stock

Unprimed Primed

Z-Frame Stock

Unprimed Primed

T-Post Stock

Unprimed Primed

Installation Options

NOTE: Remember to measure and remeasure to verify your numbers before selecting your shutters and the desired mounting procedure.

It is important that various parts of the window construction (casing, moulding, handles, etc.) allow enough space for louver extension when the shutter is closed and louvers are fully open.

INSIDE FRAME MOUNT

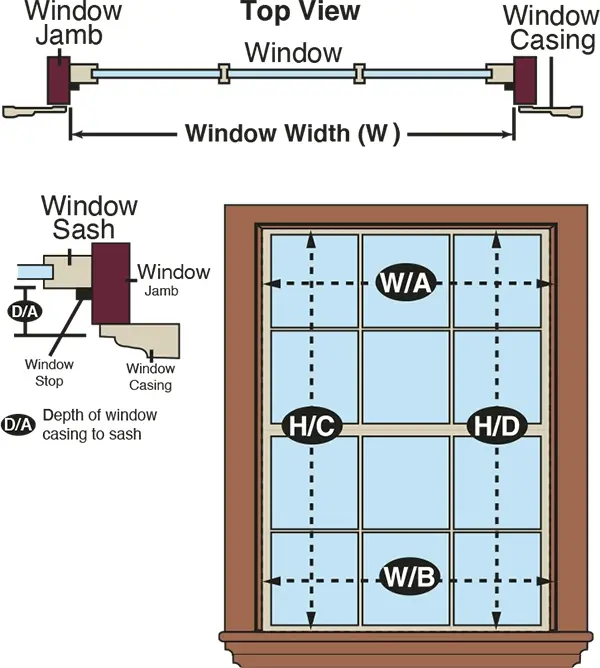

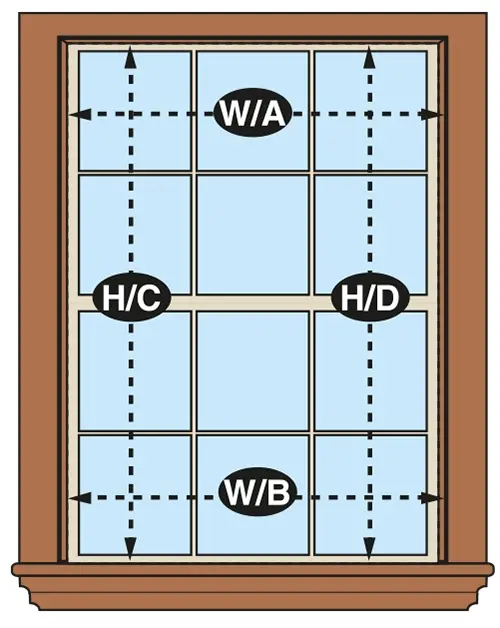

Measure the inside width of the window at both points (W/A and W/B). and the height at both points (H/C and H/D).

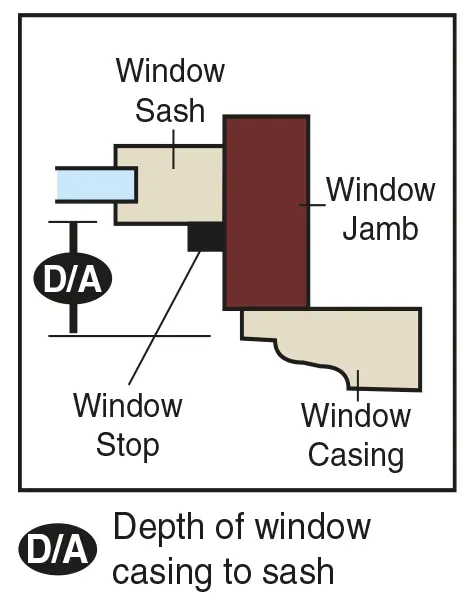

Measure the window depth (D/A), the distance from the window casing to the window sash.
Note: A Deduction of 1/8” for clearance on inside frame hanging systems is recommended by the manufacturer.
For hanging systems with hanging strips or mounting directly window jamb, use the lesser width and height dimension.

OUTSIDE FRAME MOUNT

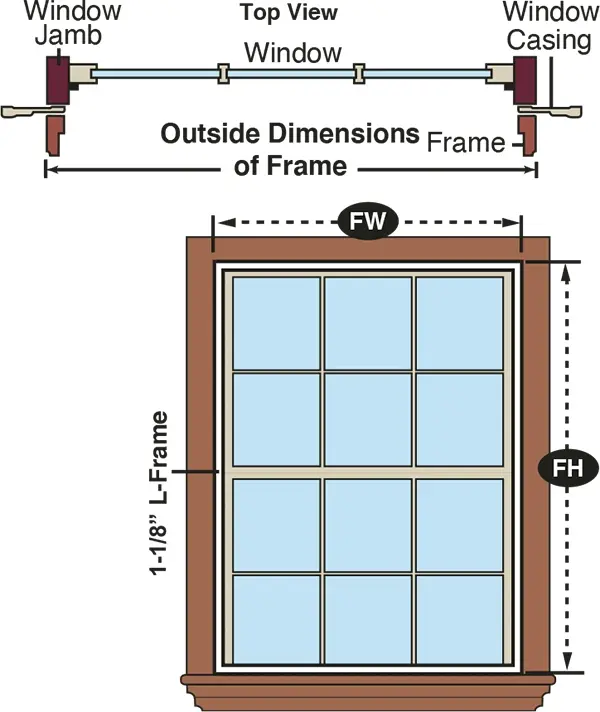

Locate area on casing to mount the 1-1/8” frame.

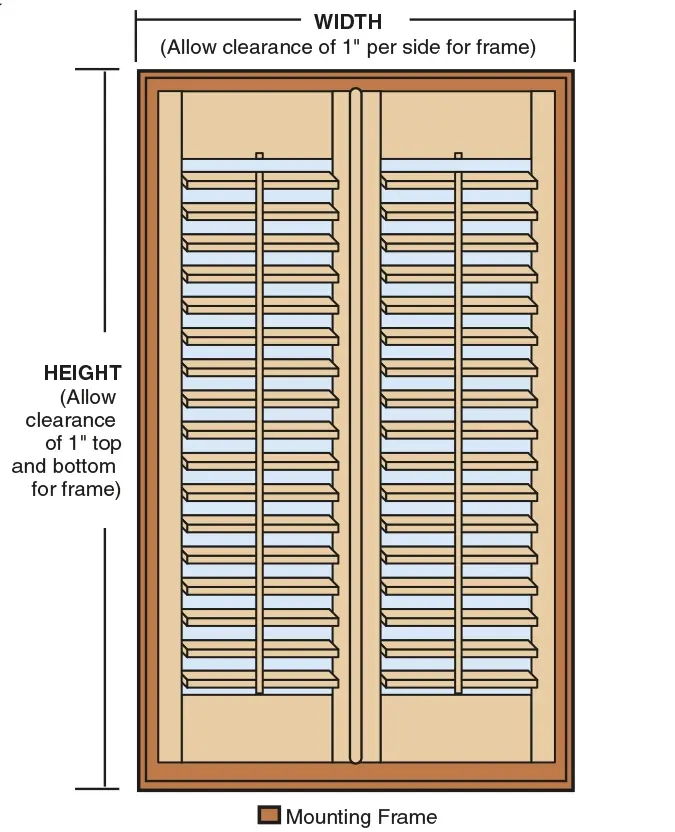

Frame width (FW) is determined by measuring outside frame position left to right, including the 1-1/8” frame footprint.
Frame height (FH) is determined by measuring outside frame position top to bottom, including the 1-1/8” frame footprint.
To ensure flush mount of frame to window casing, frame position should be consistent on all sides of casing.

INSIDE CASING MOUNTS

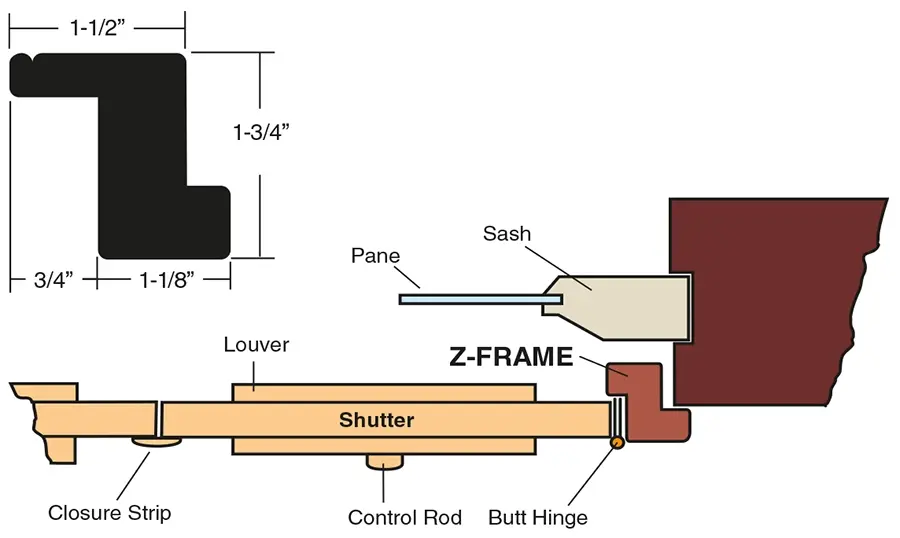

L-Frame Hanging System

2, 3 or 4-sided frame

Z-Frame Hanging System

2, 3 or 4-sided frame

Recommended for sheetrock returns

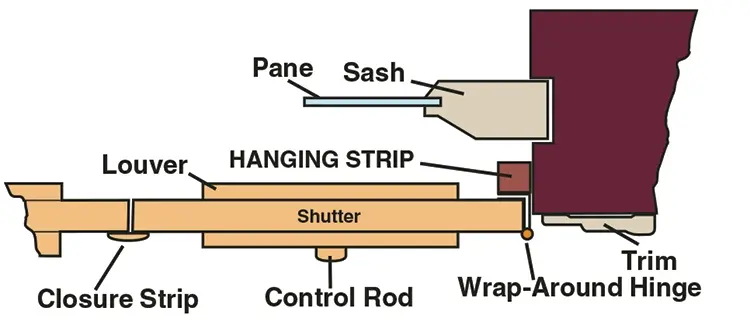

Wrap-Around Hinge & Hanging System

Direct to Casing Mount

OUTSIDE CASING MOUNTS

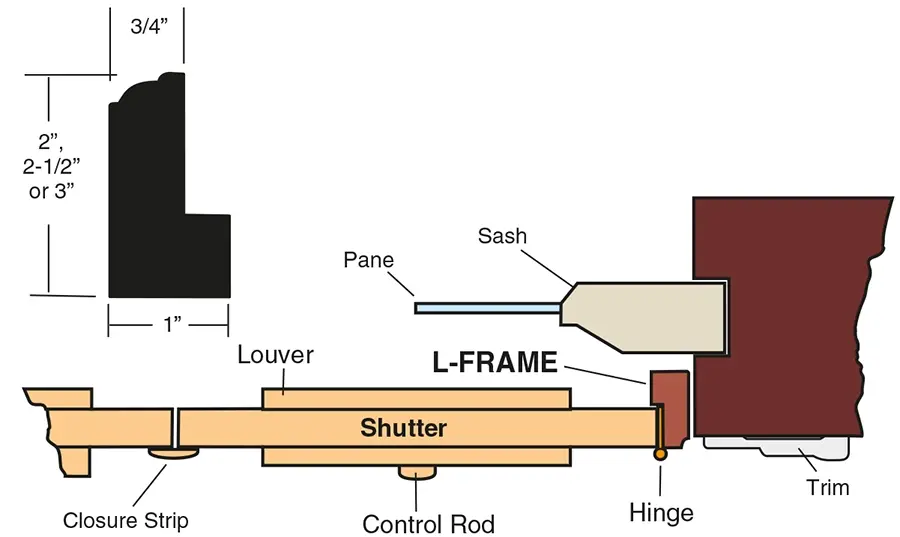

L-Frame Hanging System

2, 3 or 4-sided frame

1-1/16” Paneled Shutters

1-1/16”

Recessed Stile & Rail Raised Panel Shutter with 2 Equal Sections

1-1/16”

Recessed Stile & Rail V-Groove Flat Panel Shutter

1-1/16”

Recessed Stile & Rail V-Groove Raised Panel Shutter

1-1/16”

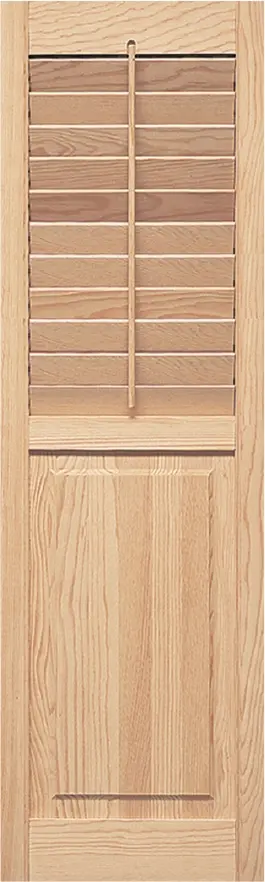

Recessed Stile & Rail Movable Louver Over Raised Panel Shutter with Rail Placement

1-1/16”

Recessed Stile & Rail Flat Panel Shutter with 2 Equal Sections

1-1/16”

Recessed Stile & Rail Raised Panel Shutter with 3 Equal Sections

1-1/16”

Recessed Stile & Rail Movable Louver Over Raised Panel Combination Shutter

Illustrated below are some suggested options for 1-1/16” Paneled Shutters. For other additional options call or email for a quote.

Raised Panel with Rail Placement

Raised Panel 2 Equal Sections with Quarter Round Arch Top

V-Groove Raised Panel; Rail Placement with 3 Equal Sections

Flat Panel with 2 Equal Sections and Decorative Cutout

V-Groove Flat Panel with Small Center

Flat Panel with 2 Equal Sections and Decorative Trim Moulding

Raised Panel with 2 Equal Sections and Wide Decorative Trim Moulding

Raised Panel with 3 Equal Sections

Combination True Louver over Raised Panel with 2 Equal Sections

V-Groove Flat Panel; 2 Sections with Rail Placement

Raised Panel with 2 Equal Sections and Café Style Arch Top

MEASURING & INSTALLATION GUIDE FOR INTERIOR SHUTTERS

NOTE: Remember to measure to verify your numbers before selecting your shutters and the desired mounting procedure.

Shutters may be mounted inside or outside window casings using hanging strips or frames. In some applications it may be more efficient and simpler to mount your shutters to the window moulding using a framed hanging system. These systems allow for greater flexibility for windows with a shallow depth or that may be out of square. It is important that various parts of the window construction (casing, moulding, handles, etc.) allow enough space for louver extension when the shutter is closed and the louvers are fully open.

WINDOW MEASUREMENTS FOR INSIDE CASING MOUNT

Measure the inside width of the window at both points (W/A and W/B), and the height at both points (H/C and H/D).
Measure the window depth (D/A), the distance from the window casing to the windowsash.
Note: A deduction of 1/8” for clearance on inside frame hanging systems is recommended by the manufacturer.
For hanging systems with hanging strips or mounting directlywindow jamb, use the lesser width and height dimension.

WINDOW MEASUREMENTS FOR OUTSIDE FRAME MOUNT

Locate area on casing to mount the 1 inch frame.
Frame width (FW) is determined by measuring outside frame position left to right, including the 11/8” frame footprint.
Frame height (FH) is determined by measuring outside frame position top to bottom, including the 11/8” frame footprint.
To ensure flush mount of frame to window casing, frame position should be consistant on all sides ofcasing.

Installing Interior Shutters

Inside or Outside Mount

Most Hanging Systems may be used as inside mounts or outside mounts. Factors such as squareness of the windowopening, tilt window functions, obstructions and appearance should contribute to this decision. Note: Deduction of 1/8” for clearance on inside frame hanging systems is recommended bymanufacturer.

MEASURING & INSTALLATION GUIDE FOR INTERIOR SHUTTERS

OUTSIDE CASING MOUNTS

L-FRAME HANGING SYSTEM (3 or 4-sided frame)

INSIDE CASING MOUNTS

L-FRAME HANGING SYSTEM (3 or 4-sided frame)

Hardware
Ready-to-insall shutters are shipped with all the neccessary hardware in your choice of finishes, including Antique Brass, Brushed Nickel, Chrome, Oil Rubbed Bronze, Polished Brass, White and Black.

INSIDE CASING MOUNTS

Z-FRAME HANGING SYSTEM (3 or 4-sided frame)

Recommended for sheetrock returns

DIRECT TO CASING MOUNT

WRAP-AROUND HINGE & HANGING STRIP SYSTEM

MEASURING & INSTALLATION GUIDE FOR INTERIOR SHUTTERS

Hanging Systems

Direct to Casing
Wrap-around Hanging Strips inside or outside.
3-Sided Frames Inside or Outside (L or Z Frame)
4-Sided Frames Inside or Outside (L or Z Frame)
Track Systems, in bi-fold or by-pass configurations.

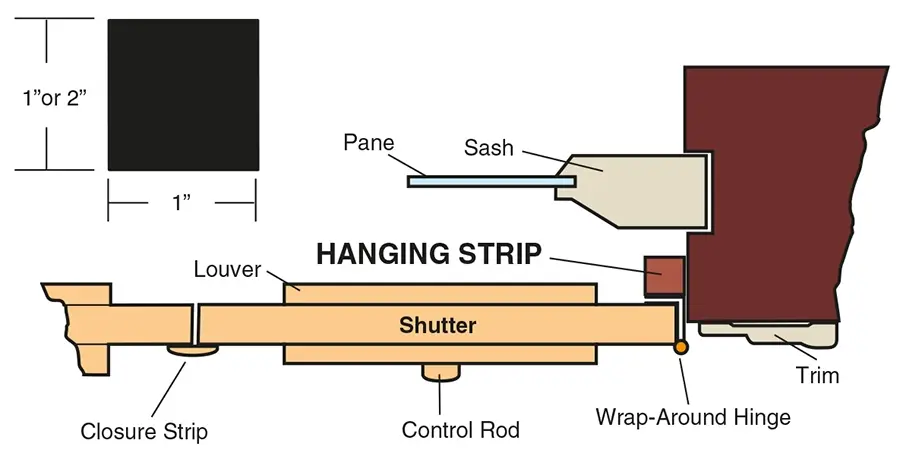

Hanging Strip

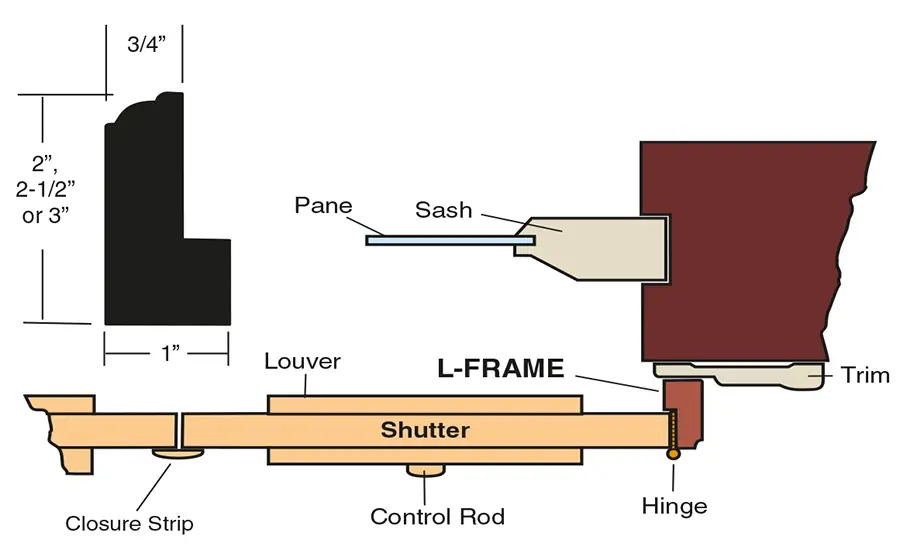

L-Frame

Z-Frame

T-Post

Panel Layout

Let the window guide your layout. Each characterin the design layout code represents one shutter panel and its hinge direction. A dash is used to indicate a T-Post or mullion.
