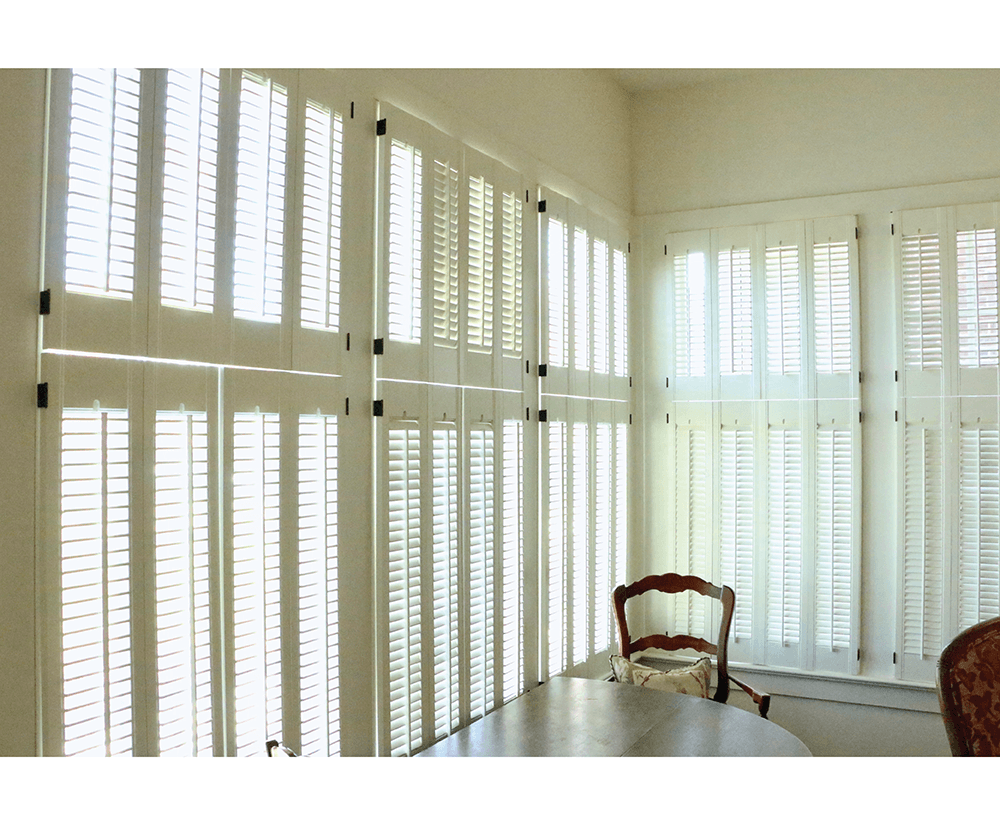

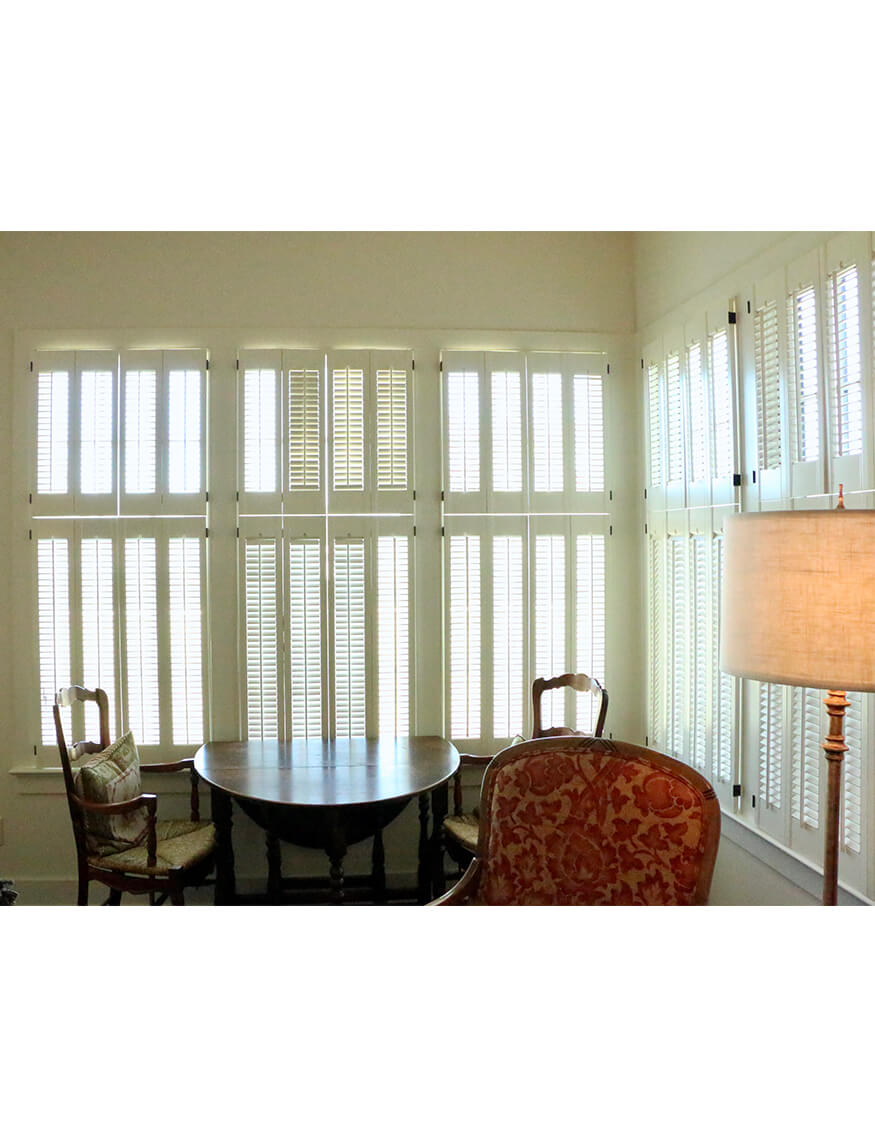

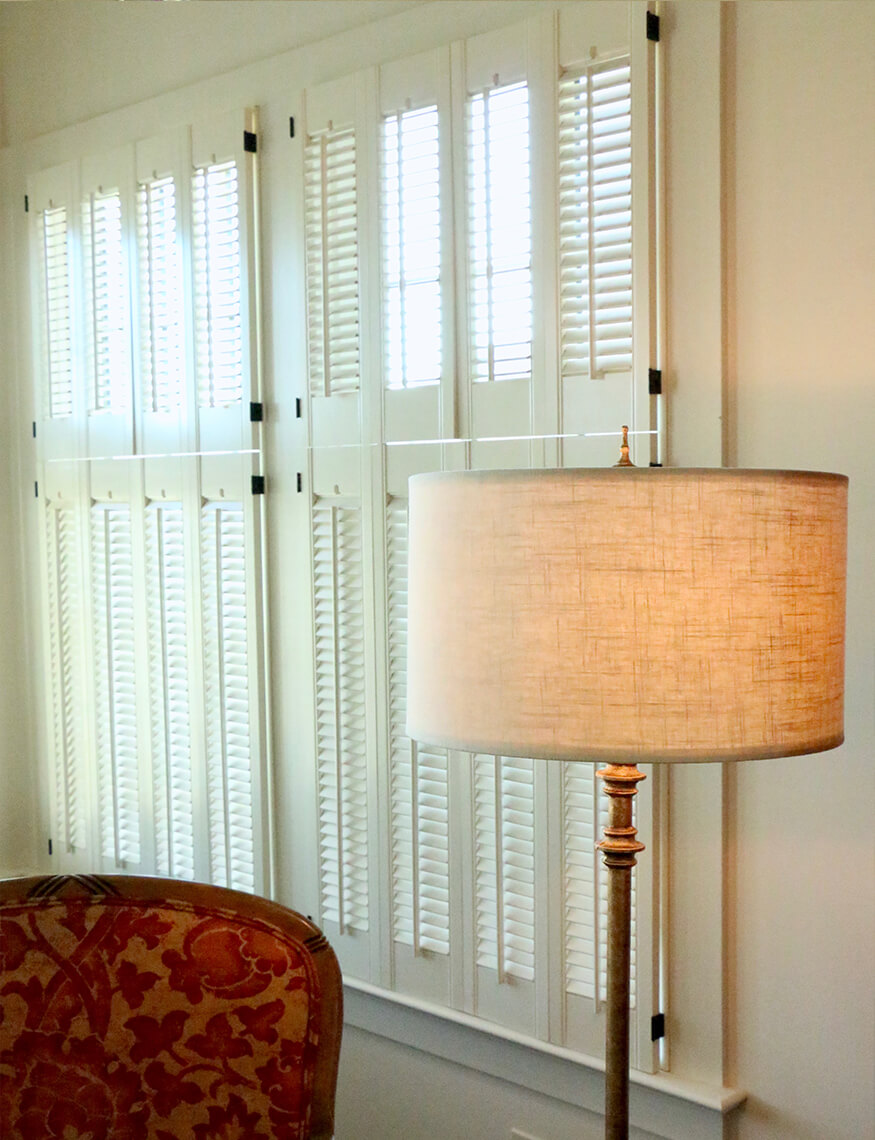

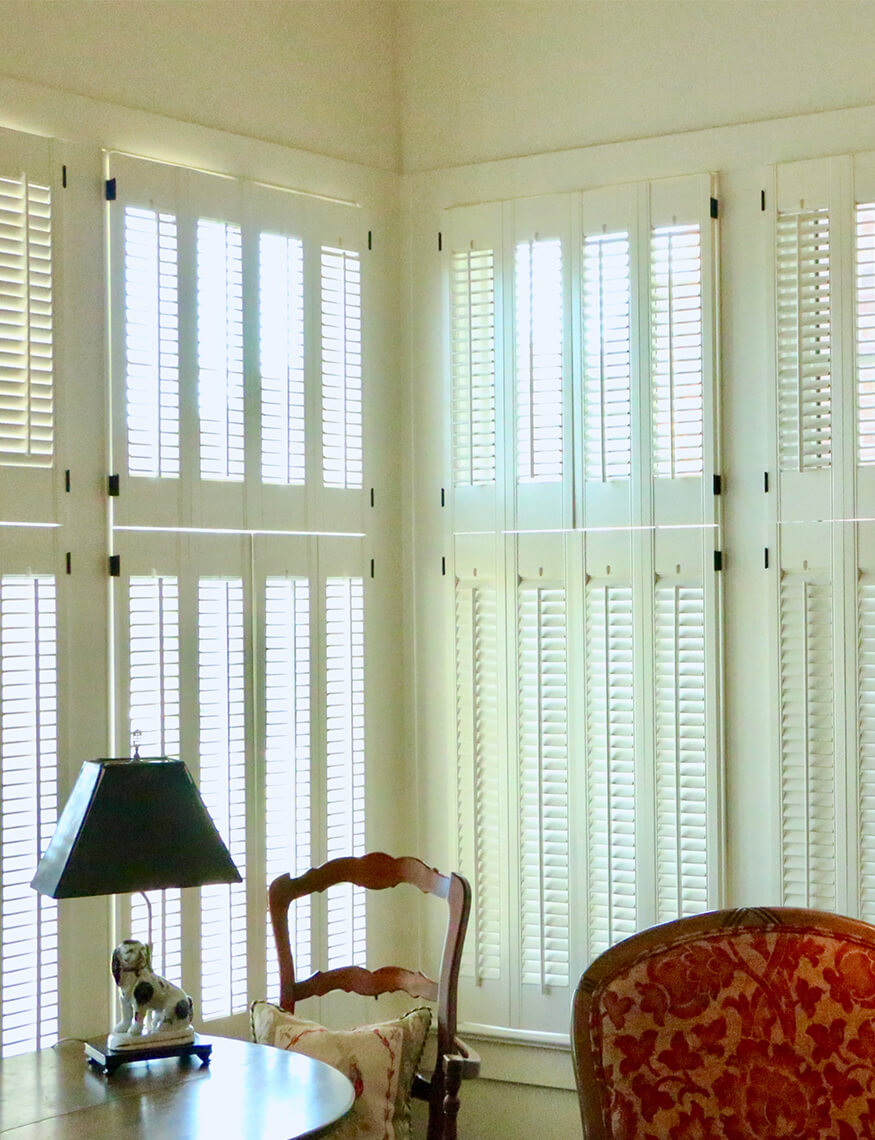

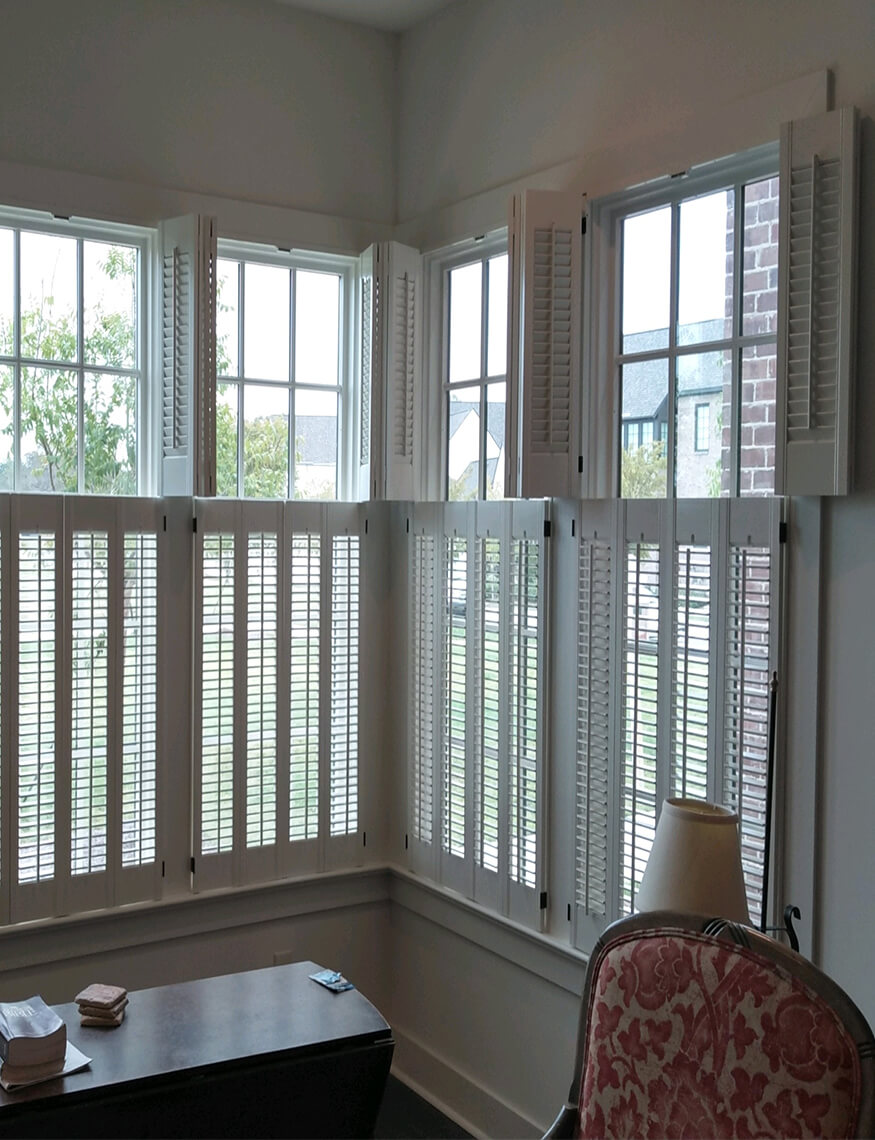

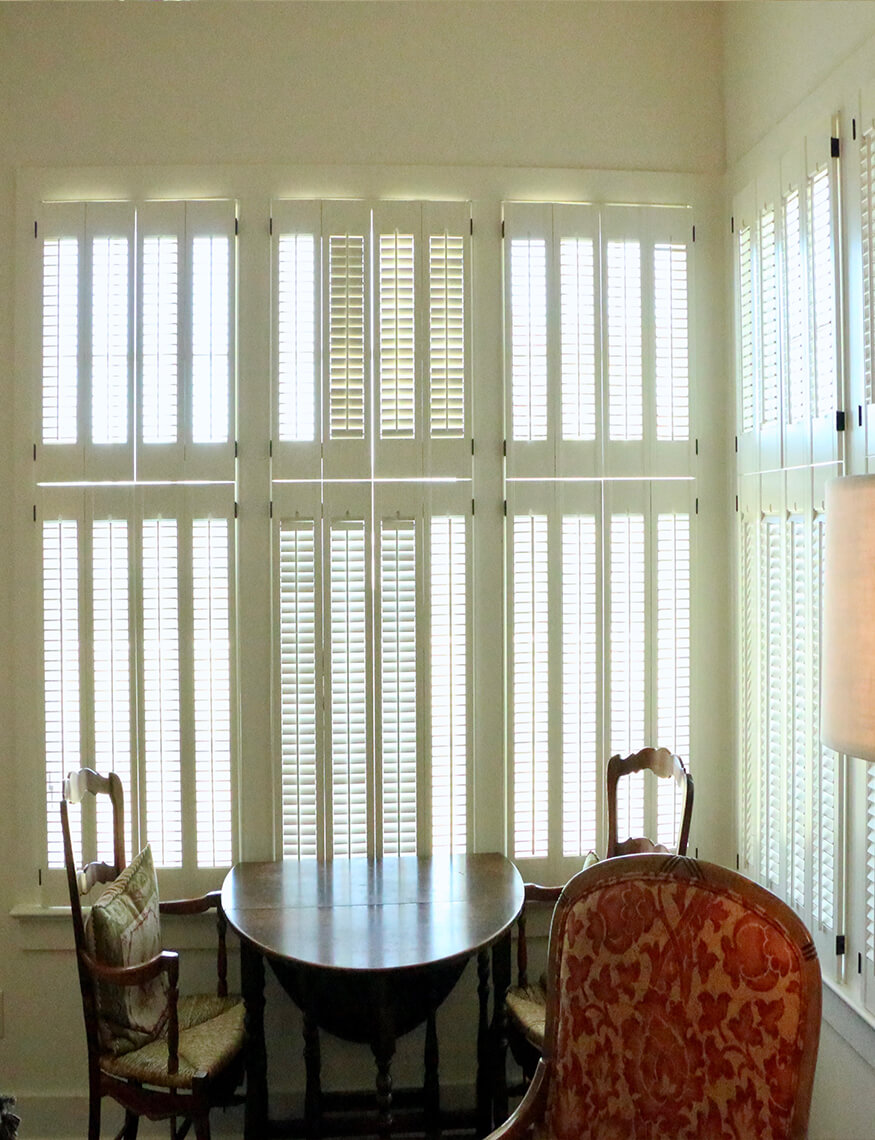

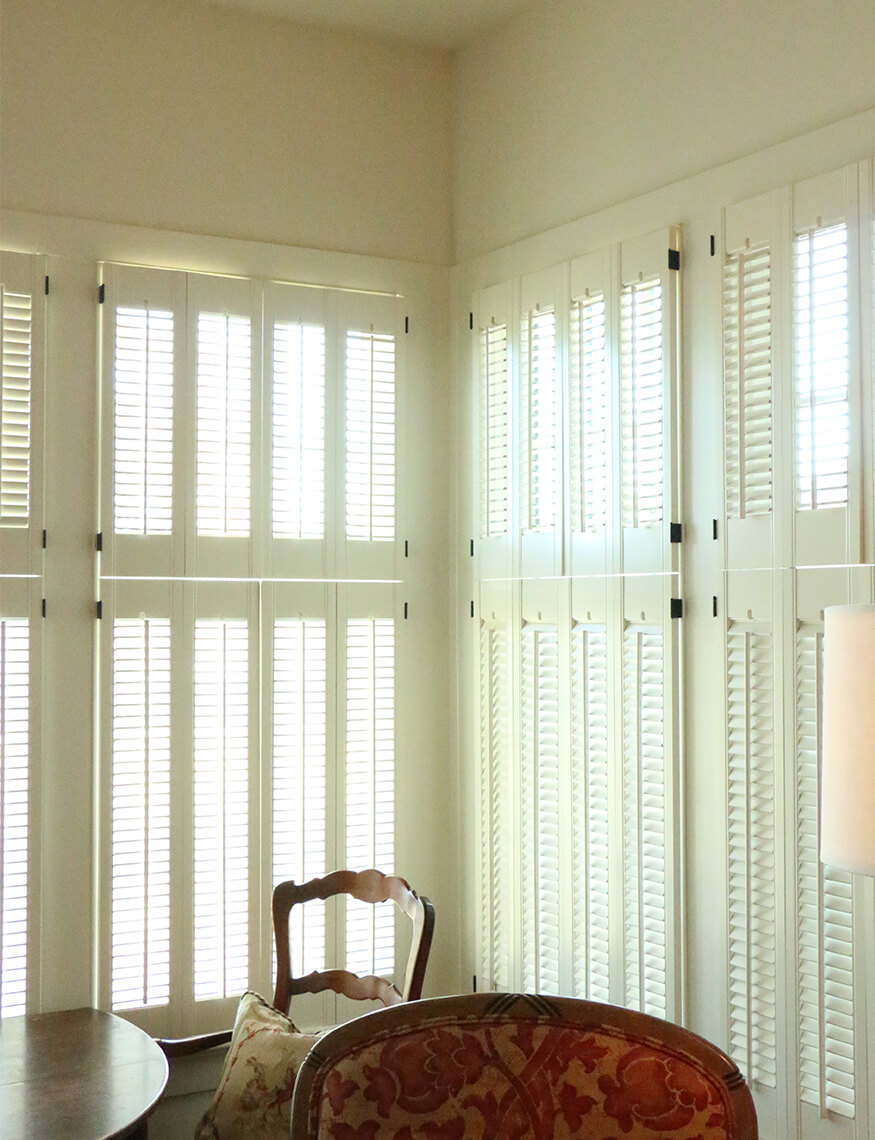

COMPLETE MOVABLE LOUVER SHUTTER AND HARDWARE INSTALLATION KIT

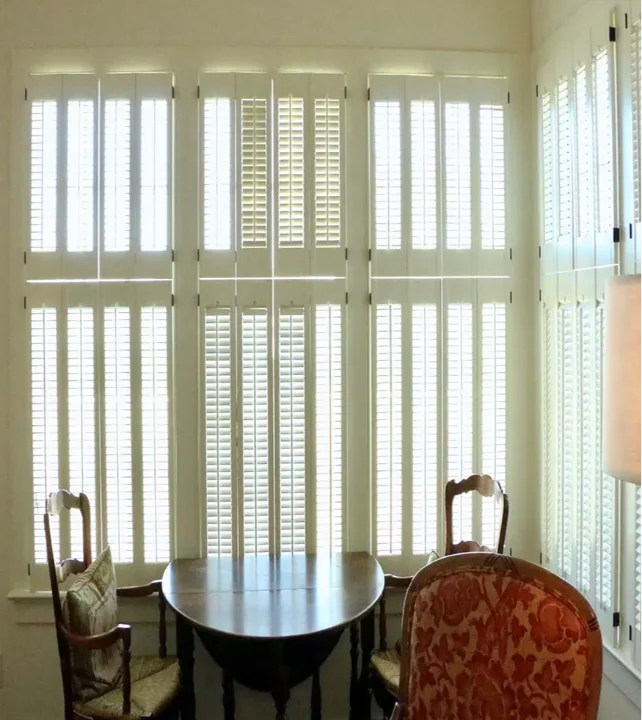

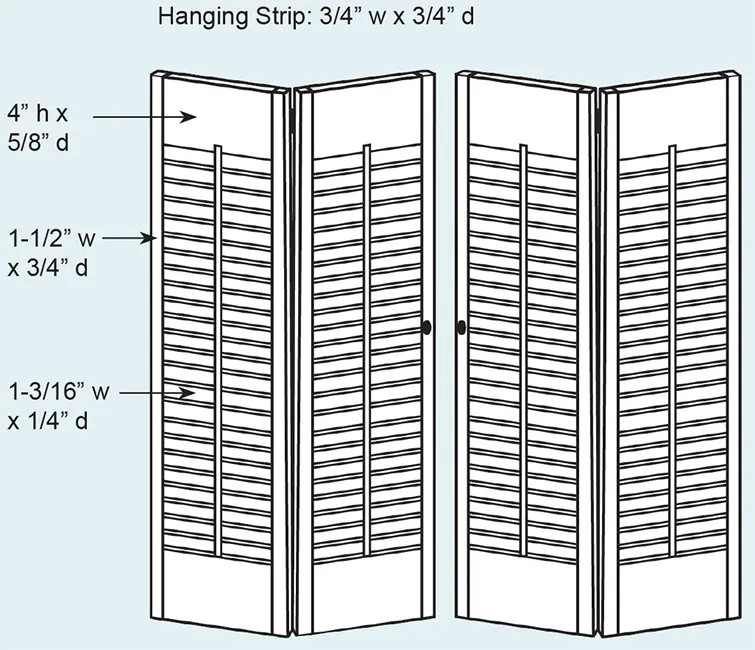

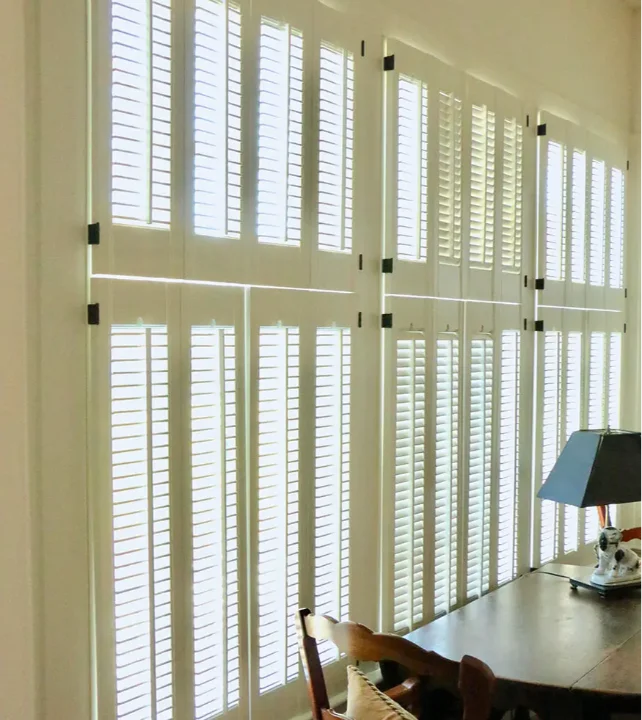

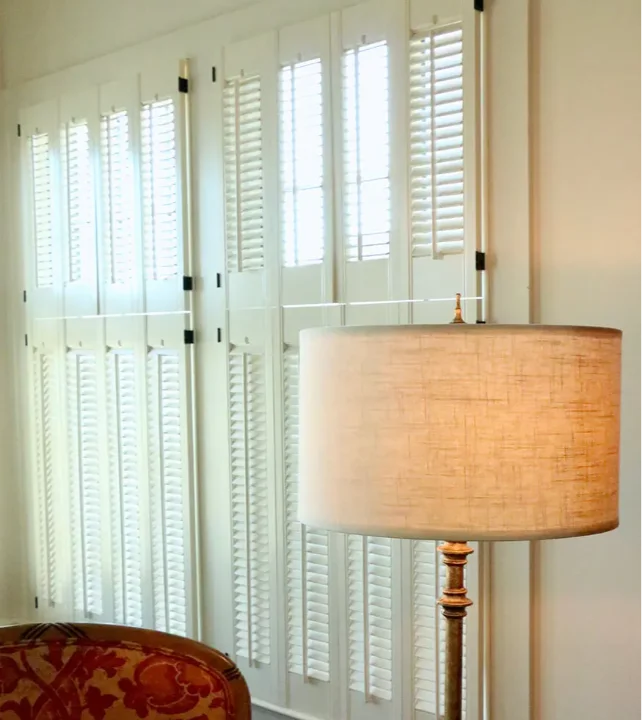

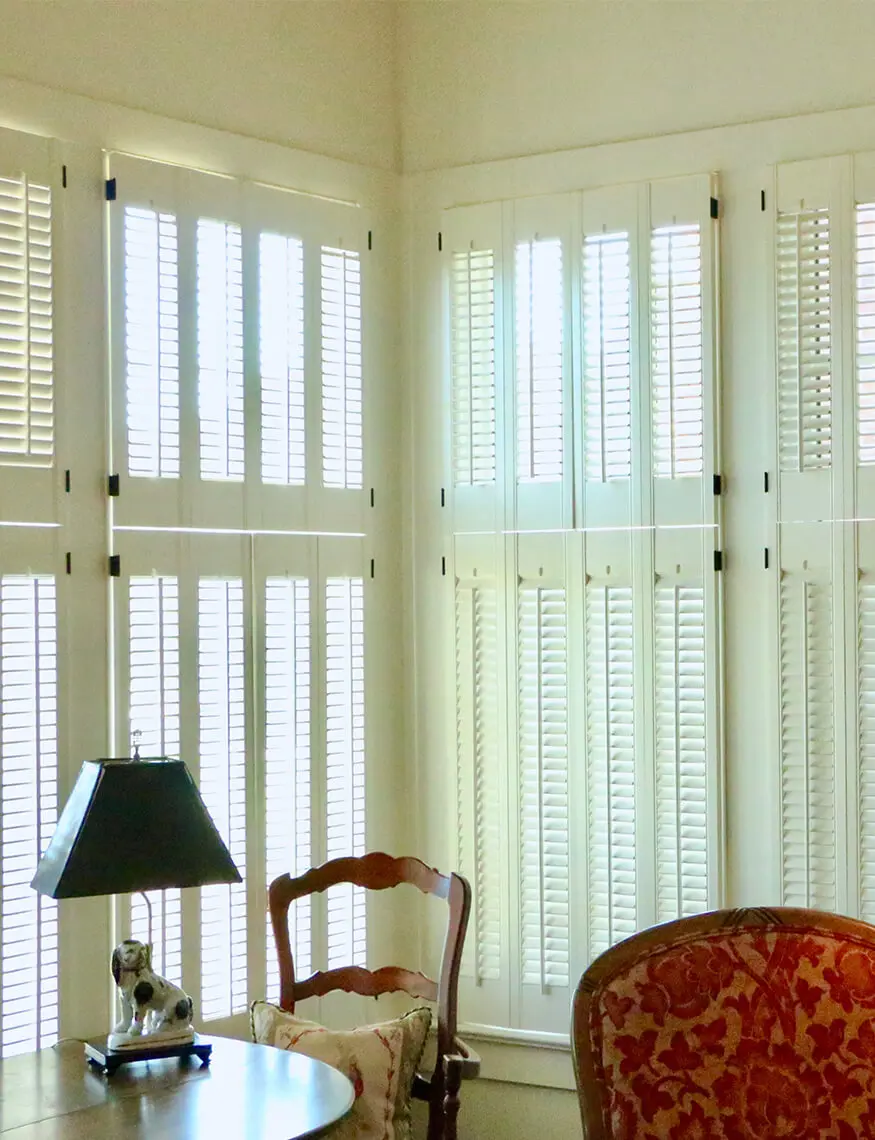

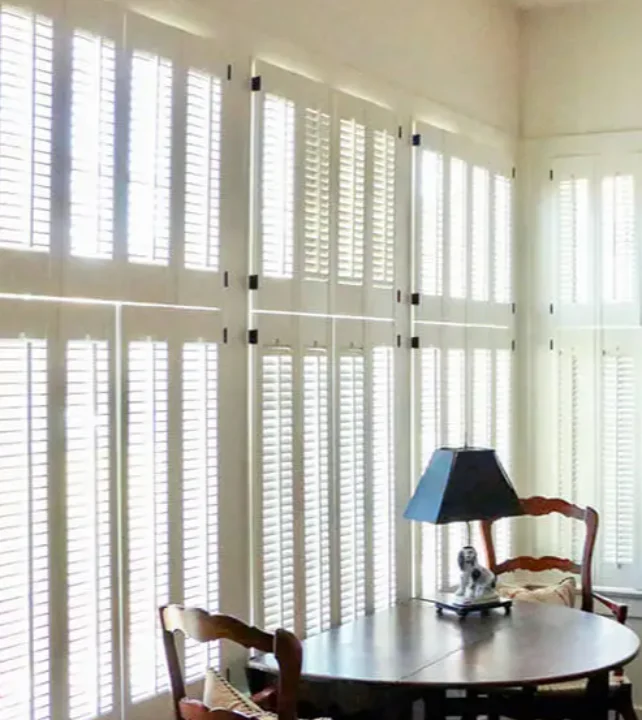

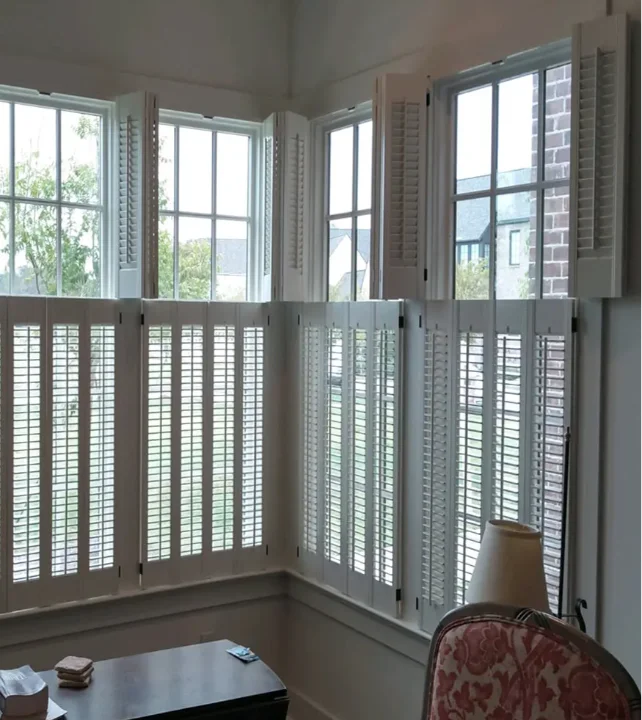

The classic look of the interior bi-fold shutter set is sure to enhance the décor of any home or office. 1-3/16” slats give this wood shutterset an old time charm. Available in lengths up to 40” this set is designed to cover half a window or may be double hung to cover the window entirely.
Each set comes with hanging strips and brass plated mounting hardware. Shutters may be mounted inside or outside the window jamb. No trimming (width) is required for outside the jamb mounts. If mounted inside the jamb each shutter stile will trim up to ½ inch width, 2” top and 2” bottom for length.
Available in a full range of widths and lengths this shutterset is sure to add charm and character to any structure. Shuttersets are shipped unfinished. Custom finishing is available. See options sheet for any additional charges.
FINISHING OPTIONS
OPTION 1: Do it Yourself Kits
*Trimming may be required.
Unfinished paint grade (default)
Unfinished stain grade
OPTION 2: Trimmed to Size Kits.
Paint grade unfinished.
Interior primed and prepped ready for paint
Interior painted ready for installation
Interior stain grade unfinished
Interior stained ready for installation
*Additional charges apply.
*All color finishes may be matched to Sherwin Williams, Benjamin Moore, and PPG by supplying the manufacturer’s color name and color number code.
Constructed from Basswood each set contains 4 shutter panels, hanging strips and mounting hardware.
(Note: Hanging strips go behind shutters. See back for additional hanging tips)

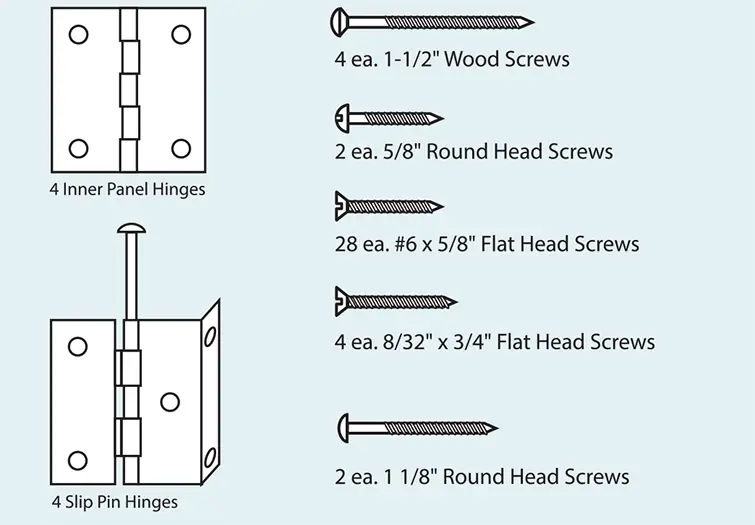

Mounting Hardware Included:
2 ea. Adjustable Wood Hanging strips
4 ea. 1-1/2” Screws for attaching Hanging Strips
2 ea. 5/8” Round Head Screws
28 ea. #6 x 5/8” Flat Head Screws
4 ea. 8/32” x ¾” Flat Head Screws
2 ea. 1-1/8” Round Head Screws
4 Slip Pin Hinges
4 Inner Panel Hinges
Available Hardware Colors:
1. Polished Brass -
SSHDWE-PB
2. Antique Brass -
SSHDWE-AB
3. Chrome -
SSHDWE-CH
4. White -
SSHDWE-WH
How to Get a Custom Fit
WINDOW MEASUREMENT OUTSIDE MOUNT
(No trimming required)
1. Locate the first flat area wide enough to mount the 3/4” hanging strips.
Note: For shuttersets mounted on window moulding, moulding must have a flat area of at least 1/2”.
2. Measure the width in 2 places: top and bottom.
3. Measure the height in 2 places: left and right.
Note: Remember to measure and remeasure to verify your numbers before selecting your shutterset.
WINDOW MEASUREMENT INSIDE CASING
(Some trimming may be required)
1. Measure the width in 3 places: top, center, and bottom
2. Measure the height in 3 places: left, center, and right.
3. Take the smallest measurements and subtract 1/2” width and height to determine final overall size with hanging strip and hinge clearance.
Note: Remember to measure and remeasure to verify your numbers before selecting your shutterset.
How to Select the Right Installation

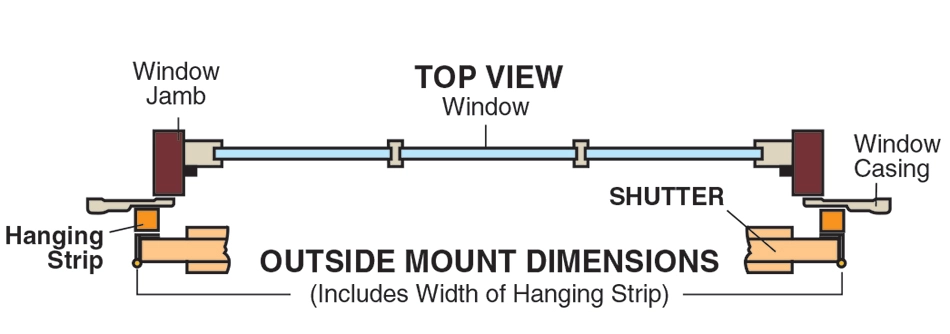

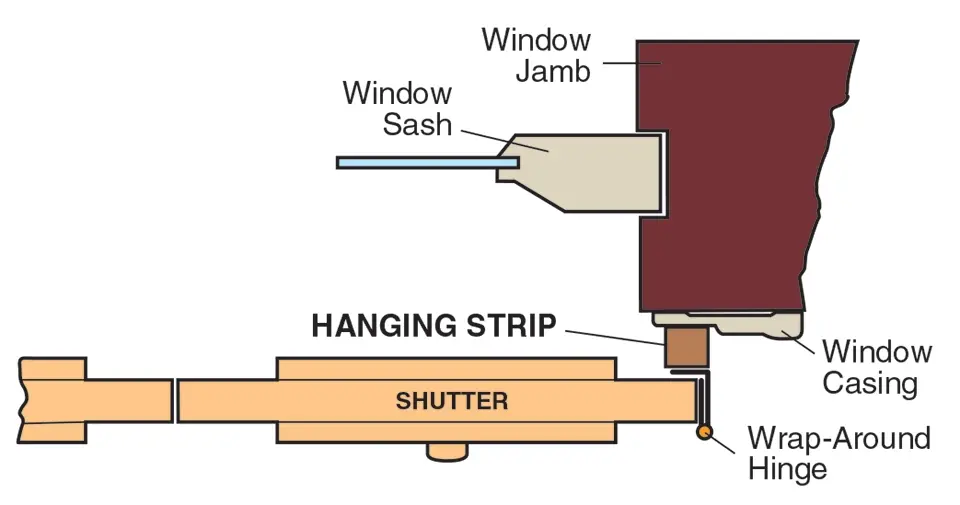

OUTSIDE MOUNT INSTALLATION
(No trimming required)

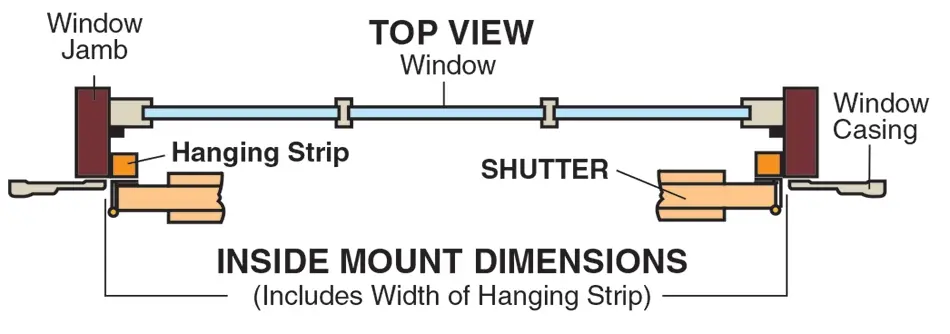

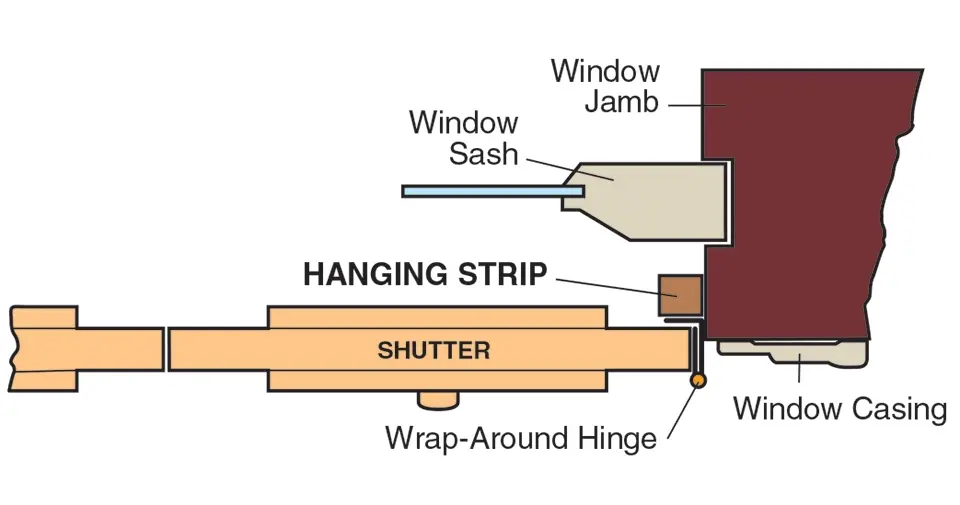

INSIDE MOUNT INSTALLATION
(Some trimming may be required)
I N T E R I O R
3/4” EASY FITSHUTTERSETS
Complete Movable Louver Shutters and Hardware Installation Kit
HOW TO GET A CUSTOM FIT

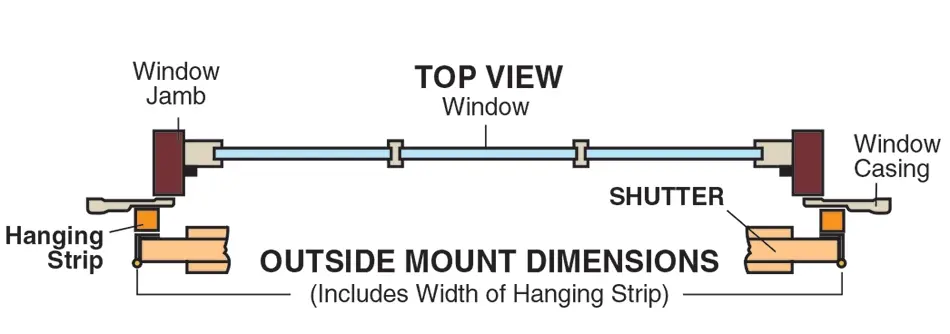

WINDOW MEASUREMENTS OUTSIDE MOUNT
(No trimming required)
Locate the first flat area wide enough to mount the 3/4” hanging strip. Note: For shuttersets mounted on window moulding, moulding must have a flat area of at least 1/2”.
Measure the width in 2 places: top and bottom.
Measure the height in 2 places: left and right.
Note: Remember to measure and remeasure to verify your numbers before selecting your shutterset.
WINDOW MEASUREMENTS INSIDE CASING
(Some trimming may be required)
Measure the width in 3 places: top, center, and bottom.
Measure the height in 3 places: left, center and right.
Take the smallest measurements and subtract 1/2” width and height to determine final overall size with hanging strip and hinge clearance.
Note: Remember to measure and remeasure to verify your numbers before selecting your shutterset.
HOW TO SELECT THE RIGHT INSTALLATION
OUTSIDE MOUNT INSTALLATION
(No trimming required)
INSIDE MOUNT INSTALLATION
(Some trimming may be required)
A Combination Shutter is always a Combination of Louvers and Panels. The selections must be a combination. Please select another option.
