Interior DesignLine Combination
Product details

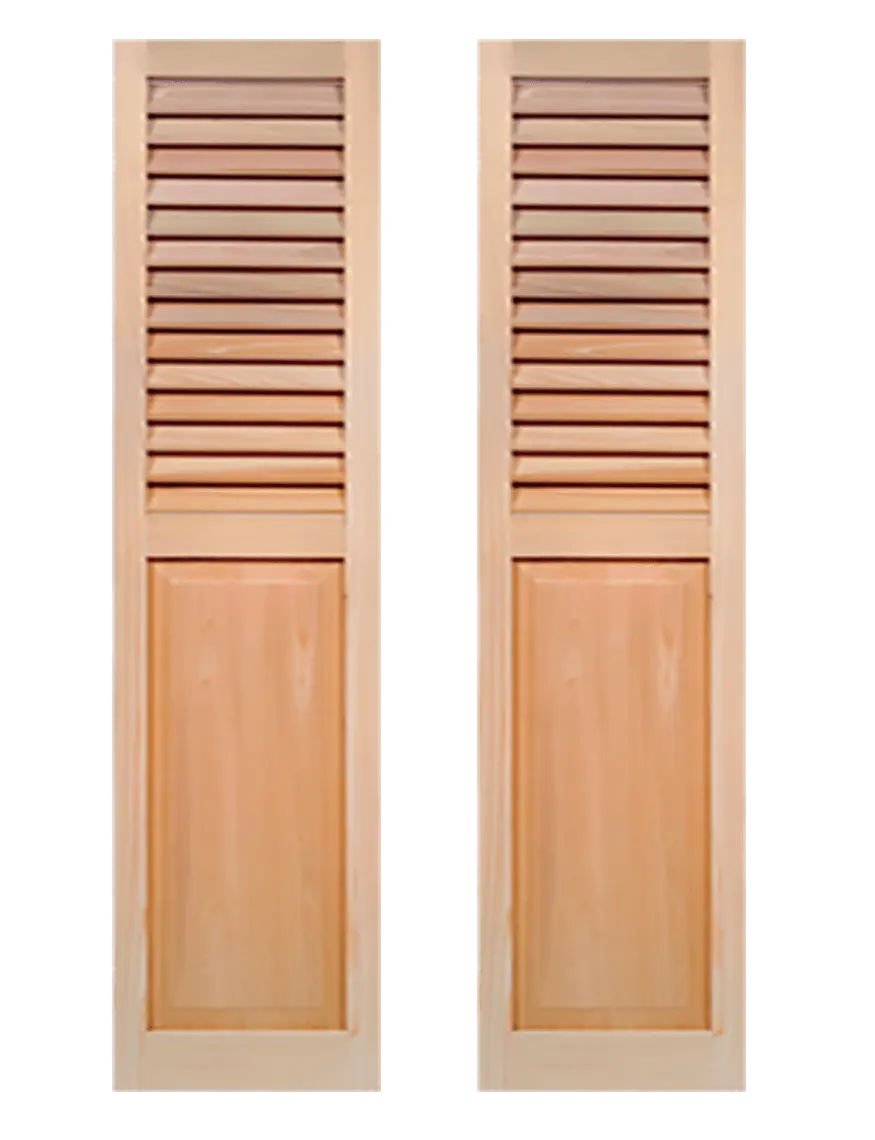

1-3/8” Interior DesignLine Combination
WOOD SPECIES
Our standard interior species is Basswood. Other species offered include Red Oak, Cypress, Mahogany, Yellow Pine, Maple, and White Oak.
FINISHING OPTIONS
OPTION 1: Shutter Panels Only
- Unfinished paint grade (default)
- Unfinished stain grade
- Interior primed white
- Interior primed and prepped white
- Interior primed and finish painted. Ready for installation
- Interior Stained. Ready for installation
OPTION 2: Framed Shutter Units
- Interior primed and prepped ready for paint
- Interior painted ready for installation
- Interior stain grade unfinished
- Interior stained ready for installation
*All color finishes may be matched to Sherwin Williams, Benjamin Moore, and PPG by supplying the manufacturer’s color name and color number code.
HANGING SYSTEMS
Southern Shutter offers a variety of hanging systems including L-Frame, Z-Frame, hanging strips, and direct to casing mount. (see Interior Installation Page.) Track systems are also available on request. Hanging systems are shipped disassembled and packaged with our quality hardware for easy installation.
*Additional charges apply.

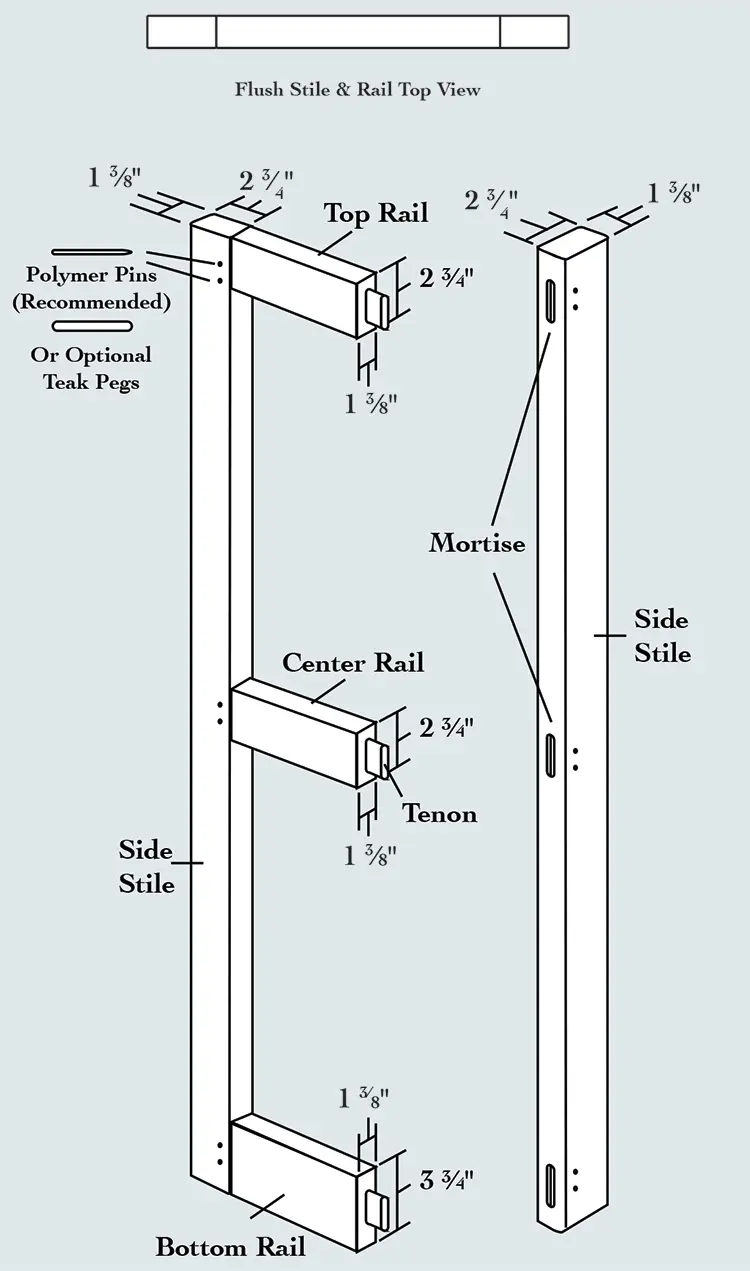

1-3/8” Flush Stile & Rail Frame Construction

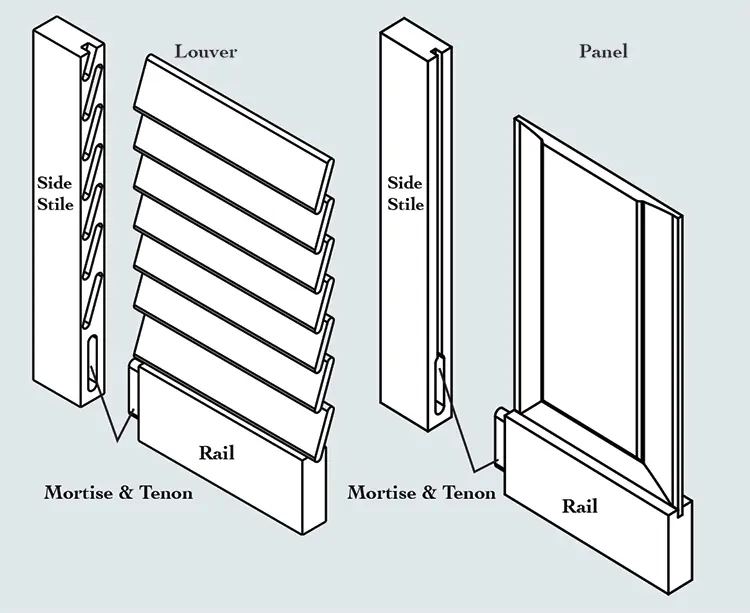

Mortise & Tenon Construction
SPECIFICATIONS

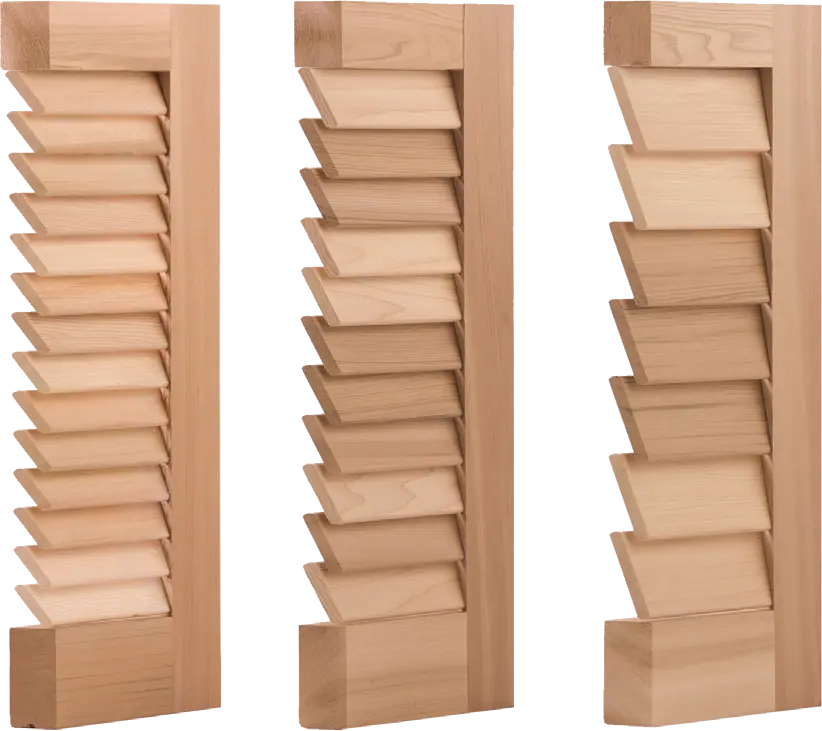

DesignLine LOUVER OPTIONS
Traditional Louver Profile
European Louver Profile
DesignLine PANEL OPTIONS
INTERIOR SHUTTERS PANEL OPTIONS

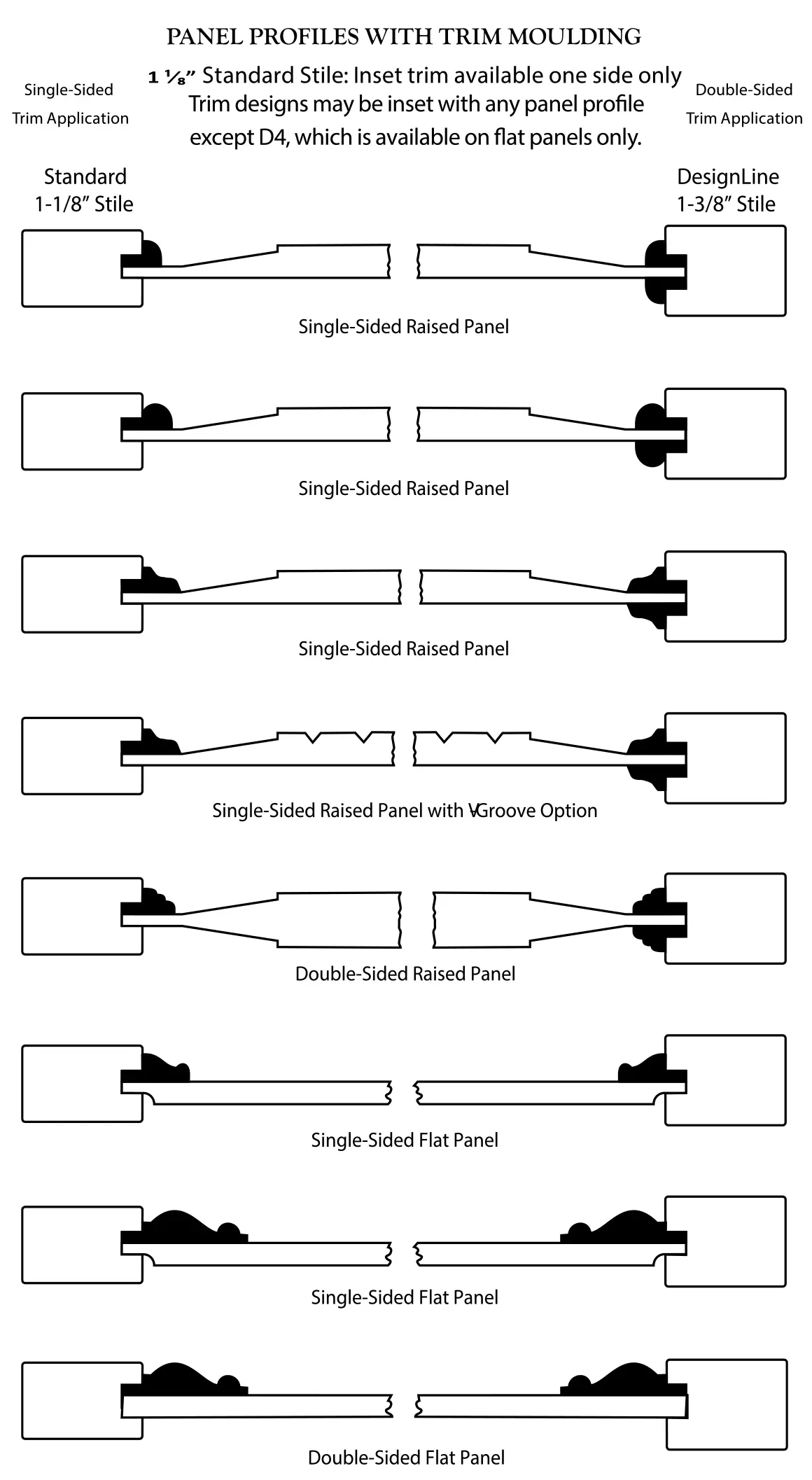

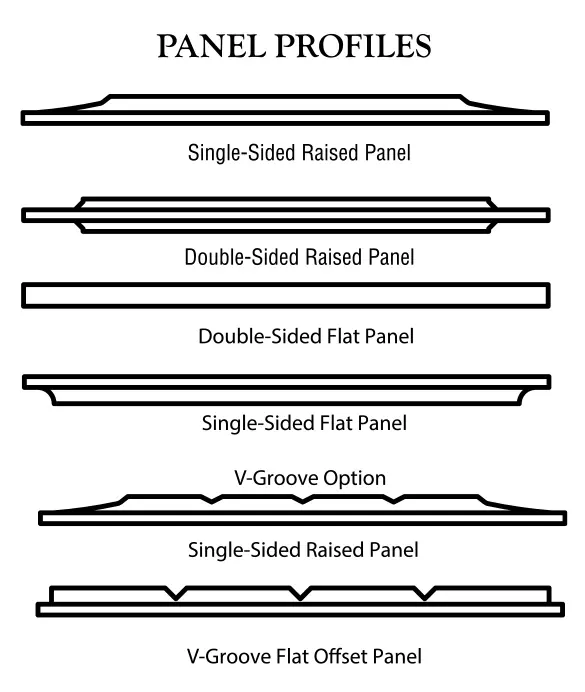

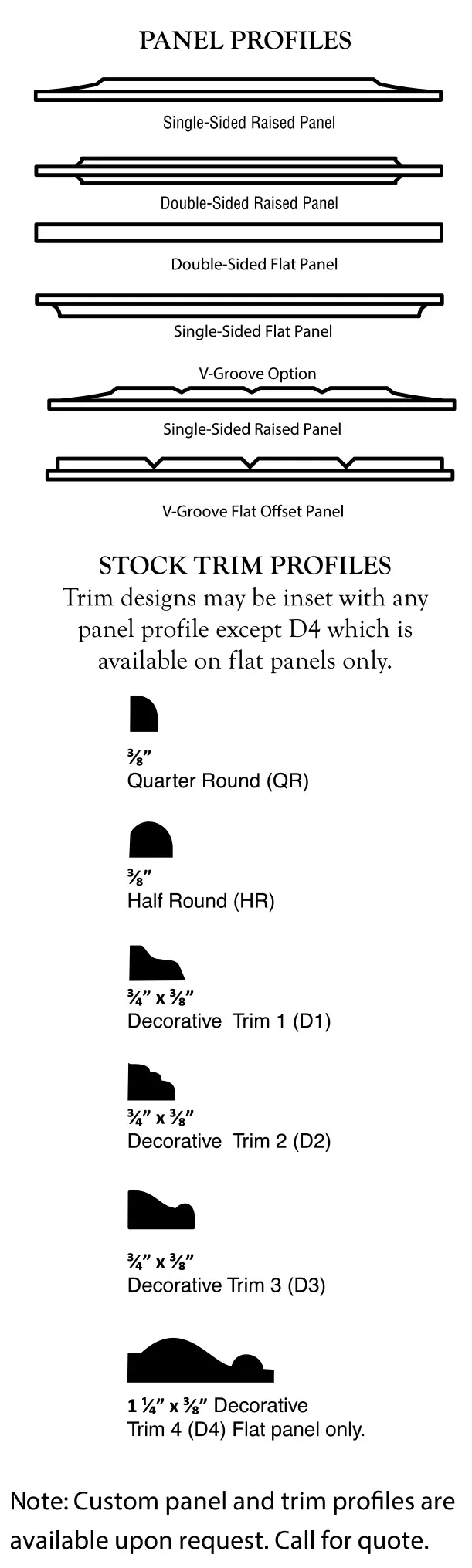

Panel Profiles and Decorative Trim Options
*Additional charges may apply
Flush Stile & Rail Combination Shutters
Custom Shutter options
Interior Combination Shutters manufactured by Southern Shutter can be customized to meet most customers specifications. Some common applications are shown below. For additional options call 1-800-344-8590 or visit our website www.southernshutter.com.
*Additional charges may apply
- Additional Wood Species (Available by quote)
- Copper Capping
- Custom Paint Color (No additional charges on orders larger than 60 square feet)
- Shutter Frame Thickness Modified up to 1-3/4”
- Rail Width Modification
- Stile Width Modification
- Ship Lap - 1/4”, 3/8”, 1/2”
- Ship Lap with 3/8” Bead - 1/4”, 3/8”, 1/2”
- Trim Moulding - Per Side (see trim profiles for selection)
- 3 Section Rail Layout
- 4 Section Rail Layout
- Horns 1/2", 3/4”, 1”
- Basic Curve or Rake
- Solid Rail Arch or Café Scroll Arch (6" maximum drop)
- Half Circle Arch Top
- Mortise Shutters for Hinges
- Under 12-1/2" Narrow Width Hand Run Fee
PANEL OPTIONS
- Louver/Panel Combination Shutters
- Single-Sided Raised or Single-Sided Flat (no additional charge)
- Double-Sided Flat Panel (no additional charge)
- Double-Sided Raised Panel
- V-Groove Option

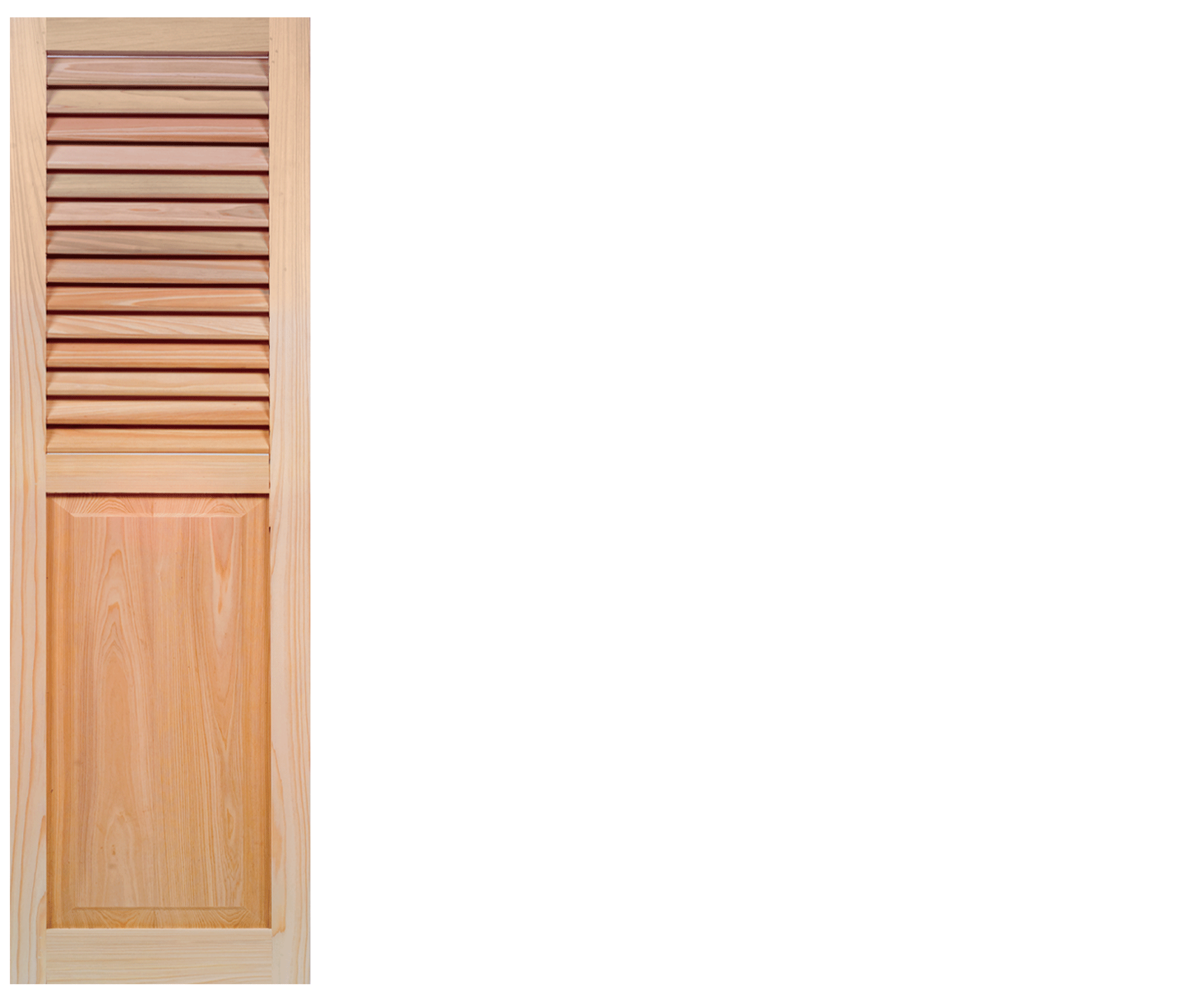

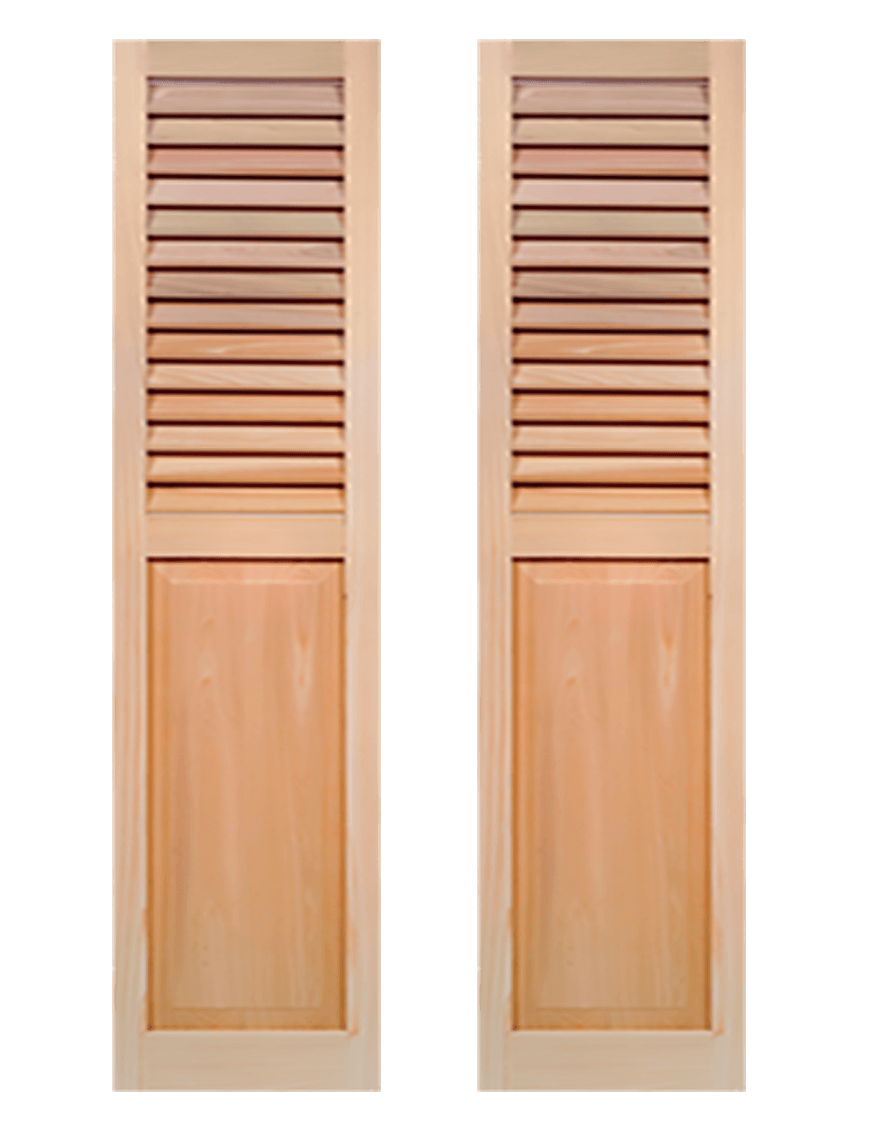

DesignLine Flush Stile & Rail Combination Shutters

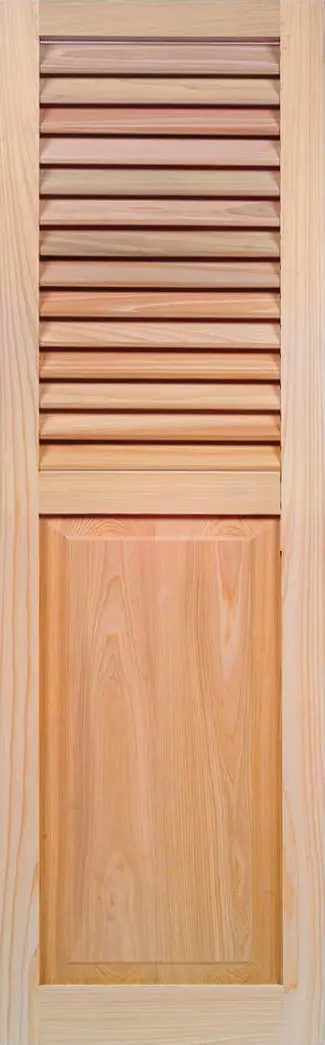

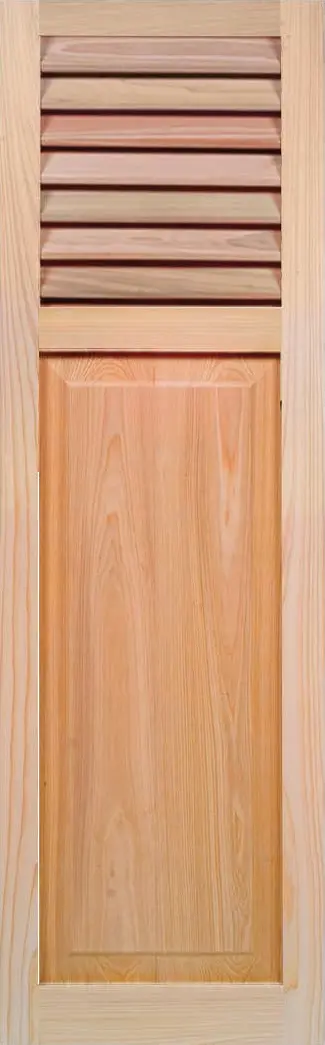

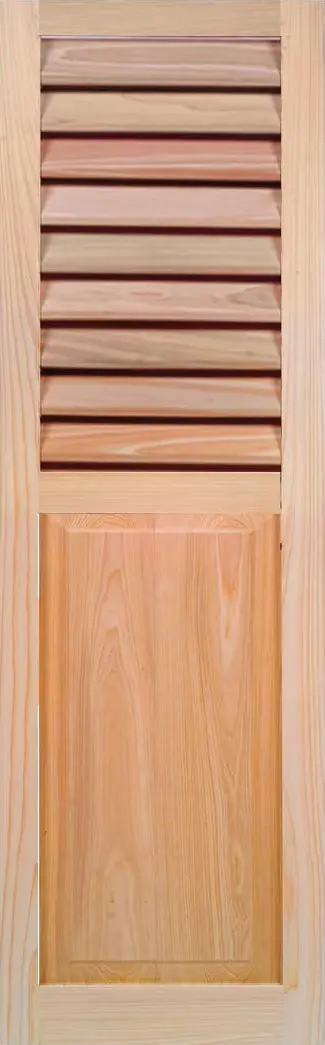

Louver/PanelCombination

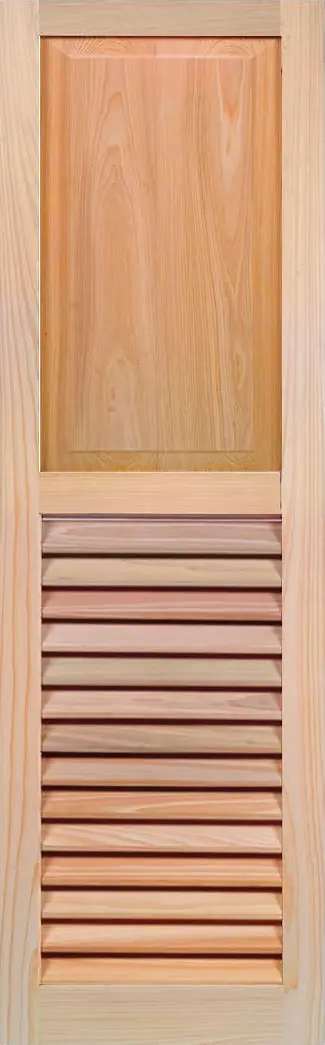

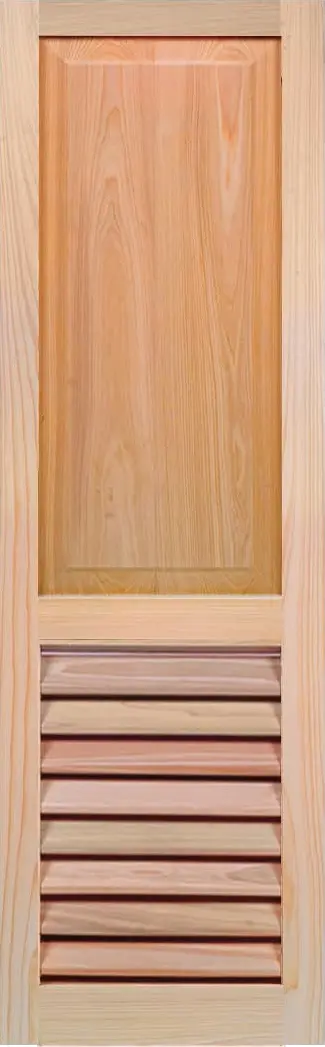

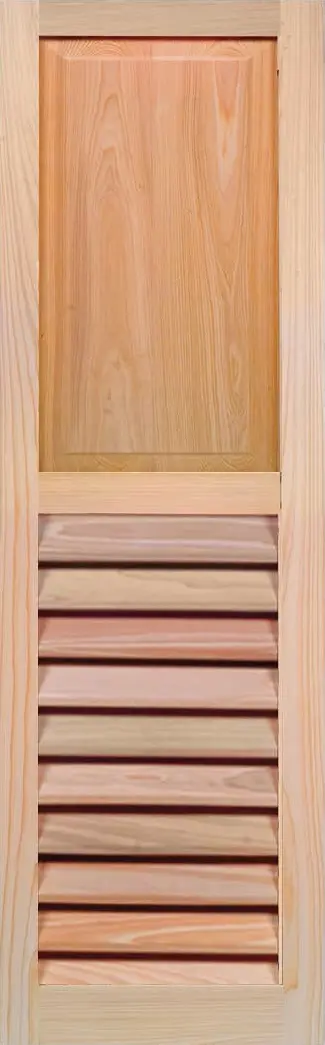

Panel/LouverCombination
Louver/Panel Combination Cottage Layout
Panel/Louver Combination Reverse Cottage Layout
Louver/PanelCombination
Panel/Louver Combination

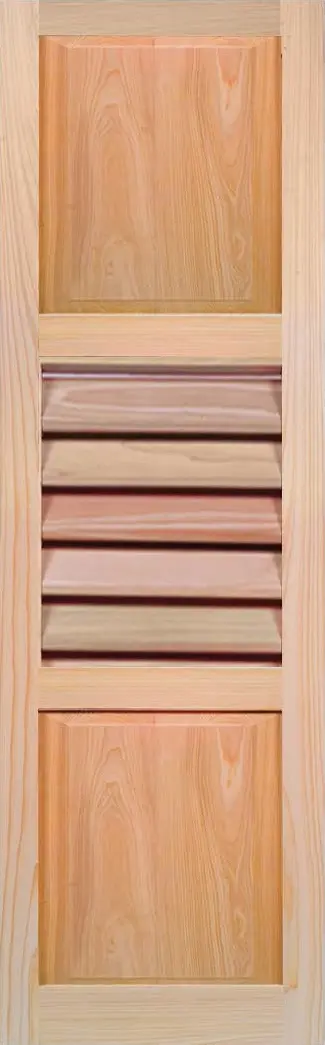

Panel/Louver/Panel Combination

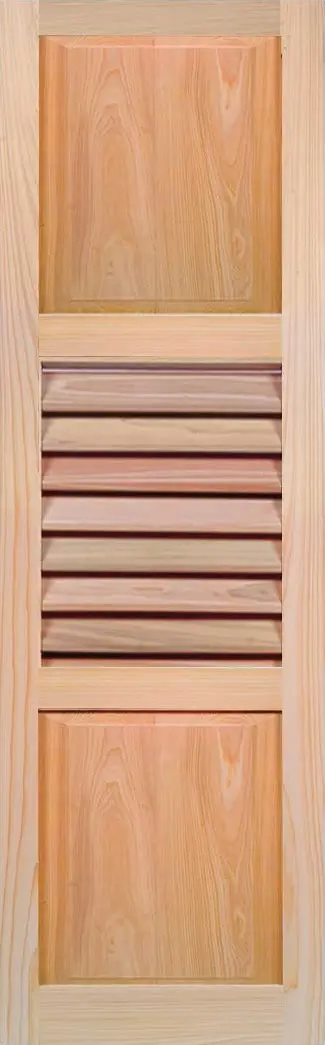

Panel/Louver/Panel Combination
MEASURING & INSTALLATION GUIDE FOR INTERIOR SHUTTERS
NOTE: Remember to measure to verify your numbers before selecting your shutters and the desired mounting procedure.
Shutters may be mounted inside or outside window casings using hanging strips or frames. In some applications it may be more efficient and simpler to mount your shutters to the window moulding using a framed hanging system. These systems allow for greater flexibility for windows with a shallow depth or that may be out of square. It is important that various parts of the window construction (casing, moulding, handles, etc.) allow enough space for louver extension when the shutter is closed and the louvers are fully open.
WINDOW MEASUREMENTS FOR INSIDE CASING MOUNT

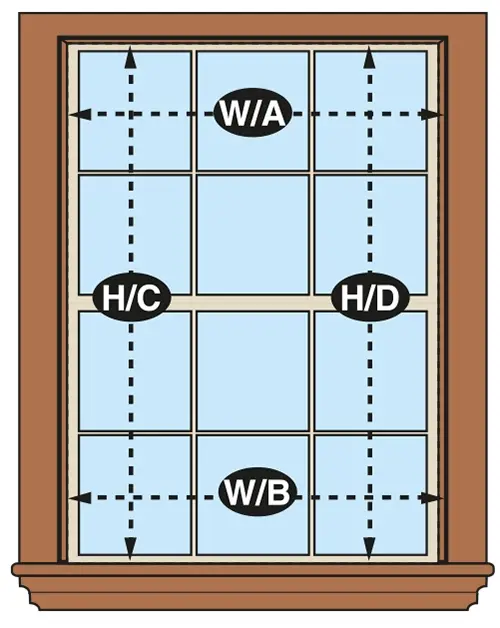

- Measure the inside width of the window at both points (W/A and W/B), and the height at both points (H/C and H/D).

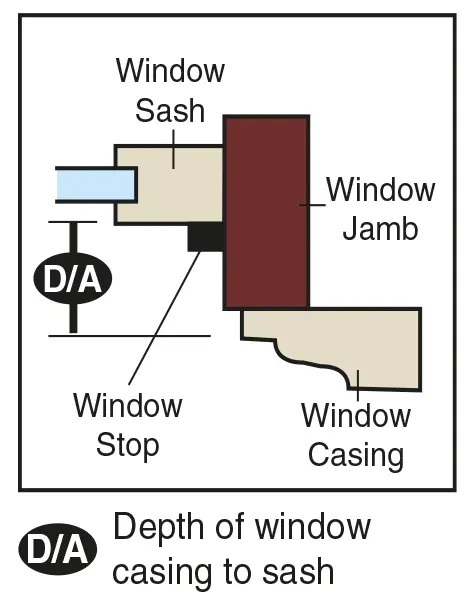

- Measure the window depth (D/A), the distance from the window casing to the windowsash.
- Note: A deduction of 1/8” for clearance on inside frame hanging systems is recommended by the manufacturer.
- For hanging systems with hanging strips or mounting directlywindow jamb, use the lesser width and height dimension.

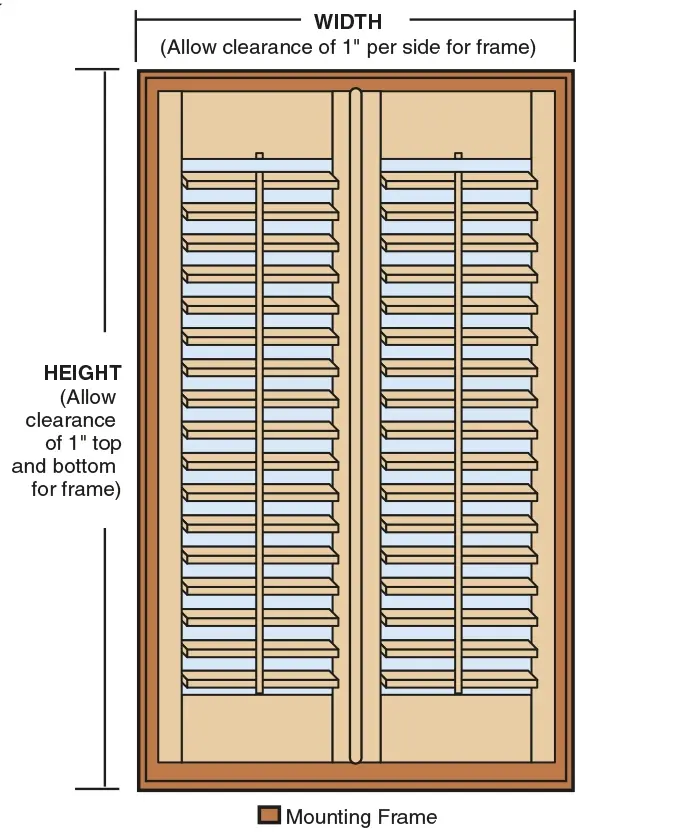

WINDOW MEASUREMENTS FOR OUTSIDE FRAME MOUNT
- Locate area on casing to mount the 1 inch frame.
- Frame width (FW) is determined by measuring outside frame position left to right, including the 11/8” frame footprint.
- Frame height (FH) is determined by measuring outside frame position top to bottom, including the 11/8” frame footprint.
- To ensure flush mount of frame to window casing, frame position should be consistant on all sides ofcasing.
Installing Interior Shutters
Inside or Outside Mount
Most Hanging Systems may be used as inside mounts or outside mounts. Factors such as squareness of the windowopening, tilt window functions, obstructions and appearance should contribute to this decision. Note: Deduction of 1/8” for clearance on inside frame hanging systems is recommended bymanufacturer.
MEASURING & INSTALLATION GUIDE FOR INTERIOR SHUTTERS
OUTSIDE CASING MOUNTS

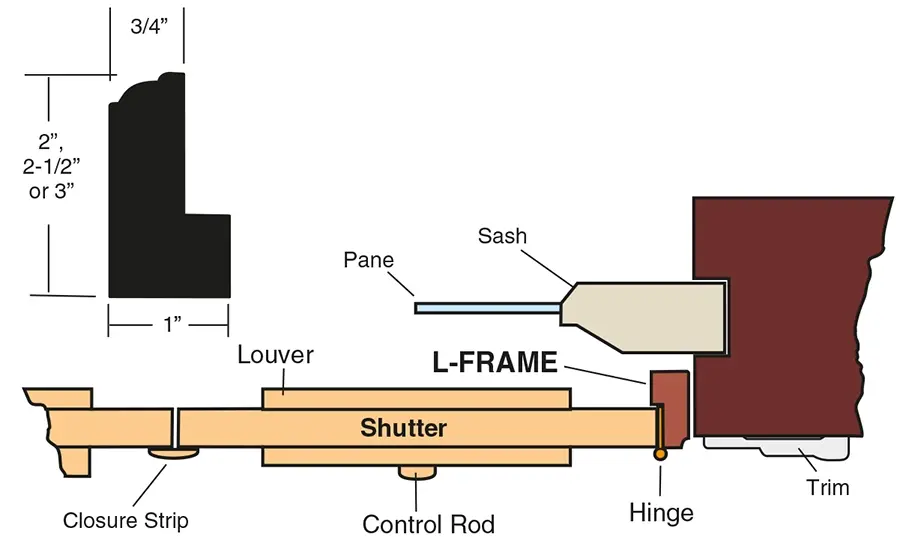

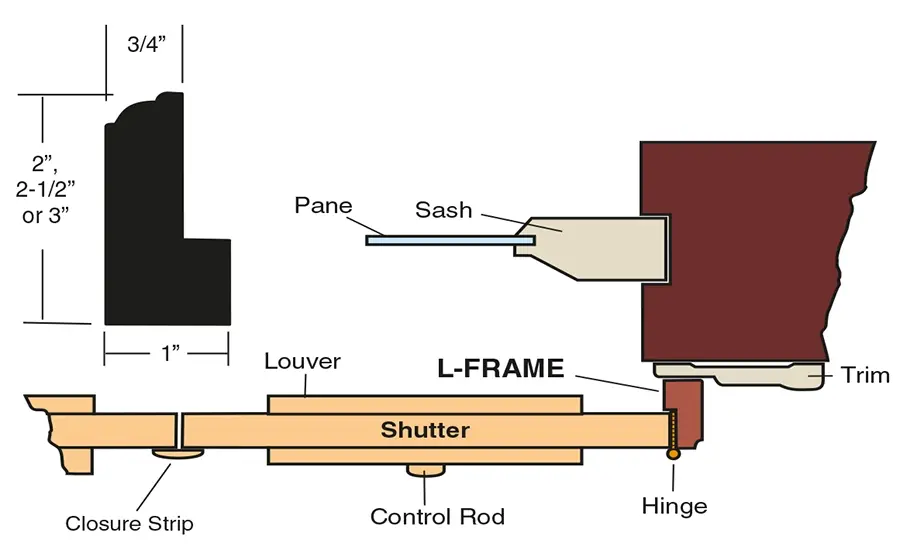

L-FRAME HANGING SYSTEM (3 or 4-sided frame)
INSIDE CASING MOUNTS
L-FRAME HANGING SYSTEM (3 or 4-sided frame)
- Hardware
Ready-to-insall shutters are shipped with all the neccessary hardware in your choice of finishes, including Antique Brass, Brushed Nickel, Chrome, Oil Rubbed Bronze, Polished Brass, White and Black.
INSIDE CASING MOUNTS

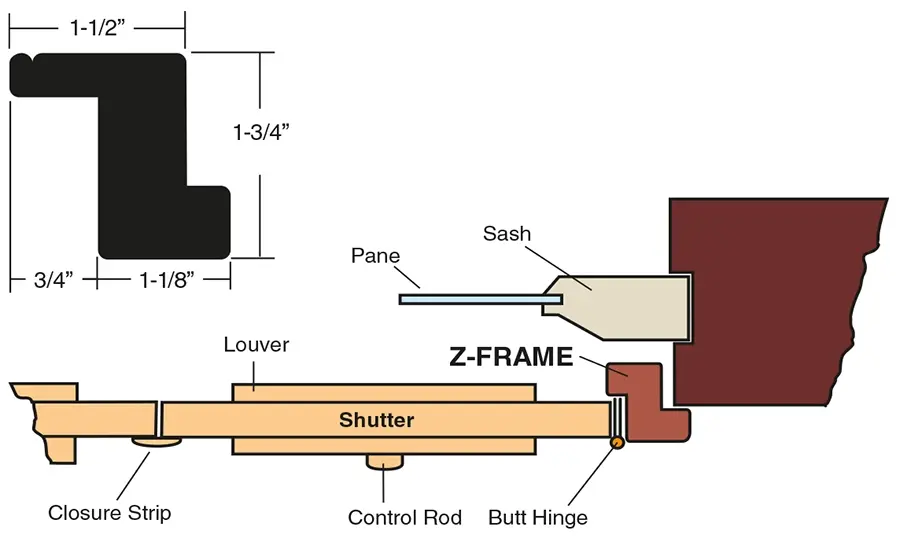

Z-FRAME HANGING SYSTEM (3 or 4-sided frame)
Recommended for sheetrock returns
DIRECT TO CASING MOUNT

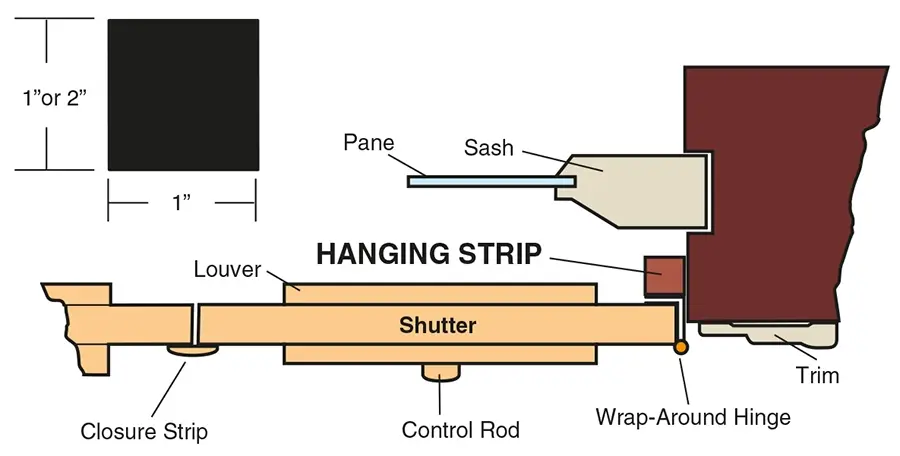

WRAP-AROUND HINGE & HANGING STRIP SYSTEM
MEASURING & INSTALLATION GUIDE FOR INTERIOR SHUTTERS
Hanging Systems
- Direct to Casing
- Wrap-around Hanging Strips inside or outside.
- 3-Sided Frames Inside or Outside (L or Z Frame)
- 4-Sided Frames Inside or Outside (L or Z Frame)
- Track Systems, in bi-fold or by-pass configurations.
Hanging Strip
L-Frame
Z-Frame
T-Post
Panel Layout
Let the window guide your layout. Each characterin the design layout code represents one shutter panel and its hinge direction. A dash is used to indicate a T-Post or mullion.
L Single Panel Hinged Left
R Single Panel Hinged Right
LR 2 Panels: 1 Left 1 Right
LLRR: Four Panels: 2 Left, 2 RIght
L -LR -R: Picture style window, proportional 25% - 50% -25%
LL -LR -RR: For tripple window unit design layout, proportional 33% -33% -33%
A Combination Shutter is always a Combination of Louvers and Panels. The selections must be a combination. Please select another option.
Shutters over - void warranty
