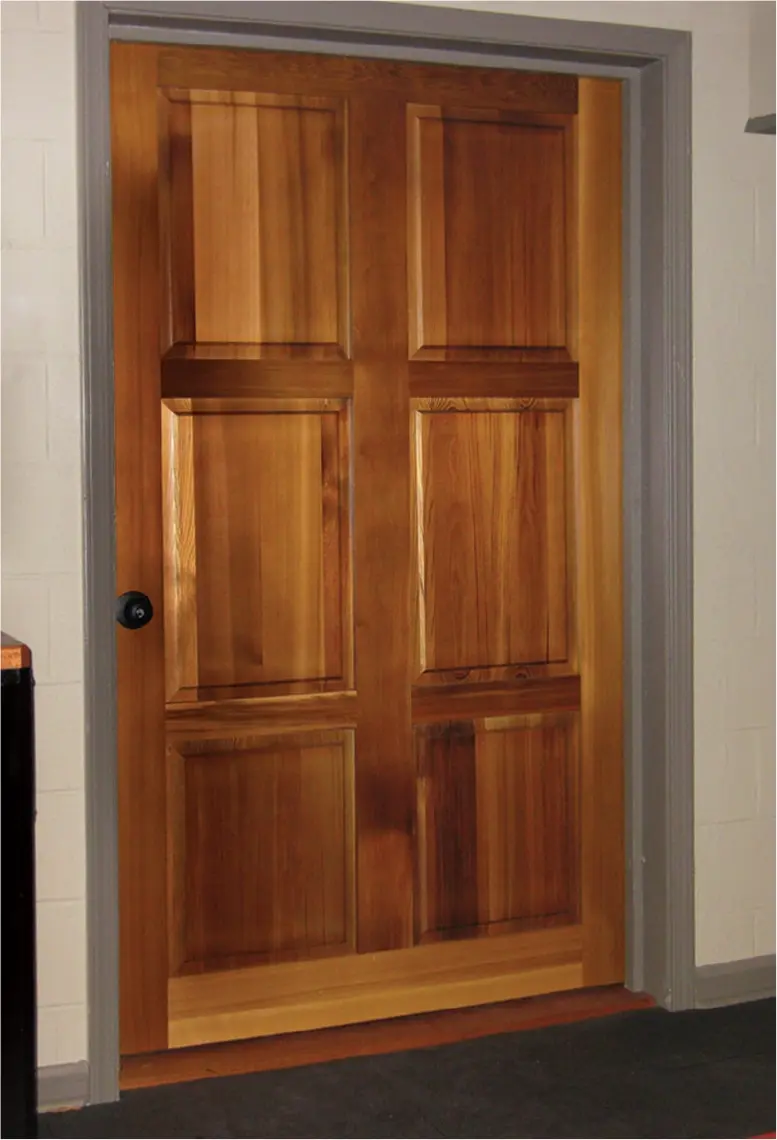

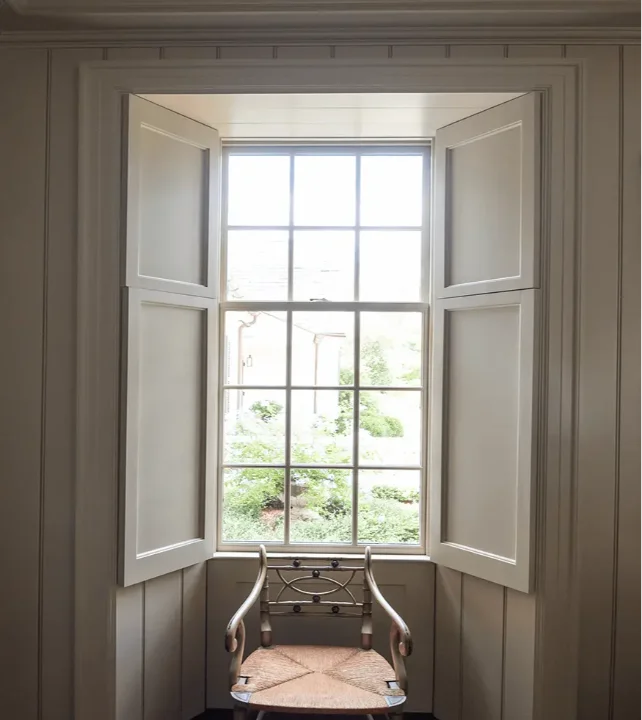

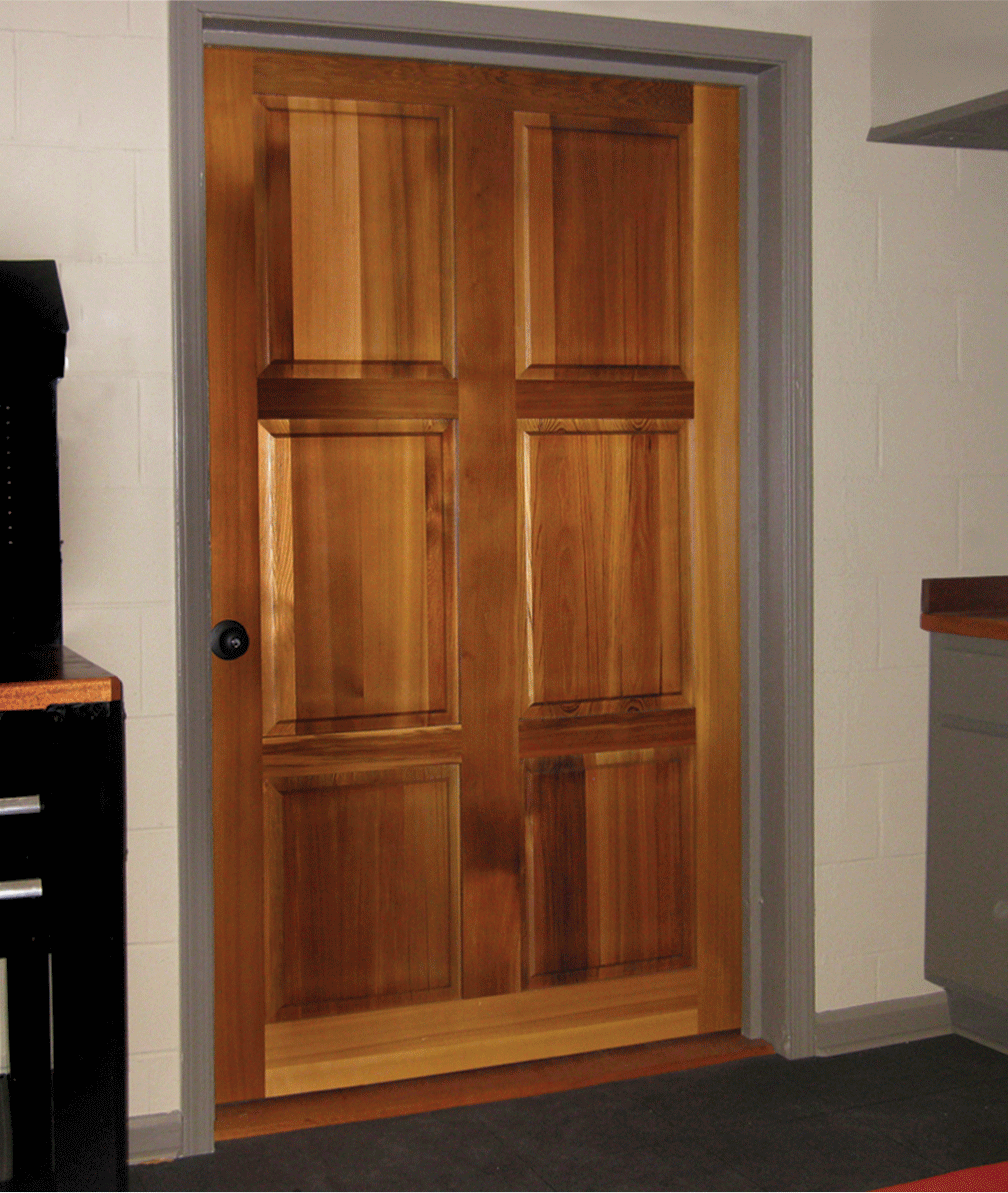

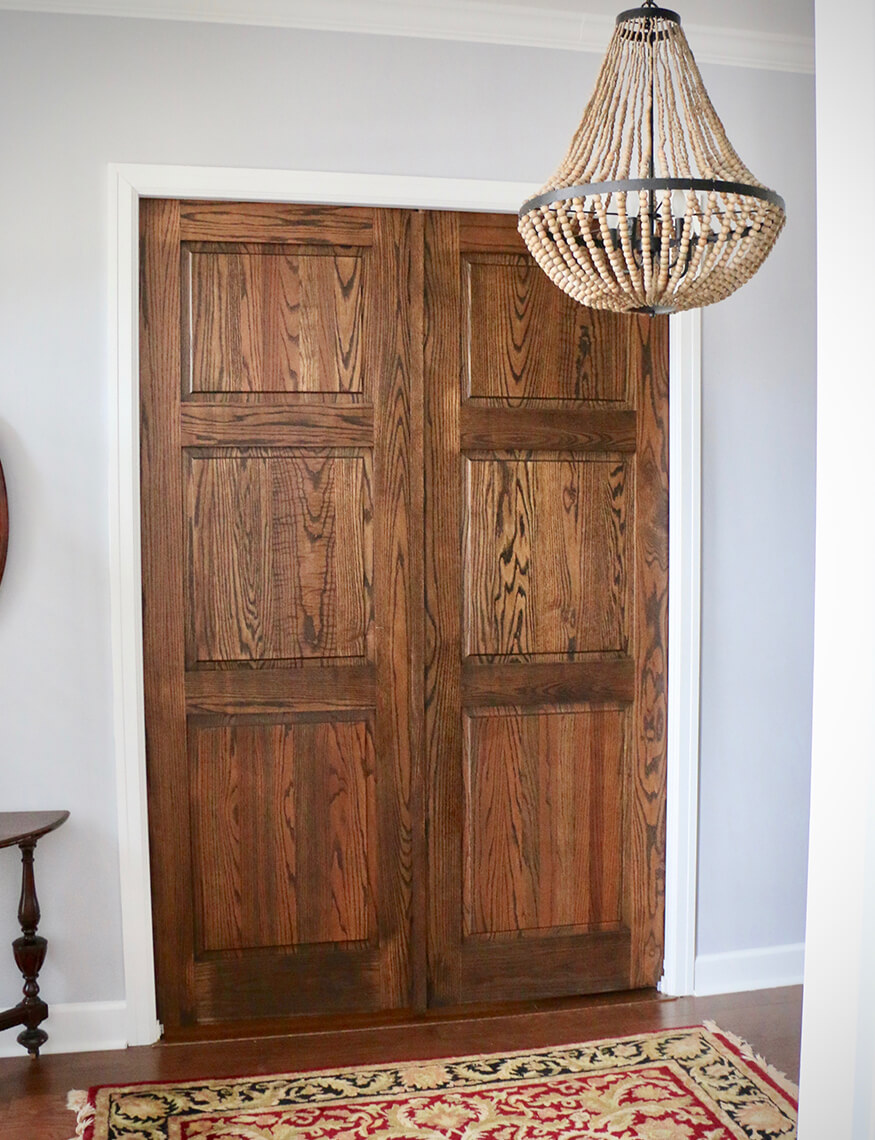

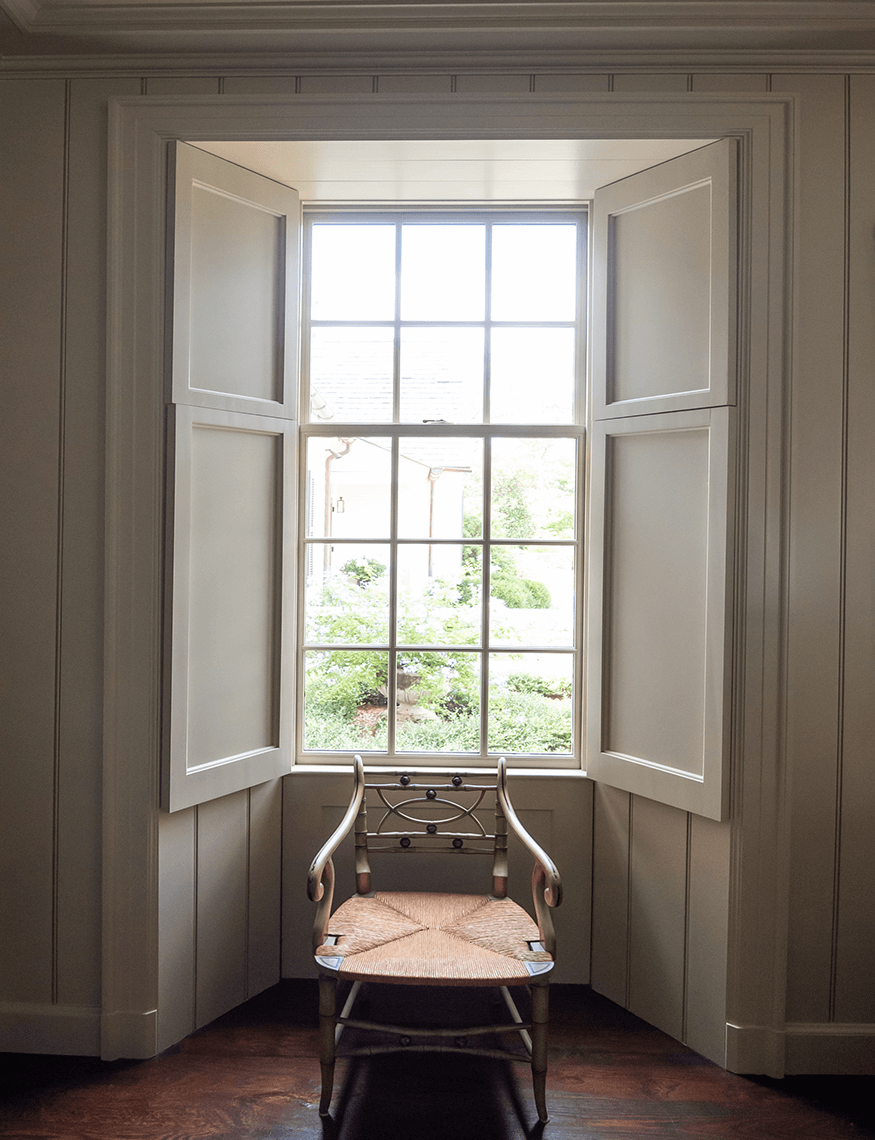

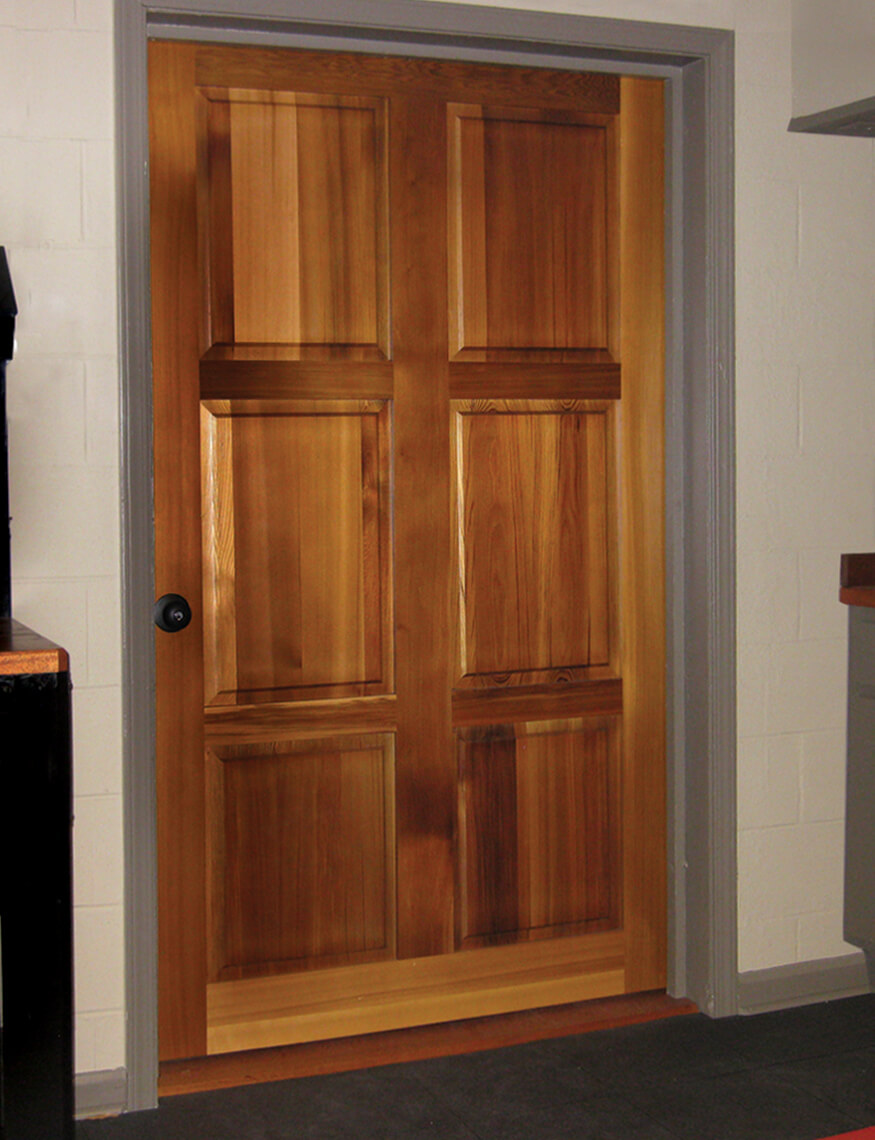

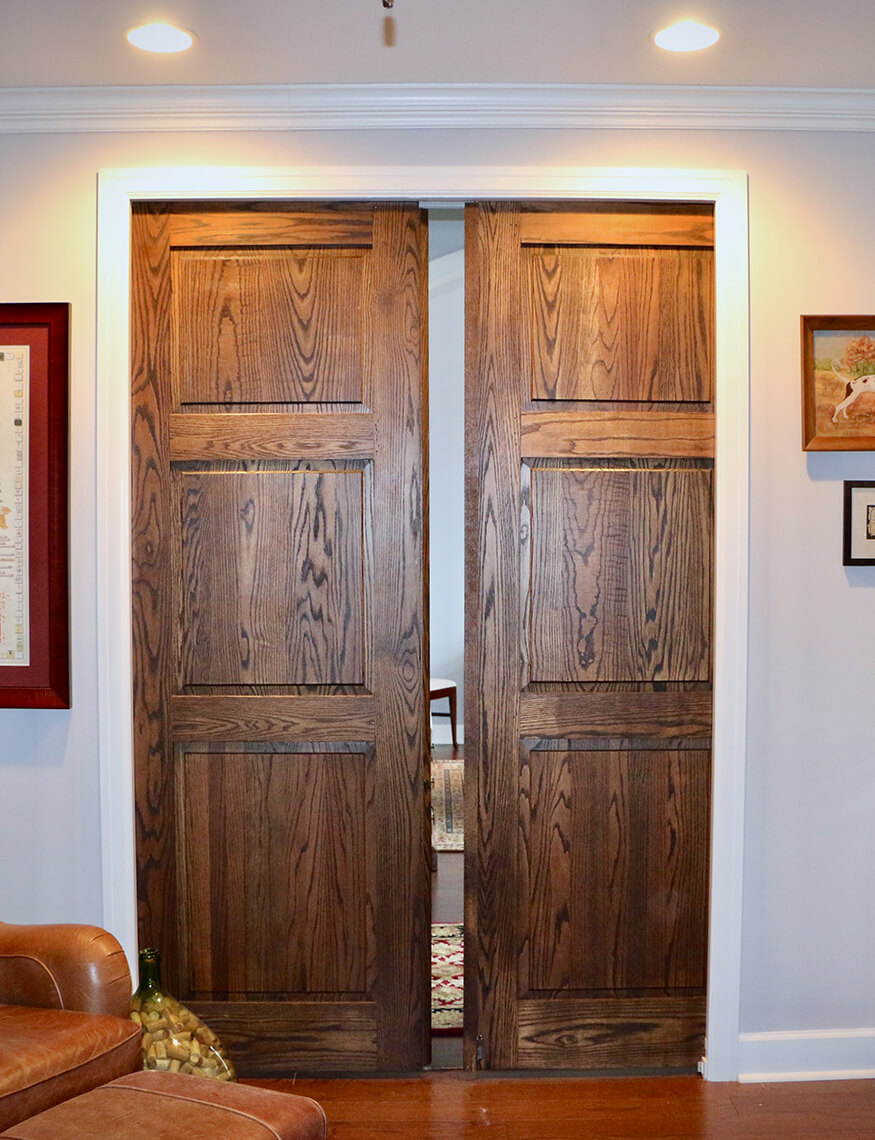

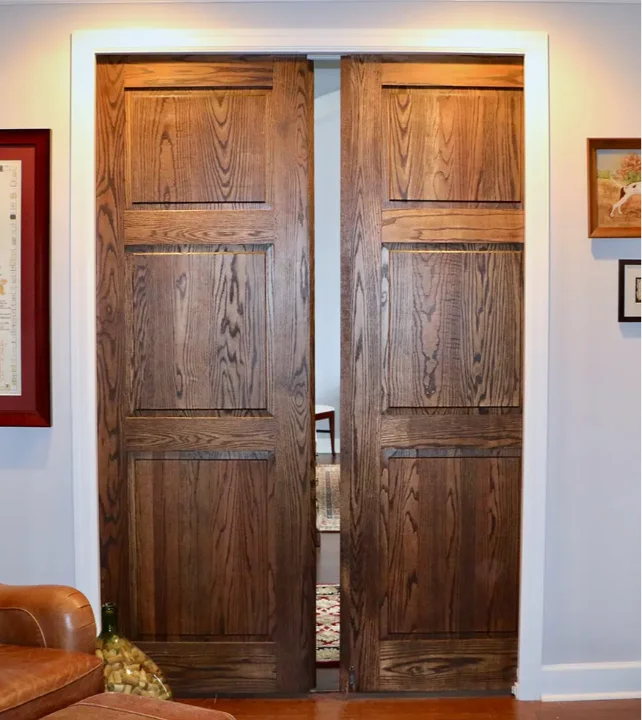

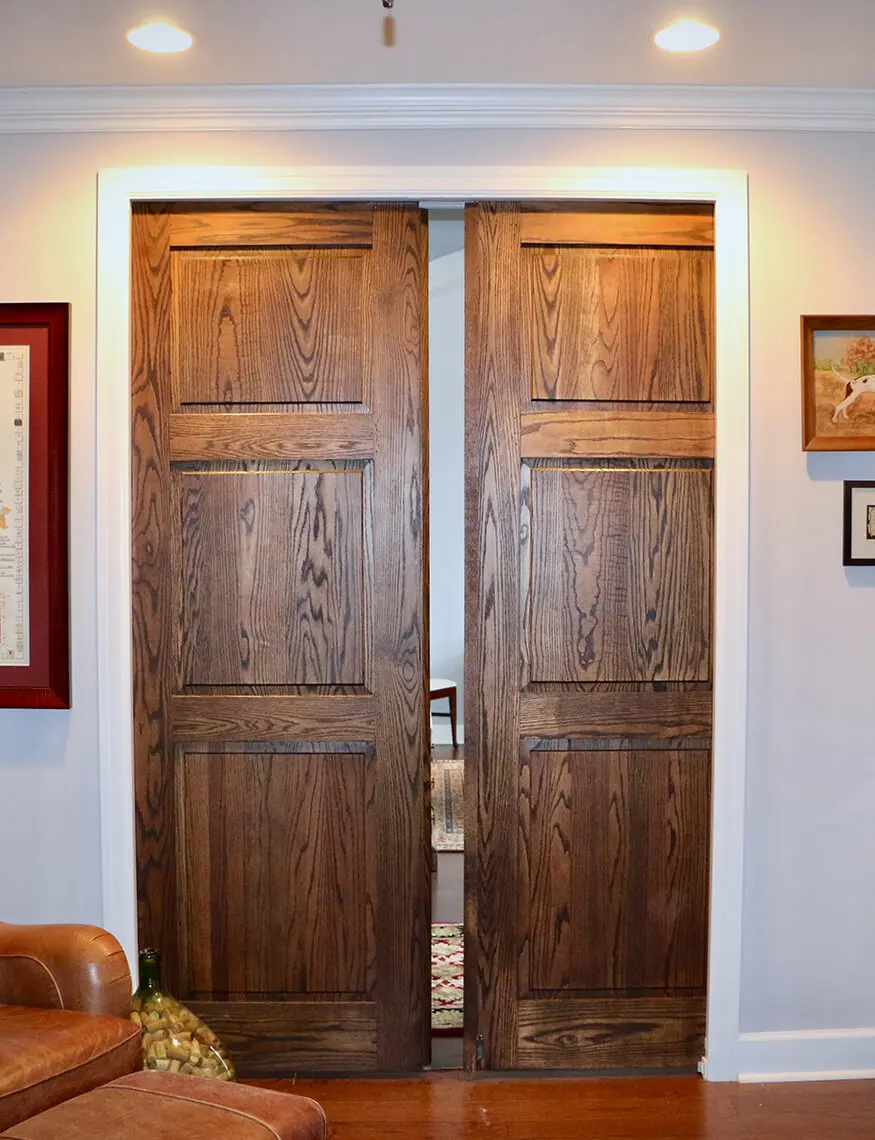

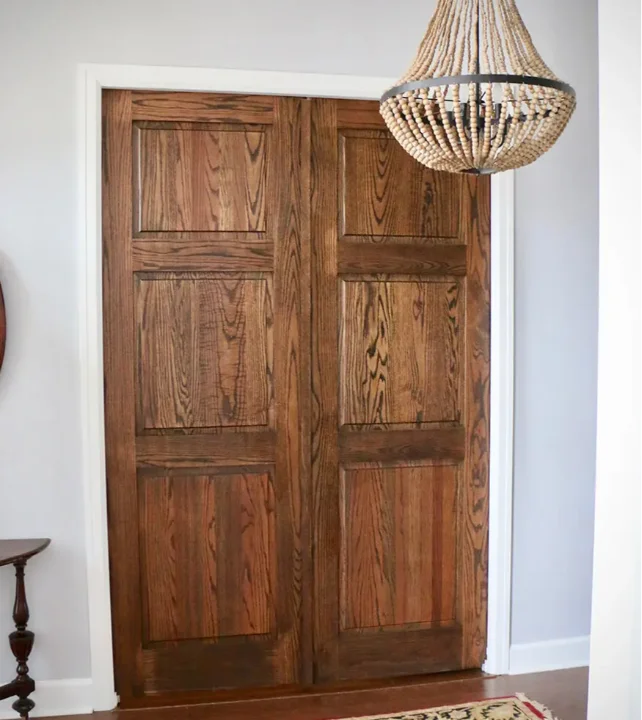

Interior DesignLine Paneled
Product details
DesignLine
1-3/8” FLUSH STILE & RAIL PANELED SHUTTERS
WOOD SPECIES
Our standard interior species is Basswood. Other species offered include Red Oak, Cypress, Mahogany, Yellow Pine, Maple, and White Oak.
FINISHING OPTIONS
OPTION 1: Shutter Panels Only
- Unfinished paint grade (default)
- Unfinished stain grade
- Interior primed white
- Interior primed and prepped white
- Interior primed and finish Painted. Ready for installation
- Interior Stained. Ready for installation
OPTION 2: Framed Shutter Units
- Interior primed and prepped ready for paint
- Interior painted ready for installation
- Interior stain grade unfinished
- Interior stained ready for installation
*Additional charges apply.
*All color finishes may be matched to Sherwin Williams, Benjamin Moore, and PPG by supplying the manufacturer’s color name and color number code.
HANGING SYSTEMS
Southern Shutter offers a variety of hanging systems including L-Frame, Z-Frame, hanging strips, and direct to casing mount (see Interior Installation Page). Track systems are also available on request. Hanging systems are shipped disassembled and packaged with our quality hardware for easy installation.

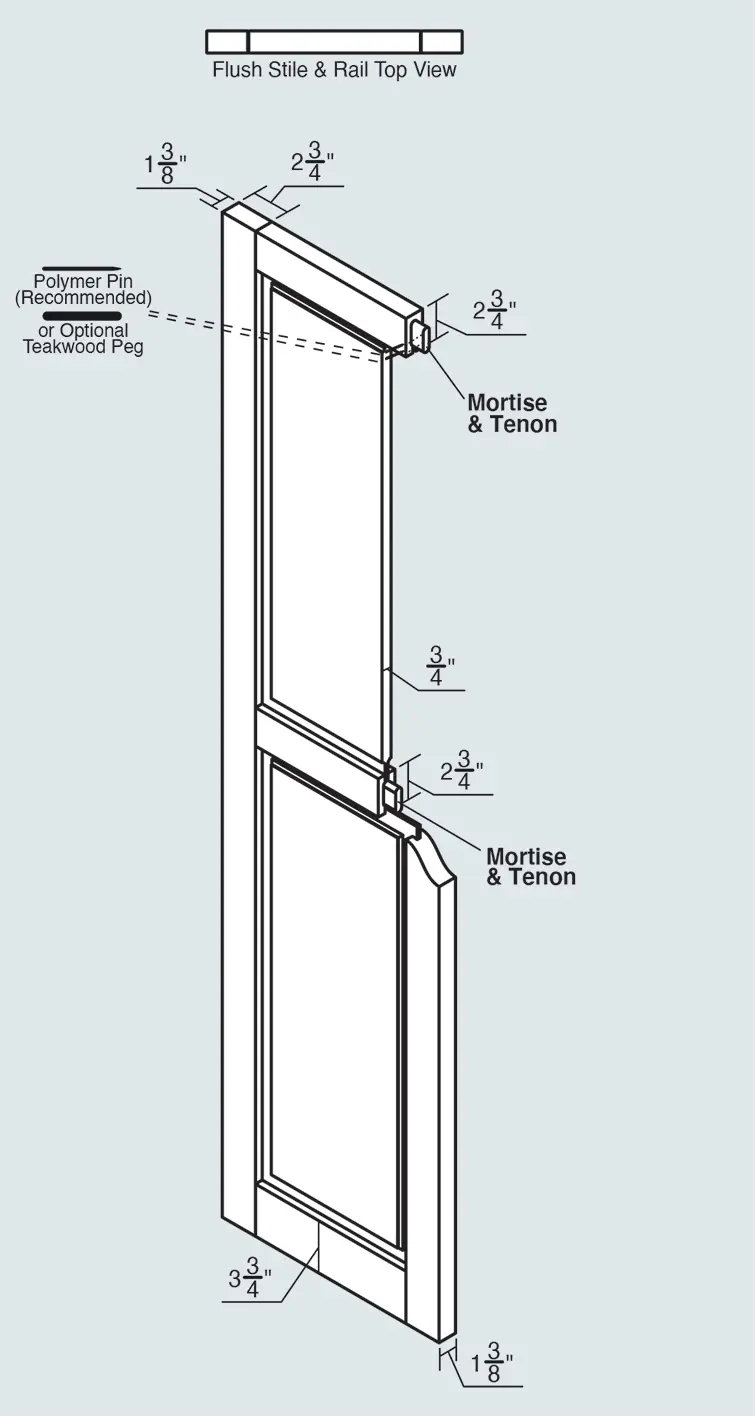

1-3/8” Flush Stile & Rail Frame Construction
SPECIFICATIONS
Custom Shutter Options
Interior DesignLine 1-3/8” Paneled Shutters manufactured by Southern Shutter can be customized to meet most customers specifications. Other options are illustrated on the following pages. For additional options call 1-800-344-8590 or visit our website www.southernshutter.com.
CUSTOM OPTIONS | *Additional charges may apply.
- Additional Wood Species (Available by quote)
- Custom Paint Color (No additional charges on orders larger than 60 square feet)
- Shutter Frame Thickness Modification to 1-3/4”
- Rail Width Modification
- Stile Width Modification
- Ship Lap - 1/4”, 3/8”, 1/2”
- Ship Lap with 3/8” Bead - 1/4”, 3/8”, 1/2”
- 3 Section Rail Layout
- 4 Section Rail Layout
- Extra Substile (Bahama, Spandrel)
- Split Shutters in the Center
- Trim Moulding - Per Side (see back for selection)
- Basic Arch Top or Rake Cut
- Half Circle Arch Top
- Solid Rail Arch or Café Scroll Arch
- Lever Handle Cutout (Framed Units)
- Mortise Shutters for Hinges
PANEL OPTIONS
- Louver/Panel Combination Shutters
- Flat Panel or Single-sided Raised
- V-Groove Option
- Standard Design Decorative Cutout
- Custom Design Decorative Cutout
- FRAME AND HANGING STRIP STOCK
See Interior Hardware Options
See next page for suggested options for Interior 1-3/8" DesignLine Paneled Shutters.
Custom option charges are in addition to base shutter price and finishing charges. (priced per pair.)
INTERIOR SHUTTERS PANEL OPTIONS

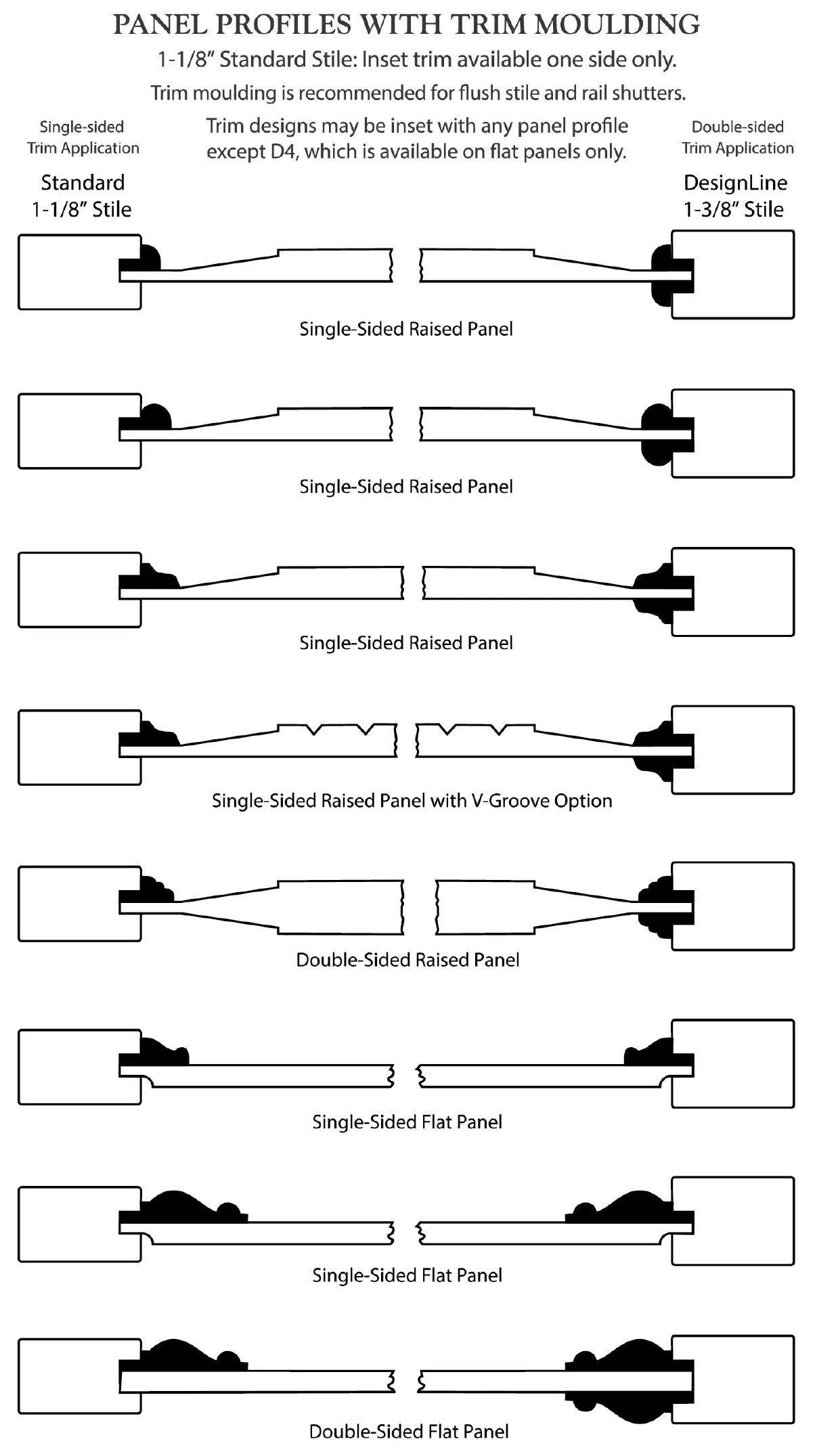

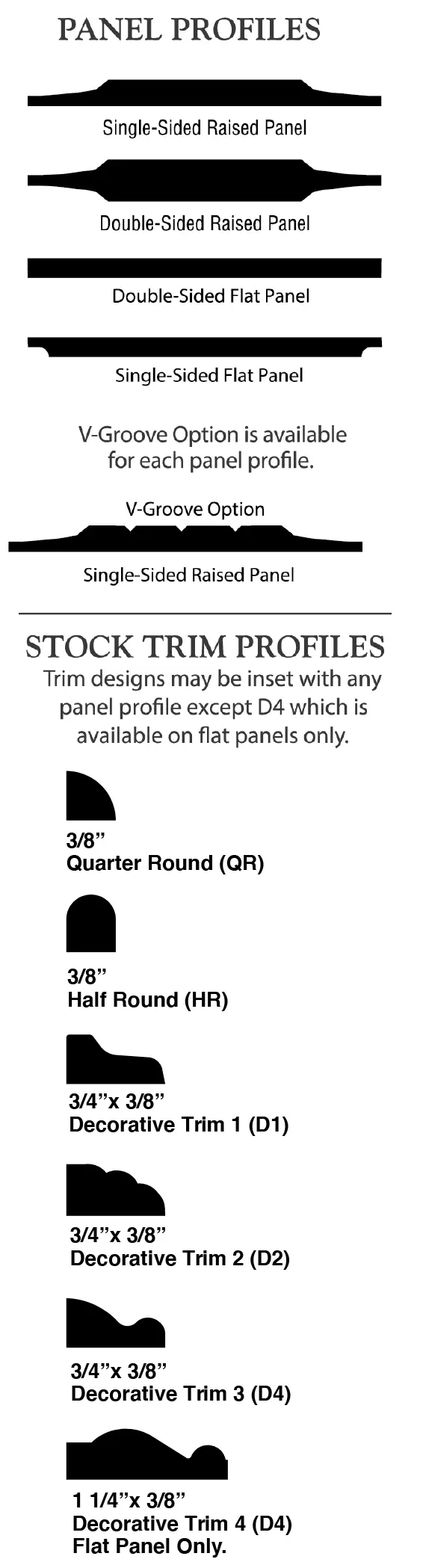

Panel Profiles and Decorative Trim Options
*Additional charges may apply

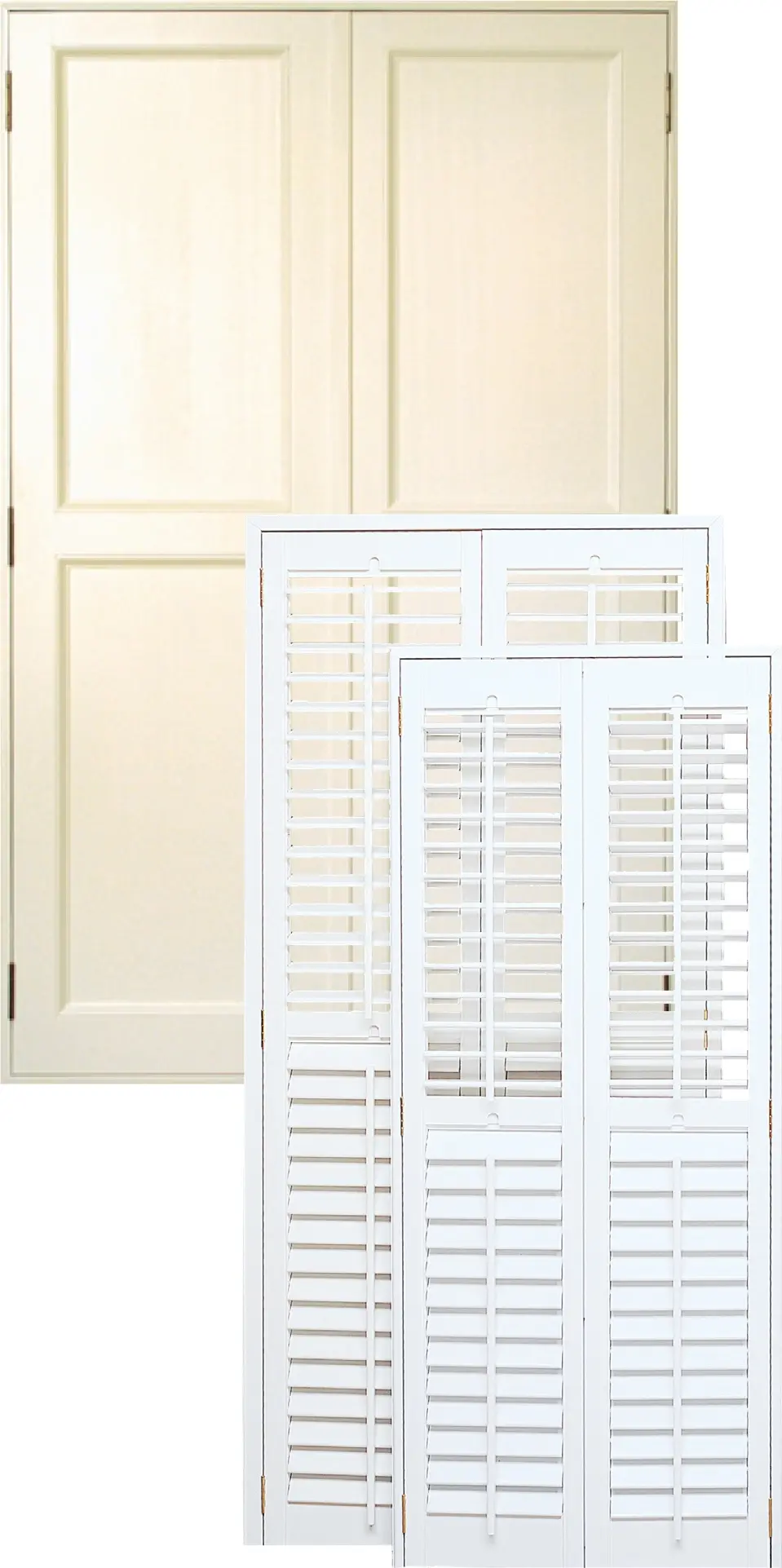

Finishing Options
Southern Shutter takes the guesswork out of shutter installation. Interior shutters may be ordered unfinished or factory-finished in varying stages of completion.
1. READY TO INSTALL:
Painted or Stained with Selected Hanging System; Ready for Installation.
Shutters are completely sanded, primed and finished in your choice of color or stain. All color finishes may be matched to Sherwin Williams, Benjamin Moore, or PPG by suppling the manufacturer’s color name and color number code. Shutters are then pre-fit in a complete hanging system, finished and ready-to-install.* See following page and ordering instructions for more details to select the best hanging system for your specific installation.
Finished shutters with hanging systems are priced per square foot, including shutters and finishing. For your specific shutter selection for square footage pricing, call for a quote.
*Hanging systems are disassembled for shipping.
2. SHUTTER PANELS ONLY:
Panels and Hardware ordered separately.
Shutter Panels are priced per pair. Finished shutters are priced by the square foot. Call for a quote.
Installation Options
NOTE: Remember to measure and remeasure to verify your numbers before selecting your shutters and the desired mounting procedure.
Shutters may be mounted inside or outside window casings using hanging strips or frames. In some applications it may be more efficient and simpler to mount your shutters to the window moulding using a framed hanging system. These systems allow for greater flexibility for windows with a shallow depth or that may be out of square.
It is important that various parts of the window construction (casing, moulding, handles, etc.) allow enough space for louver extension when the shutter is closed and louvers are fully open.

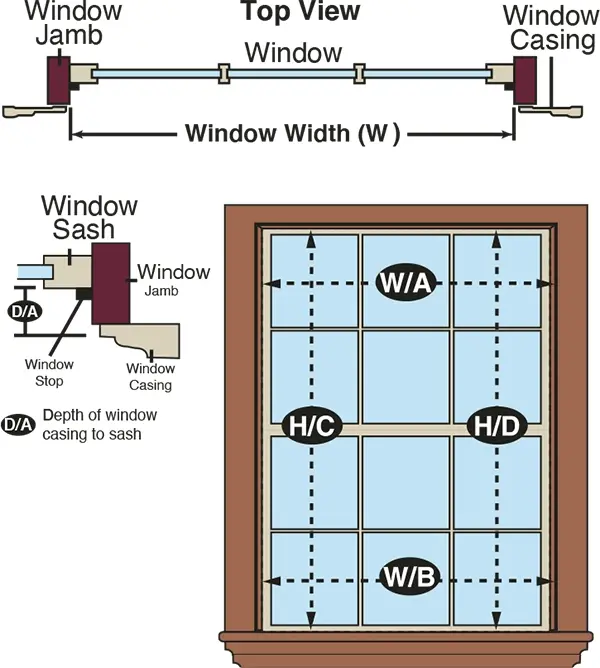

INSIDE FRAME MOUNT
- Measure the inside width of the window at both points (W/A and W/B). and the height at both points (H/C and H/D).
- Measure the window depth (D/A), the distance from the window casing to the window sash.
- Note: A Deduction of 1/8” for clearance on inside frame hanging systems is recommended by the manufacturer.
- For hanging systems with hanging strips or mounting directly window jamb, use the lesser width and height dimension.

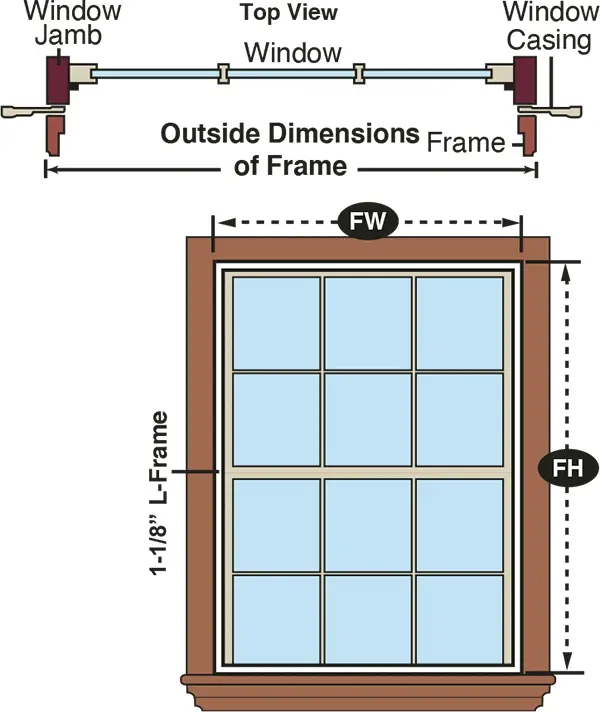

OUTSIDE FRAME MOUNT
- Locate area on casing to mount the 1-1/8” frame.
- Frame width (FW) is determined by measuring outside frame position left to right, including the 1-1/8” frame footprint.
- Frame height (FH) is determined by measuring outside frame position top to bottom, including the 1-1/8” frame footprint.
- To ensure flush mount of frame to window casing, frame position should be consistent on all sides of casing.
INSIDE CASING MOUNTS

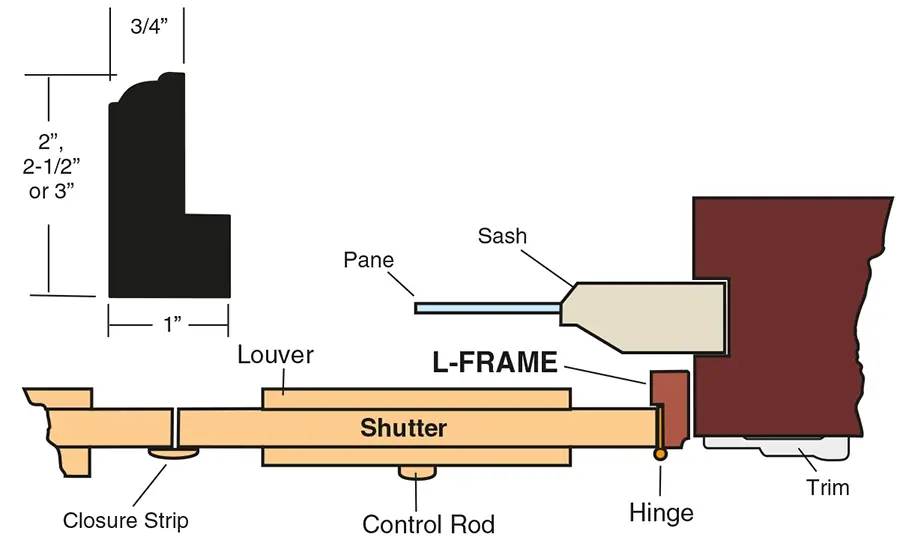

L-Frame Hanging System
2, 3 or 4-sided frame

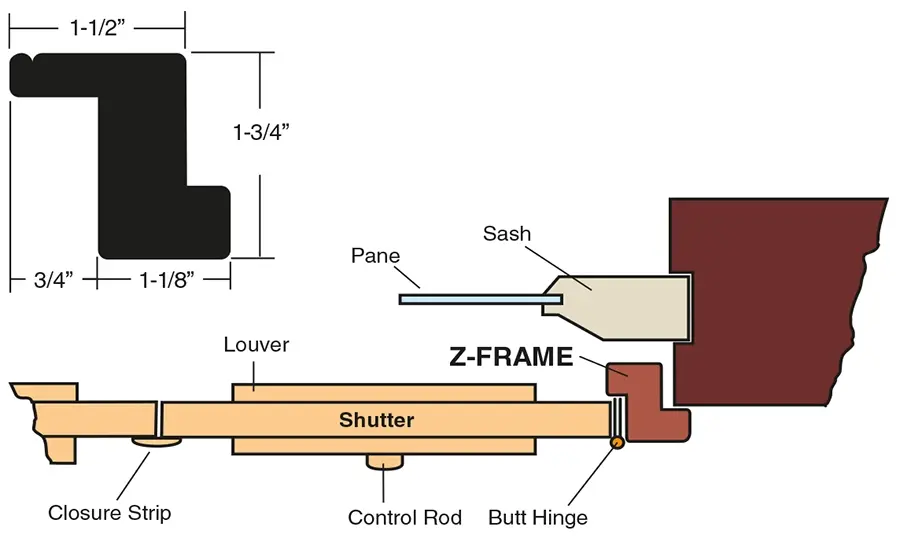

Z-Frame Hanging System
2, 3 or 4-sided frame
Recommended for sheetrock returns
Wrap-Around Hinge & Hanging System
Direct to Casing Mount
OUTSIDE CASING MOUNTS

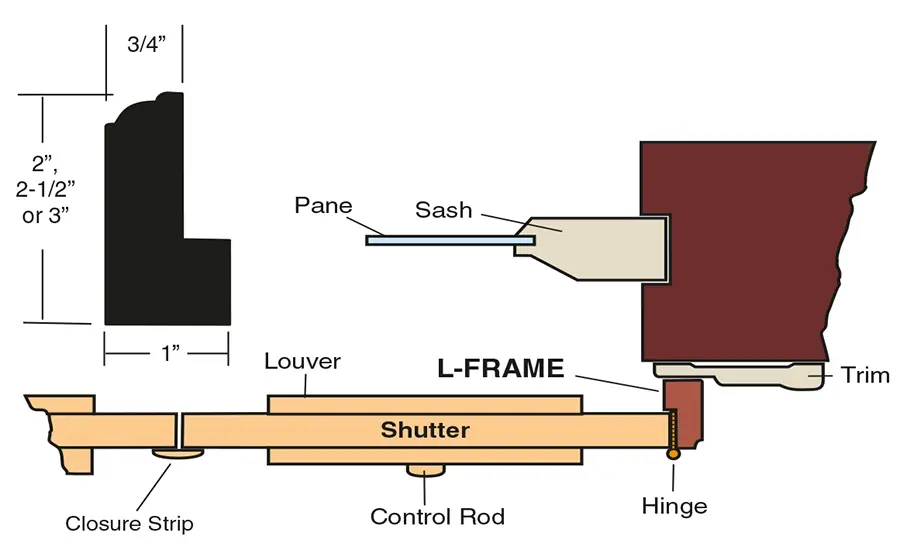

L-Frame Hanging System
2, 3 or 4-sided frame
Mounting Hardware
Southern Shutter offers an extensive selection of interior hardware, including: Non-Mortise Hinges, Magnetic Catches and Café Door Kits.
NON-MORTISE HINGE FINISHES
Wrap-Around or Butt Hinges available in polished brass, antique brass, brushed nickel, chrome, oiled rubbed bronze, and white finishes.
1. NON-MORTISE WRAP AROUND HINGE
Used to mount shutters to a hanging strip installed behind the side stile of the shutter. Choice of finish. Sold in pairs.
2. NON-MORTISE WRAP AROUND HINGE SETS
Used to mount shutters to a hanging strip installed behind the side stile of the shutter. Choice of finish. Complete mounting kit including 4 hinges and magnetic catch.
3. NON-MORTISE BUTT HINGE
Used to attach shutters to a frame or window jamb. Choice of finish. Sold in pairs.
4. NON-MORTISE BUTT HINGE SETS
Used to attach shutters to a frame or window jamb. Choice of finish. Complete mounting kit including 4 hinges and magnetic catch.
5. MAGENTIC CATCHES
Brown or White.
6. CAFÉ DOOR KITS
Polished brass gravity-action hinged return door to center or hold doors open.
*Recommended hinges per pair: Shutter height 12”-48”, 4 hinges • Shutter height 48”-96”, 6 hinges • Shutter height 97”-120”, 8 hinges.
1. Non-Mortise Wrap Around Hinge (2 hinges & screws only)
2. Non-Mortise Wrap Around Hinge Sets (4 hinges, screws & magnetic catch with strike plates.)
3. Non-Mortise Butt Hinge (2 hinges & screws only)
4. Non-Mortise Butt Hinge Sets (4 hinges, screws & magnetic catch with strike plates)
5. Magnetic Catches (Magnetic catch with 2 strike plates & screws)
6. Café Door Mounting Kit (4 hinges, screws, magnetic catch with strike plates & knob set)
Shutter Track Systems..........Call for quote
Interior Frame Stock (price per Linear Foot)
Hanging Strip
Unprimed Primed
L-Frame Stock
Unprimed Primed
Z-Frame Stock
Unprimed Primed
T-Post Stock
Unprimed Primed
DesignLine
1-3/8” FLUSH STILE & RAIL PANELED SHUTTERS

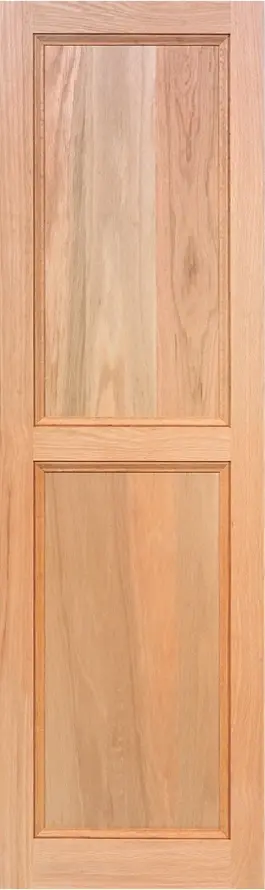

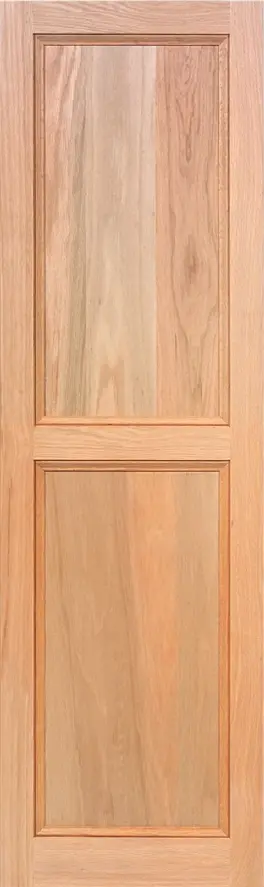

Flush Stile & Rail Raised Panel Shutter with 2 Equal Sections
Flush Stile & Rail V-Groove Flat Panel Shutter
Flush Stile & Rail V-Groove Raised Panel Shutter
Flush Stile & Rail Flat Panel Shutter with 2 Equal Sections
Flush Stile and Rail Raised Panel Shutter with Rail Placement
Flush Stile & Rail Flat Panel Shutter with Decorative Trim
Flush Stile & Rail Raised Panel Shutter with 3 Equal Sections

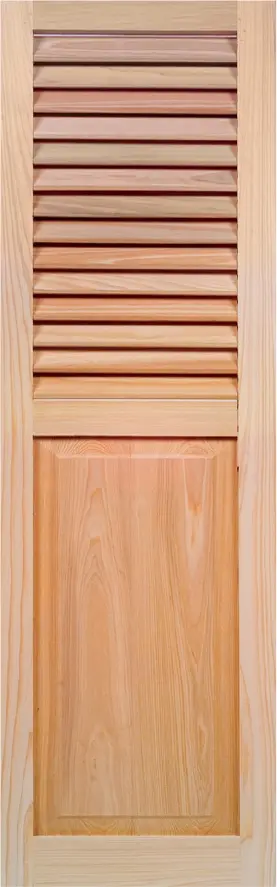

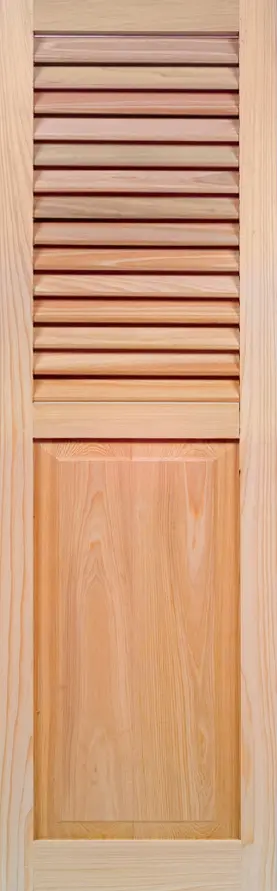

Flush Stile & Rail Fixed Louver Over Raised Panel Combination Shutter
DesignLine 1-3/8” Paneled Shutters
DesignLine
Flush Stile & Rail Raised Panel Shutters with 2 Equal Sections
DesignLine
Flush Stile & Rail Flat Panel Shutter with 2 Equal Sections
DesignLine
Flush Stile & Rail Fixed Louver Over Raised Panel Combination Shutter
DesignLine
Flush Stile & Rail V-Groove Flat Panel Shutter
DesignLine
Flush Stile & Rail V-Groove Raised Panel Shutter
DesignLine
Flush Stile & Rail Raised Panel Shutter with Rail Placement
DesignLine
Flush Stile & Rail Flat Panel Shutter with Decorative Trim
DesignLine
Flush Stile & Rail Raised Panel Shutters with 3 Equal Sections
Illustrated below are some suggested options for 1-3/8” DesignLine Flush Stile & Rail Shutters with Variable Panels. For other additional options call or email for a quote.
Raised Panel with 2 Equal Sections and Decorative Trim Moulding

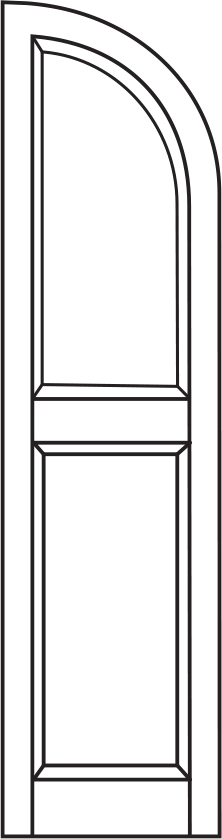

Raised Panel 2 Equal Sections with Quarter Round Arch Top
V-Groove Raised Panel; Rail Placement with 3 Equal Sections
Flat Panel with 2 Equal Sections and Decorative Cutout
Raised Panel with 2 Equal Sections and Café Style Arch Top
V-Groove Raised Panel with 2 Equal Sections and Eyebrow Arch Top
Flat Panel 3 Sections with Small Middle and D3 Inset Trim
Raised Panel Rail Placement with 3 Sections with Small Transom Top
Combination True Louver over Raised Panel with 2 Equal Sections
V-Groove Flat Panel with Rail Placement
Raised Panel with 2 Equal Sections and Eyebrow Arch Top
MEASURING & INSTALLATION GUIDE FOR INTERIOR SHUTTERS
NOTE: Remember to measure to verify your numbers before selecting your shutters and the desired mounting procedure.
Shutters may be mounted inside or outside window casings using hanging strips or frames. In some applications it may be more efficient and simpler to mount your shutters to the window moulding using a framed hanging system. These systems allow for greater flexibility for windows with a shallow depth or that may be out of square. It is important that various parts of the window construction (casing, moulding, handles, etc.) allow enough space for louver extension when the shutter is closed and the louvers are fully open.
WINDOW MEASUREMENTS FOR INSIDE CASING MOUNT

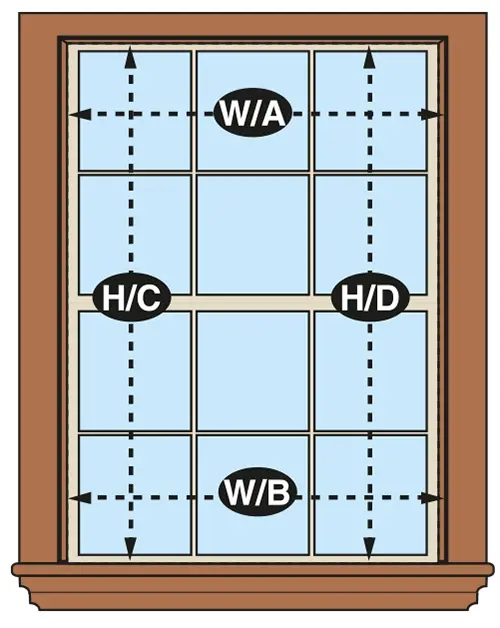

- Measure the inside width of the window at both points (W/A and W/B), and the height at both points (H/C and H/D).

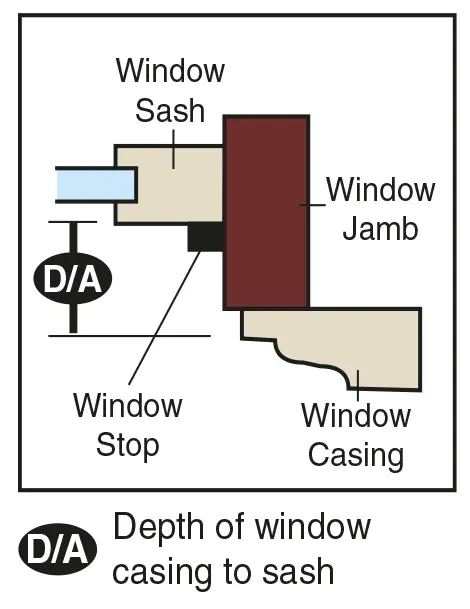

- Measure the window depth (D/A), the distance from the window casing to the windowsash.
- Note: A deduction of 1/8” for clearance on inside frame hanging systems is recommended by the manufacturer.
- For hanging systems with hanging strips or mounting directlywindow jamb, use the lesser width and height dimension.

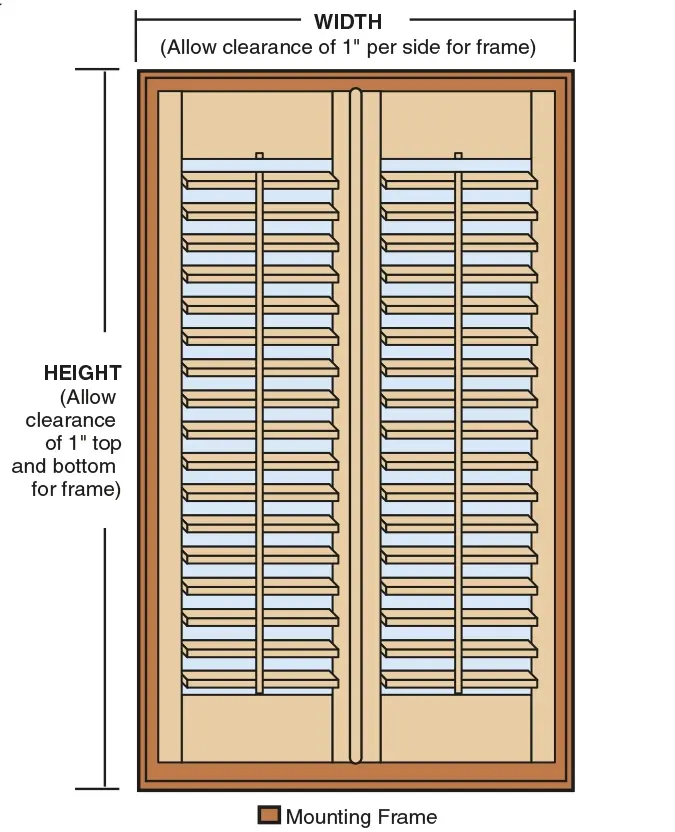

WINDOW MEASUREMENTS FOR OUTSIDE FRAME MOUNT
- Locate area on casing to mount the 1 inch frame.
- Frame width (FW) is determined by measuring outside frame position left to right, including the 11/8” frame footprint.
- Frame height (FH) is determined by measuring outside frame position top to bottom, including the 11/8” frame footprint.
- To ensure flush mount of frame to window casing, frame position should be consistant on all sides ofcasing.
Installing Interior Shutters
Inside or Outside Mount
Most Hanging Systems may be used as inside mounts or outside mounts. Factors such as squareness of the windowopening, tilt window functions, obstructions and appearance should contribute to this decision. Note: Deduction of 1/8” for clearance on inside frame hanging systems is recommended bymanufacturer.
MEASURING & INSTALLATION GUIDE FOR INTERIOR SHUTTERS
OUTSIDE CASING MOUNTS
L-FRAME HANGING SYSTEM (3 or 4-sided frame)
INSIDE CASING MOUNTS
L-FRAME HANGING SYSTEM (3 or 4-sided frame)
- Hardware
Ready-to-insall shutters are shipped with all the neccessary hardware in your choice of finishes, including Antique Brass, Brushed Nickel, Chrome, Oil Rubbed Bronze, Polished Brass, White and Black.
INSIDE CASING MOUNTS
Z-FRAME HANGING SYSTEM (3 or 4-sided frame)
Recommended for sheetrock returns
DIRECT TO CASING MOUNT

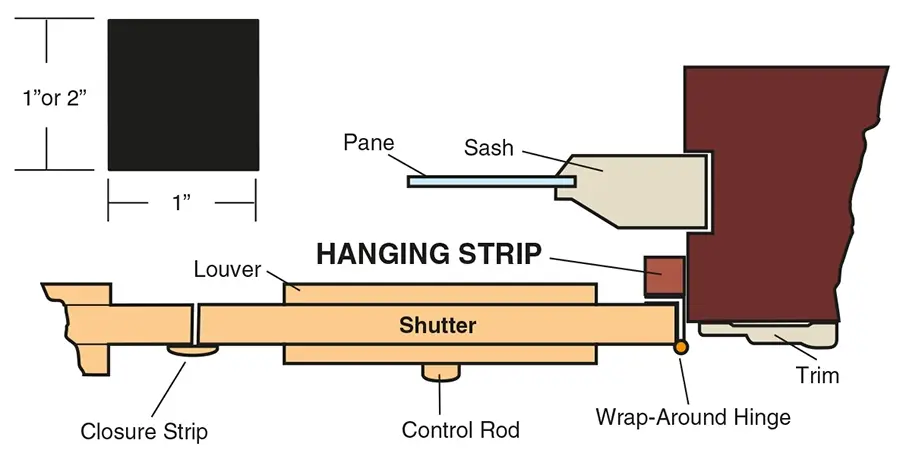

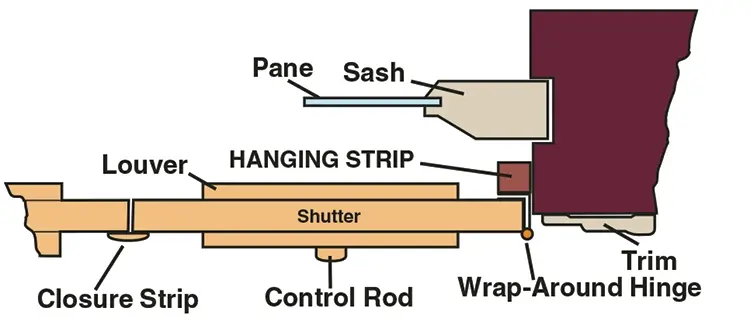

WRAP-AROUND HINGE & HANGING STRIP SYSTEM
MEASURING & INSTALLATION GUIDE FOR INTERIOR SHUTTERS
Hanging Systems
- Direct to Casing
- Wrap-around Hanging Strips inside or outside.
- 3-Sided Frames Inside or Outside (L or Z Frame)
- 4-Sided Frames Inside or Outside (L or Z Frame)
- Track Systems, in bi-fold or by-pass configurations.
Hanging Strip
L-Frame
Z-Frame
T-Post
Panel Layout
Let the window guide your layout. Each characterin the design layout code represents one shutter panel and its hinge direction. A dash is used to indicate a T-Post or mullion.
L Single Panel Hinged Left
R Single Panel Hinged Right
LR 2 Panels: 1 Left 1 Right
LLRR: Four Panels: 2 Left, 2 RIght
L -LR -R: Picture style window, proportional 25% - 50% -25%
LL -LR -RR: For tripple window unit design layout, proportional 33% -33% -33%
A Combination Shutter is always a Combination of Louvers and Panels. The selections must be a combination. Please select another option.
Shutters over - void warranty
